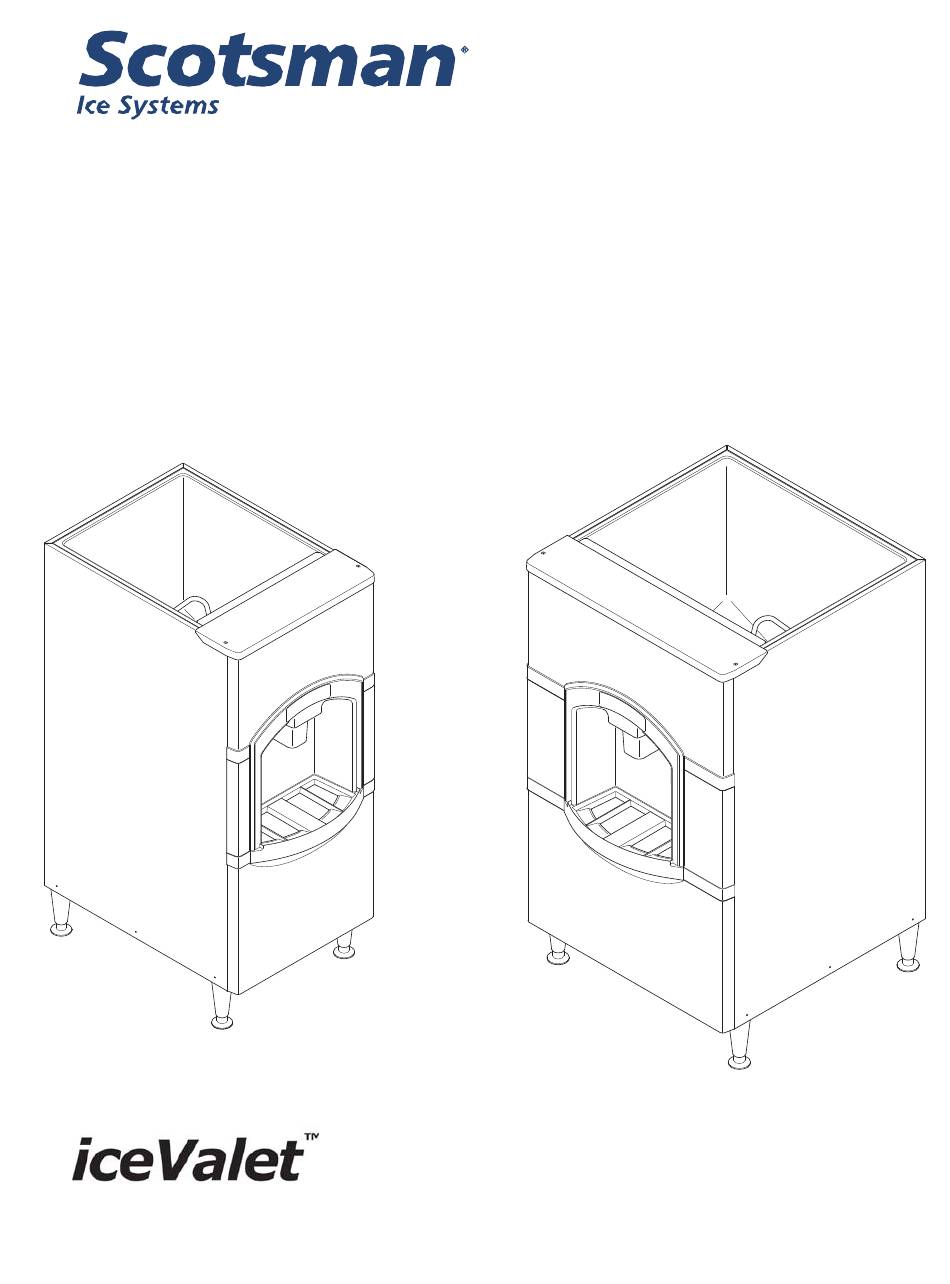

- Page 1 Product Manual for Ice Dispensers HD22 and HD30 Models...
- Page 2 HD22 and HD30 Introduction To the owner or user: This product manual is a source of information about the installation, start up, cleaning, maintenance and repair of the product. Table of Contents Introduction · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Page 1 General Description ·...
-
Page 3: General Description
HD22 and HD30 General Description The HD22 is a hotel/motel ice dispenser. It is designed to use a Scotsman C0322 or C0522 cube ice machine as the source for ice. The HD30 is a wider version of the HD22 and is designed to use a Scotsman C0330 or C0530 cuber as its source of ice. -
Page 4: Specifications & Limitations
Check the nameplate, located on the back of the versions, the HD22 is only available as a Basic cabinet for specific information. model. Scotsman reserves the right to make design 50 Hz. changes and/or improvements at any time. The Basic models of the HD22 and HD30 are... - Page 5 HD22 and HD30 HD30 Dimensioned Illustration (2) 5/16-18 UNC ICE HEAD MOUNTING 24.1 1" 451.1 17 3/4" POWER CORD WATER INLET 3/8 FLARE (WATER FILLER ONLY) 444.4 17 1/2" 179.1 7" 3/4 FPT DRAIN 189.4 189.7 7 1/2" 7 1/2" BACK 609.6 762.4...
- Page 6 HD22 and HD30 HD22 Dimensioned Illustration (2) 5/16-18 UNC ICE HEAD MOUNTING 24.1 406.4 1" 16" POWER CORD 179.1 7" 3/4 FPT DRAIN 88.9 3 1/2" BACK 558.8 609.6 22" 24" HEAD HEAD 711.200 28" Note: Ice fill station depth is curved to match large ice buckets.
-
Page 7: Product Description
HD22 and HD30 Product Description All models consist of a plastic lined, insulated hopper mounted to a metal base. The hopper contains a 15 blade plastic dispense wheel and a stainless steel sweep arm. The top front of the hopper has a removable door to facilitate maintenance and cleaning of the hopper without removal of the ice machine. - Page 8 HD22 and HD30 Unpacking After removing the carton, check for the Front Panel Removal loose-shipped parts packed in the storage bin. The The front panel rests on the base and is located parts will include a carton with four legs. Remove with pins that stick up from the base.
-
Page 9: Installation - Plumbing
HD22 and HD30 Installation - Plumbing Drain: All models of the dispenser have a 3/4" FPT drain fitting at the bottom of the back panel. Connect 3/4" rigid tubing to this connection, a vent is recommended for most installations. Route the drain tubing to the building drain. -
Page 10: Installation - Electrical And Ice Machine Assembly
HD22 and HD30 Installation - Electrical and Ice Machine Assembly The dispenser is supplied with a power cord. Do not use with an extension cord. The unit must be plugged into a properly grounded outlet. The dispenser must be installed so that it is a separate piece of equipment from the ice machine. -
Page 11: Final Check List/Initial Start Up
HD22 and HD30 Final Check List/Initial Start Up 1. Check that electrical power has been supplied. To Start: 2. Check that a drain, separate from the ice 1. Connect electrical power. The dispensing machine, insulated and made of rigid tubing, has system will cycle on for a few seconds. - Page 12 HD22 and HD30 Basic Model After the ice machine has operated for a few hours, the HD dispenser can be used. Pushing the ice chute back will activate the dispense mechanism and ice will drop out of the chute into the users container.
-
Page 13: General Care And Cleaning
HD22 and HD30 General Care and Cleaning Periodically inspect and clean the ice dispenser to 5. Lift up and remove the access door at the front keep it operating at peak performance. of the bin Wash the outside of the dispenser with warm water 6. - Page 14 HD22 and HD30 General Care And Cleaning - Continued 10. Rinse all areas washed with clean, fresh water. 11. Using the ice machine cleaning solution, clean the ice grill, sink, sweep arm and dispense wheel. Rinse these parts with clean, fresh water. 12.
-
Page 15: Maintenance
HD22 and HD30 Maintenance Spilled ice and user debris will collect in the ice catch pan, located just below the sink grill. Occasionally the debris will need to be removed and the drain flushed out to prevent water back ups. Note: Failure to clean out the ice catch pan will likely result in a water leak, one that is NOT covered by warranty. - Page 16 HD22 and HD30 Adjustments The dispenser is preset at the factory. Adjustments are rarely needed. Agitation Time Recommendations: The standard time is 3 seconds on every 6 hours. Adjust to agitate more frequently if the unit is installed in a low temperature environment. However, if the ice being produced by the ice machine is cloudy and crumbles easily, adjust to agitate less frequently.
-
Page 17: Service Diagnosis
HD22 and HD30 Service Diagnosis Symptom Probable Cause Possible Fix No ice is dispensed - Basic Model No power to dispenser Check for proper power, is dispenser plugged in? No ice Check ice machine Vend switch does not close Check vend switch Check chute for proper motion Chute cannot be pushed back Check door lock for proper operation... - Page 18 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-726-8762 www.scotsman-ice.com 17-2957-01...
