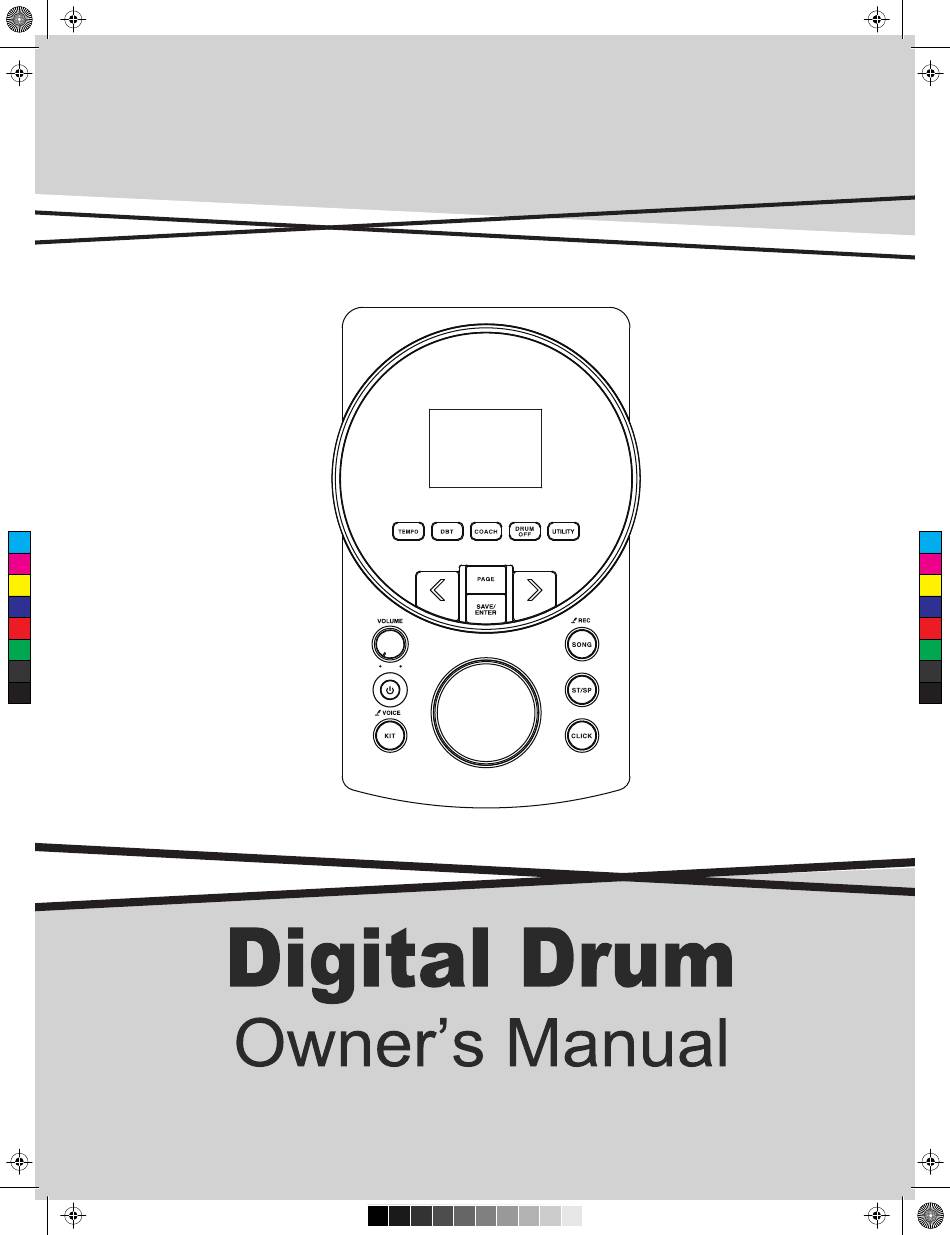

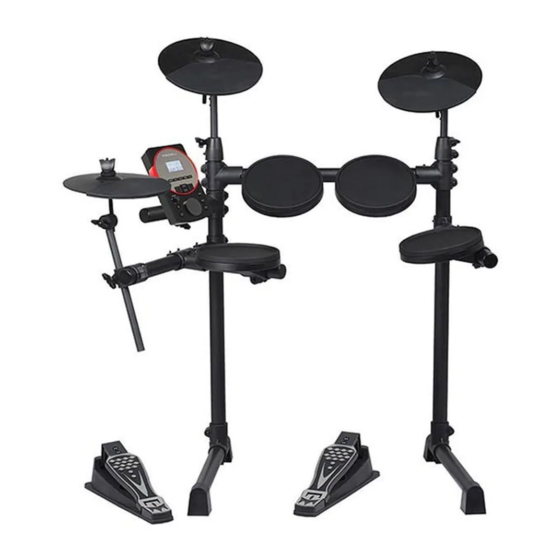

  • Page 1 AW_DD610_manual_G04_180424.pdf 1 2018-04-24 11:02:58...
  • Page 2 AW_DD610_manual_G04_180424.pdf 2 2018-04-24 11:02:58 INFORMATION FOR YOUR SAFETY! PRECAUTIONS CAUTION The normal function of the product may be disturbed PLEASE READ CAREFULLY BEFORE PROCEEDING by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by Please keep this manual in a safe place for future reference.

  • Page 3: Table Of Contents

    AW_DD610_manual_G04_180424.pdf 3 2018-04-24 11:02:58 Contents Main Features.............4 Record Preparing Record............15 Start / Stop Recording..........15 Panel & Display Description Front Panel..............5 Coach Side Panel (Connecting)..........6 About Coach Mode.............16 LCD Display..............7 Coach Mode Control..........16 Qut Cnt (Quiet Count)..........16 Setup Change Up..............17 Beat Check..............18 Connecting Pads and Pedals........8 DBT (Double Bass Trigger) Getting Ready to Play...

  • Page 4: Main Features

    AW_DD610_manual_G04_180424.pdf 4 2018-04-24 11:02:58 Main Features Bring the Professional Experience to Your Performance Natural and Realistic Voices This digital drum has equipped with all new voices, which vastly improved sound quality and will reach a super natural and realistic sense for your ears. No matter playing the stroke roll or striking pads with velocity dynamic, all of these let you enjoy delicate nuances and natural voice, capture the unique characteristics of acoustic drum kit.

  • Page 5: Panel & Display Description

    AW_DD610_manual_G04_180424.pdf 5 2018-04-24 11:02:58 Panel Description Front Panel 1. [VOLUME] Knob 8. [TEMPO] Button Adjust the phone volume level. Adjust the tempo value. Note: 9. [DBT] (DOUBLE BASS TRIGGER) Button Turn DBT function on/ off. Rotate the [VOLUME] knob anticlockwise to the *Turn DBT function on.

  • Page 6: Side Panel (Connecting)

    AW_DD610_manual_G04_180424.pdf 6 2018-04-24 11:02:58 Panel Description Side Panel (Connecting) Note: To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections. L / MONO CRASH 2 TOM 4 OUTPUT TRIGGER IN 18 19 17.

  • Page 7: Lcd Display

    AW_DD610_manual_G04_180424.pdf 7 2018-04-24 11:02:58 Panel Description LCD Display 1. Mode 5. Pad Name Display the current mode, such as KIT, VOICE, SONG, Display the current selected pad name. and UTILITY and so on. 6. Parameter Type 2. Coach Mode Display current parameter type, for instance, Volume, Display current beat accuracy and rhythm type.

  • Page 8: Setup

    AW_DD610_manual_G04_180424.pdf 8 2018-04-24 11:02:58 Setup Caution! To prevent electric shock and damage to drum module or other devices, always turn off the power of all devices before making any connections. Connecting Pads and Pedals Standard configuration: KICK, SNARE, TOM 1~3, CRASH 1 (Choke), RIDE (Choke), HI-HAT, HI-HAT CON- TROL PEDAL.

  • Page 9: Getting Ready To Play

    AW_DD610_manual_G04_180424.pdf 9 2018-04-24 11:02:58 Getting Ready to Play Setting up the Power Supply Connect the DC plug of the AC power adaptor to the DC IN jack on the side panel. Connect the other end of the power cord to the AC outlet. Note: 1.

  • Page 10: Quick Play

    AW_DD610_manual_G04_180424.pdf 10 2018-04-24 11:02:58 Quick Play KIT xx Drum Kits and Voices An acoustic drum has only a fixed kit, but the digital has a lot. It is a KICK SNARE TOM1 TOM2 particular characteristic of digital drum. Head Head Head Head The structure of a drum kit is shown on the right:...

  • Page 11: Playing Techniques

    AW_DD610_manual_G04_180424.pdf 11 2018-04-24 11:02:58 Quick Play Playing Techniques This section introduces various performance functions to make your performance professional. Similar to an acoustic drum kit, the digital drum responds differently to various playing techniques and dynamics. All the pads are velocity sensitive. And some voices change timbre depending on the striking force.

  • Page 12: Select A Preset Drum Kit And Create A User Drum

    AW_DD610_manual_G04_180424.pdf 12 2018-04-24 11:02:58 Select a Preset Drum Kit and Create a User Drum Kit About the Preset and User Drum Kit The instrument provides preset drum kits (refer to the Drum Kits List) and user drum kits. You can edit a preset drum kit and save it to a user drum kit.

  • Page 13: Save User Drum Kit

    AW_DD610_manual_G04_180424.pdf 13 2018-04-24 11:02:58 Select a Preset Drum Kit and Create a User Drum Kit Save User Drum Kit While in the drum kit and voice edit menu, press the [SAVE/ ENTER] button to save all changes. SAVE/ ENTER Use the [<]/[>] button or turn the [DIAL] to select a user drum kit (From NO.21 to 25).

  • Page 14: Playing Along With A Song

    AW_DD610_manual_G04_180424.pdf 14 2018-04-24 11:02:58 Playing Along with a Song In order to have a better performance experience, a variety of styles can be selected. Each one offers you to practice. (Refer to the Song List) You can play the drums while listening to one of these songs. A song contains Drum part and Accompaniment part.

  • Page 15: Record

    AW_DD610_manual_G04_180424.pdf 15 2018-04-24 11:02:59 Record This digital drum offers you easily record your own performance. Maximize 2500 notes could be recorded in one user song. Preparing and starting record, refer to the details bellow: Preparing Record Press the [SONG/REC] button for 2 seconds to enter the Record- prepare mode, the light of the [SONG/REC] button start flashing, please select which user song(61) you want to record.

  • Page 16: Coach

    AW_DD610_manual_G04_180424.pdf 16 2018-04-24 11:02:59 Coach The Coach mode is a unique set of exercises. Specifically designed for those learners who want to build a better tempo, accuracy and stami- na, as well as developing a better drum playing skills. About Coach Mode There are three types of exercises in Coach Mode: Quiet Count, Change Up and Beat Check.

  • Page 17: Change Up

    AW_DD610_manual_G04_180424.pdf 17 2018-04-24 11:02:59 Coach Parameters Range Display Description QUT XXX Use the [<]/ [>] button or turn the [DIAL] to select a suitable quiet type. 1-1/2-2/1-3 CNT XXX Use the [<]/ [>] button or turn the [DIAL] to select a suitable count type. 1-1: 1 measure counts, 1 measure quiets.

  • Page 18: Beat Check

    AW_DD610_manual_G04_180424.pdf 18 2018-04-24 11:02:59 Coach Beat Check In order to improve playing accuracy of beat, practice with the metro- nome basic beat type. If the score function is on, system will display your practicing score after you have finished. PAGE Repeatedly press the [PAGE] button to select beat check mode.

  • Page 19: Dbt (Double Bass Trigger)

    AW_DD610_manual_G04_180424.pdf 19 2018-04-24 11:02:59 DBT (Double Bass Trigger) Normally, it is too hard for beginners to play double bass, almost impossible, but we make it possible now. Turn on DBT function on; it can generate two or three continuous kick sounds when you step on the bass drum only once.

  • Page 20: Utility Mode (Utility)

    AW_DD610_manual_G04_180424.pdf 20 2018-04-24 11:02:59 Utility Mode (UTILITY) This mode contains two parts: the drum pad trigger settings and drum module settings. The Drum Pad Trigger Settings As a professional drummer, you may be very pleased to set your drum triggers carefully corresponding to your playing habits and feelings, making your performance more interesting and professional.

  • Page 21: The Drum Module Settings

    AW_DD610_manual_G04_180424.pdf 21 2018-04-24 11:02:59 Utility Mode (UTILITY) Note: Volume Volume Volume The Curve descriptions are shown below: Curve 1: The standard setting. This produces the most natural corre- spondence between playing dynamics and volume change. Curve 2, 3: Compared to Curve 1, strong dynamics produce a greater change.

  • Page 22: Troubleshooting

    AW_DD610_manual_G04_180424.pdf 22 2018-04-24 11:02:59 Troubleshooting Problem Possible Cause and Solution No sound 1. Rotate the [VOLUME] knob to be sure that the volume isn’t down. 2. To be sure that Local Mode should be set to “ON” No sound from Pads 1.

  • Page 23: Specifications

    AW_DD610_manual_G04_180424.pdf 23 2018-04-24 11:02:59 Specifications Maximum Polyphony Connectors TRIGGER INPUT Connector(DB25), PHONES, LINE OUT (R, L/MONO), TOM4，CRASH2，MIDI OUT, AUX IN, Drum kits USB-MIDI Kit: 25 (20 Presets + 5 Users) Control Buttons GM Drum Kit: 5 GM Drum Kits Power on/off, Master Volume, Click, Kit/ Voice, Save/ Enter, Instruments Drum Off, DBT, Coach, Song/ Rec, Start/Stop, Utility, Instrument: 226+9 Hi-hat Combination...

  • Page 24: Drum Voice List

    AW_DD610_manual_G04_180424.pdf 24 2018-04-24 11:02:59 Drum Voice List NAME Electronic Snare Brush Ride 2 KICK Electronic Snare Stick Brush Ride 21 Bell 22‘’ Acoustic Kick 1 20'' Rock Ride 22‘’ Acoustic Kick 2 Acoustic Tom 1 Electronic Ride CRASH Brush Kick 1 Acoustic Tom 2 Brush Kick 2 Acoustic Tom 3...
  • Page 25 AW_DD610_manual_G04_180424.pdf 25 2018-04-24 11:02:59 Drum Voice List Low Agogo FX 8 Claves FX 9 Jingle Bell FX 10 Tambourine 1 FX 11 Indian 1 Indian 2 Indian 3 Three Indian 4 Four Indian 5 Five Indian 6 Indian 7 Seven Indian 8 Eight Indian 9...

  • Page 26: Song List

    AW_DD610_manual_G04_180424.pdf 26 2018-04-24 11:02:59 Song List Name Samba2 Blues Funk Mambo Fusion1 Latin Rock Cool Jazz Latin Pop Blues1 Gtr Bossa Samba1 Country Blues Vintage Hip-Hop Rock Nu-Jazz Funk Raggae2 Soul 60's Rock Vintage Funk Blues2 Trance Fusion2 Country Pop Dance Funk Classic Rock Modern Pop...

  • Page 27: Gm Drum Kit List

    AW_DD610_manual_G04_180424.pdf 27 2018-04-24 11:02:59 GM Drum Kit List Note No.　 Standard (bank 00) Funk (bank 08) Rock (bank 16) Electric (bank 24) Brush (bank 40) Eb1[27] High Q 　 E 1[28] Slap F 1[29] Scratch Push Scratch Pull F#1[30] G 1[31] Sticks G#1[32] Square Click...

  • Page 28: Gm Melody Voice List

    AW_DD610_manual_G04_180424.pdf 28 2018-04-24 11:02:59 GM Backing Instrument List...

  • Page 29: Midi Implementation Chart

    AW_DD610_manual_G04_180424.pdf 29 2018-04-24 11:02:59 MIDI Implementation Chart ○: YES ×: NO...
  • Page 30 AW_DD610_manual_G04_180424.pdf 30 2018-04-24 11:02:59...
  • Page 31 AW_DD610_manual_G04_180424.pdf 31 2018-04-24 11:02:59...
  • Page 32 AW_DD610_manual_G04_180424.pdf 32 2018-04-24 11:02:59 DD610 _G04...
