PLEASE READ THE INSTRUCTIONS COMPLETELY
BEFORE BEGINNING THE INSTALLATION.
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE
7.00
H
C

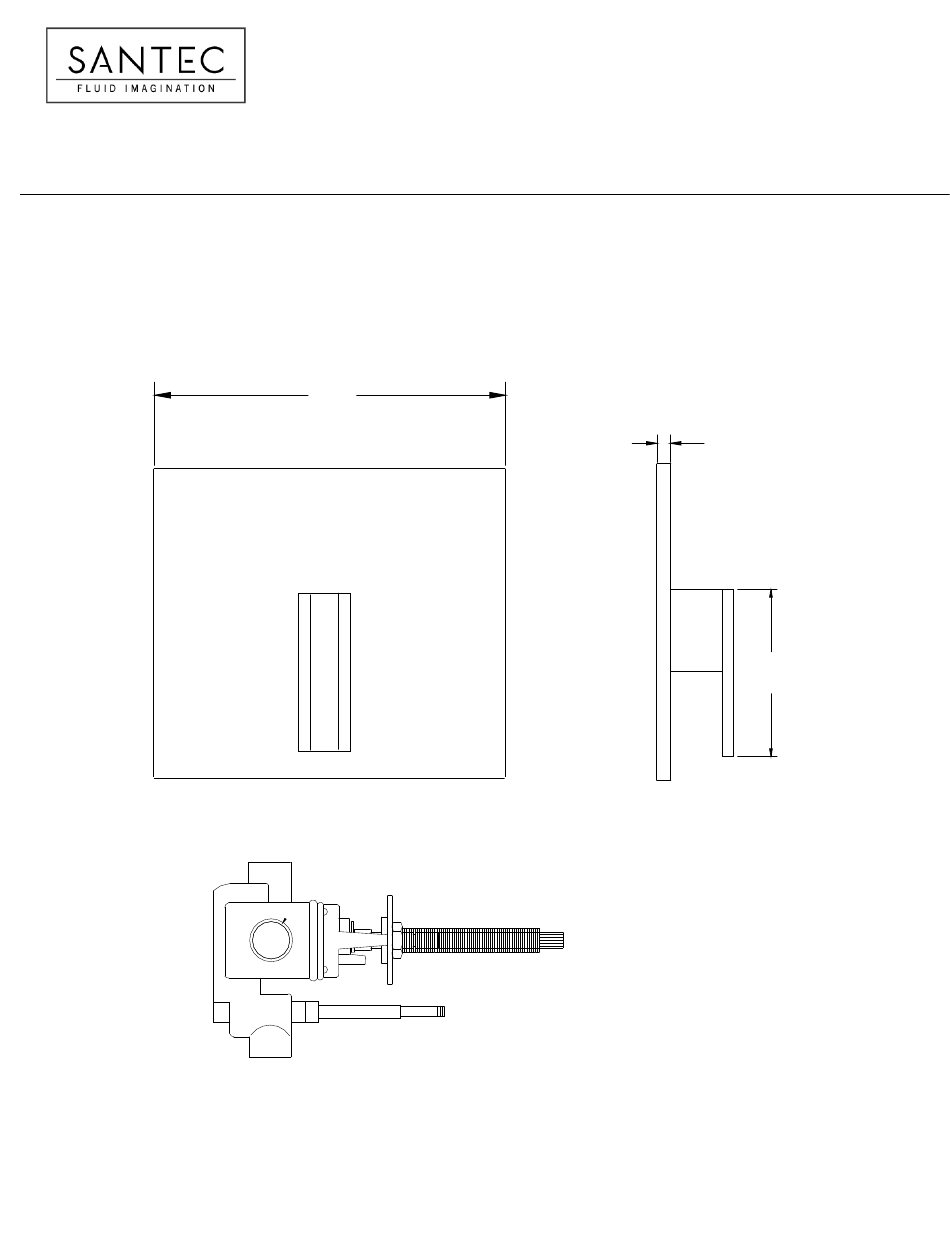

Pressure Balanced Tub/Shower
This is a general installation instruction
for the following collections:
* Monza
* Novo
3/8"
3 3/4"
PAGE 01
Advertisement
Related Manuals for Santec Novo 2835EM-TM
Summary of Contents for Santec Novo 2835EM-TM
- Page 1 Pressure Balanced Tub/Shower This is a general installation instruction for the following collections: PLEASE READ THE INSTRUCTIONS COMPLETELY * Monza BEFORE BEGINNING THE INSTALLATION. * Novo 7.00 3/8” 3 3/4” KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE PAGE 01...
- Page 2 INSTALLATION INSTRUCTIONS Pressure Balanced Tub/Shower DESCRIPTION This product is precision engineered to provide satisfactory performance provided it is installed and operated in accordance with our recommendations contained in this manual. In order to fully enjoy the comfort, safety and the reliability of your pressure balancing valve, be certain to familiarize yourself with the contents of this manual.
- Page 3 INSTALLATION INSTRUCTIONS Pressure Balanced Tub/Shower HANDLE ASSEMBLY LOCK NUT PLASTIC WASHER TRIM INSTALLATION - Place the shower plate on the all thread - Secure the plate by inserting plastic washer and lock nut onto all thread and make sure that the plate is secured.. - Thread the handle set with the washer and adapter onto all thread Trim Plate with the stem and mark the position.
- Page 4 Pressure Balanced Tub/Shower TEMPERATURE LIMIT STOP SET UP MECHANICAL STOP -Santec Pressure Balanced Valve has a temperature limit stop ( please see Illustration C) LIMIT STOP which once set properly can provide a safe and comfortable hot water. Below is the limit stop installation procedure: STOP POST - Remove all Handle trim parts, including the trim plate.
