Please read the instructions completely before beginning the installation.

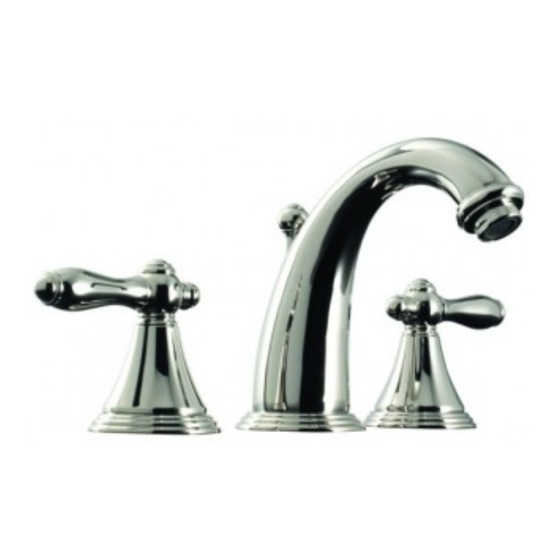

Kriss I Collection
Model Number: 2220CN
Kriss V Collection
Model Number: 2220JZ
Kriss Crystal I Collection
Model Number: 2220JC
Flush both supply lines before installation, then shut off both supply lines.
Minimum hole size for the spout and handle trim is 1-1/4" and maximum of 1-1/2"
SPOUT INSTALLATION
- Remove the tee connector, spout mounting hardware and tee
1
connector washer from the bottom of the spout assembly. Apply
a ring of silicon caulking around the center hole on the top of the sink.
Do not use plumbers' putty which can damage the finish of the faucet.
- From the top of the deck, insert the spout's threaded shank through
the center hole of the sink. Make sure the spout flange washer is
properly placed underneath of the flange and gently pressed against
the sink top.
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
Kriss III Collection
Model Number: 2220AN
Kriss Luna Collection
Model Number: 2220JP
Rev 06/2016
Installation Instruction
KRISS COLLECTIONS
Widespread Lavatory Set
Rubber washer
1/8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Santec KRISS 2220CN
Summary of Contents for Santec KRISS 2220CN

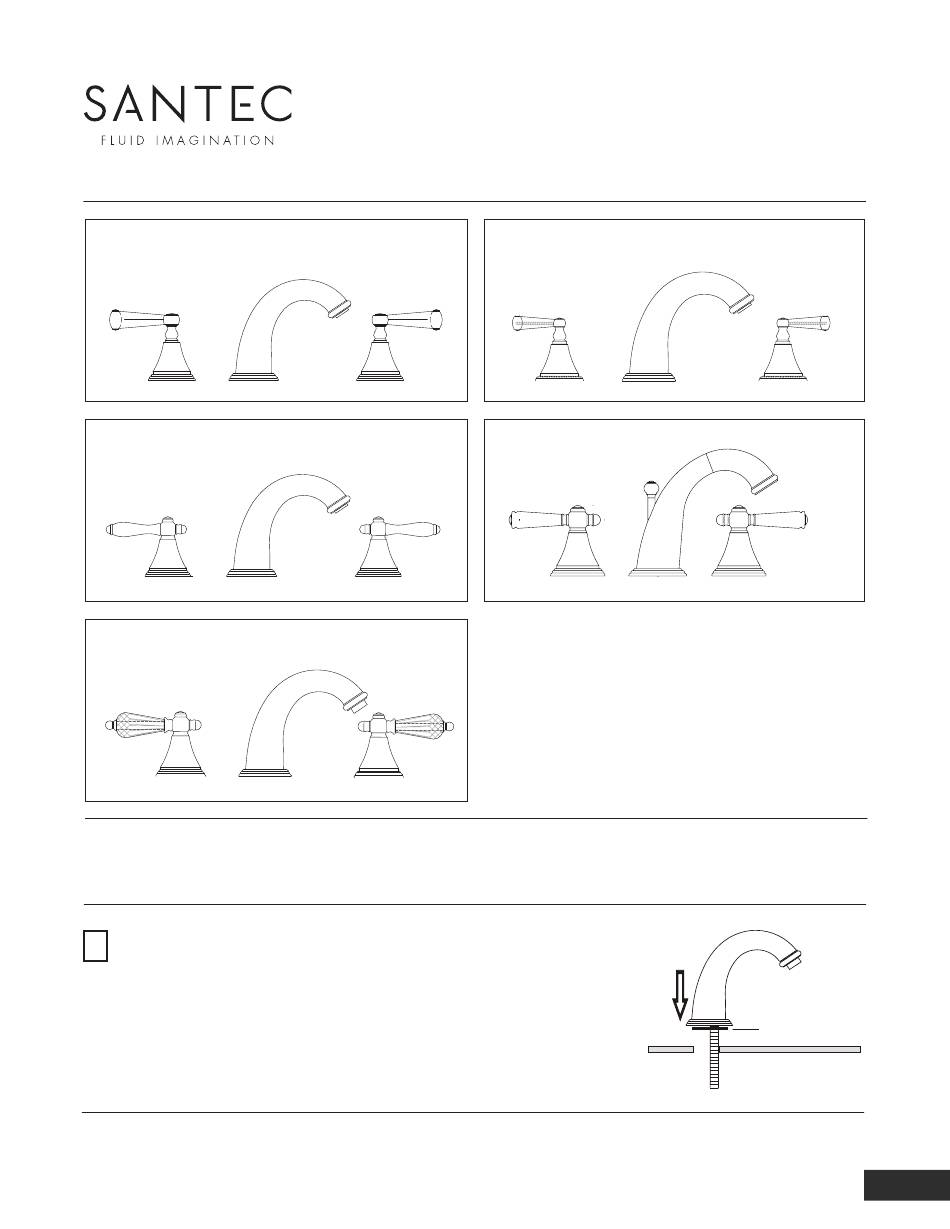

- Page 1 Rev 06/2016 Installation Instruction KRISS COLLECTIONS Widespread Lavatory Set Please read the instructions completely before beginning the installation. Kriss I Collection Kriss III Collection Model Number: 2220CN Model Number: 2220AN Kriss Luna Collection Kriss V Collection Model Number: 2220JP Model Number: 2220JZ Kriss Crystal I Collection Model Number: 2220JC Flush both supply lines before installation, then shut off both supply lines.
- Page 2 - Slip the spout mounting hardware back onto the spout. First the notched rubber washer, then the notched metal washer and lastly the brass lock nut. Hand tighten the lock nut. - Place the pop-up lift rod with the knob through the back hole in the spout and rotate the notched washers until the lift rod passes through the notch.
- Page 3 COMPLETE ASSEMBLY INLET HOSE INLET HOSE TO THE HOT SUPPLY LINE TO THE COLD SUPPLY LINE The measurements shown are for reference only. Products and specifications shown are subject to change without notice. www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681...
- Page 4 POP-UP INSTALLATION Remove the decorative drain flange, drain plug and gasket from pop-up assembly. Do not remove the washer and lock nut. Place the flange gasket onto the drain tube beveled side upward and on top of the washer. Apply a ring of silicon caulking around the top of sink drain opening.
- Page 5 PARTS DRAWING PART DESCRIPTION PART # Complete Spout Assembly * PS-2K00S 00CN-R - right Complete CN Lever Handle Assembly 00CN-L - left Spout Flange * P0227 Hot Cartridge Only P0418 Cold Cartridge Only P0419 Complete Hot Valve P0466 Complete Cold Valve P0467 Connecting Hose to the Tee P0441...
- Page 6 SPECIFICATION SHEETS 2" 4 7 8 " 2 " 13 1 3" " 2" 4 " " POP-UP Ø 2 " " " 12" Ø 1 " The measurements shown are for reference only. Products and specifications shown are subject to change without notice. www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681...
- Page 7 Doing so may ruin your faucet finish and/or void the warranty. Thank you for making SANTEC a part of your lifestyle and luxury spa experience. Our products have been created as works of enduring quality and sophisticated design.
- Page 8 SANTEC reserves the product components of the covered product will be repaired, refinished, or replaced at the sole discretion of SANTEC. SANTEC reserves the right to examine any product claimed defective prior to any warranty claim being accepted or processed, at its sole discretion. This warranty gives you specific legal rights and you may have other rights which may vary from state to state.
