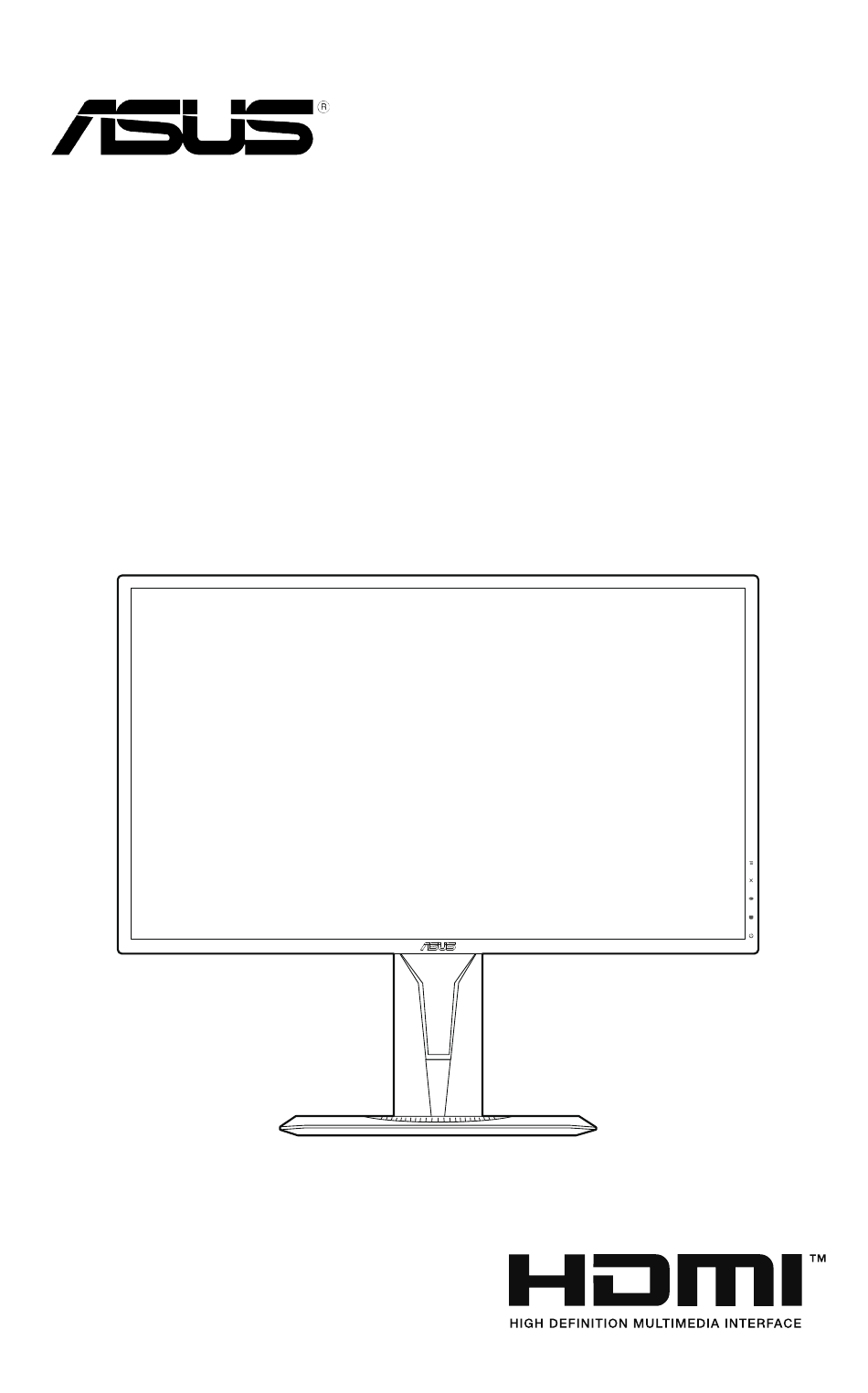

- Page 1 MG248 series LCD Monitor User Guide...
- Page 2 INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
-
Page 3: Table Of Contents
Contents Notices......................iv Safety.information..................v Care.&.Cleaning................... vi Takeback.Services..................vii Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ 1-3 1.3.3 GamePlus Function ............1-4 1.3.4 GameVisual Function ............1-5 Chapter.2:..Setup 2.1. -
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety.information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided. • The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. • Use the appropriate power plug which complies with your local power standard. • Do not overload power strips and extention cords. Overloading can result in fire or electric shock. • Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface. • Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges. • Never push objects or spill liquid of any kind into the slots on the monitor cabinet. • To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC. -
Page 6: Care.&.Cleaning
AEEE yönetmeliğine uygundur Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner. • Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the monitor. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock. -
Page 7: Takeback.services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. - Page 8 viii...
-
Page 9: Welcome
Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual experience that the monitor brings to you! 1.2... -
Page 10: Front View
Monitor introduction 1.3.1. Front.view 5-way) button: • Turns on the OSD menu. Enacts the selected OSD menu item. • Increases/Decreases values or moves your selection up/down/left/right. • Displays the input selection bar when the monitor enters standby mode or displays the “NO SIGNAL“ message. button •... -
Page 11: Back View
HDMI.port. This port is for connection with an HDMI compatible device. Audio-in.port. This port connects PC audio source by the bundled audio cable. Earphone.jack. This port is only available when an HDMI/DisplayPort cable is connected. Kensington.lock.slot. Control.buttons. ASUS MG248 Series LCD Monitor... -
Page 12: Gameplus Function
1.3.3. GamePlus.Function The GamePlus function provides a toolkit and creates a better gaming environment for users when playing different types of games. The crosshair overlay with four different crosshair options lets you choose the one that best suits the game you're playing. -
Page 13: Gamevisual Function
Saturation, Skin Tone, Sharpness, ASCR. • In the sRGB mode, the following function(s) are not user-configurable: Brightness, Contrast, Saturation, Color Temp., Skin Tone, Sharpness, ASCR. •. User.Mode: More items are adjustable in the Color menu. ASUS MG248 Series LCD Monitor... - Page 14 Chapter 1: Product introduction...
-
Page 15: Assembling.the.monitor.arm/Base
Attach the base into the arm, making sure the tab on the arm fits into the groove on the base. Fix the base to the arm by fastening the bundled screw. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. ASUS MG248 Series LCD Monitor... -
Page 16: Adjusting.the.monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. •... -
Page 17: Detaching.the.arm.(For.vesa.wall.mount)
Use a screwdriver to remove the screw on the hinge (Figure 3), then remove the hinge. (Figure 1) (Figure 2) (Figure 3) We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. ASUS MG248 Series LCD Monitor... -
Page 18: Connecting.the.cables
Connecting the cables Connect the cables as the following instructions: •. To.connect.the.power.cord: Connect the power adapter securely to the monitor’s DC input. Connect one end of the power cord to the power adapter and the other end to a power outlet. •. -
Page 19: Osd.(On-Screen.display).Menu
R a c i n g Mode C i n e ma Mode R TS/ RPG Mode FP S Mode s R G B Mode U s e r Mo de Please refer to “1.3.4 GameVisual Function”. ASUS MG248 Series LCD Monitor... - Page 20 Blue Light Filter In this function, you can adjust the blue light filter level. ASUS MG248 Blue Light Filter RacingMode HDMI 1080p 60Hz L e ve l 0 L e ve l 1 L e ve l 2 L e ve l 3 L e ve l 4 •...
- Page 21 Aspect Control: Adjusts the aspect ratio to full, 4:3, 1:1 or OverScan. 4:3 is only available when input source is in 4:3 format. OverScan is only available for the HDMI input source. • ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. • Adaptive-Sync (DisplayPort only) Allows an Adaptive-Sync supported*...
- Page 22 Sound Set the sound related setting from this menu. ASUS MG248 Sound RacingMode HDMI 1080p 60Hz V ol um e M ut e S ource •. Volume: the adjusting range is from 0 to 100. •. Mute: toggles the monitor sound between on and off.
- Page 23 All Reset: “Yes” allows you to restore the default settings. MyFavorite Loads/Saves all settings on the monitor. ASUS MG248 MyFavorite RacingMode HDMI 1080p 60Hz S et tin g 1 S et tin g 2 S et tin g 3 S et tin g 4 ASUS MG248 Series LCD Monitor...
-
Page 24: Specifications.summary
3.2 Specifications summary Panel Type TFT LCD Panel size 24”W (16:9, 61 cm) wide screen Max. Resolution 1920 x 1080 Pixel pitch 0.276 mm x 0.276 mm Brightness (Typ.) 350 cd/m Contrast Ratio (Typ.) 1000:1 Contrast Ratio (Max.) 100,000,000:1 (with ASCR on) Viewing angle(H/V) CR>10 170˚/160˚... -
Page 25: Troubleshooting.(Faq)
• Inspect the signal cable and make sure not look white) that none of the pins are bent. • Perform All Reset via OSD. • Adjust the R/G/B color settings or select the Color Temperature via OSD. ASUS MG248 Series LCD Monitor... -
Page 26: Supported.operating.mode
Supported operating mode Resolution.Frequency Refresh.Rate. Horizontal 640x350 70Hz 31.469KHz 640x350 85Hz 37.861KHz 640x480 60Hz 31.469KHz 640x480 67Hz 35KHz 640x480 75Hz 37.5KHz 640x480 85Hz 43.269KHz 720x400 70Hz 31.469KHz 720x400 85Hz 37.927KHz 800x600 56Hz 35.156KHz 800x600 60Hz 37.897KHz 800x600 72Hz 48.077KHz 800x600 75Hz 46.875KHz 800x600... - Page 27 1440x480P (HDMI) 59.94/60Hz 31.469KHz/31.5KHz 1440x576P (HDMI) 50Hz 31.25KHz 1920x1080P (HDMI) 50Hz 56.25KHz 1920x1080P (HDMI) 59.94/60Hz 67.433KHz/67.5KHz Note:. You. must. select. one. of. the. “*”. timing. for. enabling. 3D. or. 144Hz. feature. with. a. compatible. NVIDIA-GPU.graphic.card.via.Dual-link.DVI.cable.connection. ASUS MG248 Series LCD Monitor...
- Page 28 DECLARATION OF CONFORMITY Per FCC Part 2 Section 2. 1077(a) Asus Computer International Responsible Party Name: , CA 94539. Address: 800 Corporate Way, Fremont Phone/Fax No: (510)739-3777/(510)608-4555 hereby declares that the product Product Name : LCD Monitor Model Number : MG248*******...
