Summary of Contents for Asus MG28UQ
-

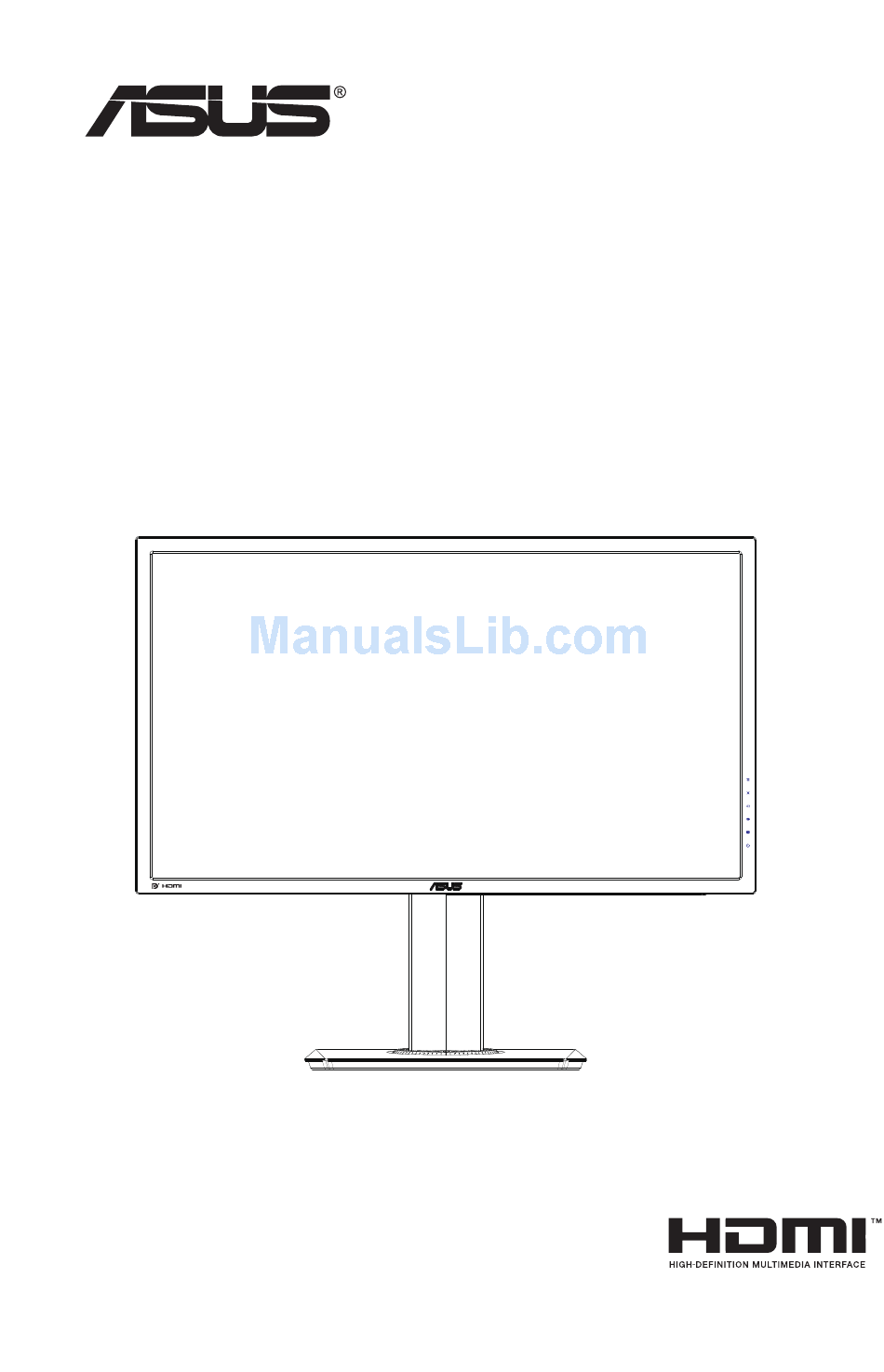

Page 1: User Guide
MG28U Series LCD Monitor User Guide... -
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. - Page 4 TCO Information Congratulations! This display is designed for both you and the planet! The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world.
-
Page 5: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 6 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures.
-
Page 7: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. - Page 8 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
-
Page 9: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Assembling The Monitor
Assembling the monitor To assemble the monitor: Place the display flat on a cloth on the table, assemble the base according to the drawing and use a coin to turn the screw tight. Put the cable clip inset the hole of stand, and adjust the monitor to the angle that is most comfortable for you. PUSH Chapter 1: Product Introduction... -
Page 11: Connect Cables
Connect cables 1.4.1 Rear of the LCD monitor HDMI-2 HDMI-1 HDMI-3 AC-IN Port USB upstream Port USB downstream Port HDMI-3 HDMI-2 HDMI-1 (4K@60Hz) DisplayPort Earphone Jack Kensington Lock ASUS LCD Monitor MG28U Series... -
Page 12: Monitor Introduction
Monitor introduction 1.5.1 Using the Controls button Use the control button on the back of the monitor to adjust the image settings. Power Button/Power Indicator: • Press this button to turn the monitor on/off. • The color definition of the power indicator is as the below table. Status Description White... - Page 13 • Switch to DP 1.1 or DP 1.2. Close Button • Exit the OSD menu. 5-way) Button: • Tums on the OSD menu. Enacts the selected OSD menu item. • Increases/Decreases values or moves your selection up/down/ left/right. ASUS LCD Monitor MG28U Series...
-
Page 14: Detaching The Quick Release Stand (For Vesa Wall Mount)
Figure 2 • The VESA wall mount kit ( 100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 28.8 kg (Screw size: M4 x 10 mm). ASUS LCD Monitor MG28U Series... -
Page 15: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. -
Page 16: Osd (On-Screen Display) Menu
Press the Center key to enter the slide bar and then use the or buttons, according to the indicators on the menu, to make your changes. Press the to move left / right menu. ASUS LCD Monitor MG28U Series... -
Page 17: Osd Function Introduction
GameVisual This function contains seven sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS MG28U GameVisual FPS Mode HDMI-1 3840x2160@60Hz Scenery Mode... - Page 18 • Between Level 1 to Level 3, the Brightness function is user-configurable. • Level 4 is optimized setting. It is compliance with TUV Low Blue Light Certification. The Brightness function is not user-configurable. ASUS LCD Monitor MG28U Series...
- Page 19 Color Select the image color you like from this function. ASUS MG28U Color FPS Mode HDMI-1 3840x2160@60Hz Brightness Contrast Saturation Color Temp. Skin Tone Smart View • Brightness: The adjusting range is from 0 to 100. • Contrast: The adjusting range is from 0 to 100.
- Page 20 0 to faster 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”, “1:1”, “Overscan”. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100.
-
Page 21: Input Select
Input Select Select the input source from HDMI-1 (4K@60Hz), HDMI-2, HDMI3 or DisplayPort input signal. ASUS MG28U Input Select FPS Mode HDMI-1 3840x2160@60Hz HDMI-1(4K@60Hz) HDMI-2 HDMI-3 DisplayPort System Setup Adjusts the system configuration. ASUS MG28U System Setup FPS Mode HDMI-1 3840x2160@60Hz GameVisual Demo Mode DP 1.1... - Page 22 German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croatia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, Indonesian. • Key Lock: Disable all key functions. Pressing the down key for more than five seconds to disable key lock function. ASUS LCD Monitor MG28U Series...
- Page 23 • Power Key Lock: To disable / enable power key. • All Reset: Selects “Yes” to revert all settings to the factory default mode. MyFavorite Load/Save all settings on the monitor. ASUS MG28U MyFavorite FPS Mode HDMI-1 3840x2160@60Hz Setting 1...
-
Page 24: Specifications
660.26 x 380.67 x 67.40 mm (WxHxD) 777 x 467 x 224 mm Box Dimension (WxHxD) 8 kg Net Weight (Esti.) 11 kg Gross Weight (Esti.) AC 100~240V(Built-in) Voltage Rating Note:*Based on Energy Star 6.0 standard ASUS LCD Monitor MG28U Series... -
Page 25: Troubleshooting (Faq)
USB B Type Cable USB B Type Cable Connected PC Non-connected PC Power ON Power Saving OSD Charging ON OSD Charging OFF (default setting) Power OFF OSD Charging ON OSD Charging OFF Note: V= Hub On, X= Hub OFF Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON... - Page 26 • Press the power button on the display to see if it is • If the card is DP 1.1, press the Source button and select Switch to DP 1.1. ASUS LCD Monitor MG28U Series 3-11...
-
Page 27: Supported Timing List
Supported Timing List Timing List HDMI1.4 HDMI2.0 Display Port 1.2 640x350@70 640x480@60 640x480@67 640x480@72 640x480@75 720x400@70 800x600@56 800x600@60 800x600@72 800x600@75 832x624@75 848x480@60 1024x768@60 1024x768@70 1024x768@75 1152x864@75 1280x720@50 1280x720@60 1280x800@60 1280x960@60 1280x1024@60 1280x1024@75 1440x900@60 1680x1050@60 1920x1080@60 2560x1440@60 2560x1600@60 3840x2160@30 3840x2160@60 * Some graphics cards only support up to 1920 x 1200 resolution content transmission via HDMI. Please check with your local distributor or retailer on the hardware limitations of your laptop or desktop. - Page 28 3840x2160P@25 3840x2160P@29.97 3840x2160@30 3840x2160@50 3840x2160@59.94 3840x2160@60 * The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables. ASUS LCD Monitor MG28U Series 3-13...
