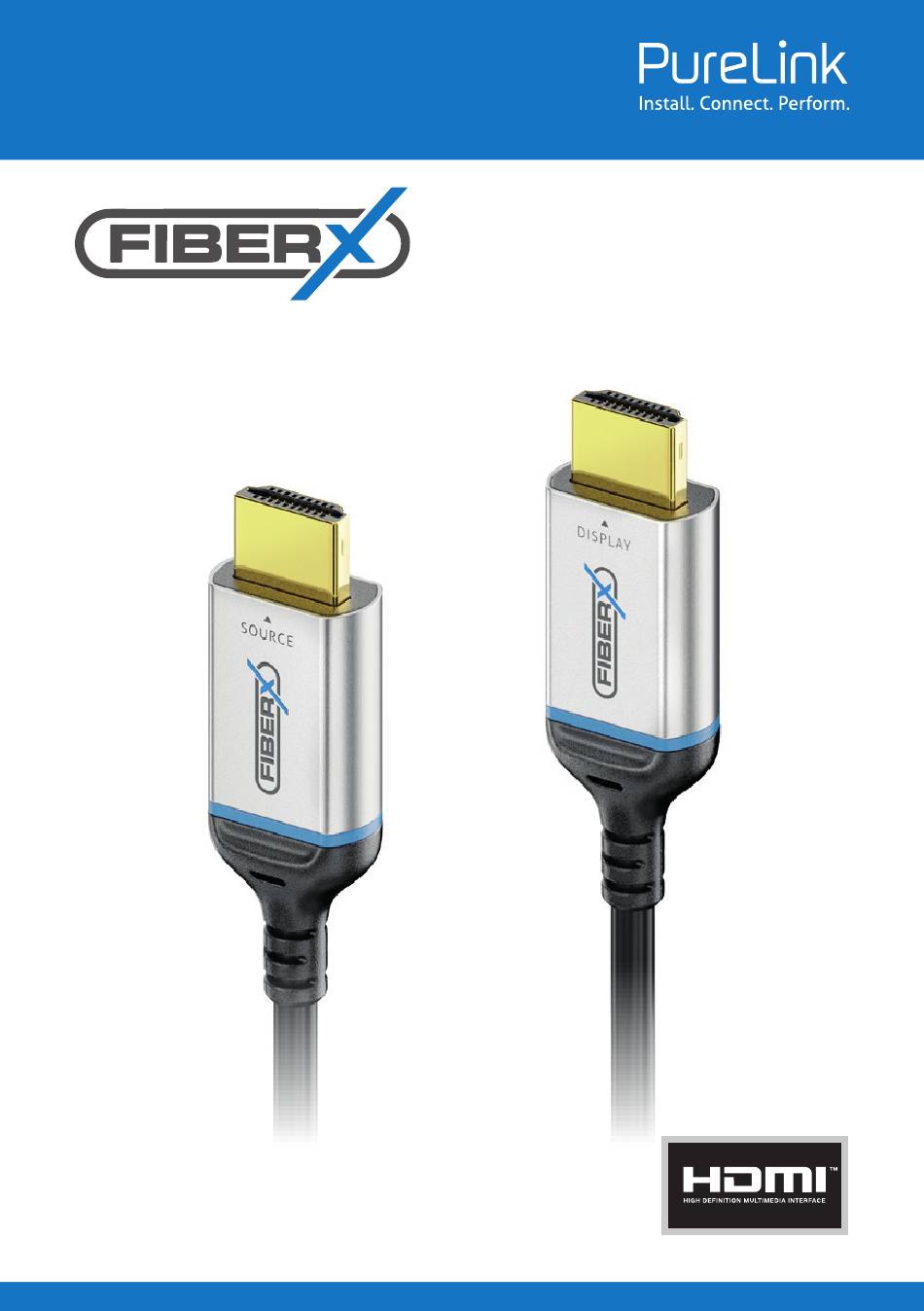

- Page 1 Instruction manual (EN) FX-I380 HDMI 8K AOC Cable Version 1.0 | 06.2021...
-
Page 2: Table Of Contents
HDMI 8K AOC CABLE TABLE OF CONTENT Introduction ....... .3 Intended Use . -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Fiber Optic HDMI 8K AOC Cable. This Cable allows you to transmit HDMI signals to a distance of up to 100m without external power supply. This cable is a hybrid cable containing both fiber optic and copper cores. Our HDMI Active Hybrid Cable is the most competitive long distance HDMI interconnection solution on the market. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/ guarantee. -
Page 5: Delivery Content
Safe operation can no longer be guaranteed if the product: • is visibly damaged • is no longer working properly • has been stored for an extended period in poor ambient conditions or • has been subjected to any serious transport-related stresses. Please handle the product carefully. -
Page 6: Features
FEATURES This HDMI 8K AOC Cable has many features that enable it to perform in a superior manner. Among those features you will find: • Supports HDMI 8K specification with data rates up to 48Gbps • Supports HDCP1.4, HDCP 2.2 und HDCP2.3 •... -
Page 7: Application
APPLICATION This product is for example applicable to: • Digital Signage • LED Signboards • Home Theater • Blu-ray, 3D Video, Projector, Set-top box, DVR, Game Consoles and Computer • TV Broadcast Station • Conference Room • Video Equipment • Security Systems ... - Page 8 Specifications: Item Description Units Transmitter (Source) Receiver (Display) HDMI Version HDMI 8K, Fully Support bi-directional EDID and HDCP communication HDCP 1.4/2.2/2.3 pass through ,Audio, CEC, support HEC&ARC Video Bandwidth 48Gbps - 12Gbps per Channel + Clock Supported Max. resolutions: 8K (7680x4320) 60Hz Resolution &...
-
Page 9: Cross Section
Environmental Conditions Operating Temperature: -10 – 50 °C Storage Temperature: -20 – 60 °C Relative Humidity: 10 – 80 %RH CROSS SECTION Construction: Hybrid cable, fiber (high speed data) & copper (low speed signals) Cable construction: 4 fiber cores and 7 cooper conductors Cable jacket: Diameter: ~ 4.5mm... -
Page 10: Operation And Connection Diagram
OPERATION AND CONNECTION DIAGRAM Attention: The FX-I380 series is designed for use with the +5V passive power, supplied through pin 18 on the HDMI connection from the source device. This +5V connection, as well as powering the internal fiber optic module, is also carried through to the other sink via a full standard copper connection. - Page 11 Connect to Connect to Source Display If the system does not work properly, see trouble shooting guide in next section.
-
Page 12: Troubleshooting
TROUBLESHOOTING The Display shows: • A black screen • Screen is distorted • Noise interference 1. Check that the connectors are in the correct ports of the source and sink devices – check the labels on the connector housing to be sure. 2. -
Page 13: Cleaning
CLEANING Before cleaning the product it must be disconnected from all other connected products. Do not use abrasive or solvents or any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can cause damage to the housing and malfunctioning. To clean the product, a dry, soft and clean cloth is sufficient. -
Page 14: Ce Conformity
CE CONFORMITY PureLink GmbH hereby declares that the FX-I380 Series complies with Directive 2014/30/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: www.purelink.de/ce/FX-I380-XXX_CE.pdf... -
Page 15: Disclaimer
packaging refers to these terms. With the return of your used devices you actively take part in protecting the environment. DISCLAIMER This product complies with the statutory national and European requirements. All company names and product names are trade- marks of their respective owners. All rights reserved. - Page 16 PureLink GmbH Von-Liebig-Straße 10 48432 Rheine Deutschland Tel.: +49 (0) 5971 800 299-0 Fax: +49 (0) 5971 800 299-99 info@purelink.de www.purelink.de...
