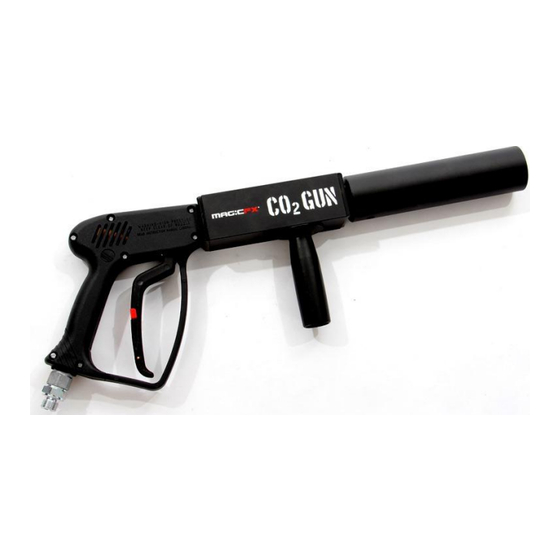

Magicfx CO2 Gun Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PRODUCT CODE
VERSION
DATE
: MFX1102
: 1.0
: 11.12.2012

Advertisement

Table of Contents
loading

Related Manuals for Magicfx CO2 Gun

Summary of Contents for Magicfx CO2 Gun

  • Page 1 PRODUCT CODE : MFX1102 VERSION : 1.0 DATE : 11.12.2012...

  • Page 2: Congratulations

    1995. All our products are made under the brand name MAGICFX® which by now has acquired a great reputation on account of its quality and reliability. All products are made in accordance with the European Machinery Directive. MAGIC FX manages the entire production process in-house, from the design stages and prototyping to production.

  • Page 3: Ce Marking

    Unauthorised removal of safety caps and/or safeguards. Incompetent operation of the machine. MAGIC FX B.V. is not liable for any consequential loss in the event of a CO2 Gun breakdown. © Copyright 2012 All rights are reserved. Nothing from this manual may be duplicated, or kept in an automated data file, or made public, or in any form or manner, whether electronically, mechanically, by photocopying, by incorporation, or in any other manner duplicated without the permission of MAGIC FX B.V.

  • Page 4: Declaration Of Conformity

    User documentation MAGICFX® CO2 Gun 3. DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY (according to Annex II.1.A of the Machinery Directive) Concerning the Machinery Directive. We; MAGIC FX B.V. Schouwrooij 27 5281 RE Boxtel The Netherlands State under personal responsibility: We are the manufacturer of the product: ®...

  • Page 5: Foreword

    MAGIC FX advises that the original of this user manual, including appendices, is kept at a safe and central place. It is best that another original or copy is kept close to the CO2 Gun at the workplace. If you are familiar with these matters, then you can use this manual as a work of reference.

  • Page 6: Table Of Contents

    CONGRATULATIONS! ..................1 CE MARKING ....................2 DECLARATION OF CONFORMITY ..............3 FOREWORD ....................4 INTRODUCTION ....................6 DESCRIPTION AND APPLICATION OF THE CO2 GUN ............6 NECESSARY ACCESSORIES ....................6 SAFETY ......................7 INTRODUCTION ........................7 GENERAL SAFETY RULES ....................7 WARNINGS ..........................

  • Page 7: Introduction

    5. INTRODUCTION DESCRIPTION AND APPLICATION OF THE CO2 GUN The MAGIC FX CO2 Gun is a high pressure pistol to which a CO2 bottle can be connected by means of a high pressure hose. With the CO2 Gun one can blow smoke plumes of CO2 gas (carbon dioxide) into the air. This creates a special, surprising and spectacular effect.

  • Page 8: Safety

    6. SAFETY INTRODUCTION The CO2 Gun has been designed and constructed in such a manner that it can be used safely. This applies to the use, the circumstances and the regulations as described in this documentation. Reading this documentation and following the instructions are therefore necessary for everyone who is authorised to work with the CO2 Gun.

  • Page 9: Warnings

    Version 1.0 WARNINGS Warning texts have been attached to the CO2 Gun. With regard to these the following rules apply: These texts may not be removed or damaged. The operator must regularly check if this is the case. The operator must ensure that the texts are and remain clearly visible and legible.

  • Page 10: Parts

    User documentation MAGICFX® CO2 Gun 7. PARTS 1. Barrel 2. Handle 3. Blow handle 4. Safety catch 5. Input Page 9...

  • Page 11: Accessories

    F. +31(0)411 63 50 12 W. http://www.magicfx.eu E. info@magicfx.eu 9. PREPARATIONS Unpack the CO2 Gun. Dispose of the packaging material without harming the environment. Inspect the machine for any damage. If damage is noticed this must be reported to MAGIC FX. Page 10...

  • Page 12: Installation

    The machine can be damaged if you do not follow the procedures carefully. DANGER WARNING: The MAGICFX® CO2 Gun may only be installed by adults and authorised persons. DANGER WARNING: MAGIC FX is not liable for working with CO2 gas and CO2 bottles or for the correct use thereof.
  • Page 13 Version 1.0 Now attach the coupling of the CO2 hose to the coupling of the CO2 Gun and secure this with an open-ended spanner. Connect the other end to a CO2 bottle (with dip pipe). Turning it by hand will suffice! You should only use a wrench if the coupling continues to leak.

  • Page 14: Usage

    DANGER WARNING: The MAGICFX® CO2 Gun may only be installed by adults and authorised persons. The CO2 Gun may only be operated if all parts are completely and correctly installed/connected. For using the CO2 Gun take the following steps: Pull the safety catch upwards to prepare the CO2 Gun for blowing.

  • Page 15: Switching Off

    Version 1.0 12. SWITCHING OFF To switch off the CO2 Gun, take the following steps: Close the valve of the gas bottle. Shoot the CO2 Gun one more time to remove any remaining pressure from the hose. Unscrew the high pressure hose from the CO2 Gun and from the CO2 bottle.

  • Page 16: Troubleshooting

    13. TROUBLESHOOTING The CO2 Gun is leaking Check if the coupling of the gas hose is connected properly to the coupling of the CO2 Gun. If it is not entirely secured then press it firmly. Only a small smoke plume is visible when the CO2 gas exits the CO2 Gun.
