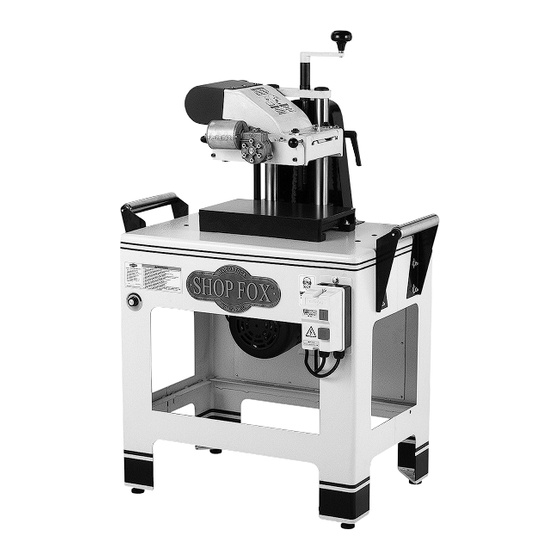

Model W1739
Variable Speed
Planer Moulder
Manual Insert
READ and understand this W1739 manual
insert and the W1693 instruction manual
before using this machine. Ignoring this
warning may lead to serious personal injury
if safety and operational information is not
understood and followed.
COPYRIGHT © JANUARY, 2006 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#7921CR
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in Taiwan
Advertisement
Related Manuals for Woodstock W1739
Summary of Contents for Woodstock W1739
- Page 1 Model W1739 Variable Speed Planer Moulder Manual Insert READ and understand this W1739 manual insert and the W1693 instruction manual before using this machine. Ignoring this warning may lead to serious personal injury if safety and operational information is not understood and followed.
-
Page 2: Specifications
The operation of this planer moulder is the same, but instead of having a fixed feed rate like the W1693, the W1739 has a variable speed dial that allows you to adjust the feed rate between 4.5-18 FPM for your unique requirements. - Page 3 W1739 Variable Speed Planer/Moulder W1739 220V Wiring Diagram ���������� ����� �� ��� ������ ������� ���� ����� ��� ������ �� ���������� ����� ��������� ��� ��� �� ������������� ���� ����� ����� ����� ����� ����� ��� �������� ����� ������� ������� ����� ��� �����...
- Page 4 W1739 Variable Speed Planer/Moulder Figure 3. Thermal relay. Figure 1. Magnetic switch assembly. Figure 4. Motor junction box. Figure 2. PC board and speed control switch. Figure 5. Feed motor.
- Page 5 W1739 Variable Speed Planer/Moulder �� �� ��� �� ��� �� � �� �� �� �� �� �� �� �� �� ���� �� �� �� �� �� �� ��� ��� ��� �� �� ��� �� �� �� �� �� �� ��...
- Page 6 X1693038 OUTFEED�SWING�ARM X1693039 PIVOT�PIN X1693040 THREADED�ROLLER�SHAFT X1739041 HEAD X1693042 SWING�ARM�STOP�PIN X1693043 ROLLER�PRESSURE�SCREW X1693044 COMPRESSION�SPRING X1693045 ROLLER�PRESSURE�GUIDE X1693046 INFEED�ROLLER�DRIVE�SHAFT W1739 Variable Speed Planer/Moulder PART�# DESCRIPTION X1693047 INFEED�SWING�ARM XPW06 FLAT�WASHER�1/4 XPSB40 CAP�SCREW�1/4-20�X�2 X1739052 CHAIN�GUARD X1693053 INFEED�CHAIN X1693054 OUTFEED�CHAIN� X1693056 KNOB�1/4-20 X1693057 CHIP�DEFLECTOR�AXIS�PIN...
- Page 7 W1739 Variable Speed Planer/Moulder ��� ��� ��� ��� ��� ��� ��� ��� ���� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���� ���� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���...
- Page 8 MOTOR�JUNCTION�BOX�COVER 113-7 X1739113-7 MOTOR�JUNCTION�BOX X1693114 POWER�CORD X1693115 MOTOR�CORD 115-1 X1739115-1 W1739�CONTROL�CORD 115-2 X1739115-2 W1739�POWER�CORD X1693116 STRAIN�RELIEF X1693117 MAGNETIC�SWITCH�� W1739 Variable Speed Planer/Moulder PART�# DESCRIPTION XPS06 PHLP�HD�SCR�10-24�X�5/8 X1739119 VARIABLE�SPEED�CONTROL�KNOB 119-1 X1739119-1 SPEED�DIAL�LABEL X1693120 FOOT X1693121 BOTTOM�COLOR�STRIPE X1693122 UPPER�COLOR�STRIPE XPS81 PHLP�HD�SCR�#4-40�X�3/8 X1693124 SHOP�FOX�LOGO...
