User Manual – CX6936/CX8936
Technical Data
Radio frequency:
2402 to 2480 MHz
Transmission power: 4mW
Power supply:
5-24V DC
Intended Use
The radio switching module is designed for installation on indoor walls. It is an extension of the locking system with a radio switching unit
and establishes a connection to the locking units via radio.
Safety Instructions
•
Modifications of any kind whatsoever, with the exception of those described in the corresponding manual, are not permitted on the
products of Uhlmann & Zacher GmbH.
•
Use only original parts and accessories of Uhlmann & Zacher GmbH to prevent malfunctions and damages.
•
The products of Uhlmann & Zacher GmbH should not be used for locking emergency life-saving aids (e.g. defibrillator, emergency
medication, fire extinguishers etc).
•
The products should not come into contact with paint or acids.
•
Do not use the products in potentially explosive areas. The products should only be used within the defined temperature range.
•
Electrical equipment should only be installed and assembled by qualified electricians.
•
High risk of injury (electrical shock!) if the connecting cables are touched with the power supply switched on.
•
Carry out installation and maintenance work only with the power supply switched off . Comply all applicable national safety codes
and standards.
•
The manual should be handed over to the user by the person doing the installation.
•
Uhlmann & Zacher shall not be liable for any damage to the door or the components in case of improper installation.
•
Liability cannot be accepted for units that are wrongly programmed. If there are disruptions, such as access not possible to injured
persons, property damage or other damages, then Uhlmann & Zacher shall not be responsible.

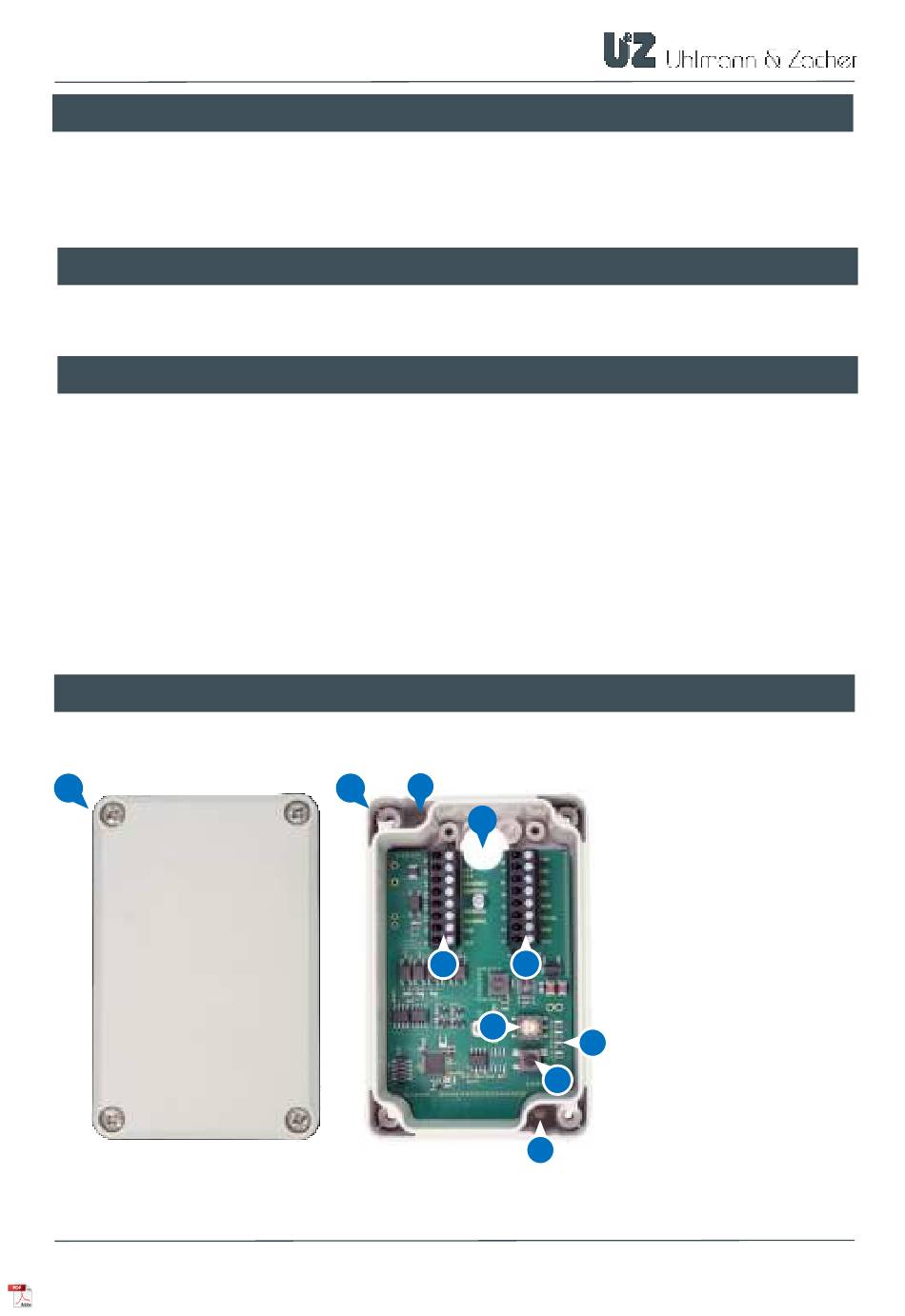

Overview / Included in delivery
1
All contents current at time of publication.
FSMBLE
Temperature range: 50° – 131° F operating temperature
Relay connections: DC: max. 48V/0.7A - AC: max. 32V/0.5A
9
2
3
5
6
1.
Lid including srews x4
2.
Base plate with electronics
3.
Cable inlet
4.
Removable connector for pin 1-8
5.
Removable connector for pins 9-16
6.
Rotary switch
7.
Button
8.
LEDs
9.
Mounting hole x2
4
screws are not included
8
7
9
10AF – V1.0 – 03/15/2021
Advertisement
Table of Contents
Related Manuals for uhlmann & zacher CX8936
Summary of Contents for uhlmann & zacher CX8936
- Page 1 User Manual – CX6936/CX8936 FSMBLE Technical Data Temperature range: 50° – 131° F operating temperature Radio frequency: 2402 to 2480 MHz Transmission power: 4mW Relay connections: DC: max. 48V/0.7A - AC: max. 32V/0.5A Power supply: 5-24V DC Intended Use The radio switching module is designed for installation on indoor walls. It is an extension of the locking system with a radio switching unit and establishes a connection to the locking units via radio.
- Page 2 User Manual – CX6936/CX8936 FSMBLE Installation Find a suitable position in range of locking unit. Make sure that the surface is smooth, dry and robust. Do not position several units very closely to make sure their radio does not interfere.
- Page 3 User Manual – CX6936/CX8936 FSMBLE FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
