Tesla smart HSW0801A10 Manual

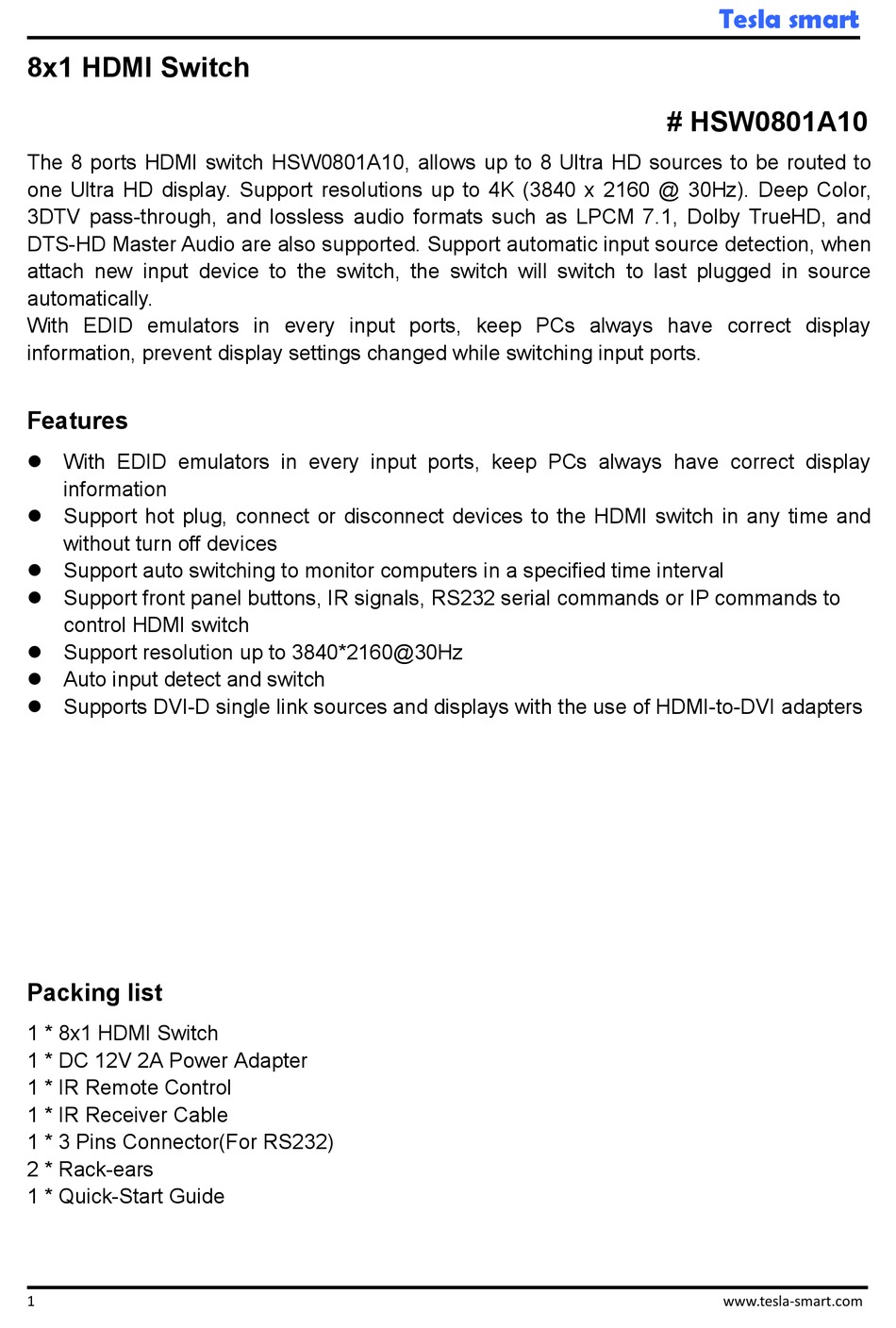

8x1 HDMI Switch

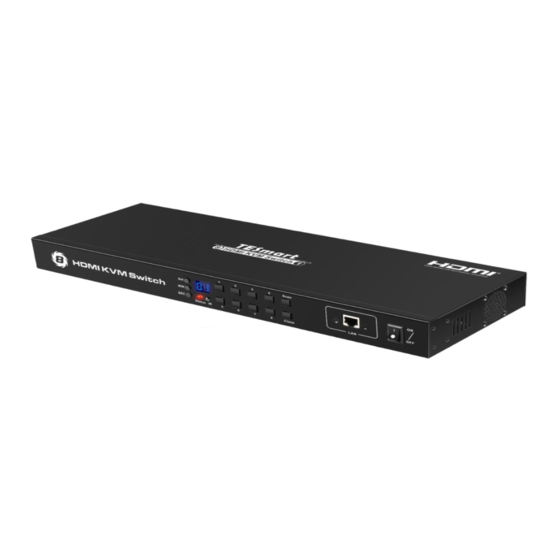

The 8 ports HDMI switch HSW0801A10, allows up to 8 Ultra HD sources to be routed to
one Ultra HD display. Support resolutions up to 4K (3840 x 2160 @ 30Hz). Deep Color,
3DTV pass-through, and lossless audio formats such as LPCM 7.1, Dolby TrueHD, and
DTS-HD Master Audio are also supported. Support automatic input source detection, when
attach new input device to the switch, the switch will switch to last plugged in source
automatically.
With EDID emulators in every input ports, keep PCs always have correct display
information, prevent display settings changed while switching input ports.
Features
 With EDID emulators in every input ports, keep PCs always have correct display
information
 Support hot plug, connect or disconnect devices to the HDMI switch in any time and
without turn off devices
 Support auto switching to monitor computers in a specified time interval
 Support front panel buttons, IR signals, RS232 serial commands or IP commands to
control HDMI switch
 Support resolution up to 3840*2160@30Hz
 Auto input detect and switch
 Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Packing list
1 * 8x1 HDMI Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector(For RS232)
2 * Rack-ears
1 * Quick-Start Guide
1
Tesla smart
# HSW0801A10
www.tesla-smart.com
