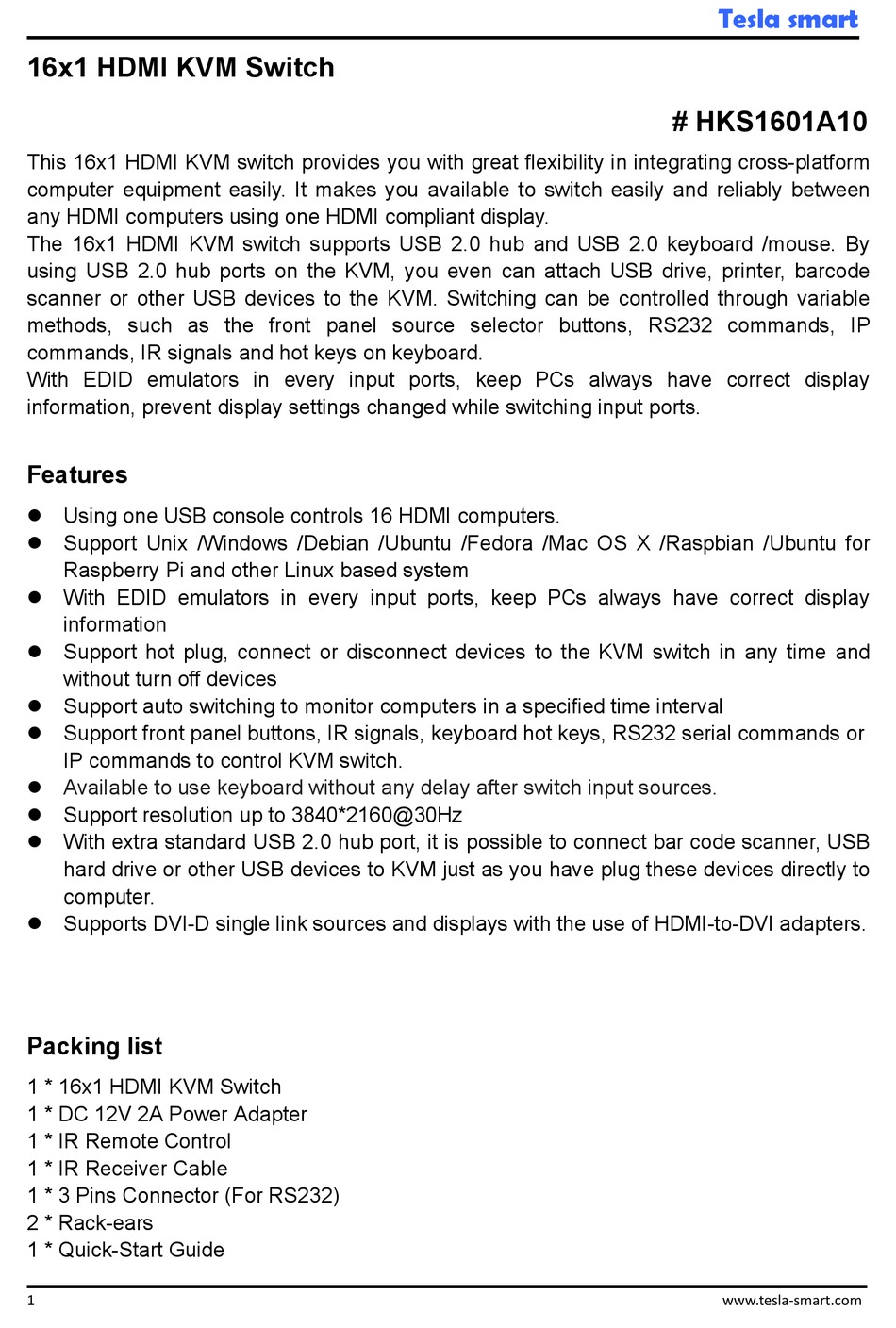

Tesla smart HKS1601A10 Quick Start Manual

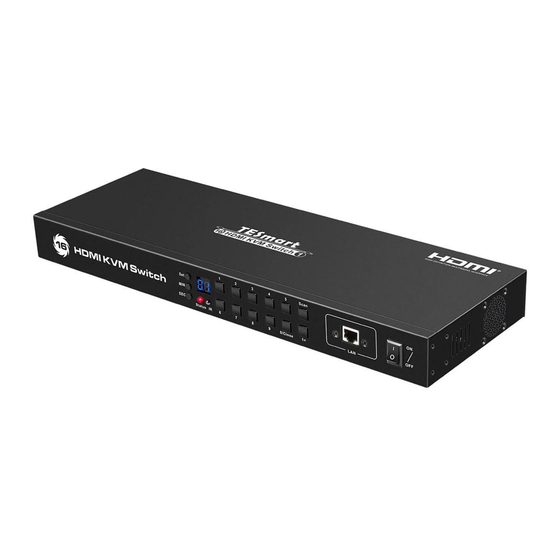

16x1 HDMI KVM Switch
This 16x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform
computer equipment easily. It makes you available to switch easily and reliably between
any HDMI computers using one HDMI compliant display.
The 16x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By
using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode
scanner or other USB devices to the KVM. Switching can be controlled through variable
methods, such as the front panel source selector buttons, RS232 commands, IP
commands, IR signals and hot keys on keyboard.
With EDID emulators in every input ports, keep PCs always have correct display
information, prevent display settings changed while switching input ports.
Features
 Using one USB console controls 16 HDMI computers.
 Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for
Raspberry Pi and other Linux based system
 With EDID emulators in every input ports, keep PCs always have correct display
information
 Support hot plug, connect or disconnect devices to the KVM switch in any time and
without turn off devices
 Support auto switching to monitor computers in a specified time interval
 Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or
IP commands to control KVM switch.
Available to use keyboard without any delay after switch input sources.

 Support resolution up to 3840*2160@30Hz
 With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB
hard drive or other USB devices to KVM just as you have plug these devices directly to
computer.
 Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.
Packing list
1 * 16x1 HDMI KVM Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector (For RS232)
2 * Rack-ears
1 * Quick-Start Guide
1
Tesla smart
# HKS1601A10
www.tesla-smart.com
