GST C-9101 Manual

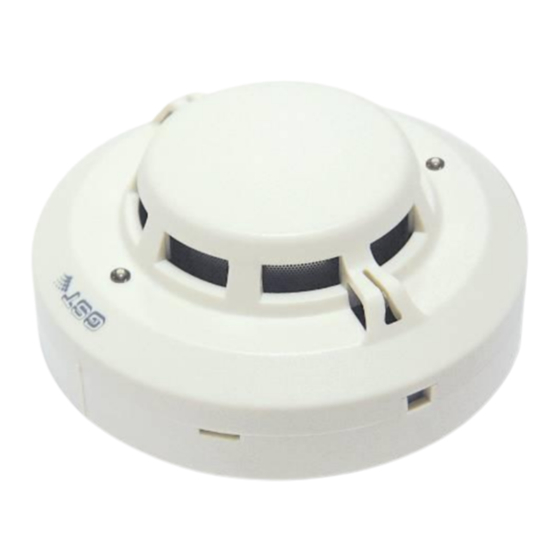

Conventional combined smoke and heat detector
Hide thumbs Also See for C-9101:
Table of Contents

Advertisement

Quick Links

Download this manual

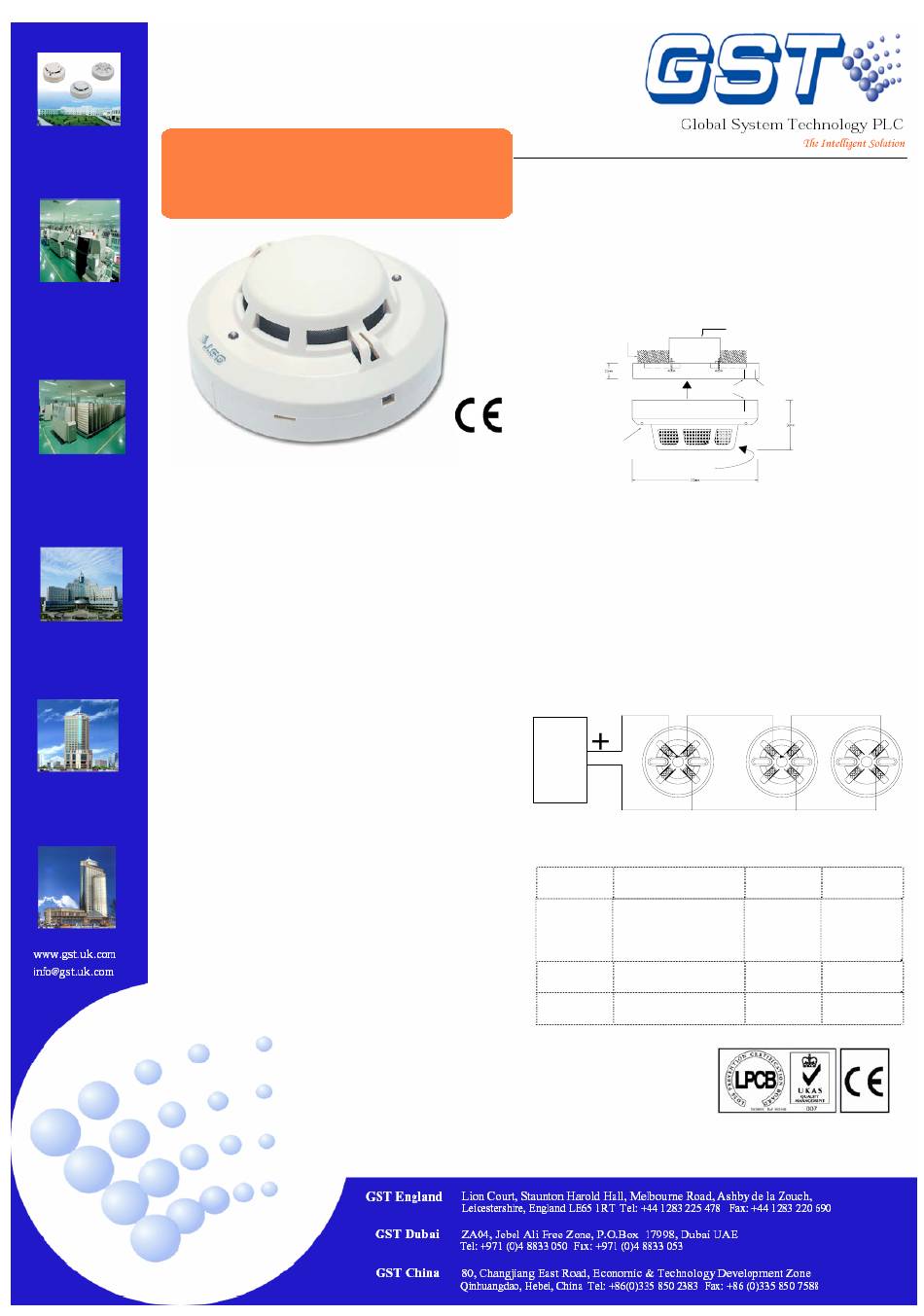

Conventional
Combined Smoke and
Heat Detector
F
eatures and Benefits
1. Multifunctional and highly reliable
detector
2. Sensing chamber for exceptional dust
proof ability
3. Twin LED for 360º vision
4. Low profile design
Description
I-9101 is a multifunctional and highly reliable
detector that able to sense fire cause by
polyurethane and heptanes fire. And also
detect fire with obvious rise of temperature
such as alcohol fire. With all the combined
features of standard optical and heat detector
makes this suitable for application in data
processing area like computer room and
telephone exchange.
Technical Specifications
•
Standard: EN54-part5, part6, part7
•
Protection rating: IP 22
•
Detecting Range:30m²
•
Operating voltage: 24Vdc (9Vdc to
24Vdc) polarized
•
Operating Current:
•
Standby: 0.1mA; Alarm:30mA
•
Operating temperature: -10~50°C
•
Relative humidity: 95%
•
Application: Indoor use
•
Material and colour: ABS, off-white
•
Wiring: 1 pair polarized
Dimensions:
•
height 5cm
Selection of compatible Control Panels
Compatible with all GST Conventional panel
and GST Intelligent Fire Alarm Panels using
Zone monitor module:
C-9101
diameter
10cm;
Detector Installation
It is installed onto a standard one gang
electrical box with a mounting hole that
have 6.5cm spacing. Point the detector in
the base by the mark-line and secure the
detector in that position by rotates it
clockwise until it reaches the next mark line.
CONCRETE PAD OR
HOLDING PAD
MARK−LINE
LED INDICATOR
ROTATE CLOCKWISE
Wiring and Connection
Connect the wires to the required terminal
according
to
the
wire
matching active end of line (P-9907).and
(DZ-03D) required base. Using active end
of line can connect up to 15 detectors and
base with diode. Using 4.7KΩ end of line
resistor can connect up to 25 detectors.
The cable must be fire rated type and the
size
depends
on
the
application.
Minimum
1.0mm²(18 AWG)
CONVENTIONAL
PANEL
1
2
OR
−
ZONE
MONITOR
MODULE
4
3
C−9102 SMOKE DETECTOR
Ordering Information:
Part No
Description
C-9101
Conventional
Combined Optical
Smoke and Dual
Heat Detector
DZ-03
Detector Base -
EOLR
DZ-03D
Base with Diode
AOL
Note: Specifications are subject to change without notice.
EMBEDDED BOX
2ND MARK−LINE
diagram
with
distance
and
size
gauge
1
2
1
2
4
4
3
3
P−9907 ACTIVE
END OF LINE
C−9101 SMOKE/HEAT DETECTOR
Weight/
Pack Qty
Kg
per Box
0.123
120
0.05
360
0.05
360
MANUFACTURED IN ACCORDANCE WITH
