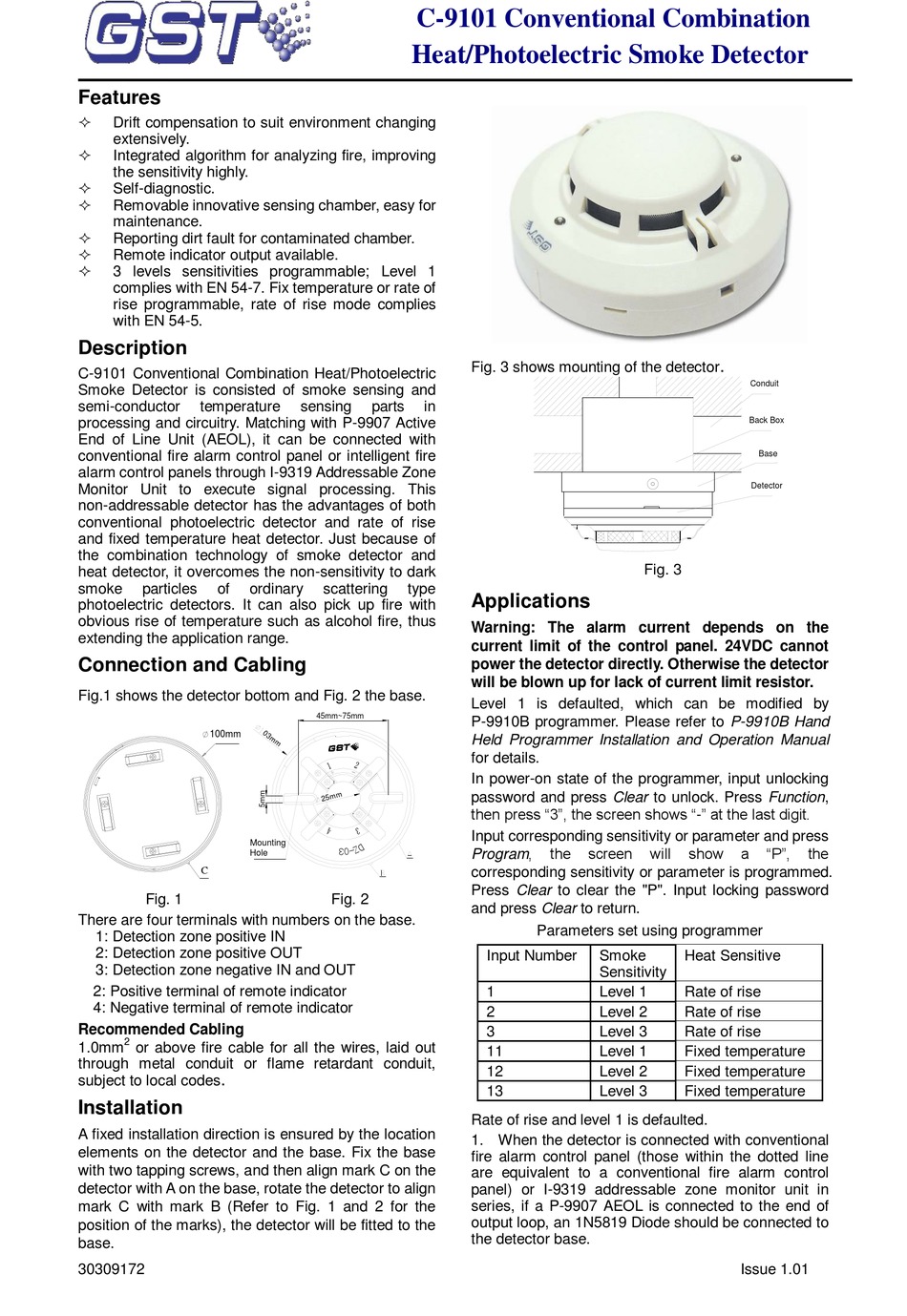

GST C-9101 Operation Manual

Features

Drift compensation to suit environment changing
extensively.

Integrated algorithm for analyzing fire, improving
the sensitivity highly.

Self-diagnostic.

Removable innovative sensing chamber, easy for
maintenance.

Reporting dirt fault for contaminated chamber.

Remote indicator output available.

3 levels sensitivities programmable; Level 1
complies with EN 54-7. Fix temperature or rate of
rise programmable, rate of rise mode complies
with EN 54-5.
Description

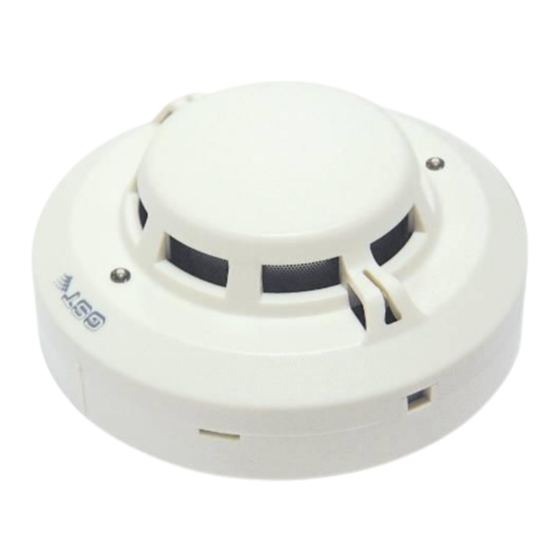

C-9101 Conventional Combination Heat/Photoelectric
Smoke Detector is consisted of smoke sensing and
semi-conductor temperature
processing and circuitry. Matching with P-9907 Active
End of Line Unit (AEOL), it can be connected with
conventional fire alarm control panel or intelligent fire
alarm control panels through I-9319 Addressable Zone
Monitor Unit to execute signal processing. This
non-addressable detector has the advantages of both
conventional photoelectric detector and rate of rise
and fixed temperature heat detector. Just because of
the combination technology of smoke detector and
heat detector, it overcomes the non-sensitivity to dark
smoke particles of
photoelectric detectors. It can also pick up fire with
obvious rise of temperature such as alcohol fire, thus
extending the application range.
Connection and Cabling
Fig.1 shows the detector bottom and Fig. 2 the base.
100mm
C
Fig. 1
There are four terminals with numbers on the base.
1: Detection zone positive IN
2: Detection zone positive OUT
3: Detection zone negative IN and OUT
2: Positive terminal of remote indicator
4: Negative terminal of remote indicator
Recommended Cabling
2
1.0mm or above fire cable for all the wires, laid out
through metal conduit or flame retardant conduit,
.
subject to local codes
Installation
A fixed installation direction is ensured by the location
elements on the detector and the base. Fix the base
with two tapping screws, and then align mark C on the
detector with A on the base, rotate the detector to align
mark C with mark B (Refer to Fig. 1 and 2 for the
position of the marks), the detector will be fitted to the
base.
30309172
C-9101 Conventional Combination
Heat/Photoelectric Smoke Detector
sensing parts
ordinary scattering type
45mm~75mm
Mounting
Hole
Fig. 2
Fig. 3 shows mounting of the detector
in
Applications
Warning: The alarm current depends on the
current limit of the control panel. 24VDC cannot
power the detector directly. Otherwise the detector
will be blown up for lack of current limit resistor.
Level 1 is defaulted, which can be modified by
P-9910B programmer. Please refer to P-9910B Hand
Held Programmer Installation and Operation Manual
for details.
In power-on state of the programmer, input unlocking
password and press Clear to unlock. Press Function,
then press "3", the screen shows "-" at the last digit.
Input corresponding sensitivity or parameter and press
the screen
Program,
corresponding sensitivity or parameter is programmed.
Press Clear to clear the "P". Input locking password
and press Clear to return.
Parameters set using programmer
Input Number
1
2
3
11
12
13
Rate of rise and level 1 is defaulted.
1. When the detector is connected with conventional
fire alarm control panel (those within the dotted line
are equivalent to a conventional fire alarm control
panel) or I-9319 addressable zone monitor unit in
series, if a P-9907 AEOL is connected to the end of
output loop, an 1N5819 Diode should be connected to
the detector base.
.
Conduit
Back Box
Base
Detector
Fig. 3
will show a "P",
Smoke Heat Sensitive
Sensitivity
Level 1 Rate of rise
Level 2 Rate of rise
Level 3 Rate of rise
Level 1 Fixed temperature
Level 2 Fixed temperature
Level 3 Fixed temperature
Issue 1.01
