- Page 1 GAMING HEADSET (RZ04-0398) IMPORTANT PRODUCT IN FORMATION GUIDE...
-
Page 2: What's Inside

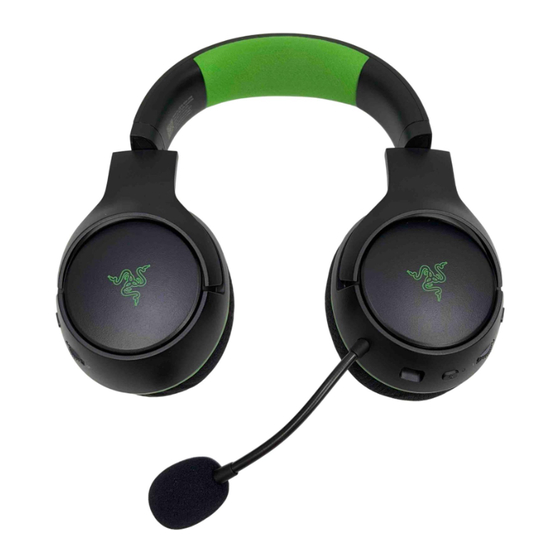

WHAT’S INSIDE / WHAT’S NEEDED WHAT’S INSIDE Gaming headset (RZ04-0398) RIGHT LEFT Auto-adjusting headband Charging port FlowKnit memory foam ear Power button cushions Status indicator Sidetone wheel Volume wheel Multi-function button Mic mute switch Bendable Razer™ HyperClear cardioid mic ™... -
Page 3: What's Needed
PlayStation®4 / PlayStation®5 or PC (Windows® 10 64-bit or higher) USB Type-C or Type-A port Devices with Bluetooth audio capability RAZER AUDIO APP REQUIREMENTS iOS 12 / Android 8.1 Oreo (or higher) device with Bluetooth connectivity Internet connection for app installation PC compatibility not tested nor endorsed by Sony Interactive Entertainment Inc. - Page 4 LET’S GET YOU COVERED You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com Your product’s serial number can be found here.
-
Page 5: Getting Started
GETTING STARTED CHARGING THE HEADSET Connect the Gaming headset to a powered USB port using the charging cable. For best results, please fully charge the headset before using it for the first time. A depleted headset will fully charge in about 4 hours. Indicato Battery level Fully charged... -
Page 6: Connecting Your Headset
CONNECTING YOUR HEADSET A. VIA 2.4GHZ WIRELESS MODE 1. Plug the Type-C wireless dongle to your PlayStation console or PC. 2. Press and hold the Power button until the status indicator is briefly lit or until you hear a voice prompt. 3. - Page 7 While powered on, press the Multi-function button for 5 seconds to activate Bluetooth pairing mode. Follow your device’s instructions and select “Razer Kaira” from the list of found devices. The status indicator will briefly change to static blue to indicate that the headset is now paired with your device.
- Page 8 RAZER SMARTSWITCH With the Gaming headset connected to a PC or PlayStation console (via Type-C wireless dongle) and a mobile device (via Bluetooth), you’ll be able to manage calls from your mobile device even while gaming on your PC or PlayStation console. The status indicator will briefly show static white to indicate that the headset is connected to both audio sources.
-
Page 9: Using Your Headset
USING YOUR HEADSET BATTERY LEVEL When unplugged and powered on, the status indicator will show the connection and battery status. While in use, you’ll hear a voice prompt when the headset needs to be recharged; during such time, the indicator will continue showing the battery level until you charge the headset. Battery Indicato Prompt... -
Page 10: Multi-Function Button
Use Type-C wireless dongle as audio source When powered on and using Bluetooth as audio source, press the Power button to switch to the Type-C wireless dongle. MULTI-FUNCTION BUTTON Use Bluetooth as audio source When powered on and using the Type-C wireless dongle as audio source, press the Multi- function button to switch to Bluetooth. - Page 11 While connected via Bluetooth, triple press the Multi-function button then hold the last press for 2 seconds to activate Gaming Mode. Once enabled, the headset will function at a lower latency; giving you real-time audio feedback while gaming. Repeat to disable gaming mode. This feature is only available on Bluetooth connection.
- Page 12 Other functions are available when the headset is powered on and connected to your device via Bluetooth. These functions operate based on your device’s current activity. Some features listed here may not be applicable to certain devices. Play/pause Accept incoming call or end current call Single press Put call on-hold and accept incoming call End call and swap to on-hold call...
- Page 13 Rotate the Sidetone wheel to adjust the volume of your voice that you can hear through the headset. [image placeholder] RAZER™ HYPERCLEAR CARDIOID MIC Bend the Razer HyperClear Cardioid mic until it is parallel to your mouth. Make sure the mic diaphragm is in front and the air vent is facing away from your mouth.
- Page 14 Slide the mic mute switch to mute or unmute the microphone. COMFORT It’s recommended to gently stretch the headset before placing it over your head to minimize headband stress, however, don’t stretch the headset beyond its limits. ™ FO R G AM E R S. B Y G A M E R S .
- Page 15 Making advanced customization just got a whole lot easier for your Gaming headset. With the Razer Audio app, personalize your own EQ setting or cycle through presets, customize its auto shutoff feature, update to the latest firmware, and much more — anytime, anywhere.
-
Page 16: Safety And Maintenance
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to for assistance. Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads. - Page 17 LEGALESE COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION ©2021 Razer Inc. All rights reserved. Razer, the triple-headed snake logo, Razer logo, “For Gamers. By Gamers.” and “Razer Chroma” are trademarks or registered trademarks of Razer Inc. and/or affiliated companies in the United States and other countries. Actual product may differ from pictures.
-
Page 18: Limited Product Warranty
LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product. -
Page 19: Fcc Declaration Of Conformance
• Consult the dealer or an experienced radio TV technician for help. For more information, refer to the online help system on razer.com. FCC CAUTION STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. - Page 20 (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. NOTICE FOR CANADA This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. CANADIAN CLASS B STATEMENT: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.
-
Page 21: Battery Info
BATTERY WARNING The Gaming Headset contains a Li-ion rechargeable battery. In general, the life expectancy of such batteries is dependent upon usage. If you suspect that the Li-ion rechargeable battery inside the Gaming Headset may be drained (has a low charge), try charging it. Caution: Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire, or heat. - Page 22 STATEMENT OF COMPLIANCE WITH EU DIRECTIVE Hereby, Razer (Europe) GmbH, declares that this Gaming Headset: RZ04-0398, USB Wireless Transceiver: RC30-0403 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and 2015/865/EU. Gaming Headset Radio Frequency: 2.4GHz SRD/Bluetooth Operating Frquency: 2402MHz - 2480MHz Max.
