CD RDS RECEIVER
DEH-X1810UB
DEH-X1850UB
DEH-X1850UB
DEH-X1853UB
DEH-X1850UBG
DEH-X1890UB
DEH-X1850UBG
This service manual should be used together with the following manual(s):
Model No.
Order No.
CRT4759
CX-3287
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2015
Mech. Module
S11.6STD
CD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly
1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
DEH-X1810UB/XNUC
/XNCS
/XNGS
/XNGS
/XNGS
/XNID
/XNCN5
Remarks
ORDER NO.
CRT5741
/XNUC
K-ZZZ JUNE 2015 Printed in Japan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEH-X1810UB/XNUC and is the answer not in the manual?

Questions and answers

Chad
May 13, 2025

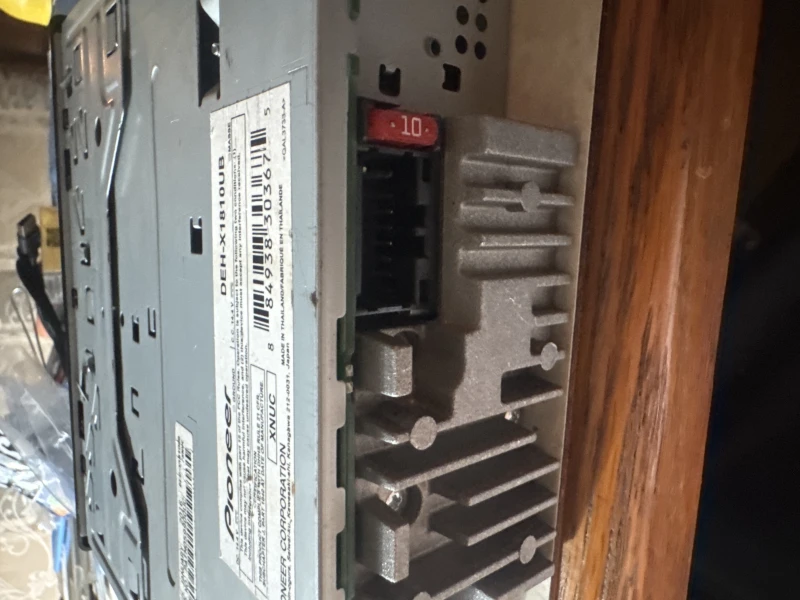

I need the wiring diagram for the pioneer DEH-cx1810ub
