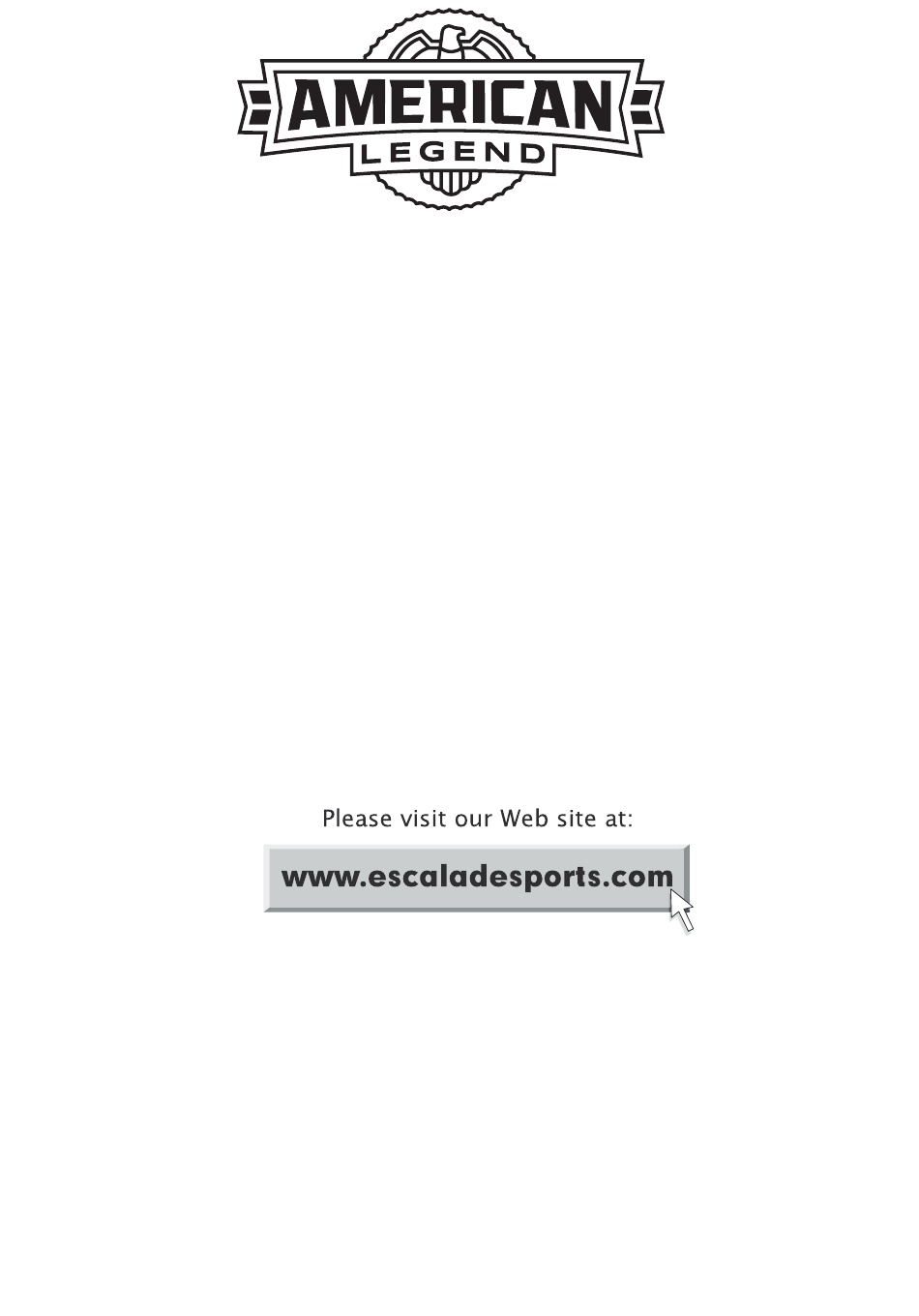

ESCALADE AMERICAN LEGEND AL4100 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
We strive to ensure that our products are of the highest quality
and free of manufacturing defects or missing parts. However, if
you have any problems with your new product,
DO NOT RETURN IT TO THE STORE
FAX: 1-866-873-3531
gameroom@escaladesports.com
Please
have your model number when inquiring about parts.
When contacting Escalade Sports please provide your model number, date
code (if applicable) and part number if requesting a replacement part. These
numbers are located on the product, packaging, and this owners manual.
Your Model Number ____________________
2 - AL4100-
Date Code ___________________________
Purchase Date ________________________
PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
All Rights Reserved.
© 202 1 Escalad e Sports
please contact us toll free @:
1-888-996-2729
Or write to:
Escalade Sports
Customer Service Department
P.O. Box 889
Evansville IN 47706
AL4100
- HL
Fo r Custome r Servic e Cal l 1-888-996-2729
1
,

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMERICAN LEGEND AL4100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESCALADE AMERICAN LEGEND AL4100

Summary of Contents for ESCALADE AMERICAN LEGEND AL4100

  • Page 1 Please have your model number when inquiring about parts. When contacting Escalade Sports please provide your model number, date code (if applicable) and part number if requesting a replacement part. These numbers are located on the product, packaging, and this owners manual.
  • Page 2 IMPORTANT! READ EACH STEP IN THIS MANUAL BEFORE YOU BEGIN THE ASSEMBLY. TWO ADULTS ARE REQUIRED TO ASSEMBLE THIS 9' ARCADE SPEEDBALL Featuring Electronic Scoring and LED Lighting Tools Required: Allen Wrench (Included) Furniture Polish and Soft Cotton Cloth Assembly Note: During assembly, correct orientation of all parts is critical for correct assembly. Please study all diagrams closely.

  • Page 3: Hardware Identifier

    HARDWARE IDENTIFIER (To Scale) H1 - 3.5 mm x 18 mm H2 - 3.5 mm x 28 mm H3 - 3.5 mm x 12 mm Phillips Round Phillips Round Phillips Round Head Screw Head Screw Head Screw (24 pcs) (28 pcs) (98 pcs) H4 - 6 mm x 25 mm H 5 - 6.5 mm x 18 mm...
  • Page 4 PARTS IDENTIFIER (Not to Scale) P1 - Front Leg Apron P2 - Left Front Leg P3 - Right Front Leg P4 - Ball Stop Bottom Board (1 pc) (assembles with P17) (assembles with P18) (1 pc) (1 pc) (1 pc) P5 - Target Board P6- Top Rail Plastic P7 - Right Back...
  • Page 5 P21 - Connecting Board P22 - Goal Box P23 - Metal Connection Plate P24 - Middle Support Board (2 pcs) Bottom Board (16 pcs) (2 pcs) (1 pcs) P25 - End Support Board P28 - Lower Front P26 - Plastic Ball Return P27 - Clear Plexiglass (1 pc) Cabinet Board...

  • Page 6: Parts Required

    PARTS REQUIRED 1pc - P13 Left Side Apron 10pcs - P23 Metal Connection Plate 40pcs - H3 Phillips Round head Screw 1pc - P14 Right Side Apron 1pc - P15 Left Top Rail with Control Switch 1pc - P16 Right Top Rail STEP 1 Attach the P14 Right Side Apron onto the P16 Right Top Rail using the P23 Metal Connection Plates and the pilot holes on the P14/P16 , using the H3 Phillips Round Head Screws as shown in DETAIL A.
  • Page 7 PARTS REQUIRED 1pc - P19 Playfield with End Ramp 10pcs - H2 Phillips Round Head Screw STEP 2 Attach the P19 Playfield onto the STEP 1 Assemblies using the pilot holes and the H2 Philips Round Screws as shown in FIGURE 2. Tighten, but DO NOT strip out H2 screws.
  • Page 8 PARTS REQUIRED 1pc - P1 End Apron 1pc - P18 Right Leg 1pc - P2 Left Front Leg 4pcs - H2 Phillips Round Head Screw 1pc - P3 Right Front Leg 20pcs - H3 Phillips Round Head Screw 1pc - P17 Left Leg 6pcs - P23 Metal Connection Plate STEP 3 Attach the P3 Right Front Leg onto the P18 Right Leg using the P23 Metal Connection Plates, the...
  • Page 9 PARTS REQUIRED 1pc - P33 Plastic Connector (Playfield to Front Leg) Front Leg DETAIL E STEP 4 Assembly Connect the STEP 3 Front Leg Assembly onto the Playfield Assembly using the P33 Plastic Connector as shown in FIGURE 4. FIGURE 4 Cord this end.
  • Page 10 PARTS REQUIRED 2pcs - P24 Middle Support Board 12pcs - H7 Phillips Round Head Screw 1pc - P25 End Support Board 6pcs - P30 Black Plastic “L” Bracket STEP 6 Note: 2 pieces P24 Attach the P30 Plastic “L” Brackets onto the P24 / P25 Support Boards using the pilot holes and the H7 Phillips Round Screws as shown in FIGURE 6.
  • Page 11 PARTS REQUIRED 2pcs - P21 Connecting Board 6pcs - H5 Flat Washer 6pcs - H6 Lock Washer 6pcs - H4 Allen Head Bolt STEP 8 Attach the P21 onto the inside of the Side Connecting Boards Aprons using the H4 Allen Head Bolts, H5 Flat Washers, H6 Lock Washers as shown in DETAIL H.
  • Page 12 PARTS REQUIRED 2pcs - H2 Phillips Round Head Screw STEP 10 Install and attach the P26 Plastic Ball Return onto the P24/25 Support Boards using the H2 Philips Round Screws as shown in DETAIL I. DETAIL I Tighten, but DO NOT strip out H2 screws. FIGURE 10 PARTS REQUIRED 1pc - P22...
  • Page 13 PARTS REQUIRED 1pc - P7 Right Back Leg 4pcs - H2 Phillips Round Head Screw 1pc - P8 Left Back Leg 1pc - P28 Back Board - D NOTE: NEED 2 ADULTS FOR ASSEMBLY Second adult holds here STEP 12 Attach the P28 onto the Lower Front Cabinet Board...
  • Page 14 PARTS REQUIRED 1pc - P4 Ball Stop Bottom Board 4pcs - H1 Phillips Round Head Screw STEP 14 Attach the P4 onto the P7 / P8 Back Legs using pilot holes and the H1 Phillips Ball Stop Bottom Board Round Screws as shown in FIGURE 14. Tighten, but DO NOT strip out H1 screws.
  • Page 15 PARTS REQUIRED 1pc - P5 2pcs - H2 Target Board with Scoring Sensors Phillips Round Head Screw NOTE: Need second adult to hold the P7+P8 inward to prevent gaps between P7, P8 and P5. STEP 15 Attach the P5 onto the P7 / P8 Back Legs using the pilot holes and the H2 Phillips Target Board Round Screws as shown in FIGURE 15.
  • Page 16 PARTS REQUIRED 1pc - P9 Backboard with Graphic 4pcs - H4 Allen Head Bolt 4pcs - H1 Phillips Round Head Screw 4pcs - H5 Flat Washer 4pcs - H6 Lock Washer STEP 17 Place the P9 onto the P7 / P8 Back Legs as shown in FIGURE 17-1. Backboard with Graphic Attach the STEP 16 onto the P7 / P8 Back Legs using the H4 Allen Head Bolts, H5 Flat...
  • Page 17 PARTS REQUIRED 1pc - P27 Clear Plexiglass 6pcs - H3 Phillips Round Head Screw STEP 18 Install the P27 onto the P7 / P8 Back Legs and attach onto the P10 Top Cabinet Panel Clear Plexiglass using pilot holes and the H3 Phillips Round Screws as shown in FIGURE 18. Tighten, but DO NOT overtighten H3 Screws as this could crack the plexiglass.
  • Page 18 PARTS REQUIRED 1pc - P12 4pcs - H1 Phillips Round Head Screw Lower Back Cabinet Board STEP 19 Attach the P12 onto the P7 / P8 Lower Back Cabinet Board NOTE: All male/ female connectors Back Legs using pilot holes and the H1 Phillips Round must be turned correctly in order to Screws as shown in FIGURE 19.
  • Page 19 PARTS REQUIRED 1pc - P31 Left Plastic Trim Strip 14pcs - H3 Phillips Round Head Screw 1pc - P32 Right Plastic Trim Strip 2pcs - P6 Top Rail Plastic Corner Cap STEP 21 Attach the P31 / 32 onto the Cabinet using pilot holes and the H3 Phillips Round Plastic Trim Strips Screws as shown in FIGURE 21.

  • Page 20: Electronic Connections

    ELECTRONIC CONNECTIONS NOTE: All male/ female connectors must be turned correctly in order to plug into each other. A1 A/C Adapter P29 Electronic Scorer Connections 1,2,3,4 are all made by the customer. C1 ON/OFF Swtich C2 LED Strip Target Board to Electronic Scorer C3 Scoring Sensor Replacement of Scorer Sensor (all factory connected)
  • Page 21 r game and Use instructions below to insure many years of trouble free use of your game . e l CAUTION: To play this game and achieve a high skill level requires a soft and gentle toss of the Ball . Over tossing or over throwing the ball could result in serious damage to the product .
  • Page 22 Key # Part # Qty. Description AL4100HLP20 Wooden Support Brace (packed with P30) AL4100HLP21 Connecting Board AL4100HLP22 Goal Box Bottom Board AL4100HLP23 Metal Connection Plate AL4100HLP24 Middle Support Board AL4100HLP25 End Support Board AL4100HLP26 Plastic Ball Return AL4100HLP27 Clear Plexiglass AL4100HLP28 Lower Front Cabinet Board AL4100HLP29...

  • Page 23: 90-Day Limited Warranty

    90 DAY LIMITED WARRANTY This customer warranty extends to the original owner, on the purchase of any ESCALADE SPORTS Product (hereinafter referred as the "Product"). WARRANTY DURATION: This Product is warranted to the original owner, for a period of 90 days from the original purchase.
