5. Expansion Ports
There are four expansion ports numbered from E1 – E4. These are expansion Ports
for connecting either the 8port expansion or 16 dry contact expansion modules.
6. Removable SD slot
This slot so where you can place your SD card which can store data such as pictures
taken from the CCTV camera, sounds recorded from the internal microphone, and
also the current firmware of the unit.

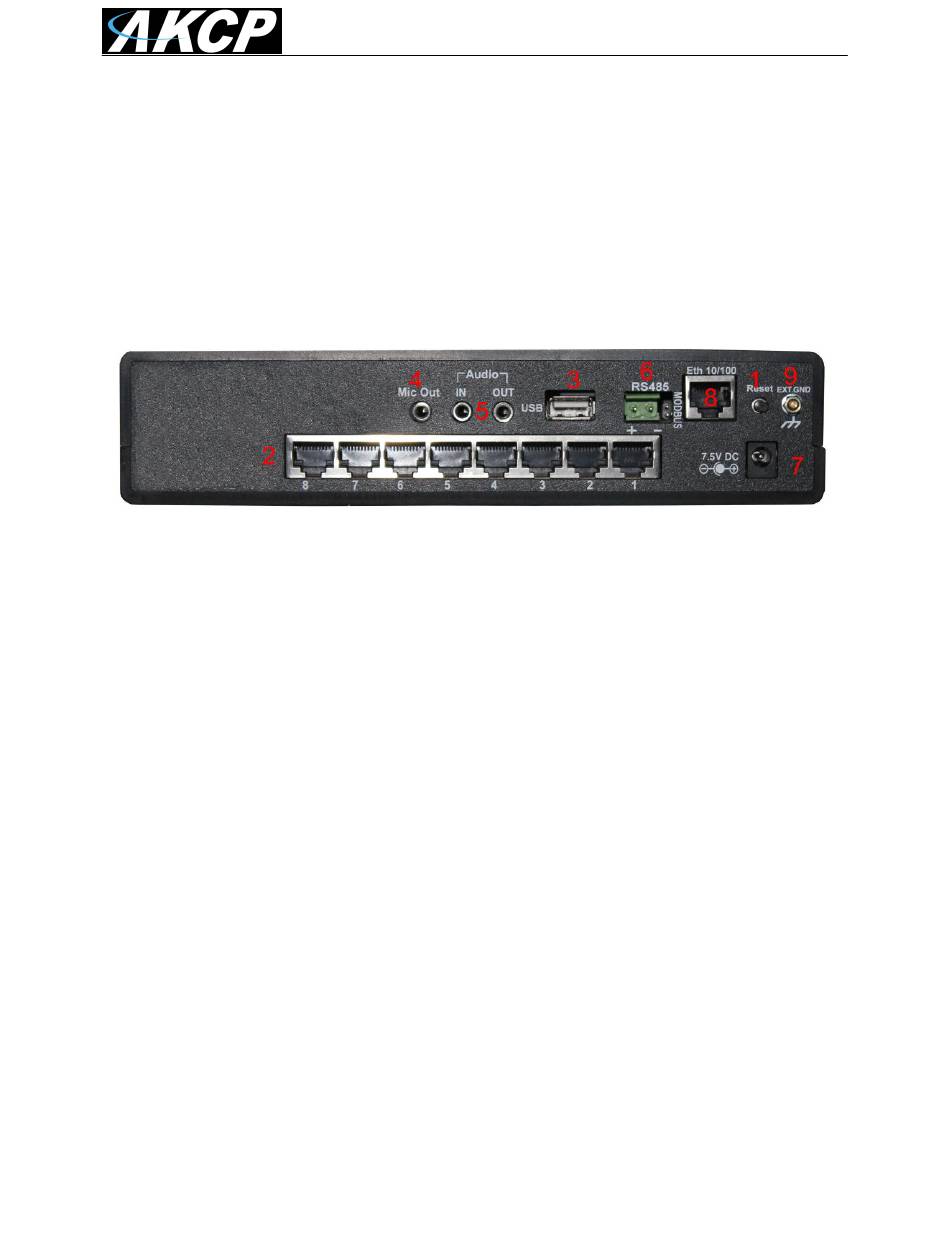

Fig 2. Rear panel.
The rear panel of the unit is home to various ports and connections. The functions of
these are as follows :-
1. Reset button
The black tact switch button is used to perform the following functions
1. A single press will announce the IP address of the unit. This is audible
through the internal speaker. It also broadcasts the IP address to the IPset
program.
2. Turns off password checking when accessing the web based interface (hold
down for 7 seconds)
3. To reboot the unit into the firmware upgrade mode (hold down for 12
seconds)
2. Sensor ports
There are 8 RJ45 ports numbered from 1 – 8. These are for connecting AKCP
intelligent sensors to the unit.
3. USB port
The unit is equipped with one USB 1.1 port. This can be used, for example, to
connect a USB GPRS/GSM compatible modem, a USB WiFi dongle or USB
Bluetooth dongle.
4. Mic Out
This is used to connect an external microphone for voice modem applications.
Updated until firmware 403H
