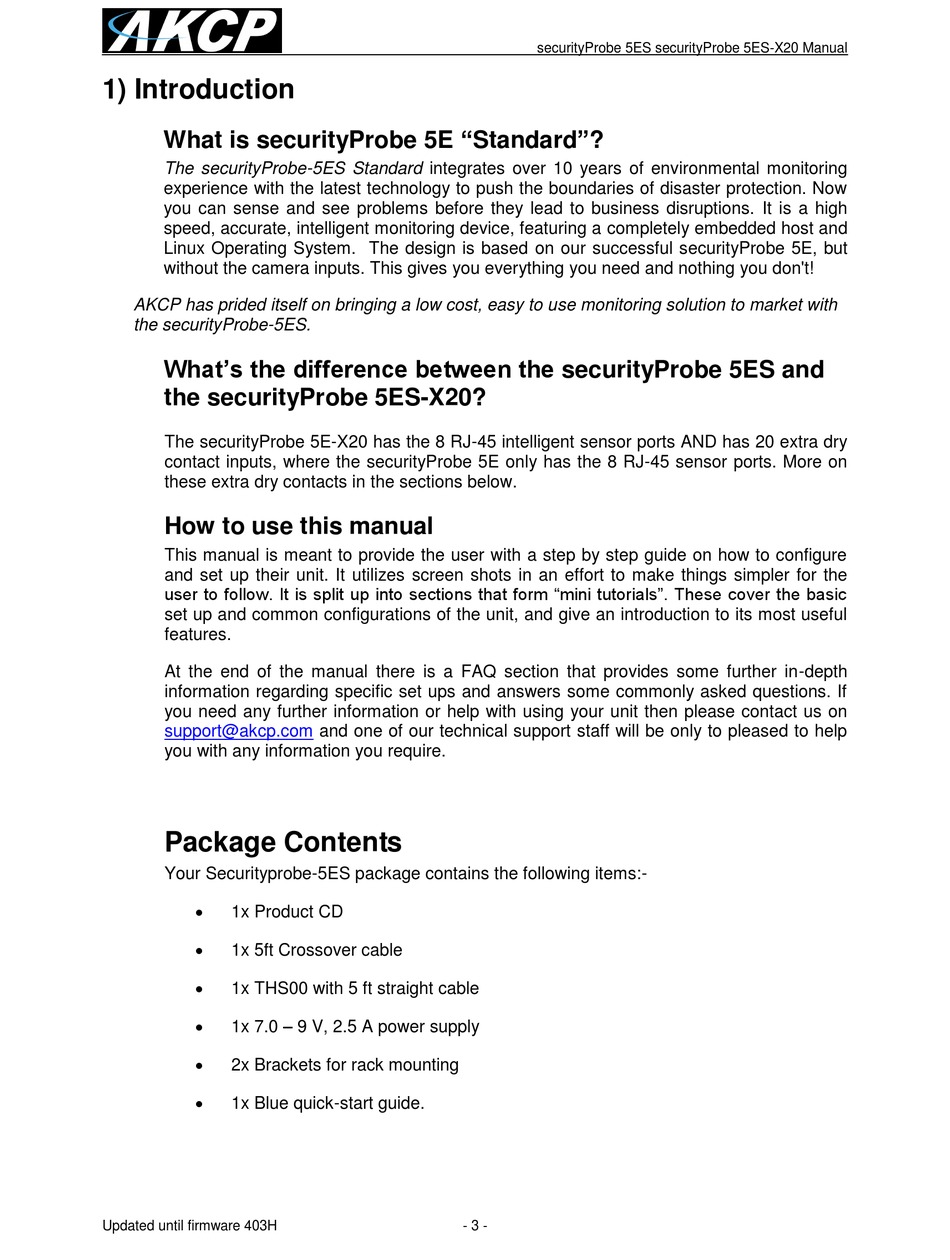

1) Introduction
What is securityProbe 5E "Standard"?
The securityProbe-5ES Standard integrates over 10 years of environmental monitoring
experience with the latest technology to push the boundaries of disaster protection. Now
you can sense and see problems before they lead to business disruptions. It is a high
speed, accurate, intelligent monitoring device, featuring a completely embedded host and
Linux Operating System. The design is based on our successful securityProbe 5E, but
without the camera inputs. This gives you everything you need and nothing you don't!
AKCP has prided itself on bringing a low cost, easy to use monitoring solution to market with
the securityProbe-5ES.
What's the difference between the securityProbe 5ES and
the securityProbe 5ES-X20?
The securityProbe 5E-X20 has the 8 RJ-45 intelligent sensor ports AND has 20 extra dry
contact inputs, where the securityProbe 5E only has the 8 RJ-45 sensor ports. More on
these extra dry contacts in the sections below.

How to use this manual

This manual is meant to provide the user with a step by step guide on how to configure
and set up their unit. It utilizes screen shots in an effort to make things simpler for the
user to follow. It is split up into sections that form "mini tutorials". These cover the basic
set up and common configurations of the unit, and give an introduction to its most useful
features.
At the end of the manual there is a FAQ section that provides some further in-depth
information regarding specific set ups and answers some commonly asked questions. If
you need any further information or help with using your unit then please contact us on
support@akcp.com
you with any information you require.

Package Contents

Your Securityprobe-5ES package contains the following items:-

1x Product CD

1x 5ft Crossover cable

1x THS00 with 5 ft straight cable

1x 7.0 – 9 V, 2.5 A power supply

2x Brackets for rack mounting

1x Blue quick-start guide.
Updated until firmware 403H
and one of our technical support staff will be only to pleased to help
