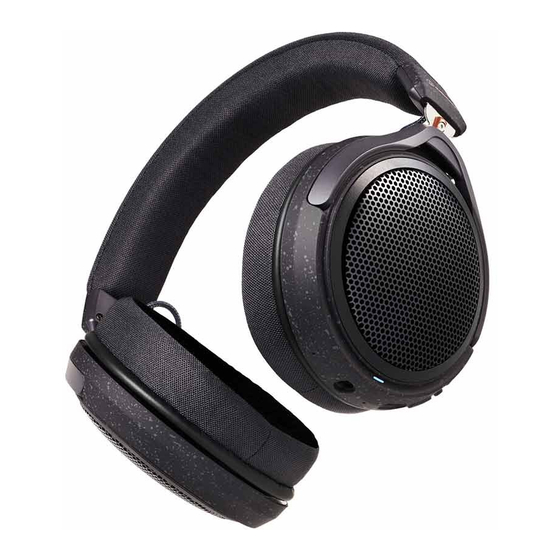

- Page 1 ATH-HL7BT Wireless Headphones User Manual English...
-
Page 2: Safety Precautions
Safety precautions Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure safety, observe all warnings and cautions while using the product. Cautions for the product Do not use the product near medical equipment. Radio waves may affect cardiac pacemakers and medical electronic equipment. - Page 3 Safety precautions If battery fluid leaks, do not touch fluid with bare hands. If fluid remains inside the product, it may cause malfunction. If battery fluid leaks, contact your local Audio-Technica dealer. If fluid gets in your mouth, gargle thoroughly with clean water such as tap water and consult a doctor immediately.
-
Page 4: Notes On Use
Notes on use Be sure to read the connected device’s user manual before use. Audio-Technica will not be liable in any way for any loss of data in the unlikely event that such losses should occur while using the product. The product’s open-back design allows audio to be heard outside the headphones. -
Page 5: For A More Comfortable Bluetooth Communication Experience
For a more comfortable Bluetooth communication experience The effective communication range of this product varies depending on obstructions and radio wave conditions. For a more enjoyable experience, please use the product as close as possible to the Bluetooth device. To minimize noise and sound disruptions, avoid placing your body or other obstacles between the product’s antenna (L side) and the Bluetooth device. -
Page 6: Part Names And Functions
Part names and functions Headphones L/R (left/right) indicator Earpad Headband Slider Joint Housing Indicator lamp Displays the operating status and battery level of the product. -
Page 7: Operation Area
Part names and functions Operation area Microphones Connector jack Use to connect the included cable for wired connection. Battery jack Use to connect the included USB charging cable and charge the product. Power supply / control button Use to turn the power supply ON/OFF, play/pause music, and answer phone calls. Volume buttons Use to adjust the volume up or down (+/–). -
Page 8: Charging The Battery
Charging the battery Fully charge the battery when using for the first time. When the rechargeable battery is running low, the voice guidance will play the message “Low battery”, and the indicator lamp will flash in red. Charge the battery as soon as possible. It takes about 1.5 hours maximum to charge the battery fully. - Page 9 Charging the battery When charging, make sure to use the included USB charging cable. The product may not charge with cables other than the included USB charging cable.
-
Page 10: Power Supply On/Off
Power supply ON/OFF Turning on the product Press and hold the power supply / control button (about 2 seconds). The indicator lamp lights in white, and then flashes. Voice guidance is played. It may take several seconds for the indicator lamps to light. See "Voice guidance"... -
Page 11: Connecting Via Bluetooth
Use your Bluetooth device to begin the pairing process and search for the product. When your Bluetooth device finds the product, “ATH-HL7BT” will be displayed on the device. For information about using your Bluetooth device, refer to the device’s user manual. -
Page 12: Multipoint Function
Connecting via Bluetooth Multipoint function The product supports multipoint, which allows two Bluetooth devices to be connected at the same time. While you are listening to music with one device, you can answer a call that comes in from the other device. It is convenient if you have two smartphones, for example. -
Page 13: Wearing The Product
Wearing the product Put the side of the product marked “L” (LEFT) onto the left ear and the side marked “R” (RIGHT) onto the right ear, slide the slider up and down so that the earpads cover the ears, and then adjust the headband. -
Page 14: Using The Product
Using the product The product can use Bluetooth wireless technology to connect to your device and play music, receive phone calls, etc. Use the product for whichever of these purposes suits your needs. Note that Audio-Technica cannot guarantee the operation of displays, such as the battery level display, or applications via Bluetooth devices. Listening to music To connect for the first time, pair the product and your device via Bluetooth wireless technology. -
Page 15: Talking On The Phone
Using the product Operation of volume buttons Volume buttons Operation Function [1][2] Press Increases/decreases the volume by 1 level. Plays the next track. Press and hold (about 2 seconds) Plays the previous track / returns to the start of the track. [1] A beep is heard when the volume is at the maximum or minimum level. -
Page 16: Wired Connection (Playthrough Function)
Using the product Not wearing the product properly while talking on the phone may cause your voice to be too quiet for others to hear. Operation of power supply / control button Power supply / control button Operation Function Receiving a call: Answers the call. Press Making a call: Cancels the call. -
Page 17: Auto Power Off Function
Using the product Smartphone, portable audio player, etc. Input plug Connector plug Connector jack Auto power off function The product automatically turns off after 5 minutes of not being connected to a device. App for smartphones This product is compatible with our "CONNECT" app. The app gives you convenient access to various functions. It also allows you to update the product's firmware. - Page 18 Using the product Function Description Volume Adjustment Level You can adjust volume in levels during music playback. [1][2] Audio Codecs You can change the connection codec. Equalizer You can adjust the equalizer settings. Low latency mode reduces sound delay when playing games or watching Low Latency Mode (ON at the time of videos.
-
Page 19: Indicator Lamp Display
Indicator lamp display The indicator lamp of the product indicates the product’s status. Pairing Status Indicator lamp display pattern ○ - ○ - ○ ・ ・・ Searching for devices Flashing white (gradually lighting up) Connecting Status Indicator lamp display pattern ○--------○--------○ ・ ・・ Waiting to be connected Flashing white in 8-second intervals ○----○----○ ... -
Page 20: Voice Guidance
Voice guidance The product plays English voice guidance in the following situations. Situation Voice guidance Voice guidance varies depending on the battery level: Battery level high Power is turned on Battery level medium Battery level low Bluetooth is connected Bluetooth connected Bluetooth is disconnected Bluetooth disconnected Low latency mode ON... - Page 21 Cleaning Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not use alcohol, paint thinners, or other solvents for cleaning purposes. Use a dry cloth to clean the headphones. To clean the earpads and headband, wipe with a dry cloth.
- Page 22 Forced pairing mode / reset If the product does not connect to a device (forced pairing mode) If pairing cannot be cancelled or is not successful, you can use forced pairing mode to perform pairing again. With the product turned on, press and hold (about 3 seconds) the volume buttons (+/–) at the same time.
-
Page 23: Troubleshooting
Troubleshooting Power is not supplied Charge the product. Unable to pair Confirm that the Bluetooth device communicates using Ver. 2.1+EDR or higher. Place the product and the Bluetooth device within 1 m (3.3') of each other. Set the profiles for the Bluetooth device. For procedures on how to set profiles, refer to the Bluetooth device’s user manual. - Page 24 Troubleshooting Cannot hear the voice of the caller / Voice of the caller is too quiet Turn on the power of the product and the Bluetooth device. Turn up the volume on the product and the Bluetooth device. Confirm that the product and Bluetooth device are connected via HFP/HSP (or phone connection). Disable pairing for the product and the Bluetooth device, then pair the product with this device again.
-
Page 25: Communication Specifications
Specifications Headphones Type Open-air dynamic Driver 53 mm Sensitivity 100 dB/mW Frequency response 5 to 40,000 Hz 48 ohms Impedance Microphone Type MEMS type Polar pattern Omnidirectional -38 dB (1 V/Pa, at 1 kHz) Sensitivity Frequency response 85 to 15,000 Hz Communication specifications Communication system Bluetooth version 5.0... - Page 26 Specifications Other Power supply DC 3.7 V lithium polymer battery Charging time Approx. 1.5 hours Operating time Continuous transmission time (music playback): Max. approx. 20 hours Weight Approx. 220 g (7.8 oz) 5°C to 40°C (41°F to 104°F) Operating temperature USB charging cable (30 cm (12”), USB Type-A / USB Type-C), Cable (2.0 m Accessories (6.6’) / 3.5 mm (1/8”) gold-plated stereo mini-plug (L-shaped)) Sold separately...
- Page 27 Trademarks ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Audio-Technica Corporation is under license. Other trademarks and trade names are those of their respective owners. ™ USB Type-C is a trademark of USB Implementers Forum.
- Page 28 株式会社オーディオテクニカ 〒194-8666 東京都町田市西成瀬2-46-1 www.audio-technica.co.jp Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan www.audio-technica.com ©2022 Audio-Technica Corporation ver.1 2021.11.15 Global Support Contact: www.at-globalsupport.com 132417640-02-02 ver.2 2022.04.01...
