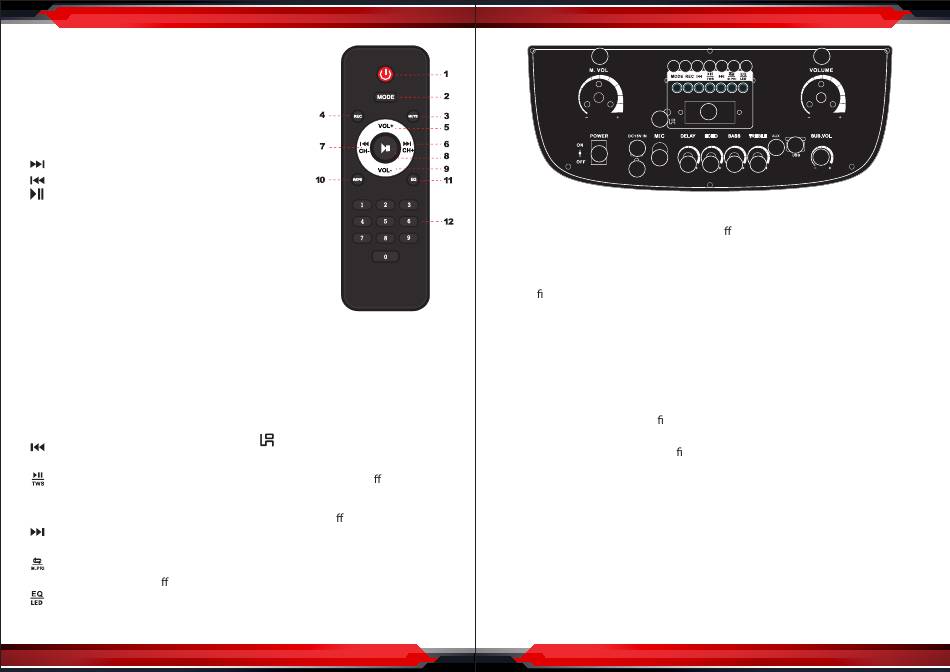

REMOTE CONTROL FUNCTIONS
1. Power: Standby button.
2. MODE: Used to switch the BT, FM, AUX, USB, SD
3. MUTE: Mute button
4. REC: Recording, press once to start recording,
press again to play the current recording.
5. VOL + : Main volume increase
: Next song/Next channel
6.
: Previous song/Previous channel
7.
: Play/Stop Auto-search by press and hold
8.
the FM button, press and hold the BT button to
turn on TWS
9. VOL - : Main volume decrease
10. REPEAT: Single repeat/repeat all
11. EQ: Choose from EQ1, EQ2, EQ3, EQ4...
12. Choose song number directly/channel directly.
UNIT DESCRIPTION
1. MIC.VOL: Mic volume knob
2. MODE: Mode Switch for BT， FM， AUX，
USB， SD.
3. REC: Recording. Press once to start
recording, press again to play the
current recording.
: Previous song/channel press and
4.
hold to rewind
: Play/stop, Auto- search by press
5.
and hold the FM button, press and hold
the BT button to turn on TWS.
6. : Next song/next channel, press and
hold to fast forward.
7. : Single repeat/repeat all; press and
hold for Mic priority; on/o
8. : Choose from EQ1, EQ2, EQ3, EQ4...
Press and hold to turn ON/OFF LED light.
4
www.PyleUSA.com
9. VOLUME: Main volume knob
10. POWER ON/OFF
11.15V IN: DC 15V charging input
12. CHARGE: Charge indicator
13. MIC. IN: Mic Input
14. : Remote control receiver
15. Display: Display screen
16. DELAY ECHO: Delay e ect knob
for mic
17. ECHO: ECHO e ect for mic
18. Bass: Bass control knob
19. Treble: Treble control knob
20. AUX: Aux in
21. USB/SD input
22. SUB.VOL: Subwoofer control knob
1
2 3 4 5 6 7 8
14
11
10
13
12
GETTING STARTED
1. Ensure the Portable PA Speaker is turned o . Ensure all volume controls are turned
all the way down. Next, connect one side of the included power cable to the
Portable PA Speaker's power inlet and the other to a grounded power outlet.
2. Ensure that the power supply complies with the power requirements listed on the
identi cation sticker located on the bottom of your product. Turn on the power to
the Portable PA Speaker using the power switch.
3. Slowly turn up the function keys until the desired level is reached.
WIRELESS BT CONNECTION
Switch the Portable PA Speaker to MODE, then switch to BT (BT MODE) pairing
mode and connect to a new BT device using BT Network Name: 'PYLE USA' .
Warning: To prevent the risk of re or electric shock, do not expose this appliance to
rain or moisture. To prevent electric shock do not remove the cover. No user serviceable
parts inside. Refer servicing to quali ed service personnel.
Safety: Prior to connecting mains, ensure that the supply voltage is correct and the
mains lead is in good condition. Avoid ingress of water or particles into the enclosure.
Placement: Keep the unit out of direct sunlight and away from heat sources.
Place the unit in an upright position during use and storage. Keep the unit away
from moisture or dusty environments.
Cleaning: Use a soft cloth with a neutral detergent to clean the cabinet, panel and
controls. To avoid damage, do not use solvents to clean this equipment.
9
15
Micro SD
20 21
22
16 17 18 19
