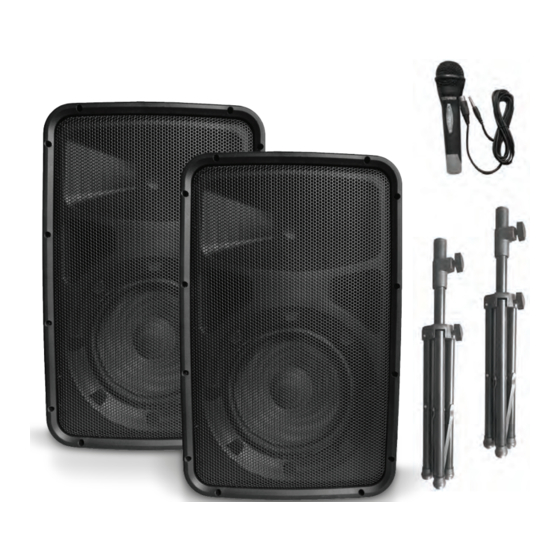

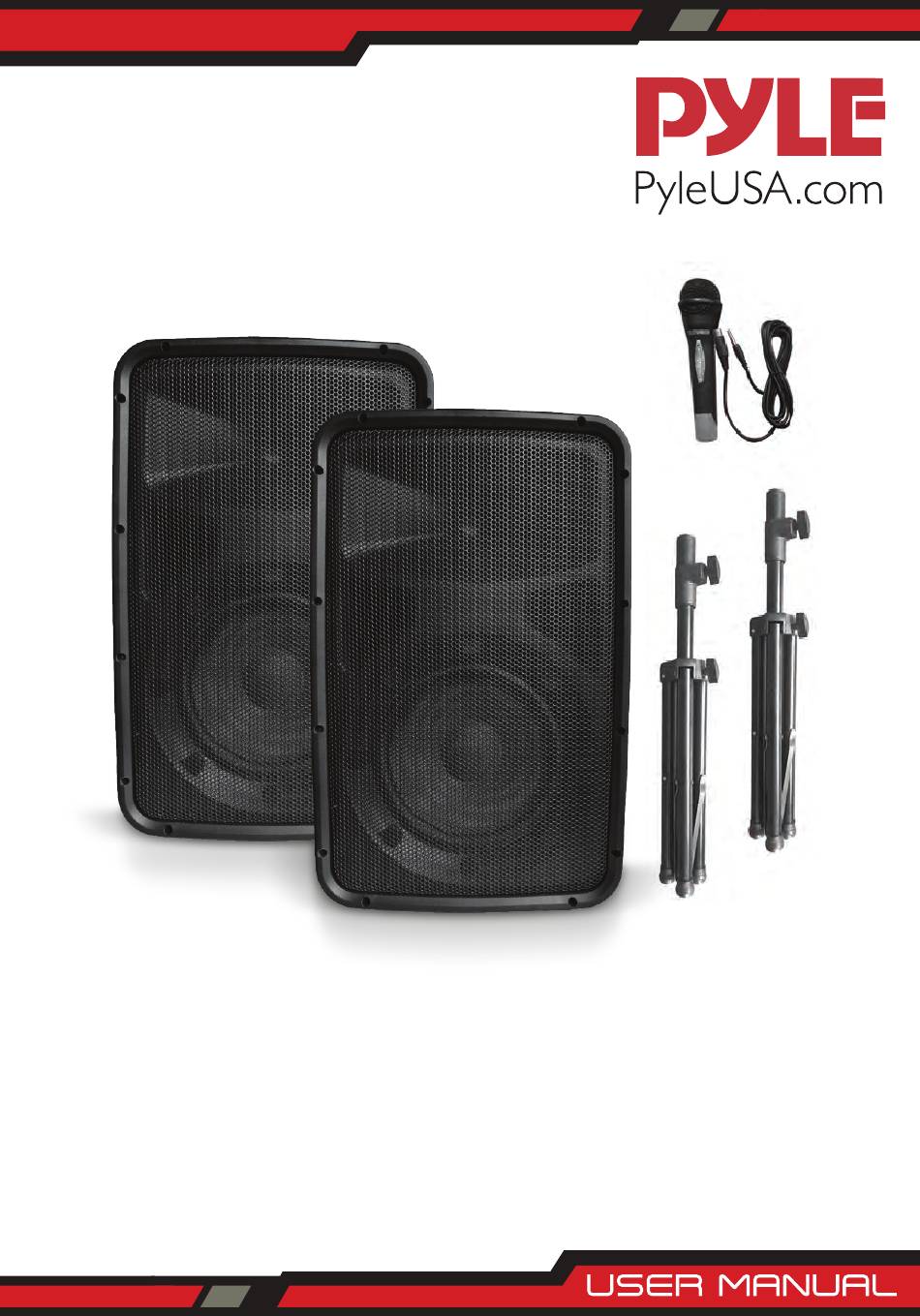

- Page 1 PPHP28AMX Stage & Studio DJ Speaker & Mixer Bundle Kit (2) 8’’ Bluetooth PA Loud-Speakers, 8-Ch. Audio Mixer, Speaker Stands, Wired Microphone (300 Watt)
-
Page 2: Safety Instruction
WARNING! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER - SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “dangerous”... -
Page 3: Control Panels
CONTROL PANELS 1. MP3 Player Button A. MODE: Short press: Press to switch between USB/ SD/BLUETOOTH. : Short press: Switch Previous Song, Long press Voice DOWN : Short press: Switch next Song, Long press Voice UP D. REPEAT: Repeat between RA (Repeat all)/RO (Repeat One)/RR (Repeat randomly) Short press: Play/Pause long press to FOLDER tracking. - Page 4 2. Blue LED Display 3. USB port 4. SD port 5. Channel 1-4 XLR Connector: Connect Microphone and Line input using the XLR cables. 6. Mic / Line Input Selector Channels: When connecting a microphone set the selector to MIC. When connecting a Line input set this selector to Line. 7.
- Page 5 PPHP28AMX Stage & Studio DJ Speaker & Mixer Bundle Kit - (2) 8’’ Bluetooth PA Loud-Speak- ers, 8-Ch. Audio Mixer, Speaker Stands, Wired Microphone (300 Watt) Features: • All-in-One DJ Audio Loud-Speaker Kit • 5-Band Graphic EQ • 8-Channel Powered Ampli er Audio •...
