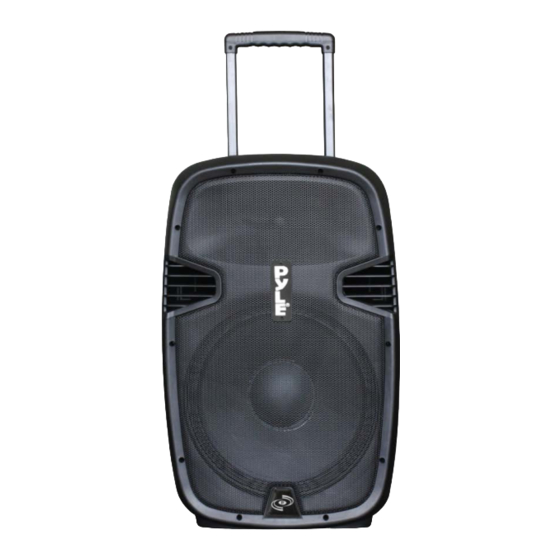

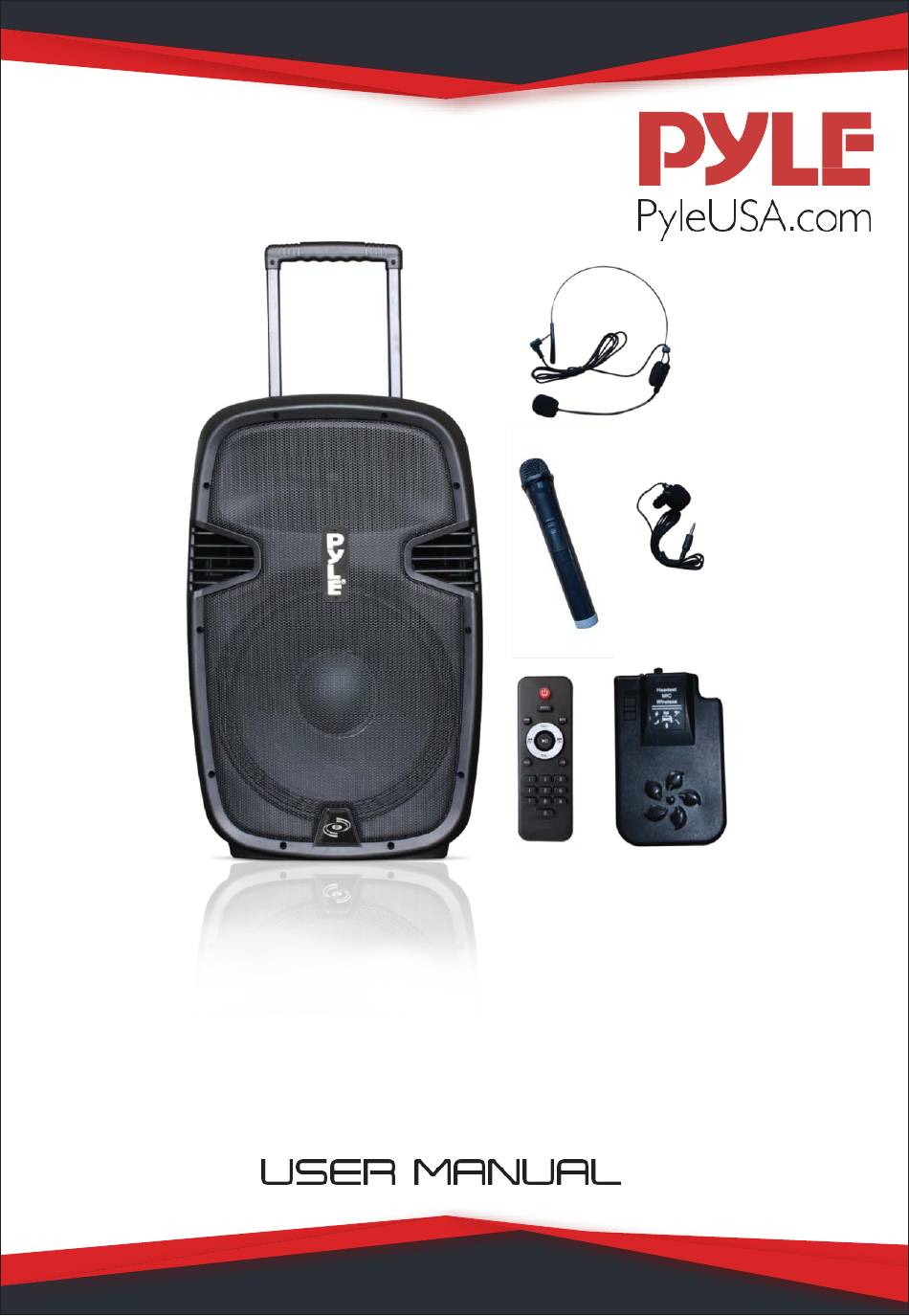

- Page 1 PPHP1241WMU Wireless & Portable Loudspeaker Active PA Speaker System Kit, Built-in Rechargeable Battery (12" Subwoofer, 1000 Watt)
- Page 2 INDEX Operation ........................2 User’s General Instructions ..................3 Controls and Connections ................... 4 Specifications ......................6 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER [OR BACK] THIS PRODUCT MUST BE EARTHED NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL OPERATION 1.
- Page 3 INSTRUCTIONS • Do not overload the box to avoid damage to the speakers. • Do not place to an open fire (candles etc) on top or next to the box- FIRE HAZARD • Only connect to an earthed mains outlet of 110Vac/60Hz. •...
- Page 4 CONTROLS AND CONNECTIONS 1. LED Screen 22. Chanel A wireless Mic power LED 2. Mp3 control 23. Wireless microphone antenna 3. SD Card Slot 24. Wireless microphone select: 4. USB PORT Press it to power ON/OFF the 5. Bass Control wireless microphone 6.
- Page 5 CONTROLS AND CONNECTIONS www.PyleUSA.com...
- Page 6 PPHP1241WMU Wireless & Portable Loudspeaker Active PA Speaker System Kit, Built-in Rechargeable Battery (12" Subwoofer, 1000 Watt) Features: • Versatile High-Powered Mobile Cabinet Speaker System • Rugged, Durable & Reliable Sound • Speaker System: 12'' Woofer, 1'' Tweeter • Compression Driver with Titanium Diaphragm •...
- Page 7 What's in the Box: • PA Speaker • Wireless Handheld Microphone frequency：UHF 600.85MHz – 606.025MHz Modulation mode：Broadband FM Frequency interval：300KHz Frequency stability：±0.005% Dynamic range：100dB Maximum modulation：±45KHz Audio frequency response：80Hz~18KHz（±3dB） Integrated signal to noise ratio：＞105dB Composite distortion：≤0.5% Working environment temperature：0℃~＋40℃ Maximum output level：±10dBV...
- Page 8 Transmitter indicator Antenna： Handheld, microphone built‐in spiral antenna Output power： High power 10mW Spurious rejection：－60dB Power supply： Two 5th 1.5VAA batteries • Headset Microphone • Beltpack Transmitter • Remote Control • Power Cable Technical Specs: • Max Power Output: 10 mW •...
- Page 9 • Mic Input Level: <15mV • Line Input/Output Level: >250mV • Frequency Response: 80-20kHz • Digital Audio File Compatibility: MP3, WMA • Maximum SD/USB Flash Memory Support: 32GB • Power: 100-240V • Dimensions (L x W x H): 18.9'' x 14.6'' x 24.8'' www.PyleUSA.com...
- Page 10 FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 74 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interferenc e that may cause undesired operation.
