Trademarks
FOXWELL is trademark of Shenzhen Foxwell Technology Co., Ltd.
All other marks are trademarks or registered trademarks of their respective
holders.
Copyright Information
©2020 Shenzhen Foxwell Technology Co., Ltd.
All rights reserved.
Disclaimer
The information, specifications and illustrations in this manual are based on the
latest information available at the time of printing.
Foxwell reserves the right to make changes at any time without notice.
Visit our website at
www.foxwelltech.us
For Technical Assistance, send us email at
support@foxwelltech.com
1
Premier Diagnostic Platform II i80 Max User's Manual V1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I80MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Foxwell I80MAX

Summary of Contents for Foxwell I80MAX

  • Page 1 Disclaimer The information, specifications and illustrations in this manual are based on the latest information available at the time of printing. Foxwell reserves the right to make changes at any time without notice. Visit our website at www.foxwelltech.us For Technical Assistance, send us email at support@foxwelltech.com...

  • Page 2: Two-Year Limited Warranty

    FOXWELL. 3 The customer shall bear the cost of shipping the product to FOXWELL. And FOXWELL shall bear the cost of shipping the product back to the customer after the completion of service under this limited warranty.
  • Page 3 The customer will be billed for any parts or labor charges not covered by this limited warranty. d) FOXWELL will repair the Product under the limited warranty within 30 days after receipt of the product. If FOXWELL cannot perform repairs covered...
  • Page 4 consequential damages, so certain of the above limitations or exclusions may not apply to you (the Consumer). This limited warranty gives the Consumer specific legal rights and the Consumer may also have other rights which vary from state to state. Premier Diagnostic Platform II i80 Max User's Manual V1.01...

  • Page 5: Safety Information

    Safety Information For your own safety and the safety of others, and to prevent damage to the equipment and vehicles, read this manual thoroughly before operating your tool. The safety messages presented below and throughout this user’s manual are reminders to the operator to exercise extreme care when using this device.
  • Page 6 ● Fuel, oil vapors, hot steam, hot toxic exhaust gases, acid, refrigerant and other debris produced by a malfunction engine can cause serious injury or death. Do not use the tool in areas where explosive vapor may collect, such as in below-ground pits, confined areas, or areas that are less than 18 inches (45 cm) above the floor.

  • Page 7: Table Of Contents

    Table of Contents Automotive Diagnostic Tool i80Max TWO-YEAR LIMITED WARRANTY........................2 SAFETY INFORMATION............................5 SAFETY MESSAGE CONVENTIONS USED....................5 IMPORTANT SAFETY INSTRUCTIONS......................5 1 USING THIS MANUAL............................10 1.1 B ..............................10 1.2 S ........................... 10 YMBOLS AND CONS 1.2.1 Solid Spot............................10 1.2.2 Arrow Icon............................
  • Page 8 4.1.1 Automatic Read..........................25 4.1.2 Scan VIN..............................27 4.1.2.1 Scan VIN Plate...........................27 4.1.2.2 Scan Barcode/QR Code of VIN....................28 4.1.2.3 Photo Recognition........................29 4.1.3 Manual Entry............................30 4.2 M ............................. 31 ANUAL ELECTION 4.2.1 Smart VIN............................32 4.2.2 Manual Vehicle Selection......................... 33 4.3 V EHICLE ISTORY ............................34...
  • Page 9 7.1 I MAGE ................................59 7.1.1 How to Save an Image........................60 7.1.2 Review Image............................. 60 7.2 R ............................... 62 EPORTS 7.2.1 How to Create a Report........................62 7.2.2 Review Reports..........................62 7.3 D ............................63 LAYBACK 7.4 D & D ....................... 64 OGGING ECORD 8 VCI MANAGER..............................

  • Page 10: Using This Manual

    1 Using This Manual We provide tool usage instructions in this manual. Below are the conventions we used in the manual. 1.1 Bold Text Bold text is used to highlight selectable items such as buttons and menu options. Example: Select Diagnostic from home screen of the i80 Max application. 1.2 Symbols and Icons 1.2.1 Solid Spot Operation tips and lists that apply to specific tool are introduced by a solid...

  • Page 11: Introduction

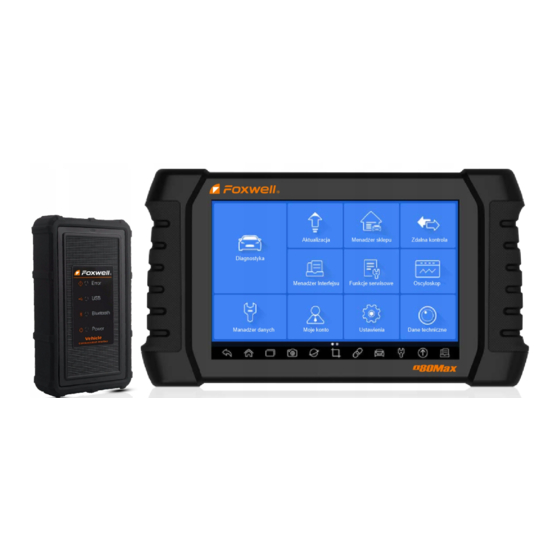

    NOTE Test results do not necessarily indicate a faulty component or system. Important IMPORTANT indicates a situation, which if not avoided, may result in damage to the test equipment or vehicle. Example: IMPORTANT Do not soak scanner as water might find its way into the scanner. 2 Introduction The latest Android tablet scanner i80 Max delivers faster and smarter diagnosis for workshops and technicians.
  • Page 12 Figure 2-1Front View 1 10’’ LED IPS Capacitive Touch Screen - shows menus, test results and operation tips. 2 Power Indicator - indicates the power status of the scanner. Figure 2-2 Back View 3 Rear-Facing Camera - takes pictures of VIN number, faulty parts and plates and shoots test videos.

  • Page 13: Vci Dongle Descriptions

    Figure 2-3 Top View 4 VOL + / VOL - press to adjust the volume. 5 Power Port - connects to wall plug to charge the scanner. 6 Ethernet Port - connects with Ethernet cable. 7 HDMI (high-definition multimedia interface) Port - outputs display of the scanner for demonstration and training.
  • Page 14 Figure 2-5 Front View of VCI dongle 1 Error Light - illuminates constantly when serious hardware failure occurs. 2 USB Light - turns green when the VCI dongle is properly connected and communicating with the i80 Max tablet via USB cable. 3 Bluetooth Light - turns green when the VCI dongle is properly connected with the i80 Max tablet via Bluetooth communication.

  • Page 15: Accessories

    Figure 2-7 Bottom View of VCI 6 USB Port - provides USB connection between the VCI dongle and i80 Max tablet. 2.3 Accessories This section lists the accessories that go with the scanner. If you find any of the following items missing from your package, contact your local dealer for assistance.

  • Page 16: Technical Specifications

    Table 2-1 Accessories 2.4 Technical Specifications Item Description 10.1’’ diagonal, daylight readable color LCD screen, 1920*1200 pixel Touch Screen Android Operation Premier Diagnostic Platform II i80 Max User's Manual V1.01...

  • Page 17: Getting Started

    System RK3288 (ARM Cortex, a17x4, 1.8GHz) Processor 2GB LPDDR3 Memory 64GB SSD Hard drive Android 8.1 System Type Built-in WIFI 802.11 b/g Wireless LAN Communication USB2.0 OTG/standard USB 2.0 HOST interface Bluetooth 4.0 (10-20 m) 13 megapixels rear-facing Camera 10000mAh, Lithium-polymer battery, chargeable via 12V/3A USB power Built-in Battery supply ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line...

  • Page 18: External Power Supply

    3.1.2 External Power Supply The tablet can also be powered from a wall socket using the DC charge adapter. The tablet charges its internal battery pack through charge cable. 3.2 Shutting Down the Scanner All vehicle communication must be terminated before shutting down the scanner.

  • Page 19: Vci Connection

    Figure 3-2 Sample Bluetooth Communication Screen Figure 3-3 Sample USB Communication Screen Please refer to Chapter 3.3.1.1about the details of how to connect via Bluetooth and Chapter 3.3.1.2 about the details of how to connect via USB cable. 3. Check the VCI Indicator status at the toolbar. If the button turns to green, the i80 Max is ready to start vehicle diagnosis.
  • Page 20 To build Bluetooth connection: 1. Power up the tablet. 2. Go to VCI Manager and then Bluetooth. Click Connect and the VCI dongle will connect to the tablet automatically. Figure 3-4 Sample VCI Manager Screen Figure 3-5 Sample Bluetooth Connection Screen 3.

  • Page 21: Usb Communication

    NOTE If the VCI Indicator isn’t green, it indicates that the signal strength of the transmitter is too weak to be detected. In this case, try to get closer to the device, or check the connection of VCI dongle, and remove all possible objects that cause signal interference 3.3.1.2 USB Communication The USB connection is a simple and quick way to establish communication...

  • Page 22: Application Menu

    Diagnostic - leads to test screens for diagnostic trouble code information, ● live data, active tests, coding and etc. Update - leads to screens for Foxwell ID registration and updating the ● scanner. Settings - leads to screens for adjusting default settings to meet your own ●...
  • Page 23 Back Back to the previous screen. Home Returns to Home screen of Android System. Allows for browsing, switching and closing active Multitask applications. Camera Takes a photo or picture. Browser Opens the built-in browser. Screenshot Captures screens. Shortcut for VCI Manager menu from any screen of VCI Indicator the tablet;...

  • Page 24: Diagnostic Menu

    3.4.3 Diagnostic Menu Touch Diagnostic at the i80 Max application menu, and the Diagnostic menu will display. The operations of the buttons on Diagnostic menu are described in the below table. Figure 3-9 Sample Diagnostic Menu Screen Name Description Home Back to the Application Menu.

  • Page 25: Vin Reading

    prompts and make a series of choices. Each selection you make advances you to the next screen. Exact procedures may vary somewhat by vehicle. It typically identifies a vehicle by any of the following means: VIN Reading ● Manual Selection ●...
  • Page 26 Figure 4-2 Sample Automatic Read Screen 3. When the scan tool builds connection with the vehicle, the VIN number displays. If the Vehicle Specification or VIN code is correct, press the OK to continue. Figure 4-3 Sample Automatic Read Screen 4.

  • Page 27: Scan Vin

    Figure 4-4 Sample Manual Entry Screen 4.1.2 Scan VIN Scan VIN allows identifying a vehicle by scanning the VIN plate of the vehicle, barcode, QR code or photo recognition. 4.1.2.1 Scan VIN Plate To identify a vehicle by Scan VIN Plate: 1.

  • Page 28: Scan Barcode/Qr Code Of Vin

    Figure 4-7 Sample Modify VIN Screen 4. If failed, please click Close to quit and input the VIN manually. 4.1.2.2 Scan Barcode/QR Code of VIN To identify a vehicle by Scan QR Code: 1. Select Diagnostic from home screen of the i80 Max application. 2.

  • Page 29: Photo Recognition

    Figure 4-9 Sample Scan QR Code Screen Figure 4-10 Sample VIN Confirmation Screen 4. If failed, please click Close to quit and input the VIN manually. 4.1.2.3 Photo Recognition To identify a vehicle by Photo Recognition: 1. Select Diagnostic from home screen of the i80 Max application. 2.

  • Page 30: Manual Entry

    Figure 4-11 Sample Photo Recognition Screen Figure 4-12 Sample VIN Confirmation Screen Figure 4-13 Sample Modify VIN Screen 4. If failed, please click Close to quit and input the VIN manually. 4.1.3 Manual Entry Manual Entry allows to identify a vehicle by inputting VIN manually. To identify a vehicle by Manual Entry: Premier Diagnostic Platform II i80 Max User's Manual V1.01...

  • Page 31: Manual Selection

    1. Select Diagnostic from home screen of the i80 Max application. 2. Click VIN and choose Manual Entry from the option list. 3. Press Keyboard button to input a valid VIN code and press OK to continue. Figure 4-14 Sample Manual Entry Screen 4.2 Manual Selection Select vehicle brand you are to test, and two ways of getting to the diagnostic operations are available.

  • Page 32: Smart Vin

    Settings A shortcut for Settings menu. Records the communication data between the scan tool and the vehicle to help with Data Logging troubleshooting of diagnostic failures. Print Print the test data and report. Takes screenshot of test data or report and Screenshot save them for later analysis.

  • Page 33: Manual Vehicle Selection

    Figure 4-17 Sample Smart VIN Screen 4. After the scan tool builds connection to the vehicle, the VIN number displays. If the Vehicle Specification or VIN code is correct, press the OK to continue. If incorrect, please enter a valid VIN number manually. 4.2.2 Manual Vehicle Selection Manual Selection identifies a vehicle by making several selections according to certain VIN characters, such as model year, and engine type.

  • Page 34: Vehicle History

    4.3 Vehicle History Vehicle History keeps records of tested vehicles and allows restarting the diagnosis of a vehicle without the need to do vehicle identification again. To identify a vehicle by Vehicle History: 1. Select Diagnostic from home screen of the i80 Max application. 2.

  • Page 35: Diagnosis

    5 Diagnosis This section illustrates how to use the scanner to read and clear diagnostic trouble codes, view live data readings and ECU information on controllers installed, perform special functions such as actuation and coding, and perform vehicle services and maintenance on Asia, European and USA vehicle brands.

  • Page 36: Quick Scan

    Figure 5-2 Sample Diagnosis Screen 5.1.1 Quick Scan Quick Scan performs an automatic system test to determine which control modules are installed on the vehicle and provides diagnostic trouble codes (DTCs) overview. Depending on the number of control modules, it may take a few minutes to complete the test.
  • Page 37 Figure 5-4 Sample Quick Scan Complete Screen 4. Press Report to create an overview of installed control units and their system status, or press Save to save the report. Press Erase to clear the information. Figure 5-5 Sample DTC Save Screen Figure 5-6 Sample Report Screen Premier Diagnostic Platform II i80 Max User's Manual V1.01...

  • Page 38: Control Modules

    Figure 5- 7 Sample Erase Screen 5. When running auto scanning, you can press Pause and select the system you would like to test. When the scanner has established connection with the vehicle, the Function Menu displays. Figure 5-8 Sample Function Menu Screen 5.1.2 Control Modules Control Modules displays all controllers available of the vehicle manufacturer.

  • Page 39: Diagnostic Operations

    Figure 5-9 Sample Control Modules Screen 2. Select a system to test. When the scanner has established connection with the vehicle, the Function Menu displays. Figure 5-10 Sample Function Menu Screen 5.2 Diagnostic Operations After a system is selected and the scanner establishes communication with the vehicle, the Function Menu displays.

  • Page 40: Read Codes

    5.2.1 Read Codes Read Codes menu lets you read trouble codes found in the control unit. There are 4 types of code status: Present/Permanent/Current ● Pending ● History ● Self-diagnostic ● Present/Permanent/Current codes stored in a control module are used to help identify the cause of a trouble or troubles with a vehicle.
  • Page 41 snapshot of critical vehicle operating conditions automatically recorded by the on-board computer at the time of the DTC set. It is a good function to help determine what caused the fault. Figure 5-12 Sample Trouble Code Screen Figure 5-13 Sample Freeze Frame Screen Help - select one fault code from the code list and click Help button on the ●...

  • Page 42: Clear Codes

    Figure 5-14 Sample DTC Help Screen 2. Slide up and down to view additional information when necessary. 3. Press Save to store DTC information. Press to print the information if need be. Press to exit. 5.2.2 Clear Codes Clear Codes menu lets you to clear all current and stored DTCs from a selected control module.

  • Page 43: Live Data

    2. Follow the on-screen instructions and answer questions about the vehicle being tested to complete the procedure. 3. Check the codes again. If any codes remain, repeat the Clear Codes steps. 5.2.3 Live Data Live Data menu lets you view real time PID data in text and plot formats, learn good sensor data and compare them with faulty data, and record live data from a selected vehicle electronic control module.
  • Page 44 Figure 5-17 Sample Live Data Screen Name Button Description Help To provide help information of a PID To move a data line to the top of Data List To Top screen To view the previous live data records or History test reports Record To make record of live data...
  • Page 45 Figure 5-18 Sample Learn Mode Screen Compare Mode - If that vehicle comes in is with a problem, you can easily ● compare the faulty sensor and parameter readings to the good readings, and you will be alarmed when a faulty sensor reading is detected. Figure 5-19 Sample Live Data Screen 3.
  • Page 46 Figure 5-20 Sample PID Graph Screen Multi-graphs: displays the parameters in waveform graphs, giving you ● the ‘real picture’ of what’s going on in the vehicle. Figure 5-21 Sample Multi-graphs Screen Merge Graph: merges multiple PID plots into one coordinate, so you can ●...

  • Page 47: Custom List

    5.2.3.2 Custom List Custom List menu lets you to minimize the number of PIDs on the data list and focus on any suspicious or symptom-specific data parameters. To create a custom data list: 1. Press Custom List from the menu to display all available parameters from the selected control module.

  • Page 48: Active Tests

    1. Press ECU Information from Select Diagnostic Function menu. Figure 5-25 Sample Function Menu Screen 2. A screen with detailed information of the selected control module displays. Figure 5-26 Sample ECU Information Screen 3. Press Save to store ECU information. Press to print the information if need be.
  • Page 49 shut down, turn the ignition to the run position, then re-initiate the actuator tests. IMPORTANT The tests activate a component, but they do not check if the component is working correctly. Make sure the components to be tested are in good condition and correctly mounted.

  • Page 50: Special Functions

    Before running any tests, always observe the safety instructions provided in ● this manual and the warnings provided by the vehicle manufacturer. In addition, follow any warnings and descriptions provided on the scanner screens. ● Never run the tests while the vehicle is moving. 5.2.6 Special Functions These functions perform various component adaptations of the control module under test, allowing you to recalibrate or configure certain...

  • Page 51: Coding And Programming

    2. Select Service option from the Special Functions menu. A list of available services display. Figure 5-30 Sample Special Functions Screen 3. Select the service you want to perform. Follow on-screen instructions to make proper selections and operations to complete the tests. Figure 5-31 Sample Service Function Screen 5.3.2 Coding and Programming i80 Max allows for the coding and programming of a replacement control...
  • Page 52 Figure 5-32 Sample Main Menu Screen 2. Select Programming option from the Special Functions menu. A list of available services display. Figure 5-33 Sample Special Functions Screen 3. Select the function you want to test. Follow on-screen instructions to make proper selections and operations to complete the tests Premier Diagnostic Platform II i80 Max User's Manual V1.01...

  • Page 53: Hot Functions

    Figure 5-34 Sample Programming Screen 5.3.3 Hot Functions It is designed for most common used functions like battery configuration, oil light reset and provides quick access to service functions for the technicians. To start a test: 1. Select Special Functions from main menu and press ENTER to confirm. Figure 5-35 Sample Main Menu Screen 2.

  • Page 54: Maintenance

    Figure 5-37 Sample Hot Functions Screen 6 Maintenance This section gives brief instructions of the most commonly required service and maintenance operations. Typical service operation screens are a series of menu driven executive commands. Follow on-screen instructions to complete the operation. Available service and maintenance options include: Oil Light Reset ●...

  • Page 55: Electronic Parking Brake (Epb) Service

    Oil Reset with One Button - applicable to GM models only. It offers quick ● and simple oil service reset with the click of one button. Manual Reset - almost all Asian vehicles and most American and ● European vehicles have mechanical oil service indicator reset. The service tool does not have to communicate with the vehicle being tested, but guides you to complete the service manually by providing step-by-step on-screen instructions.

  • Page 56: Battery Replacement (Brt)

    Perform activation/service work on Volvo PBM vehicles – allows to ● perform installation check, applying parking brake, releasing parking brake, activating service mode and exiting service mode. Reset memory on Toyota EPB vehicles – allows to clear the learned ● memory of the EPB ECU.

  • Page 57: Diesel Particulate Filter (Dpf) Regeneration

    3. Boost the device and select BRT; it will display all the vehicle makes available. Choose your vehicle make and follow the scanner instruction to start. Sensor calibration on Honda EPB vehicles - allows to program the ● current output value of each sensor into the electric parking brake unit. Perform BRT on Citroen/Peugeot cars –...

  • Page 58: Continuous Variable Transmission (Cvt)

    6.7 Continuous Variable Transmission (CVT) This function is used to reset the compensation code and initialize the ECT after a solenoid valve or valve body assembly has been replaced. 6.8 Gear Learning The crankshaft position sensor learns crankshaft tooth machining tolerance and saves to the computer to more accurately diagnose engine misfires.

  • Page 59: Key Programming/Immobilizer

    pedal. Air trapped in the lines, calipers or wheel cylinders will make the pedal feel soft and spongy. Air is compressible, so when the brakes are applied any air bubbles in the system must first be compressed before the hydraulic fluid will transmit pressure to apply the brakes.

  • Page 60: How To Save An Image

    7.1.1 How to Save an Image To take a screenshot: 1. If want to save data of current screen, press at the title bar to take a screenshot. Figure 7-2 Sample Screenshot Screen 2. Add a description of the image, and press the OK to save. Figure 7-3 Sample Screenshot Screen 7.1.2 Review Image To review the screenshots:...
  • Page 61 Figure 7-4 Sample Browse Picture Screen 3. To delete a picture, tap button Delete and answer OK to delete. Press Print to print the pictures and press Rename to change the picture name. Figure 7-5 Sample Edit Picture Screen 4. Long press the screen to edit all pictures like Rename or Delete. Figure 7-6 Sample All Pictures Edit Screen Premier Diagnostic Platform II i80 Max User's Manual V1.01...

  • Page 62: Reports

    7.2 Reports PDF option leads to screens for review of the vehicle test reports. You just need to press the reports icon on the test screen, add a description and press OK button to save. 7.2.1 How to Create a Report To create a report: 1.

  • Page 63: Data Playback

    Figure 7-9 Sample Edit PDF Screen 7.3 Data Playback The Data Playback option leads to screens for review of recorded live data. Playing back a recording is just like using the scan tool on a live vehicle. It let you review live data in text, graph and graph merging formats. Playback speed and direction (forward or reverse) can also be controlled.

  • Page 64: Data Logging & Data Record

    Figure 7-11 Sample Graph Screen 5. To move forward or reverse back of the playing, just drag the progress bar forward or reverse. To stop, press the Pause button. Figure 7-12 Sample Edit Data Playback Screen 6. Long press the record to Rename or Delete the records. 7.4 Data Logging &...

  • Page 65: Vci Manager

    Figure 7-13 Sample Data Logging Screen 2. Click the Data Logging icon again to stop the recording and data log record will be saved automatically. 3. Go to Data Manager -- Data Record to view the stored logs. 8 VCI Manager VCI Manager allows you to make Bluetooth pairing between the tablet and the VCI dongle, update VCI firmware and unbind a VCI dongle.

  • Page 66: Update Firmware

    1. Connect the VCI dongle with a vehicle via diagnostic cable or connect to the tablet with the USB Type-B cable. 2. Click the VCI Manager application on the i80 Max Menu. 3. Select Bluetooth option from the list. 4. Select the right device with the i80 Max serial number from the list. 5.

  • Page 67: Unbind Avci Dongle

    Figure 8-3 Sample Update Prompt Screen 8.3 Unbind a VCI dongle This option allows you to unbind a VCI dongle when the VCI dongle is defective or stolen. To unbind a VCI dongle: 1. Click the VCI Manager application on the i80 Max Menu. Figure 8-4 Sample VCI Manager Screen 2.
  • Page 68 Figure 8-5 Sample Unbind Prompt Screen To bind a new VCI dongle: 1. Connect the VCI dongle with i80 Max tablet via USB cable. Figure 8-6 Sample Bind Prompt Screen 2. When system database initialization finished, you can use the tablet normally.

  • Page 69: Registration And Update

    The scanner can be updated to keep you stay current with the latest development of diagnosis. This section illustrates how to register and update your scan tool. You can register both on Foxwell website or by the built-in update client.
  • Page 70 Figure 9-2 Sample ID Registration Screen 3. Enter one of your email addresses as your user ID and click the Send Code button. We will send a 4-digit verification code to the email you just entered. Find the security code in your mailbox, input the code, create a password and click Free Registration to complete.
  • Page 71 Figure 9-4 Sample Registration Done Screen 5. The serial number will be recognized automatically and click Submit to activate the scanner. Figure 9-5 Sample Product Activation Screen 6. The product is registered successfully. Figure 9-6 Sample Activation Done Screen Premier Diagnostic Platform II i80 Max User's Manual V1.01...

  • Page 72: Register Through Website

    9.1.2 Register through Website To register through our website: 1. Visit Foxwell official website www.foxwelltech.us and press Register icon, or go to the registration page by selecting Support from home page and then click Register. Figure 9-7 Sample Website Register Screen Figure 9-8 Sample Website Register Screen 2.

  • Page 73: Update

    Figure 9-9 Sample Create Account Screen 3. Sign in to the Member Center, click New Registration, input the right serial number and click Submit to activate the product. Figure 9-10 Sample Product Register Screen 9.2 Update To update the diagnostic application: 1.

  • Page 74: Settings

    Figure 9-11 Sample Update Screen 10 Settings This section illustrates how to program the scanner to meet your specific needs. When Settings application is selected, a menu with available service options displays. Menu options typically include: Unit ● Language ● Font Size ●...

  • Page 75: Language

    10.2 Language Select Language opens a screen that allows you to choose system language. To configure system language: 1. Press Settings from home screen of the i80 Max diagnostic application and select Language. Then all available language options display. 2. Select your preferred language and click Yes to confirm. Figure 10-1 Sample Language Setting Screen 10.3 Font Size Select Font Size opens a screen that allows you to choose the font size.

  • Page 76: Push Message

    It is highly recommended to enable it all the time, so you won’t miss out any new updates from Foxwell. To enable/disable Push Message: 1. Press Settings from home screen of the i80 Max diagnostic application.

  • Page 77: System Settings

    Figure 10-4 Sample Update Remark Screen 10.6 System Settings This option provides you a direct access to the Android system settings, like sound, display, system security and etc. Refer to Android documentation for more information. 10.7 General This option lets you to turn on/off the prompt when saving a file or login & registration when started the scanner.

  • Page 78: Print Settings

    Figure 10-6 Sample Uninstall Vehicle Software Screen 10.9 Print Settings This option allows you to print any data or information anywhere and anytime either via PC network or Wi-Fi. To setup the printer connection: 1. Tap the Settings application on home screen of i80 Max. 2.
  • Page 79 Figure 10-8 Sample Print Service Manager Screen Figure 10-9 Sample Setting of Print Service Manager Screen 4. Choose the right printer. Figure 10-10 Sample of Printer Screen 5. Choose the file or report you want to print and press the print icon Premier Diagnostic Platform II i80 Max User's Manual V1.01...

  • Page 80: About

    Figure 10-11 Sample of File Printing Screen NOTE 1. Please make sure the printer and the i80 Max in the same Wi-Fi or Network when printing. 2. If Mopria Print Service driver can’t workable for your printer, please download the driver to work for your printer on Print Service Manager. 10.10 About Selecting About option opens a screen that shows information about the i80 Max, such as serial number, hardware and software version and etc.

  • Page 81: Shop Manager

    11 Shop Manager This section illustrates how to manage the workshop information, vehicle test records and customer information. When Shop Manager application is selected, a menu with available service options displays. Menu options typically include: Vehicle History ● Workshop Information ●...

  • Page 82: Workshop Information

    11.2 Workshop Information The Workshop Information allows you to edit, input and save the detailed workshop information, such as shop name, slogan, address, phone number and more. It will show as the header of the printed documents when printing vehicle diagnostic reports and other test files. Figure 11-3 Sample Workshop Information Screen 12 My Account This section displays the information related to your account and product.

  • Page 83: Ccount

    Figure 12-3 Sample My Products Screen 12.3 Push Message It will display all messages you got from Foxwell including software update notice and product news. Premier Diagnostic Platform II i80 Max User's Manual V1.01...

  • Page 84: Remote Support

    13 Remote Support Remote Control enables you to get remote support from Foxwell with TeamViewer when you have issues with Foxwell products. If you need our team to remote control your i80 Max, 1. Click the Remote Control icon on the main menu of the i80 Max to start TeamViewer.
  • Page 85 Figure 14-1 Sample Technical Data Screen FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
