- Page 1 User Manual WMF Cup&Cool WMF Cup Add-on Equipment English 1100 S, 1500 S, 1500 S+, 5000 S, 5000 S+, 9000 S+ Model series 9020/9021 33 0916 1010 12.2019...
- Page 2 Introduction and General information The WMF Cup&Cool is a combination of The cooler is used for hygienic storage a cup rack and a cooler. and cooling of milk for preparation of Cups, coffee mugs and coffee pot are coffee beverages made with milk, such heated and stored ready for use in the as cappuccino or milk coffee.
-
Page 3: Table Of Contents
Cleaning the inside of the cooler Defrosting the cooler Malfunctions Service and addresses Safety and warranty Hazard for the device Directives Duties of the owner / operator Warranty claims Appendix: Technical data Technical Data for Cup&Cool Appendix: Accessories and spare parts User Manual WMF Cup / WMF Cup&Cool... -
Page 4: Safety
> Do not use electrical appliances in the cooler. General safety instructions Hazards to the operator At WMF, safety is one of the most essential product features. The effectiveness of safety devices can only be ensured if the following points are observed:... - Page 5 > Children must not play with the device. > Cleaning and user maintenance must not be performed by children. User Manual WMF Cup / WMF Cup&Cool...
- Page 6 > Never immerse the mains plug in water or other liquids. Never pour water or other liquids over the mains plug. Always keeps the mains plug dry. User Manual WMF Cup / WMF Cup&Cool...
- Page 7 > Allow stainless steel shelves to cool before cleaning. Risk of injury CAUTION • If the cups are not put in carefully the glass side walls may be chipped. > Please put the cups in carefully. User Manual WMF Cup / WMF Cup&Cool...
- Page 8 Health hazard CAUTION • The milk system cleaner and the cleaning tablets are irritants. > Follow the protective measures on the packaging of the cleaning agent. > Only put in a cleaning tablet when an appropriate message is displayed. User Manual WMF Cup / WMF Cup&Cool...
- Page 9 • Hot water can spray out or hot steam can come out of even a disconnected milk hose, or directly from the Plug&Clean. > Always clean the milk aperture. > Always connect the milk hoses tightly. User Manual WMF Cup / WMF Cup&Cool...
-
Page 10: Intended Use

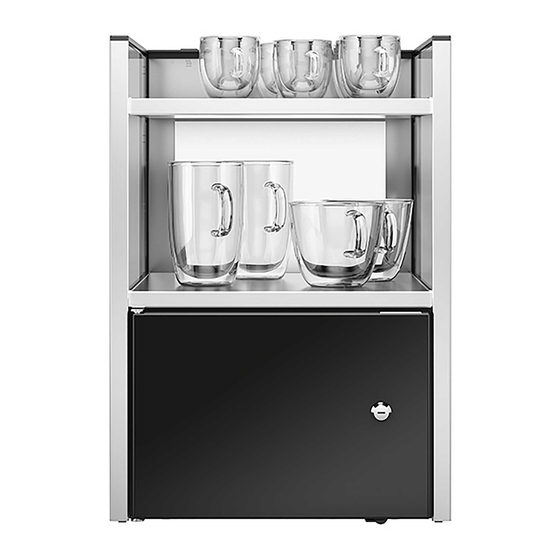

> The WMF Cup&Cool must only be used as intended. • The purpose of the WMF Cup&Cool is to warm cups and to chill milk for the coffee machine. • This machine is intended for use in hotels, restaurants, and similar locations. The machine may be installed in self-service areas if a responsible person is on location while it is being... - Page 11 The manufacturer shall not be liable for any damage resulting from this. • Under no circumstances may the WMF Cup&Cool be used to chill liquids other than milk (chilled, pasteurised, homogenised, UHT) and to warm cups on the stainless steel rack.
-
Page 12: Conditions For Use And Installation
The work must be carried out by authorised installation technicians in compliance with general, country-specific and local regulations. • Only WMF Service engineers are allowed to connect the coffee machine to the pre-prepared connection points. WMF Service is neither authorised nor responsible for carrying out any on-site installation work prior to connection. - Page 13 • Do not damage the coolant circuit. When cleaning or defrosting, do not use pointed or sharp objects. • Only use original or approved identical components for maintenance or repair. • Maintenance is to be carried out by WMF Service only. User Manual WMF Cup / WMF Cup&Cool...
-
Page 14: Introduction And General Information
Introduction and General information | Description of parts of the device Introduction and General information Description of parts of the device ON/OFF switch, cooler ON/OFF switch for cup rack heating and illumination Heated stainless steel shelves Cooler Plug&Clean connection User Manual WMF Cup / WMF Cup&Cool... - Page 15 Follow the Warranty chapter • for the installation location w starting on page 34 > Always follow the User Manual. Technical data w starting on page 35 Note / tip INSTRUCTIONS • Instructions for safe use and tips for easier operation. User Manual WMF Cup / WMF Cup&Cool...
-
Page 16: Operating The Cup Rack
™ ™ Switch on the cup rack using the ON/OFF switch at the top left on the rear cover The switch lights up in green. The illumination (optional) is switched on using the switch for the cup rack. The cup rack is heated after about 60 minutes. User Manual WMF Cup / WMF Cup&Cool... -
Page 17: Fill The Cup Rack
35 ™ ™ Switch off the cup rack using the ON/OFF switch at the top left on the rear cover ™ ™ Disconnect mains plug The switch will no longer be lit up. User Manual WMF Cup / WMF Cup&Cool... -
Page 18: Operating The Cooler
4 for use with the cooler. > The cooler must only be used to cool milk in the containers provided. > The milk containers must only be used for milk that is safe to drink. User Manual WMF Cup / WMF Cup&Cool... -
Page 19: Switch On The Cooler
> Refrain form turning off the cooler if there is still milk in the container. Otherwise the milk will spoil. > Never open the door for long, otherwise the temperature will rise and the milk will spoil. User Manual WMF Cup / WMF Cup&Cool... -
Page 20: One Milk Type
• Beverage recipes using the 2nd milk type can be stored in the coffee machine. ™ ™ Open the front door ™ ™ Pull out milk containers ™ ™ Push the milk container lid back The milk hose remains attached. User Manual WMF Cup / WMF Cup&Cool... -
Page 21: Low-Level Message
Leave the door slightly ajar. ™ ™ Switch off cooler using the ON/OFF switch at the top right on the rear cover The switch will no longer be lit up. ™ ™ Disconnect mains plug User Manual WMF Cup / WMF Cup&Cool... -
Page 22: Adjust Temperature
™ ™ Remove the cap on the back of the cooler Turn clockwise g colder Turn counter clockwise g warmer A quarter turn is approx. 2K. The stop for the warmest setting has a slight detent. Turning past the detent will switch off the device. User Manual WMF Cup / WMF Cup&Cool... -
Page 23: Care
4 system. > Clean the milk system daily. > Also follow the cleaning instructions for the coffee machine. > Replace the milk hose at regular intervals. > Follow all hygiene instructions. > Follow the HACCP cleaning schedule. User Manual WMF Cup / WMF Cup&Cool... - Page 24 • All cleaning agents are perfectly tuned to the Follow the Safety chapter cleaning programs. w starting on page 4 > Use only WMF cleaning agent. Scalding hazard CAUTION • If the milk aperture is clogged, the milk hose Follow the Safety chapter can burst and hot water can spray out.
-
Page 25: Cleaning The Cup Rack
Leave the door slightly ajar. Clean the now cold device using a damp cloth. Finally wipe dry using a fine woolen cloth or chamois leather. For cleaning metal cover parts on the outside we recommend WMF Purargan® cleaner. User Manual WMF Cup / WMF Cup&Cool... -
Page 26: Cleaning The Milk Container / Milk Hose
™ ™ Allow the milk containers to fully dry after cleaning ™ ™ Clean the milk hoses with the adapter, as described in the User Manual for the coffee machine ™ ™ Replace the milk containers and insert the milk hoses ™ ™ Close the door User Manual WMF Cup / WMF Cup&Cool... -
Page 27: Cleaning The Inside Of The Cooler
4 > Use only WMF cleaning agent. ™ ™ Stir 5 ml of the WMF special cleaner (order no. 33 0683 6000) from the measuring bottle into a bucket containing 0.5 litres of lukewarm water ™ ™ Use this stirred cleaning solution to wipe out the inside of the cooler ™... -
Page 28: Defrosting The Cooler
™ ™ Disconnect mains plug ™ ™ Leave the front door open ™ ™ Wipe away the water from melting ice with a soft cloth ™ ™ Close the front door before switching on again User Manual WMF Cup / WMF Cup&Cool... -
Page 29: Malfunctions
• Because of type of construction used, the lowest a different temperature shelf is about 8 °K cooler. • The various containers require different heating times. Service and addresses You can reach WMF Service if the local service point is not known. WMF GmbH WMF Platz 1 D - 73312 Geislingen (Steige) User Manual WMF Cup / WMF Cup&Cool... -
Page 30: Safety And Warranty
• After shut off for several days we recommend thorough cleaning. • If the cooler was not transported in a standing position then it must be given at least 2 hours to stand in a vertical position before switching on. User Manual WMF Cup / WMF Cup&Cool... -
Page 31: Directives
Any modifications to the machines that are not approved by us will cause this declaration to become invalid. Collecting technical documentation: WMF GmbH. The original declaration of conformity is included with the machine. The device bears the CE mark. - Page 32 WEEE 2012/19/EU and may not be disposed of as domestic waste. Requirements traceability pursuant to EC regulation For disposal please contact No. 1935/2004 and Good Manufacturing Practice WMF Service. within the meaning of EC regulation No. 2023/2006 are ensured and guaranteed. User Manual WMF Cup / WMF Cup&Cool...
-
Page 33: Duties Of The Owner / Operator
These measures are conducted by WMF Service or by WMF authorised service personnel as part of the maintenance work. When cleaning the milk system, only use the special WMF cleaning agents provided by WMF. -
Page 34: Warranty Claims
(e.g., User Manual and maintenance instructions). • With respect to faults which occur as the result of failure to use original WMF spare parts or incorrect assembly by the purchaser or by third parties or by faulty or negligent treatment. -
Page 35: Appendix: Technical Data
For special models see model label, values given above are for the basic model. Because of type of construction used, the lowest shelf is about 8 °K cooler. A-evaluated sound pressure level Lpa (slow) and Lpa (impulses) at operating personnel workplace is under 70 dB(A) in any working mode. User Manual WMF Cup / WMF Cup&Cool... - Page 36 For operating, service and safety reasons the device should be installed with a clearance of no less than 50 mm between the back of the machine and the wall. If possible, there should be a clearance of 50 mm to the sides. (Lateral connection WMF coffee machine and WMF Cup&Cool not taken into account.) Ventilation If the possibility of ventilation is limited, adequate ventilation must be provided.
-
Page 37: Appendix: Accessories And Spare Parts
33 2388 6000 Milk container lid 33 2388 7000 Cup&Cool width 36 cm Plug&Clean adapter 33 2427 5000 Milk container 350 33 2418 4000 Milk container lid 350 33 2388 8000 Milk container, lid and standpipe (two milk types) User Manual WMF Cup / WMF Cup&Cool... - Page 38 User Manual WMF Cup / WMF Cup&Cool...
- Page 39 User Manual WMF Cup / WMF Cup&Cool...
- Page 40 Your nearest WMF Service: © 2008–2019 WMF GmbH All rights reserved, in particular duplication, distribution and translation rights. No part of this manual may be reproduced in any form or processed, duplicated or distributed using electronic systems without written consent. Design and production / typesetting and print presentation: TecDoc GmbH;...
