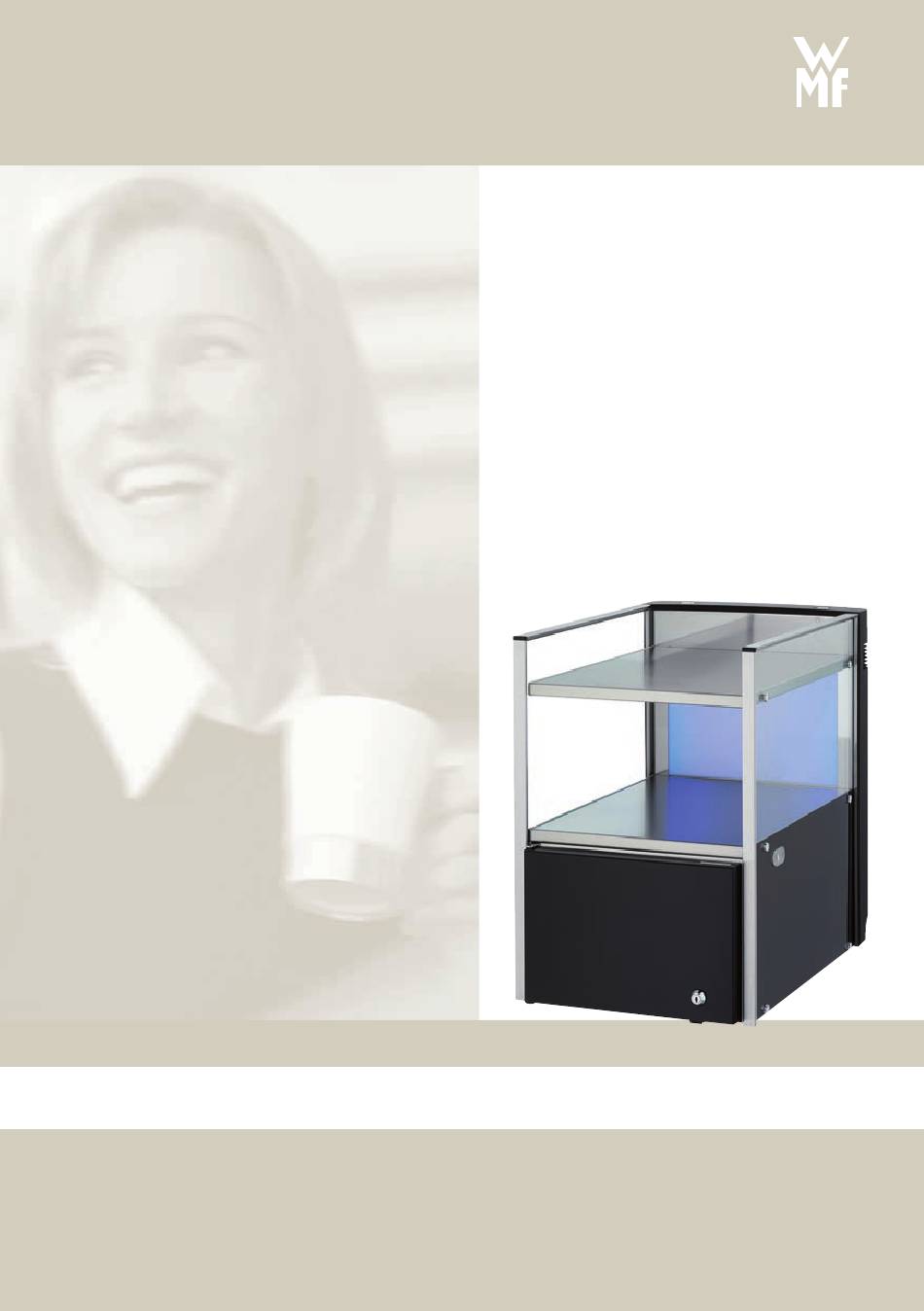

- Page 1 User Manual WMF Cup&Cool WMF Cup Add-on Equipment English 1200 S, prestolino!, 1300, presto!, 1400, 1800 S, 2000 S, bistro!, 1500 S, 5000 S, 8000 S, 9000 S+ Model Series 9018/9019/9020/9021 33 0916 1010 12.2017...
- Page 2 Technical Data chapter, Maintenance w User Manual coffee machine no liability is accepted for any resultant damage. > Follow the User Manual. > Maintenance and repair work may be performed only by the WMF Service-Center, using original spare parts. User Manual WMF Cup / WMF Cup&Cool...
-
Page 3: Table Of Contents
Cleaning the inside of the cooler Defrosting the cooler Malfunctions Service and addresses Safety and warranty Hazard to the device Directives Duties of the owner / operator Warranty claims Appendix: technical data technical Data for Cup&Cool Appendix: Accessories and spare parts User Manual WMF Cup / WMF Cup&Cool... -
Page 4: Safety
Hazards to the operator At WMF, safety is one of the most essential product features. The effectiveness of the safety devices can only be ensured if the following points are observed: >... - Page 5 > Children must not play with the device. > Cleaning and user maintenance must not be performed by children. User Manual WMF Cup / WMF Cup&Cool...
- Page 6 > Avoid damage to the mains cable. Do not kink or crush it. > Never immerse the mains plug in water or other liquids, or pour water or other liquids over the mains plug. Always keeps the mains plug dry. User Manual WMF Cup / WMF Cup&Cool...
- Page 7 > The cooler may be used to cool milk only in the containers provided. > The milk containers may be used only for milk that is safe to drink. User Manual WMF Cup / WMF Cup&Cool...
- Page 8 • The hot liquids can irritate the skin, and the heat poses a scalding hazard. • The drip tray may contain hot liquids. > Never reach under the spouts while cleaning. > Ensure that no one ever drinks the cleaning solution. User Manual WMF Cup / WMF Cup&Cool...
- Page 9 • Hot water can spray out or hot steam can come out of even a disconnected milk hose, or directly from the Plug&Clean. > Always clean the milk aperture. > Always connect the milk hoses tightly. User Manual WMF Cup / WMF Cup&Cool...
-
Page 10: Intended Use
> The WMF Cup&Cool may be used only as intended. The purpose of the WMF Cup&Cool is to warm cups and to chill milk for the coffee machine. This machine is intended for use in hotels, restaurants, and similar locations. The machine may be installed in self-service areas if a responsible person is on location... -
Page 11: Conditions For Use And Installation
The WMF Service engineers may only connect the coffee machine to existing prepared connection points. WMF Service is neither authorized nor responsible for carrying out any on-site installation work prior to connection. The potential equalization terminal is installed by WMF Service if needed. -
Page 12: Introduction And General Information
Introduction and general information | Designation of parts of the device introduction and general information Designation of parts of the device ON/OFF switch, cooler ON/OFF switch for cup rack heating and illumination Heated stainless steel shelves Cooler Plug&Clean connection User Manual WMF Cup / WMF Cup&Cool... - Page 13 Follow the Warranty chapter • for the installation location w starting on page 32 > Always follow the User Manual. Technical data w starting on page 33 note / tip inStrUCtionS • Instructions for safe use and tips for easier operation. User Manual WMF Cup / WMF Cup&Cool...
-
Page 14: Operating The Cup Rack
™ Switch on the cup rack using the ON/OFF switch at the top left on the rear cover The switch lights up in green. The illumination (optional) is switched on using the switch for the cup rack. The cup rack is heated after about 60 minutes. User Manual WMF Cup / WMF Cup&Cool... -
Page 15: Fill The Cup Rack
Technical data w starting on page 33 ™ Switch off the cup rack using the ON/OFF switch at the top left on the rear cover ™ Disconnect mains plug The switch will no longer be lit up. User Manual WMF Cup / WMF Cup&Cool... -
Page 16: Operating The Cooler
4 > The cooler may be used to cool milk only in the containers provided. > The milk containers may be used only for milk that is safe to drink. User Manual WMF Cup / WMF Cup&Cool... -
Page 17: Switch On The Cooler
• The milk container is intended exclusively Follow the Safety chapter for storing milk. w starting on page 4 • Do not turn off the cooler if there is milk in the container, because otherwise the milk will spoil. User Manual WMF Cup / WMF Cup&Cool... -
Page 18: One Milk Type
™ Push the milk container lid back The milk hose remains attached. ™ Pour milk into each milk container ™ Push the milk container lid back ™ Push the milk containers back in carefully ™ Close the front door User Manual WMF Cup / WMF Cup&Cool... -
Page 19: Low-Level Message
> Clean the inside of the device before longer breaks in operation. Leave the door slightly open. ™ Switch off cooler using the ON/OFF switch at the top right on the rear cover ™ Disconnect mains plug The switch will no longer be lit up. User Manual WMF Cup / WMF Cup&Cool... -
Page 20: Adjust Temperature
™ Remove the cap on the back of the cooler Turn clockwise g colder Turn counter clockwise g warmer A quarter turn is approx. 2K. The stop for the warmest setting has a slight detent. Turning past the detent will switch off the device. User Manual WMF Cup / WMF Cup&Cool... -
Page 21: Care
Health hazard / hygiene CAUtion • All cleaning agents are perfectly tuned to Follow the Safety chapter the cleaning programs. w starting on page 4 > Use only WMF cleaning agent. User Manual WMF Cup / WMF Cup&Cool... - Page 22 4 • Hot water can spray out or hot steam can come out of even a disconnected milk hose, or directly from the Plug&Clean. > Always clean the milk aperture. > Always connect the milk hoses tightly. User Manual WMF Cup / WMF Cup&Cool...
-
Page 23: Cleaning The Cup Rack
Leave the door slightly open. Clean the now cold device using a damp cloth. Finally wipe dry using a fine woolen cloth or chamois leather. For cleaning metal cover parts on the outside we recommend WMF Purargan® cleaner. User Manual WMF Cup / WMF Cup&Cool... -
Page 24: Cleaning The Milk Container / Milk Hose
™ Allow the milk containers to fully dry after cleaning ™ Clean the milk hoses with the adapter, as described in the User Manual for the coffee machine ™ Replace the milk containers and insert the milk hoses ™ Close the door User Manual WMF Cup / WMF Cup&Cool... -
Page 25: Cleaning The Inside Of The Cooler
Follow the Safety chapter the cleaning programs. w starting on page 4 > Use only WMF cleaning agent. ™ Stir 5 ml of the WMF special cleaner (order no. 33 0683 6000) from the measuring bottle into a bucket containing 0.5 litres of lukewarm water ™ Use this stirred cleaning solution to wipe out the inside of the cooler ™... -
Page 26: Defrosting The Cooler
™ Switch off the cooler using the ON/OFF switch ™ Disconnect mains plug ™ Leave the front door open ™ Wipe away the water from melting ice with a soft cloth ™ Close the front door before switching on again User Manual WMF Cup / WMF Cup&Cool... -
Page 27: Malfunctions
• Because of type of construction used, the lowest temperature shelf is about 8 °K cooler. • The various containers require different heating times. Service and addresses You can reach WMF Service if the local service point is not known. WMF Group GmbH Eberhardstraße 35 D-73312 Geislingen (Steige) User Manual WMF Cup / WMF Cup&Cool... -
Page 28: Safety And Warranty
• After shut off for several days we recommend thorough cleaning. • If the cooler was not transported in a standing position then it must be given at least 2 hours to stand in a vertical position before switching on. User Manual WMF Cup / WMF Cup&Cool... -
Page 29: Directives
Safety and warranty Directives Manufacturer: WMF Group GmbH, 73312 Geislingen (Germany) The device fulfils the requirements of all applicable regulations in the listed directives. WMF Cup only • Low voltage directive 2014/35/EU WMF Cup&Cool only The EC declaration of conformity is included with the device. - Page 30 (WEEE 2012/19/EU) and may not be disposed of as domestic waste. Requirements traceability pursuant to EC regulation For disposal please contact No. 1935/2004 and Good Manufacturing Practice WMF Service. within the meaning of EC regulation No. 2023/2006 are ensured and guaranteed. User Manual WMF Cup / WMF Cup&Cool...
-
Page 31: Duties Of The Owner / Operator
These measures are conducted by WMF Service or by WMF authorised service personnel as part of the maintenance work. Milk system cleaning must be carried out using only the WMF special cleaning agent intended by... -
Page 32: Warranty Claims
• With respect to the consequences of improper modifications undertaken without the consent of WMF, or by repair or reconditioning work on the part of the purchaser or by third parties. • With respect to faults caused by inappropriate or improper use. -
Page 33: Appendix: Technical Data
For special models see model label, values given above are for the basic model. Because of type of construction used, the lowest shelf is about 8 °K cooler. A-evaluated sound pressure level Lpa (slow) and Lpa (impulses) at operating personnel workplace is under 70 dB(A) in any working mode. User Manual WMF Cup / WMF Cup&Cool... - Page 34 For operating, service and safety reasons the machine should be installed with a clearance of not less than 50 mm at the back and sides from the building or non-WMF components. The height of the installation surface above the floor is at least 850 mm.
-
Page 35: Appendix: Accessories And Spare Parts
Milk container lid 33 2388 7000 Cup&Cool width 36 cm Plug&Clean adapter 33 2427 5000 Milk container 350 33 2418 4000 Milk container lid 350 33 2388 8000 Milk container, lid and standpipe xx xxxx xxxx (two milk types) User Manual WMF Cup / WMF Cup&Cool... - Page 36 Your nearest WMF Service: © 2008–2018 WMF Group GmbH All rights reserved, in particular duplication, distribution, and translation rights. No part of this manual may be reproduced in any form or processed, duplicated, or distributed using electronic systems without written consent. Design and production / typesetting and print presentation: TecDoc GmbH;...
