Originalfassung
DE
BETRIEBSANLEITUNG
Übersetzung / Translation
EN
USER MANUAL

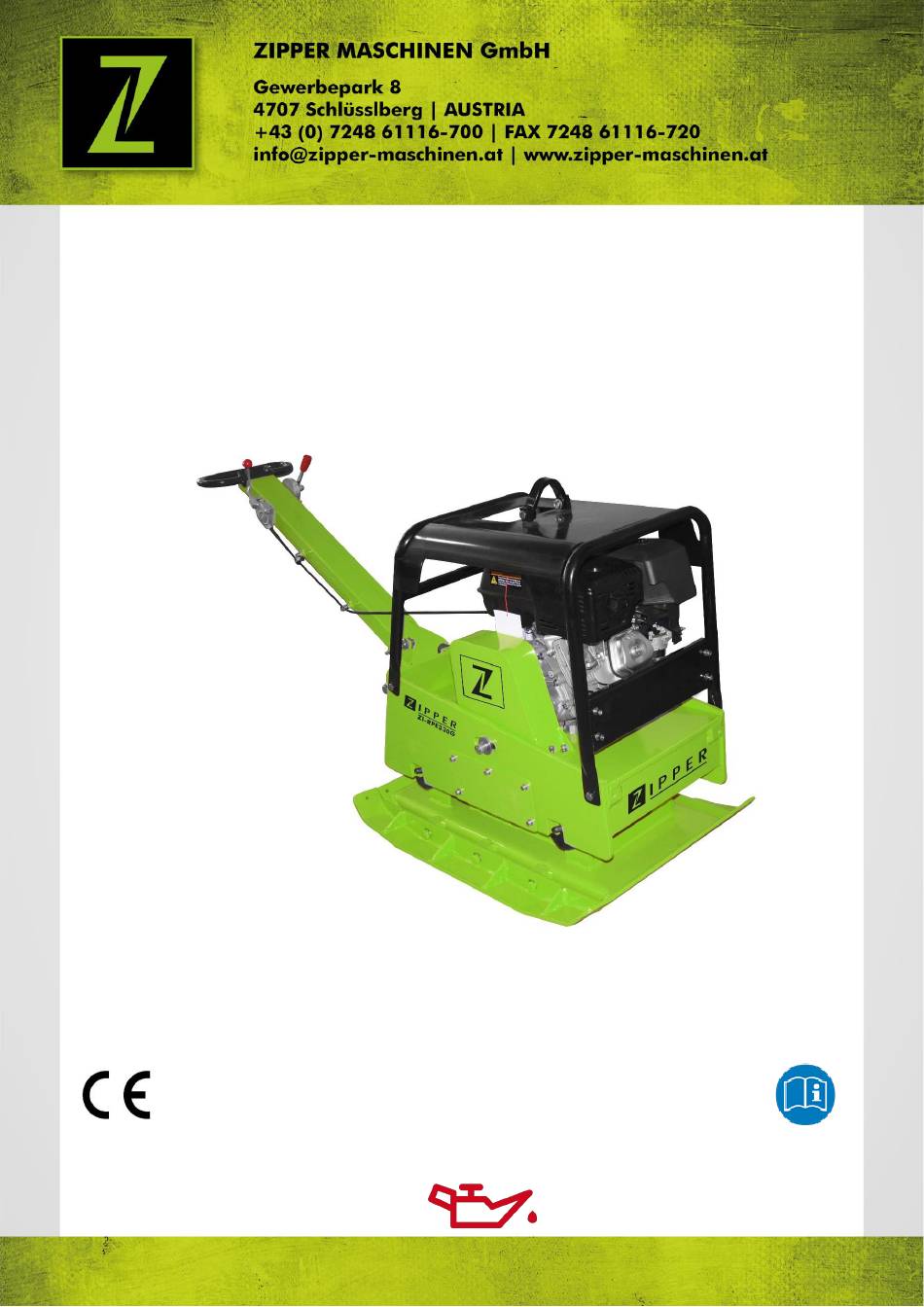

ZI-RPE330G
EAN: 9120039233376
ACHTUNG: Öl (SF 15W40) kontrollieren!
Edition: 30.04.2018 – Revision - 00 – RaR - DE/EN
RÜTTELPLATTE
PLATE COMPACTOR
ATTENTION: Check Oil (SF 15W40)!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9120039233376 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZIPPER MASCHINEN 9120039233376

  • Page 1 Originalfassung BETRIEBSANLEITUNG RÜTTELPLATTE Übersetzung / Translation USER MANUAL PLATE COMPACTOR ZI-RPE330G EAN: 9120039233376 ACHTUNG: Öl (SF 15W40) kontrollieren! ATTENTION: Check Oil (SF 15W40)! Edition: 30.04.2018 – Revision - 00 – RaR - DE/EN...
  • Page 2: Table Of Contents

    Cleaning the air filter ................24 14.1.2 Cleaning the spark plug ................ 24 14.1.3 Checking oil level of exciter: ..............25 14.1.4 Adjusting the V-belt................25 14.1.5 Carburettor ..................25 14.1.6 Refuel ....................25 14.1.7 Cleaning ..................... 25 ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 3: Inhalt / Index

    Disposal ....................26 TROUBLE SHOOTING ERSATZTEILE / SPARE PARTS 17.1 Ersatzteilbestellung / spare parts order ............27 17.2 Explosionszeichnung / explosion drawing ............. 28 EU-KONFORMITÄTSERKLÄRUNG / CE-DECLARATION OF CONFORMITY GEWÄHRLEISTUNG (DE) WARRANTY GUIDELINES (EN) PRODUKTBEOBACHTUNG ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 4: Sicherheitszeichen / Safety Signs

    Schutzausrüstung! Protective clothing! Verbrennungsgefahr! Burn hazard! Handverletzung durch Riemenantrieb! Hand injuries because of belt drive! Hebepunkt! Lifting point! Leicht entflammbar! Highly flammable! Schalleistungspegel L Sound power level L ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 5: Technik / Technic

    ZI-RPE 330 G Name / Name Maschine / Machine 1pcs Plattenerweiterung / Plate extension 2pcs Transport Rad / Transport wheel 1pcs Betriebsanleitung (Motor/Maschine) / Manual (engine / 1 pcs machine) Kleinteile / small parts 1 Set ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 6: Technische Daten / Technical Data

    Vibrationspegel rechte Hand / vibration value right hand 28 m/s² Vibrationspegel linke Hand / vibration value left hand 32 m/s² Schallleistungspegel / Sound power level LWA 108dB(A) Schalldruckpegel / Sound pressure level LPA 98 dB (A) ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 7: Vorwort (De)

    Insbesondere der Nachdruck, die Übersetzung und die Entnahme von Fotos und Abbildungen werden gerichtlich verfolgt. Als Gerichtsstand gilt das Landesgericht Linz oder das für 4707 Schlüsslberg zuständige Gericht. Kundendienstadresse ZIPPER MASCHINEN GmbH Gewerbepark 8, A-4707 Schlüsslberg AUSTRIA Tel.: +43 7248 61116-700 Fax: +43 7248 61116–720...
  • Page 8: Sicherheit

    Örtlich geltende Gesetze und Bestimmungen können das Mindestalter des Bedieners festlegen und die Verwendung dieser Maschine einschränken! Zur Vermeidung von Fehlfunktionen, Schäden und gesundheitlichen Beeinträchtigungen sind folgende Hinweise UNBEDINGT zu beachten: ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 9 Sofern der Kraftstofftank entleert werden muss, muss dies im Feien erfolgen.  Den abgelassenen Kraftstoff in einem speziell dafür vorgesehenen Behälter aufbewahren oder sorgfältig entsorgen Im Umkreis von 15m darf sich keine weitere Person, insbesondere Kinder oder  Haustiere aufhalten! ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 10: Restrisiken

    Minimieren Sie die Gefahr von Quetschungen ihres Fußes durch das Tragen von Arbeitsschuhen mit Stahlkappen. Stellen Sie sicher, dass die Maschine und der Bediener beim Aufstellen auf ebenem Gelände beide stabil sind und die Maschine während des Betriebs nicht umkippt, abrutscht oder fällt. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 11 Maschine ordentlich gewartet und gepflegt wird und die Maschine bestimmungsgemäß und von entsprechend geschultem Fachpersonal benutzt wird. Trotz aller Sicherheitsvorschriften ist und bleibt ihr gesunder Hausverstand und ihre entsprechende technische Eignung/Ausbildung zur Benutzung von einer Maschine der wichtigste Sicherheitsfaktor! ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 12: Betrieb Betriebshinweise

    Den Chokehebel auf die „ClOSED“ Position stellen nur für kalten Motor (reichert das Kraftstoffgemisch beim Starten an). . H I N W E I S Die OPEN Position liefert das richtige Kraftstoffgemisch für den normalen Betrieb nach dem Starten und für das Neustarten eines warmen Motors. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 13: Stoppen

    Bei Tunnelarbeiten muss für eine gute Belüftung gesorgt werden, um Unfälle zu vermeiden.  Es muss weiter ein funktionierendes Kontrollsystem für die Funktionstüchtigkeit der Frischluftversorgung geben. Beim Arbeiten und Abstellen der Maschine sollte die Stabilität der Maschine berücksichtigt  werden, um Gefahren zu vermeiden. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 14: Wartung

    Nehmen Sie die Zündkerzenkappe ab. Lösen und entfernen Sie vorsichtig die Zündkerze. Reinigen Sie die Zündkerze mit einer kleinen Bürste von Rußablagerungen etc. Der Kontaktabstand zwischen den beiden Kontakten sollte etwa 0,5mm - 0,7mm betragen ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 15: Erregerölstand Kontrollieren

    Niemals ein Öl-Benzin-Gemisch oder schmutziges Benzin verwenden. Eindringen von Schmutz, Staub oder Wasser in den Kraftstofftank verhindern. H I N W E I S Benzinersatz ist nicht zu empfehlen, weil dieser die Bauteile des Kraftstoffsystems angreifen kann. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 16: Reinigung

    H I N W E I S Sollten sie sich bei notwendigen Reparaturen nicht in der Lage fühlen diese ordnungsgemäß zu verrichten, oder besitzen sie die vorgeschriebene Ausbildung dafür nicht, ziehen sie immer eine Fachwerkstätte zum Beheben des Problems hinzu. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 17: Preface (En)

    Court of jurisdiction is the Landesgericht Linz or the competent court for 4707 Schlüsslberg, AUSTRIA. Customer Support ZIPPER MASCHINEN GmbH Gewerbepark 8, 4707 Schlüsslberg AUSTRIA Tel.: +43 7248 61116-700 Fax: +43 7248 61116–720...
  • Page 18: Safety

     The use of the machine for any purposes other than described in this user-manual is forbidden.  The unattended operation on the machine during the working process is forbidden!  It is not allowed to leave the immediate work area during the work is being performed. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 19: Security Instructions

     No other person shall remain within 15m, especially children and pets!  Use personal safety equipment: ear protectors, safety goggles, safety shoes and working wear when working with the machine ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 20: Remaining Risk Factors

    Ensure that there are no voltage-carrying cables, gas lines or water pipes which can be damaged during operation. Be careful when you work near unprotected holes or excavations. The operation of the machine happens on your own responsibility and your discretion. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 21: Assembly

    The Machine is almost complete assembled. Only the plate extension can be mounted with the supplied screws. A transport wheel is also available for the transport, which is attached to the base plate (bolt is inserted into the base plate). ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 22: Operation

     Start the engine with the starting handle.  Let the plate compactor running warm for about 2 minutes at half throttle.  Set the desired engine speed with the throttle control and start working. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 23: Stopping

    At tunnel workings you have to cater for a good ventilation to avoid accidents. There must be  a functioning control system for the supply of fresh air. During working and parking you have to take care of the stability of the machine to avoid  dangers. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 24: Maintenance

    14.1.2 Cleaning the spark plug Take off the spark plug cap. Loosen and remove the spark plug. Clean it with a small brush from soot debris. The contact distance shall account approx. 0, 5mm – 0,7mm. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 25: Checking Oil Level Of Exciter

    Clean the machine housing with a wet cloth and a mild cleaning solution. Put on all coatless flats a thin coat of oil. N O T I C E The usage of solvents, aggressive chemicals or scouring agents damages the machine housing. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 26: Storage

     Fix parts N O T I C E Should you in necessary repairs not able to properly to perform or you have not the prescribed training for it always attract a workshop to fix the problem. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 27: Ersatzteile / Spare Parts

    Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need. You find the order address in the preface of this operation manual. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 28: Explosionszeichnung / Explosion Drawing

    Nut M12 Spring washer ¢12 Shock absorber for base plate Flat washer ¢16 Spring washer ¢16 Hexagonal bolt M16*45 Extension plate Vibrating plate 34-37 Throttle lever assembly Nut M16 Washer ¢16 Throttle lever Throttle cable ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 29 Oil seal 20*30*6 Holder Spring washer ¢10 Socket head bolt M10*25 Socket head bolt M8*25 Bearing 16008 Oil plug M14*1.5 O-ring 54-56 Plane bearing Circlip ¢40 Clmap spring ¢30 Shim, cylinder Washer ¢10 Socket head bolt M10*30 ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 30: Eu-Konformitätserklärung / Ce-Declaration Of Conformity

    EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void. Technische Dokumentation ZIPPER-MASCHINEN GmbH 4170 Haslach, Marktplatz 4 Schlüsslberg, 30.04.2018 Erich Humer Ort / Datum place/date Geschäftsführer / Director ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 31: Gewährleistung (De)

    GEWÄHRLEISTUNG (DE) GEWÄHRLEISTUNG (DE) 1.) Gewährleistung: Die Fa. ZIPPER Maschinen gewährt für mechanische und elektrische Bauteile eine Gewährleistungsfrist von 2 Jahren für den Hobby Einsatz; bei gewerblichem Einsatz besteht eine Gewährleistung von 1 Jahr, beginnend ab dem Erwerb des Endverbrauchers/Käufers. Treten innerhalb dieser Frist Mängel auf, welche nicht auf im Punkt 3 angeführten Ausschlussdetails...
  • Page 32: Warranty Guidelines (En)

    WARRANTY GUIDELINES (EN) 1.) Warranty: Company ZIPPER Maschinen GmbH grants for mechanical and electrical components a warranty period of 2 years for amateur use; and warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.
  • Page 33: Produktbeobachtung

    V i e l e n D a n k f ü r I h r e M i t a r b e i t ! / T h a n k y o u f o r y o u r k i n d c o o p e r a t i o n ! KONTAKTADRESSE / CONTACT: Z.I.P.P.E.R MASCHINEN GmbH 4707 Schlüsslberg, Gewerbepark 8 AUSTRIA Tel :+43 7248 61116 700 ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
  • Page 34 PRODUKTBEOBACHTUNG Fax:+43 7248 61116 720 info@zipper-maschinen.at ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-RPE160C...
