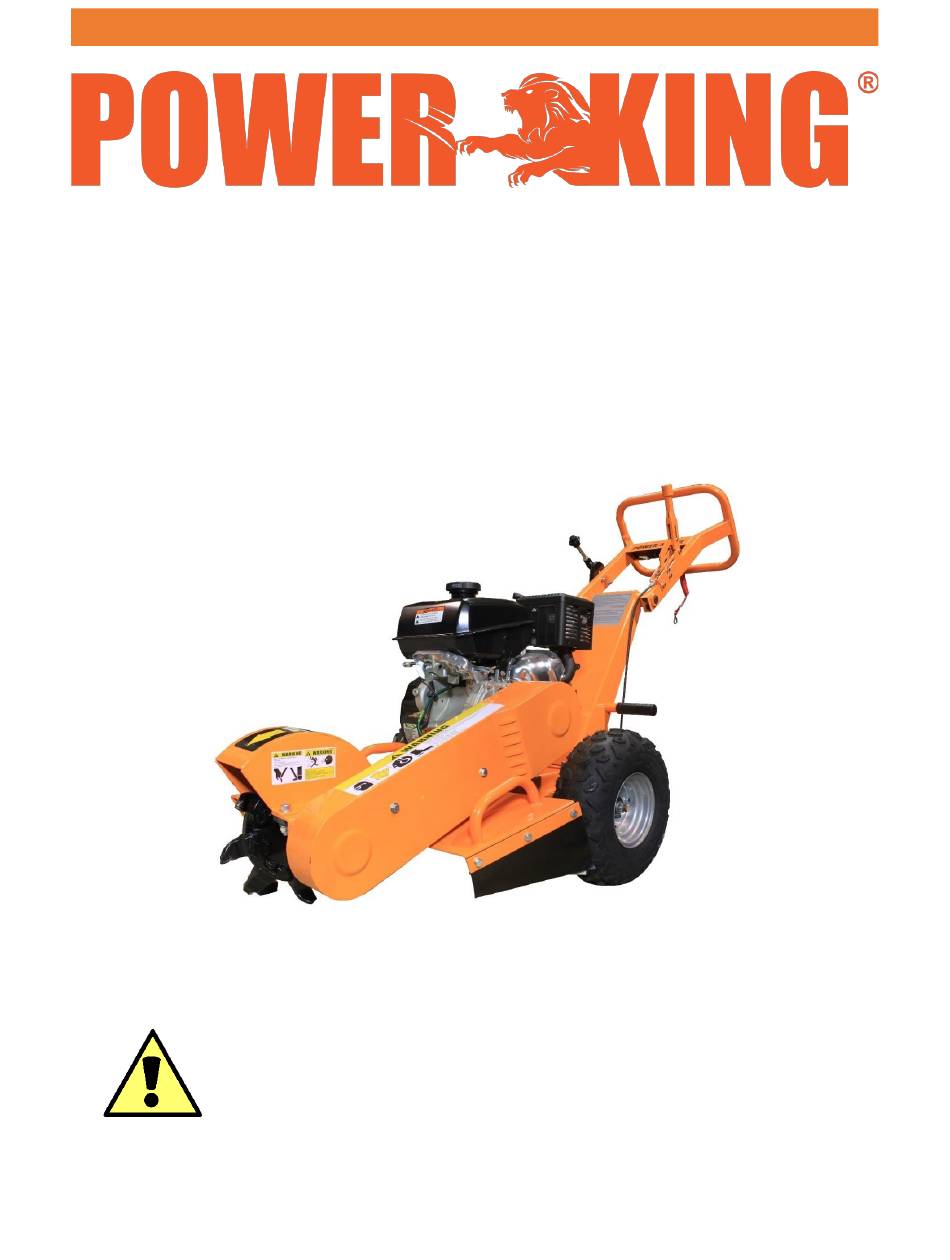

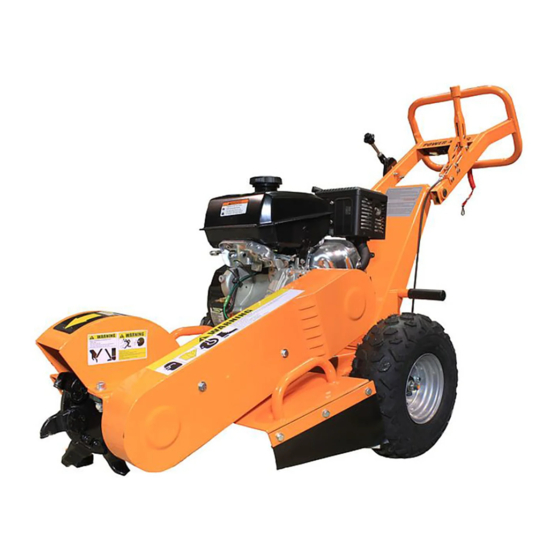

OWNER'S MANUAL AND OPERATIONS GUIDE
WARNING:
This product can expose you to chemicals including
benzene, carbon monoxide, and lead which is known to the State of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PK0803-GTB and is the answer not in the manual?

Questions and answers

Related Manuals for power King PK0803-GTB

Summary of Contents for power King PK0803-GTB

  • Page 1 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM PK0803-GTB Stump Grinder w/ Green Teeth Compatible Wheel OWNER’S MANUAL AND OPERATIONS GUIDE WARNING: This product can expose you to chemicals including benzene, carbon monoxide, and lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

  • Page 2: Safety Precautions

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Preface Thanks for purchasing the Stump Grinder by QV Tools! To get the most out of your purchase, please read the manual before operating the stump grinder. We ask you to please read this manual carefully in order to familiarize yourself with this product.
  • Page 3 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM ❏ Use safety equipment. Always wear eye protection. Safety equipment such as a dust-mask, non-skid safety shoes, hard hat, and hearing protection used for appropriate conditions will reduce risk of personal injuries. ❏ Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts.

  • Page 4: Fuel Safety

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM ❏ Make sure that no one is working on, underneath, or close to the machine before starting the engine or beginning to move the machine. Make sure that the area is free of personnel. ❏ Don’t make alterations or modifications to your stump grinder. ❏...

  • Page 5: Starting The Engine

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM OPERATIONS Adding Oil To The Engine 1. Only fill the fuel tank to a level 15mm lower than the top of the fuel tank. Do not overfill. 2. Use the dipstick to check the oil level. Use 10w-30 engine oil. Fill to the correct level before use.

  • Page 6: Removing Stumps

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Removing Stumps ❏ Remove all loose pieces of wood, stones, wire and other debris from the area before beginning stump removal. ❏ Wind direction should be considered, as it will influence the direction in which dust and wood chips are directed. ❏...
  • Page 7 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM from the stump and rake away the chips. It is also possible to use the cutter wheel to push chips off the the side. ❖ In order to prevent any of the wheels becoming stuck in the hole. Move the grinder to the other side of the stump to continue removal or by filling the hole with chips before continuing.
  • Page 8 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Cutting The Full Stump 1. Make sure the throttle is set to fast. The cutter wheel will accelerate to cutting speed. 2. Direct the cutter wheel against the stump, beginning with the nearest top corner of the stump. Steadily sweep it across the stump left and right, cutting away a ½...

  • Page 9: Emergency Shutdown Procedure

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM reason including cleaning, servicing, transporting, or inspecting the stump grinder. Never deviate from this procedure unless instructed in this manual or in an emergency that requires it. WARNING! A rotating cutting wheel is very dangerous. Stand at controls and ensure that the cutting wheel comes to a complete stop before doing anything else.
  • Page 10 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM ❏ Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame or spark. Allow the engine to cool before moving the grinder. ❏ To reduce fire hazards, keep the engine and petrol storage area free of grass, dirt, and excessive grease.

  • Page 11: Specifications

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Cutting Teeth To ensure prolonged life and reliability, we recommend to torque the cutting teeth bolts to 60 ft lbs before each use. Belts To tension the belts, loosen the 4 bolts that hold the engine to the frame. Turn the tensioning rod on the back of the unit to slide the engine forwards or backwards to properly tension the belts.

  • Page 12: Brake Assembly

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM ❖ Max Output: 14HP/3600RPM ❖ Fuel Type: Unleaded 87 Octane or Higher ❖ Oil Weight: 10W-30 ❖ Oil Capacity: 1.4qts Brake Assembly Place a floor jack under left rear corner of stump grinder. Lift enough to install tire.
  • Page 13 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Loosen lock nut and install brake wire and brake adjuster into brake adjuster mount. Tighten adjuster and lock nut. Adjust barrel adjuster to be able to slide in the brake cable. QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 14 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Install bolt, washer, and nut into brake cable/brake arm. Install wheel with brake drum. Install washer, nut, and cotter/lock pin. QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 15 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Adjustments to tightness of brake can be made with the adjustable knob. Left to loosen and right to tighten. Assembly QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 16 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 17 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 18 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 19 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 20 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Connect the wires as shown below Place the stand when in storage Do not make any adjustments to stand when engine is running. QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 21 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 22 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Part No. Description Part No. Description 1 engine 50 bolt 2 right tire 51 key 3 lock nut 52 brake disc 4 washer 53 brake wire 5 bolt 54 Adjustment screw 6 washer 55 Cylindrical spring pin 7 protector for cut plate 56 bolt 8 spring washer...
  • Page 23 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM 43 lock nut 92 knob 44 side plate 93 hitch 45 safety switch wire 94 washer 46 bushing 95 spring washer 47 protect sheet 96 protective ring 48 clutch pulley 97 nut 49 bolt 98 strip QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 24 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM WARRANTY POLICY Thank you for choosing QV TOOLS Products. We're here to ensure that your experience is perfect. In some rare instances, you may need some help with a warranty claim. Please call us at 1-800-344-3371. Product must be registered to activate the warranty. Warranty registration is below. Warranty begins from date of purchase.
