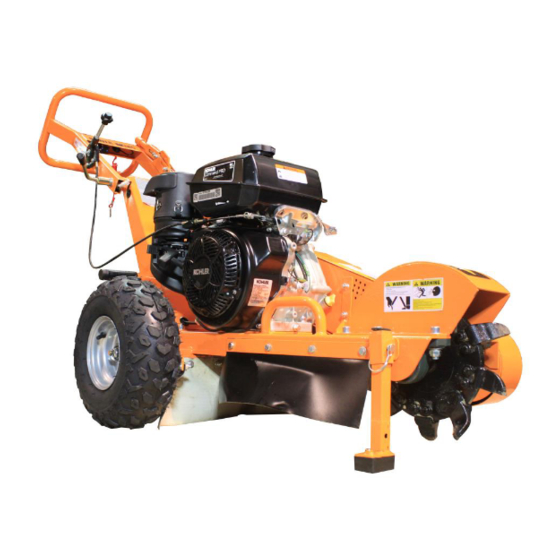

power King PK0803-EH Owners Manual And Operation Manual

Stump grinder w/ electric start & hour meter
Hide thumbs

Advertisement

Quick Links

POWERKING
1-800-344-3371
SUPPORT@QVTOOLS.COM

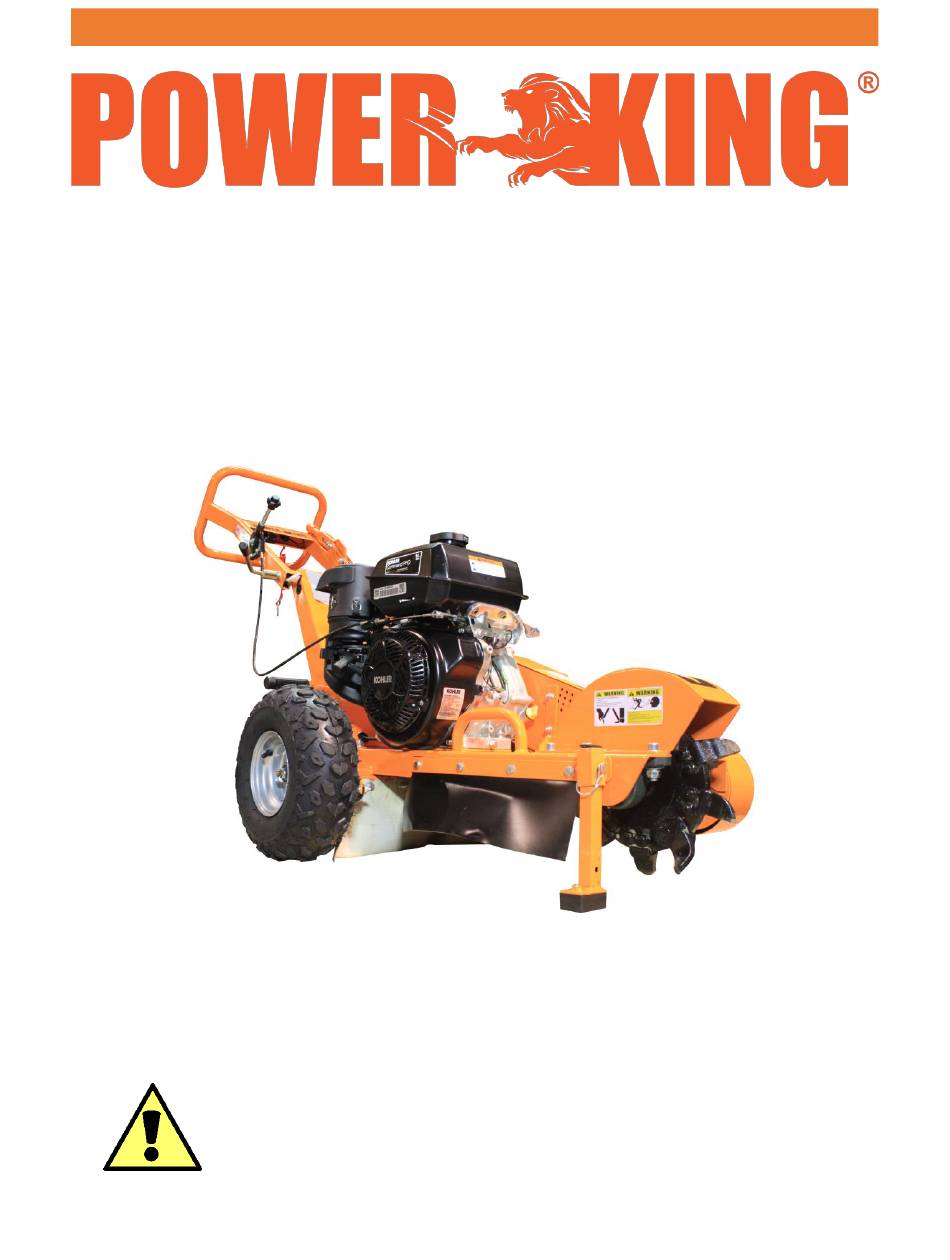

PK0803-EH Stump Grinder w/
Electric Start & Hour Meter
OWNER'S MANUAL AND OPERATIONS GUIDE
WARNING:
This product can expose you to chemicals including
benzene, carbon monoxide, and lead which is known to the State of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PK0803-EH and is the answer not in the manual?

Questions and answers

Related Manuals for power King PK0803-EH

Summary of Contents for power King PK0803-EH

  • Page 1 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM PK0803-EH Stump Grinder w/ Electric Start & Hour Meter OWNER’S MANUAL AND OPERATIONS GUIDE WARNING: This product can expose you to chemicals including benzene, carbon monoxide, and lead which is known to the State of California to cause cancer and birth defects or other reproductive...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Preface………………….…………………..……………….……………..3 Safety Precautions………………...…..…….………….……………..4 Operations……………………………...…….…………………………..7 Maintenance…………………………….….…………….….………...12 Specifications…………………………….……………..……….…….14 Parts List………………………...…………….…….….……………...15 Assembling……………………………………...……………….……..17 Return and Warranty………………………………………………...23 Stump Grinder QVTOOLS, LLC ​ | ​ 2731 CRIMSON CANTON DRIVE, LAS VEGAS, NV 89128 ​ | ​ 1-800-344-3371...

  • Page 3: Preface

    Preface Thanks for purchasing the Stump Grinder by QV Tools! To get the most out of your purchase, please read the manual before operating the stump grinder. We ask you to please read this manual carefully in order to familiarise yourself with this product.

  • Page 4: Safety Precautions

    Safety Precautions ❏ Keep the working area clean and well lit. ❏ Do not operate the stump grinder in the presence of flammable liquids, gasses, or dust. ❏ Keep children and bystanders at least 50 feet away while operating the stump grinder.
  • Page 5 Safety Precautions (cont.) ❏ If devices are provided for the collection of dust extraction, ensure that that these devices are connected and properly used. Use of one of these devices can reduce dust related hazards. ❏ Check stumps to be removed for embedded nails, wire, metal fence posts, rocks, and other buried impediments which may become dangerously thrown or cause unexpected machine movements when hit by the cutting wheel.
  • Page 6 Fuel Safety WARNING! Pay attention and use extreme care while handling fuel. Fuel is extremely flammable and the vapors are highly explosive. ❏ Never remove the fuel cap or add fuel with the machine running. Stop the engine and allow engine and exhaust components to cool before refueling or storing.

  • Page 7: Operations

    OPERATIONS Adding Oil To The Engine 1. Only fill the fuel tank to a level 15mm lower than the top of the fuel tank. Do not overfill. 2. Use the dipstick to check the oil level. Use 10w-30 / 10w-40 / 15w-40 non-synthetic engine oil.
  • Page 8 Removing Stumps ❏ Remove all loose pieces of wood, stones, wire and other debris from the area before beginning stump removal. ❏ Wind direction should be considered, as it will influence the direction in which dust and wood chips are directed. ❏...
  • Page 9 Operating Tips! ❖ Use smooth and comfortable side to side movements while operating. ❖ When you need to cut smaller roots, it may be more effective to do so before cutting the stump, rather than after. ❖ Should the chip build-up become excessive when cutting, shut off the machine, wait for the cutting wheel to stop rotating, retract the machine from the stump and rake away the chips.
  • Page 10 Removing Roots 1. Make sure the throttle is set to ​ f ast​ . The cutter wheel will accelerate to cutting speed. 2. Swing the cutting wheel to one side, then lower it into the nearest roots that are buried at the foot of the stump. 3.
  • Page 11 Continue with the final removal of roots Cut the remaining roots as described in step 2 until satisfactorily removed. Shutting Off The Grinder 1. When stopping the machine after normal operation, lower the engine speed to ​ s low​ and press the emergency switch. 2.

  • Page 12: Maintenance

    WARNING! ​ A rotating cutting wheel is very dangerous. Stand at controls and ensure that the cutting wheel comes to a complete stop before doing anything else. 1. Move the engine throttle to the ​ s low​ position. 2. Push the emergency (on/off) switch to stop the engine. 3.
  • Page 13 ❏ Check the tightening of all bolts and screws at regular intervals. Nuts and bolts that are worn out or badly tightened can damage the engine or the frame. ❏ If the grinder hits an obstacle violently, stop the grinder and take it to a specialist for inspection.

  • Page 14: Specifications

    Specifications Stump Grinder ❖ Diameter of Cutting Wheel: 11.8" ❖ Cutting Wheel Thickness: 3.5"​ ❖ Cutting Depth Below Ground:11" ❖ Cutting Depth Above Ground: 14" ❖ Machine Width: 29.9" ❖ Teeth: 9pcs ❖ Tire Size: 145 / 70 - 6 ❖...

  • Page 15: Parts List

    Stump Grinder QVTOOLS, LLC ​ | ​ 2731 CRIMSON CANTON DRIVE, LAS VEGAS, NV 89128 ​ | ​ 1-800-344-3371...
  • Page 16 Stump Grinder QVTOOLS, LLC ​ | ​ 2731 CRIMSON CANTON DRIVE, LAS VEGAS, NV 89128 ​ | ​ 1-800-344-3371...

  • Page 17: Assembling

    Assembly Stump Grinder QVTOOLS, LLC ​ | ​ 2731 CRIMSON CANTON DRIVE, LAS VEGAS, NV 89128 ​ | ​ 1-800-344-3371...
  • Page 18 Assembly (cont.) Stump Grinder QVTOOLS, LLC ​ | ​ 2731 CRIMSON CANTON DRIVE, LAS VEGAS, NV 89128 ​ | ​ 1-800-344-3371...
  • Page 19 Assembly (cont.) Stump Grinder QVTOOLS, LLC ​ | ​ 2731 CRIMSON CANTON DRIVE, LAS VEGAS, NV 89128 ​ | ​ 1-800-344-3371...
  • Page 20 Assembly (cont.) Stump Grinder QVTOOLS, LLC ​ | ​ 2731 CRIMSON CANTON DRIVE, LAS VEGAS, NV 89128 ​ | ​ 1-800-344-3371...
  • Page 21 Assembly (cont.) Assembly (battery) Stump Grinder QVTOOLS, LLC ​ | ​ 2731 CRIMSON CANTON DRIVE, LAS VEGAS, NV 89128 ​ | ​ 1-800-344-3371...
  • Page 22 Connect the wires as shown below Place the stand when in storage Stump Grinder QVTOOLS, LLC ​ | ​ 2731 CRIMSON CANTON DRIVE, LAS VEGAS, NV 89128 ​ | ​ 1-800-344-3371...

  • Page 23: Return And Warranty

    Kohler engines are covered with a 3-year commercial and 3-year residential warranty for Command Pro series. Parts and Labor are covered as well. Power King engines by Lifan are covered with a 1-year residential warranty. QV Power 3pt 40hp gear box warranty 1- year.
  • Page 24 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Defective Products We encourage you to test your product within 15 days of receipt so we can quickly remedy any mechanical problems. If you think your product is defective, call QVTools at 1-800- 344-3371. In most cases, it's a simple issue that can be resolved over the phone. We have expert technicians standing by to help resolve your issue.
