POWERKING
1-800-344-3371
SUPPORT@QVTOOLS.COM

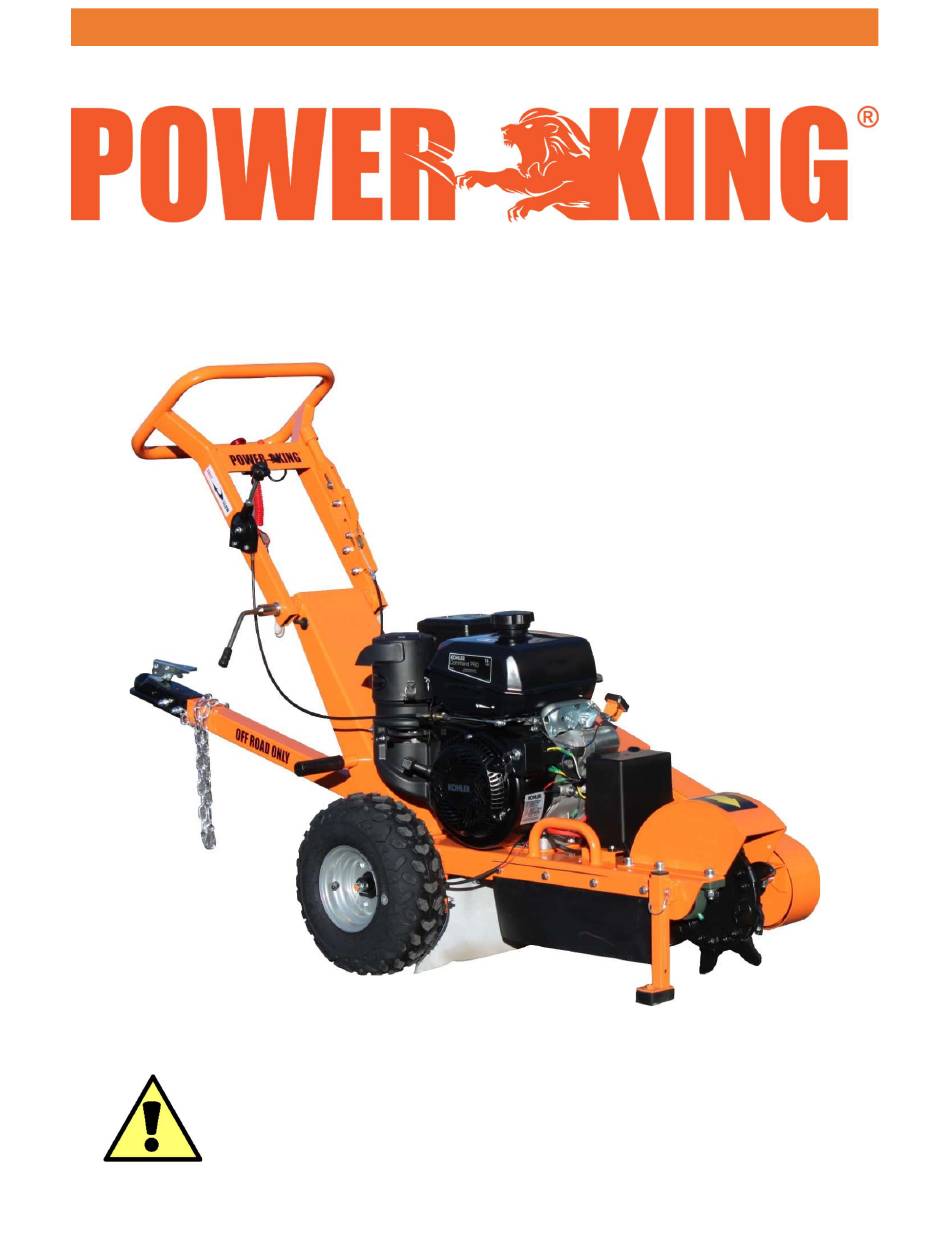

PK0803-GEH Stump Grinder w/ Electric Start
/ Green Teeth Compatible / Hour Meter
OWNER'S MANUAL AND OPERATIONS GUIDE
WARNING:
This product can expose you to chemicals including
benzene, carbon monoxide, and lead which is known to the State of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the power King and is the answer not in the manual?

Questions and answers

Robert Vaughan
April 27, 2025

I'm trying to install the brake cable, and must have got it wrong. When I pull the lever to activate the brake, it will not lock into place. The manual shows pictures, but does not explain very well.

0
1 comments:
Mr. Anderson
May 15, 2025

To properly install the brake cable on a Power King:

1. Insert the brake cable end into the holder.
2. Loosen the lock nut.
3. Install the brake wire and brake adjuster into the brake adjuster mount.
4. Tighten the adjuster and the lock nut.
5. Adjust the barrel adjuster to allow the brake cable to slide in.
6. Install the bolt, washer, and nut into the brake cable and brake arm.
7. Install the wheel with the brake drum.
8. Install the washer, nut, and cotter/lock pin.
9. Use the adjustable knob to fine-tune the brake tension—turn left to loosen, right to tighten.

This ensures the brake locks when the lever is pulled.

This answer is automatically generated

0

Related Manuals for power King power King

Summary of Contents for power King power King

  • Page 1 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM PK0803-GEH Stump Grinder w/ Electric Start / Green Teeth Compatible / Hour Meter OWNER’S MANUAL AND OPERATIONS GUIDE WARNING: This product can expose you to chemicals including benzene, carbon monoxide, and lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

  • Page 2: Table Of Contents

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Contents ..............................1 Preface ............................3 Safety Precautions ........................4 Fuel Safety ..........................5 Getting to Know Your Stump Grinder ..................6 OPERATIONS ..........................10 Adding Oil to the Engine ..............................10 Starting the Engine ................................11 Removing Stumps ................................11 Operating Tips ...................................

  • Page 3: Preface

    1-800-344-3371 SUPPORT@QVTOOLS.COM Preface Thanks for purchasing the Power King Stump Grinder by QV Tools! To get the most out of your purchase, please read the manual carefully and familiarize yourself with this product before operating the stump grinder. After reading, please store this instructional manual for future reference.

  • Page 4: Safety Precautions

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Safety Precautions ❏ Work area should be clean and well lit. ❏ Do not operate the stump grinder in the presence of flammable liquids, gasses, or dust. ❏ Keep children and bystanders at least 50 feet away while operating the stump grinder.

  • Page 5: Fuel Safety

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM ❏ Make sure that all shields and guards are in place and are in good condition prior to operating the machine. Check the cutting wheel for damage or missing teeth and replace as necessary. ❏ Ensure that everyone in the vicinity is aware of the danger zone associated with this machine.

  • Page 6: Getting To Know Your Stump Grinder

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM ❏ Never refuel or store the machine in a place where there is an open flame, spark, or other ignitable objects. ❏ If you spill gasoline, do not attempt to start the engine. Move the machine away from the area of the spill and avoid creating any source of ignition until the gas vapors have dissipated.
  • Page 7 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Precision Control Brake for pivot grinding. Stops the left tire from rotating and lets you do wide sweeps across the stumps. Locking throttle adjustment. Used to raise and lower engine and grinding wheel speed. Clamp for adjustable bow handle. Used to loosen the bow handle, make adjustment to bow handle, and tighten to keep secure.
  • Page 8 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Top lever is Choke and bottom lever is Fuel. Choke is used to close the air way and enrich the fuel mixture ratio. This is used during cold starts to assist the engine during start up. The Fuel lever is to allow fuel from the gas tank to the carb.
  • Page 9 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Storage stand. Used for long term storage to protect the teeth. Grinding wheel. Used for grinding the stump. Lift handles. Used to assist when carrying the unit into a trailer. QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...

  • Page 10: Operations

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Engine belt adjuster. Used to move the engine forwards and back to tighten or loosen the belt. Loosen the 4 nuts holding the engine to the frame, then make adjustments with this handle. Pillar bearing. These bearings let the grinding wheel spin.

  • Page 11: Starting The Engine

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM NOTE: The engine is shipped without oil. Operating the engine with no oil or oil at a low level will destroy the engine. This is not covered under warranty. Starting the Engine ❏ Lock the travel wheel by pulling the brake lever back fully. ❏...

  • Page 12: Operating Tips

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM ❏ Never operate the grinder after dark. There will be no adequate light for the operator to use the grinder safely. ❏ Always allow a cold engine time to warm up before cutting a stump. ❏ Only the portion of cutting wheel within the 80-degree area shown below should engage the stump.

  • Page 13: Removing Roots

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM ❖ In order to prevent any of the wheels becoming stuck in the hole. Move the grinder to the other side of the stump to continue removal or by filling the hole with chips before continuing. You will want to prepare the grinder at the stump by placing it into position with the cutting wheel near the top edge of the stump.

  • Page 14: Cutting The Full Stump

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Cutting the Full Stump 1. Make sure the throttle is set to fast. The cutter wheel will accelerate to cutting speed. 2. Direct the cutter wheel against the stump, beginning with the nearest top corner of the stump. Steadily sweep it across the stump left and right, cutting away a ½...

  • Page 15: Emergency Shutdown Procedure

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM reason including cleaning, servicing, transporting, or inspecting the stump grinder. Never deviate from this procedure unless instructed in this manual or in an emergency that requires it. WARNING! A rotating cutting wheel is very dangerous. Stand at controls and ensure that the cutting wheel comes to a complete stop before doing anything else.

  • Page 16: Maintenance

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Maintenance ❏ Make sure all nuts, bolts, and screws are tightened. ❏ Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame or spark. Allow the engine to cool before moving the grinder.

  • Page 17: Cutting Teeth

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM 783557.DOS – 500 Series Standard Dish Green Tooth w/ Nut – qty 4 Cutting Teeth To ensure prolonged life and reliability, we recommend to torque the cutting teeth bolts to 40 ft Lbs. before each use. Belts To tension the belts, loosen the 4 nuts that hold the engine to the frame.

  • Page 18: Engine

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM ❖ Belts: 2 x B54 V-Belt Engine ❖ Engine Type: Kohler CH440 4-Cycle Commercial ❖ Displacement: 429cc ❖ Max Output: 14HP/3600RPM ❖ Fuel Type: Unleaded 87 Octane or Higher ❖ Oil Weight: 10W-30 ❖ Oil Capacity: 1.4qts Brake Assembly Place a floor jack under left rear corner of stump grinder.
  • Page 19 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Install brake cable end into holder. Loosen lock nut and install brake wire and brake adjuster into brake adjuster mount. Tighten adjuster and lock nut. QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 20 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Adjust barrel adjuster to be able to slide in the brake cable. Install bolt, washer, and nut into brake cable/brake arm. Install wheel with brake drum. QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 21 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Install washer, nut, and cotter/lock pin. Adjustments to tightness of brake can be made with the adjustable knob. Left to loosen and right to tighten. QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...

  • Page 22: Assembly

    POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Assembly QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 23 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 24 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 25 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 26 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 27 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM 1. Red wire goes to positive terminal. 2. Black wire goes to negative terminal. 3. Plastic cover is secured to pedestal with locking lip and 2 bolts. QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 28 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Connect Emergency Stop Wiring Place the stand when in storage Do not make any adjustments to stand when engine is running or when starting engine QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 29 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM QVTOOLS, LLC | 2731 CRIMSON CANYON DRIVE, LAS VEGAS, NV 89128...
  • Page 30 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM Part No. Description Part No. Description 1 engine 54 Adjustment screw 2 right tyre 55 Cylindrical spring pin 3 lock nut 56 bolt 4 washer 57 mounting plate for handbrake 5 bolt 58 Shaft ring 6 washer 59 handbrake 7 protector for cut plate 60 handbrake cap...
  • Page 31 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM 41 side plate 94 washer 42 protect sheet 95 spring washer 43 lock nut 96 protective ring 44 side plate 97 nut 45 safety switch wire 98 strip 46 bushing 99 hour timer plate 47 protect sheet 100 hour timer 48 clutch pulley 101 bolt...
  • Page 32 POWERKING 1-800-344-3371 SUPPORT@QVTOOLS.COM WARRANTY POLICY Thank you for choosing QV TOOLS Products. We're here to ensure that your experience is perfect. In some rare instances, you may need some help with a warranty claim. Please call us at 1-800-344-3371. Product must be registered to activate the warranty. Warranty registration is below. Warranty begins from date of purchase.
