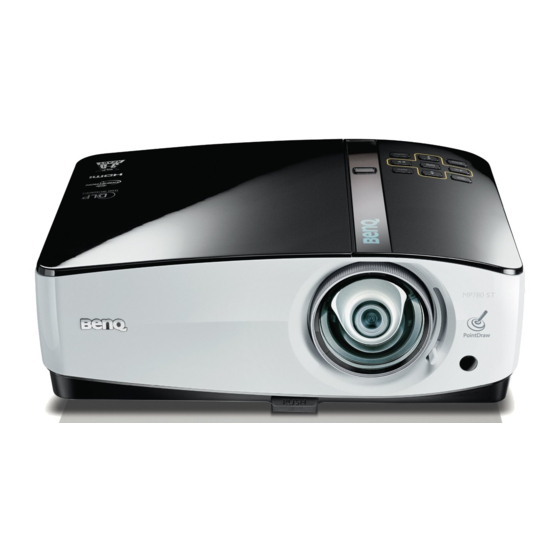

- Page 1 MP780 ST+/MW860USTi Digital Projector User Manual...
- Page 2 Table of contents Important safety Personalizing the projector menu display............49 instructions ....3 Controlling the projector through a LAN environment..........50 Introduction....7 Displaying image through Q Presenter .. Projector features........7 ..............60 Shipping contents ........8 Using the Web Control Lock....64 Projector exterior view......10 Using the Projection Login Code ..
- Page 3 Important safety instructions Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. Safety Instructions Please read this manual before Always open the lens shutter or...
- Page 4 Safety Instructions (Continued) The lamp becomes extremely hot Do not place this product on an unstable cart, stand, or table. The during operation. Allow the product may fall, sustaining serious projector to cool for approximately 45 minutes prior to removing the damage.
- Page 5 Safety Instructions (Continued) Do not place this projector in any of Do not block the ventilation holes. the following environments. - Do not place this projector on a blanket, bedding or any other soft surface. - Space that is poorly ventilated or - Do not cover this projector with a cloth confined.
- Page 6 BenQ to have the projector serviced. Do not step on the projector or place any objects upon it. Besides probable...
- Page 7 Introduction Projector features The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use. The projector offers the following features. • HDMI • LAN display for network control and web server • LAN display 4-1 (maximum 4PC/ NB display to 1 projector) •...
- Page 8 Shipping contents Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard accessories The supplied accessories will be suitable for your region, and may differ from those illustrated. *The warranty card is only supplied in some specific regions.
- Page 9 You may enjoy the dual pen feature by using two PointDraw pen 2.0 and the Q Draw 2.0 interactive software provided. Optional accessories Spare lamp kit BenQ wireless dongle Ceiling mount kit PointDraw pen 2.0 RS232 cable Wall mount kit...
- Page 10 Projector exterior view External control panel Front/upper side (See "Projector" on page 11 details.) Lamp cover (MP780 ST+) Focus slide lever Projection lens Vent (heated air exhaust) Speakers Front IR remote sensor Quick-release button Audio output jack Audio input jack S-Video input jack RGB signal output jack RGB (PC)/Component video...
- Page 11 Controls and functions Projector AUTO Automatically determines the best picture timings for the displayed image. "Auto-adjusting the image" on page for details. Power/POWER indicator light Toggles the projector between standby mode and on.See "Starting up the projector" on page 30 for details.
- Page 12 If you intend to mount your projector on the ceiling or wall, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit or wall mount kit and that you ensure it is securely and safely installed.
- Page 13 Remote control MODE/ENTER Selects an available picture setup mode. See "Selecting a picture mode" on page 40 for details. Activates the selected On-Screen Display (OSD) menu item. See "Using the menus" on page 34 for details. Left/ Starts the FAQ function. See "Utilizing FAQ function"...
- Page 14 18. AUTO 23. ASPECT Automatically determines the best picture Selects the display aspect ratio. See timings for the displayed image. See "Selecting the aspect ratio" on page 39 "Auto-adjusting the image" on page 32 for details. details. 24. MIC/VOL Adjusts the microphone’s sound level. Right/ See for details.
- Page 15 Infra-Red (IR) remote control sensor is located on the front of the projector. The remote control must be held at an angle within 22.5 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (~ 26 feet).
- Page 16 Rear Ceiling Select this location with the projector suspended upside- down from the ceiling behind the screen. Note that a special rear projection screen and the BenQ Projector Ceiling Mounting Kit are required for this installation location. Set Rear Ceiling in the SYSTEM SETUP: Basic >...
- Page 17 BenQ has provided a table of screen sizes to assist you in determining the ideal location for your projector. There are two dimensions to consider, the perpendicular horizontal distance from the center of the screen (projection distance), and the vertical offset height of the projector from the horizontal edge of the screen (offset).
- Page 18 How to determine the position of the projector for a given screen size Select your screen size. Refer to the table on page and find the closest match to your screen size in the left columns labelled "Screen size". Using this value, look across this row to the right to find the corresponding distance from screen value in the column labelled "Distance from screen (mm)".
- Page 19 4039 2561 There is 3% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install...
- Page 20 it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location. Positioning your projector...
- Page 21 Connection When connecting a signal source to the projector, be sure to: Turn all equipment off before making any connections. Use the correct signal cables for each source. Ensure the cables are firmly inserted. • In the connections shown below, some cables may not be included with the projector (see "Shipping contents"...
- Page 22 Computer system requirements for USB display:: Operation System Minimum Hardware Requirements Requirements Windows XP Supports USB 2.0 Windows Vista CPU: Pentium 1G RAM: 512MB RAM Disk: 20MB hard driver space Computer system requirements for WiFi display:: Operation System Minimum Hardware Requirements Requirements Windows XP WiFi: 54 Mbps...
- Page 23 Connecting a computer or monitor Connecting a computer ® ® The projector can connect to both IBM compatibles and Macintosh computers. A Mac adapter is needed if you are connecting legacy version Macintosh computers. To connect the projector to a notebook or desktop computer (using VGA): Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.
- Page 24 Connect the other end of the cable to the HDMI jack on the projector. • Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook.
- Page 25 Connecting a monitor If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the MONITOR OUT signal output jack on the projector to an external monitor following the instructions below: To connect the projector to a monitor: Connect the projector to a computer as described in "Connecting a computer"...
