Summary of Contents for Jaytech 1200 V1

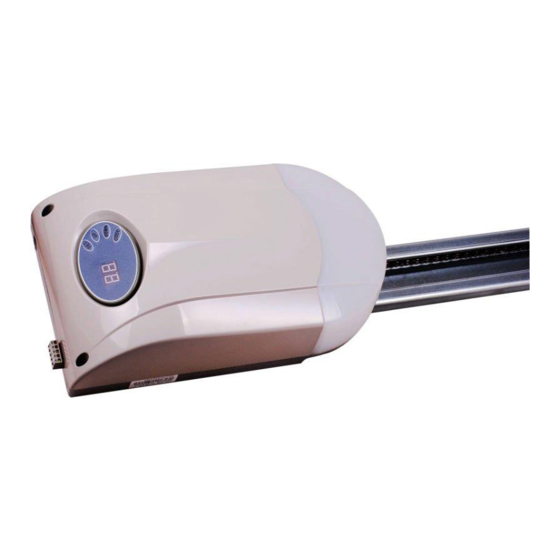

- Page 1 1200 V1-V3 GARAGE DOOR OPENER WARNING: IT IS VITAL FOR THE SAFETY OF ALL PERSONS INSTALLING AND USING THIS OPENER TO FOLLOW THE INSTALLATION INSTRUCTIONS AND SAFETY WARNINGS. FAILURE TO COMPLY MAY RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE AND FAILURE OF THE OPENER SYSTEM。...
-
Page 2: Technical Specifications
CK1200/CK1500 1.Functions Micro intellectual control —— One button to control open, stop and close. The light will turn on while opening or closing the door, three minutes later the light will turn off automatically. During set up the opener will automatically sense and adjust the operating force requirements and build a digital map of the door travel cycle. -
Page 3: Installation
Working temperature -20～50℃ Transmitter power 27A 12V Battery ≦90% Relative Humidity Globe 24V 5W Open and close force 1200N/1500N Courtesy light time 3 minutes 3.Installation 3.1 Recommended Tools Tools Drill Step ladder Ratchet Tape measure, Carpenter’s level Screwdriver Tongs Neon-electroscope, multimeter Adjustable wrench Hammer 3.2 Installing the Operator and Rail... - Page 4 4.Control panel and Transmitter...
-
Page 5: Optional Terminals And Connections
Button 1 Button 2 Button 3 Button 4 5.Optional Terminals and Connections... -
Page 6: Programming The Operator
6.Programming the Operator 6.1 Preparing... - Page 7 6.1.1 To tighten the belt, turn adjusting nut-M8 in the direction shown(picture C).Make sure the shuttle is locked, pull or push the door to confirm the shuttle connects with the chain. 6.1.2 Turn on the power, the courtesy light will illuminate for several seconds, the LED displays the number from 99 to 11.Then the operator turns to standby mode.
- Page 8 It displays “ ” to show setting is complete. 6.3 Self Learning Transmitter 6.3.1 when the unit has stored 20 codes, The LED flashes “Fu”, or preventing coding mistakes, it is necessary to cancel all the stored codes. >> >> When it displays “Fu”, press and hold CODE more than 8 seconds until it flashes “dL”...
- Page 9 >> >> Press and hold SET, it displays “P1”, press UP twice, it displays “P3”. Press SET to show current situation. Press UP once it displays “H1”, the photo beam is enabled. Press down once, It displays “H0”, the photo beam is disabled. Press SET to confirm and quit. Note: If you do not use photo beam device, please make sure it displays “H0”, to close this function.
- Page 10 function. When this function works, you can’t open the door until press the “unlock” button first. >> >> Press and hold SET, it displays “P1”, press UP four times, it displays “P5”, press SET to show current situation. press UP, it displays “Lc”, lock door function works, press DOWN, It displays “uL”, the lock door function doesn’t work.
- Page 11 No transmitter learning Code referring to 6.3 well, but the Transmitter battery is low Change transmitter battery transmitter doesn’t work Too short of The transmitter battery is low Change transmitter battery transmitter distance Jaytech 1200 Garage Door Opener Product Warranty...
- Page 12 PRODUCT WARRANTY For 5 years from the date of installation, this product will be repaired, or replaced free of charge, if defective in material or workmanship. ADDITIONAL WARRANTY ON PARTS Replacement parts for any defective parts on this product will be furnished, free of charge. Any costs for professional installation are included.
- Page 13 Installation completed by ________________________________________________________________________________ Date______/______/_______ Contact Details __________________________________________________________________________________ Notes____________________________________________________________________________ __________________________________________________________________________________...
