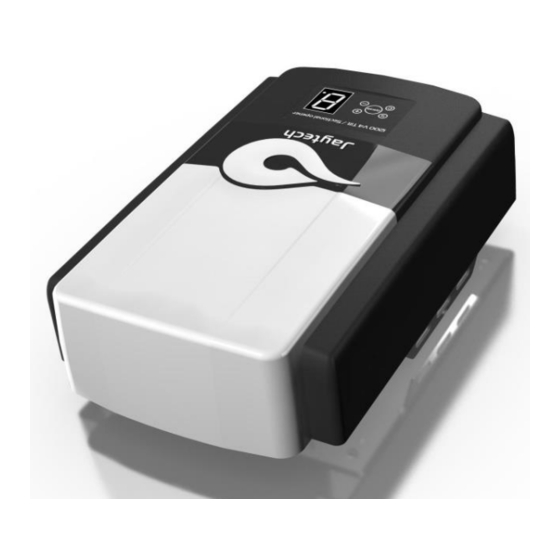

1200 V4 Installation & User Manual
WARNING
Please read this manual carefully before installation and use. The installation of your
new door opener should be carried out by a technically qualified person. Attempting
to install or repair the door opener without suitable technical qualification may result
in severe personal injury, death and / or property damage.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jaytech 600N
Summary of Contents for Jaytech 600N
- Page 1 1200 V4 Installation & User Manual WARNING Please read this manual carefully before installation and use. The installation of your new door opener should be carried out by a technically qualified person. Attempting to install or repair the door opener without suitable technical qualification may result in severe personal injury, death and / or property damage.
-
Page 2: Table Of Contents
CONTENTS Important safety recommendations ···························································· - 1 - Basic function introduction ······································································· - 3 - Installation recommendations ··································································· - 3 - Installation ··························································································· - 4 - Installation (steel track) ··········································································· - 5 - Track assembly (optional) ········································································ - 6 - Battery backup assembly (optional) ···························································... -
Page 3: Important Safety Recommendations
Important safety recommendations FAILURE COMPLY WITH FOLLOWING SAFETY RECOMMENDATIONS MAY RESULT IN SERIOUS PERSONAL INJURY, DEATH PROPERTY DAMAGE. STRONGLY RECOMMEND INSTALLATION IS COMPLETED BY A TRAINED TECHNICIAN. PLEASE READ CAREFULLY AND ADHERE SAFETY INSTALLATION RECOMMENDATIONS. This opener is designed and manufactured to meet Australian Standards AS/NZS 60335.2.95:2012 and AS/NZS 60335.1:2011 when installed correctly. - Page 4 Do not allow children to play with the appliance or its controls. WARNING: The manual release cord is designed only to disengage the drive carriage. It should never be used to pull the door upwards or downwards. Take care when operating the manual release since an open door may fall rapidly due to weak or broken springs or being out of balance.
-
Page 5: Basic Function Introduction
Basic function introduction 1. PTC Fuse inside the transformer, to prevent overload. 2. “Operate” button on the display board. 3. Copper worm gear inside the motor. With high impact resistant strength. 4. Multiple highlight LED lighting. 5. Multifunction external terminal can be used to connect various external devices such as photo beams, push button switches, WIFI smart controllers &... -
Page 6: Installation
Make sure that you have the necessary and appropriate tools, equipment and wear PPE at all times. Read all the instructions thoroughly, and make sure they are understood before attempting to install the opener. Before starting the installation, carefully analyze all the risks relating to automating the door. Verify that the door is in a sound condition and that the mechanisms are in good working order. -
Page 7: Installation (Steel Track)
Fig.3 Fig.4 Maintain a minimum gap of 30mm between the top panel and the bottom of the rail (Fig. 4). Make sure the track is horizontal. Place a spirit level on the track if required. Make sure the connection of the hanging bracket is firm and secure (Fig.5, F) Warning: Make sure the opener is affixed to a solid mounting point or joist and not to plasterboard. -
Page 8: Track Assembly (Optional)
5. Fix the opener to the ceiling joist or suitable support using fasteners suitable for the fixing material (not supplied) and observe the fastener manufacturers guidelines, uses and ratings. 6. Fix the door bracket(A) to the top edge of the door in the middle and under the wall bracket using suitable fasteners (not supplied) 7. -
Page 9: Battery Backup Assembly (Optional)
Battery backup Assembly (optional) Assemble the battery using battery bracket, washers and nuts supplied (Fig. 9, Fig.10). Connect the battery leads to the marked terminals on the internal PCB. Fig.10 Fig.9 Basic function settings 1. Matching the receiver and transmitter Coding Transmitters: Press and hold “CODE”... - Page 10 2. Travel limit setting Opening & closing force self-learning Press and hold “SET” button for 3 seconds until the LED flashes “1”. Press “SET” button again for 1 second . “1” should now display as steady (not flashing). Adjust the open limit by pressing and holding the “UP” button. When the door is near it’s intended open position release the button and fine-tune the open position by momentarily pressing the “UP”...
- Page 11 NOTE – Later model openers may have ‘S’ in place of ‘SET’, ‘C’ in place of ‘CODE’, ‘+’ in Place of ‘UP’ and ‘-‘ in place of ‘DOWN’ 4．Photo beam setting Press and hold “SET” button for 3 seconds until the LED flashes “1”.
- Page 12 2. Lock door setting Press and hold “SET” button for 3 seconds until the LED flashes “1”. Press “UP” or “DOWN” button to increase or (Only when the lock door function is decrease. Adjust the LED to flash “5”, press “SET” button available, the setting will proceed.
-
Page 13: Special Functions, Optional Parts Introduction And Application
Special functions, optional parts introduction and application Photo beam/switch control connection (Fig.11, Fig.12) Flashing light (optional) There are corresponding interfaces for this function and provide 24v-35v flashing light voltage. Connect the flashing light with DC 24v-28v, current≤100mA. When using AC 220V power flashing lights, please match an adapter, and wiring as required (Fig.13). -
Page 14: Manual Disengagement
Fig. 13 Fig. 14 Manual disengagement The opener is equipped with a manual release cord to disengage the shuttle and move the door by hand (Fig 15). Pull the handle downwards to disengage the shuttle, then lift the door by hand (do not try to lift the door with the manual release cord) To re-engage the shuttle simply flick the manual release cord backwards so that the attaching arm is facing towards the opener head unit then run opener in automatic mode or move door by hand until the trolley engages in the chain shuttle (spring loaded) -
Page 15: Maintenance
Maintenance The logic board is maintenance free. Check the door is properly balanced, and all working parts are in good working condition at least twice a year. We recommend professional servicing annually to ensure the safety and longevity of your garage door and automatic opener. Check the reversing sensitivity and adjust if it is necessary. -
Page 16: Packing List
Release cord (with caution paper and cord pendant) Door bracket Wall bracket “U” bracket Hanging bracket Bent arm Straight arm Fastener kit Technical Specifications Model 600N 800N 1000N 1200N ≤9.0 sqm ≤12.0 sqm ≤15.0 sqm ≤18.0 sqm Rated door area ≤60 kgs ≤80 kgs... -
Page 17: Common Faults & Solutions
1. Press and hold “CODE” button for more than 8 seconds until the LED flashes “C”. Can’t add new 1. Memory is full transmitters 2. New transmitters are not compatible 2. Use only genuine Jaytech transmitters with opener LED displays “C”, opener 1. Motor plug wire is loose 1. Re-insert motor plug wire does not work 2. - Page 18 PRODUCT WARRANTY For 7 years from the date of installation, this product will be repaired, or replaced free of charge, if defective in material or workmanship. ADDITIONAL WARRANTY ON PARTS Replacement parts for any defective parts on this product will be furnished, free of charge.
- Page 19 Installation completed by ______________________________________________________________________________________________ Date______/______/_______ Contact Details ______________________________________________________________________________________________ Notes_________________________________________________________________________________________ ________________________________________________________________________________________________________ © 2019 Jaytech - 17 -...
