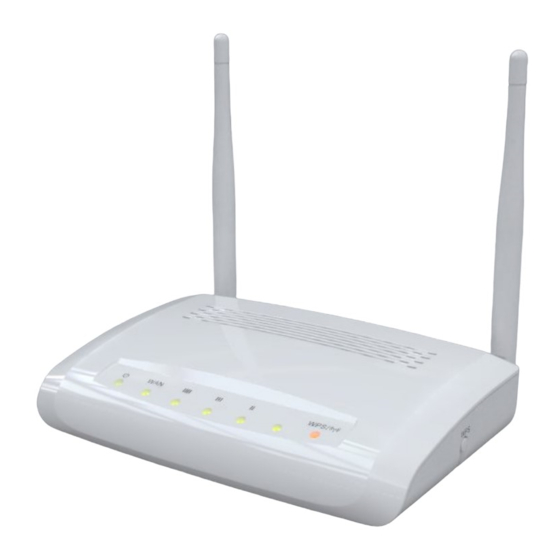

Click Multiple APs to set up 4 different SSIDs to deploy a shared WLAN. Users can add
or limit the properties for each SSID, increasing the flexibility and efficiency of the
network.
(1.) Enable: check it for enable or not.
(2.) Band: select the frequency from the drop down list.
(3.) SSID: please enter different SSID in each class.
(4.) Data Rate: please select the data transmission rate.
(5.) Access: defined the access type.
a. LAN+WAN: the client can access to the Internet and connect to 11N Mobile
Router's GUI to setup.
b. WAN: the client can only access to the Internet.
(6.) Active Client List: display the properties of the client which is connecting
successfully.
(7.) Apply Changes: Please click Apply Changes to initiate or click Reset to cancel.
4.
Network Type
Please select "Infrastructure" or "Ad hoc." The default is "Infrastructure." The selection is
disabled when wireless mode is selected to AP.
5.
SSID
Please input your wireless network name. Default is "11N_Mini_Router".
6.
Channel Width
Please select "20MHZ" or "40MHZ" channel width to change the transmission channels.
101
