Summary of Contents for Eaton 3S850

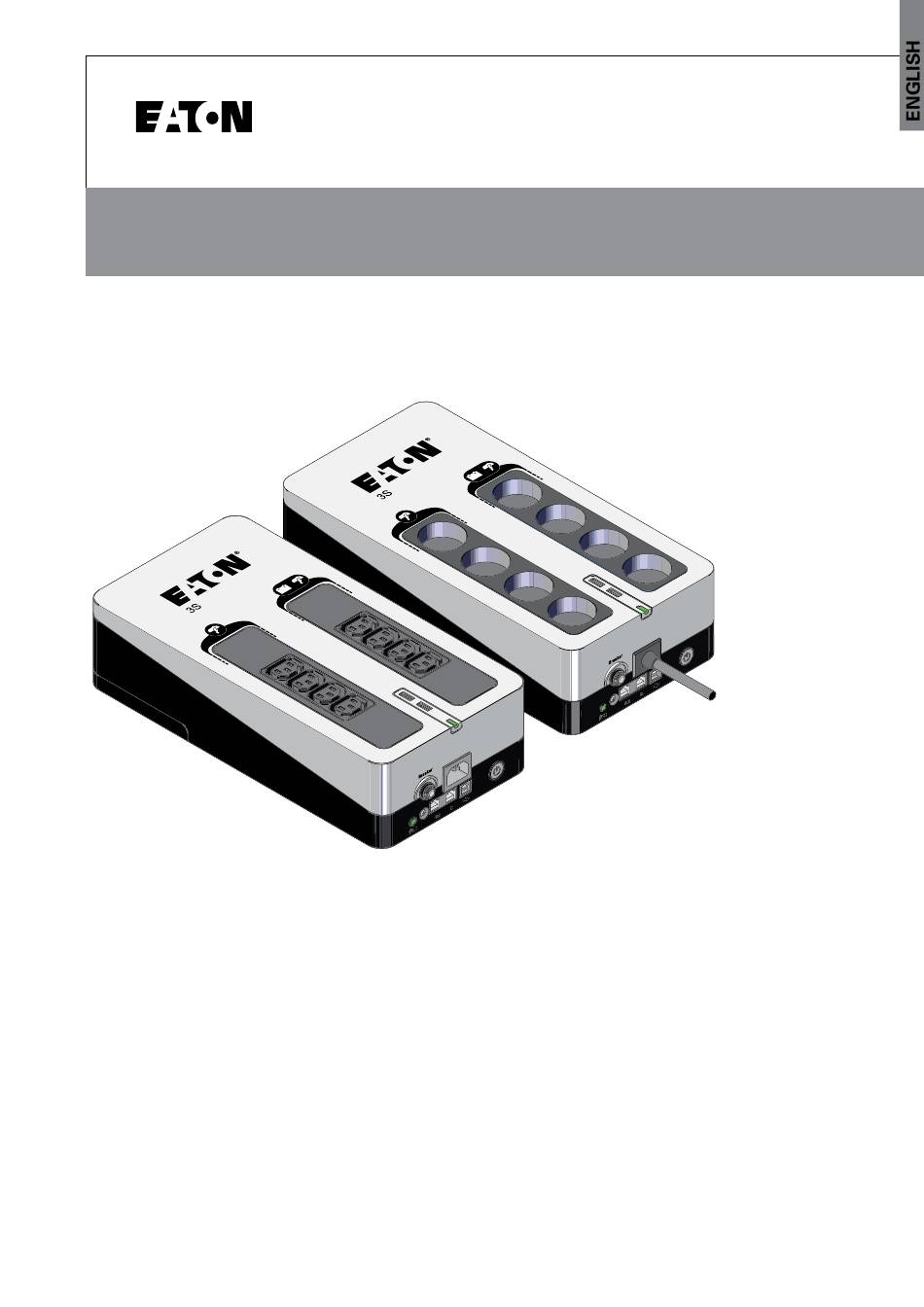

- Page 1 Eaton 3S Advanced User Guide Copyright © 2019 EATON All rights reserved. 614-09405-01_EN 3S EMEA...
- Page 2 Special symbols The following are examples of symbols used on the UPS or accessories to alert you to important information: DANGEROUS VOLTAGE - Observe the warning associated with the risk of electric shock symbol. Important instructions that must always be followed. Information, advice, help.
-
Page 3: Table Of Contents
Contents 1. Introduction ..................4 2. Presentation ..................5 3. Installation ..................6 Package contents......................6 Recommended positions ....................6 4. Connection ..................7 Power supply cord / socket ....................7 Protected outlets / Backup & Protected outlets ............7 Tel / xDSL surge protection (optional) ................7 USB COM port (optional) ....................8 USB charging port (optional) ..................8 ON/OFF button ......................8... -
Page 4: Introduction
Thank you for selecting an Eaton product to protect your equipment. The Eaton 3S range has been designed with the utmost care. We recommend that you take the time to read this advanced user guide and documentations provided to take full advantage of the many features of your UPS (Uninterruptible Power System). -
Page 5: Presentation
2. Presentation Protected outlets Backup & Protected outlets UPS status LED Protection circuit breaker Power supply cord / socket Surge protection LED Tel / xDSL surge protection (optional) USB COM port (optional) ON/OFF button USB charging port (optional) Page 5 614-09405-01 - 3S EMEA_EN... -
Page 6: Installation
EWOK Quick Start Recommended positions Eaton 3S can be wall-mounted, horizontal or vertical position, the distance between screws are 230 mm for 3S450 / 3S550 models and 240mm for 3S700 / 3S850 models. 230 mm 450-550 VA 240 mm 700-850 VA Ø... -
Page 7: Connection
ON/OFF button Tel / xDSL surge protection (optional) Protect your Tel / xDSL line using a RJ11 cable (not provided) from the wall phone plug to the Eaton 3S “In”port then connect your device to the Eaton 3S “Out” port... -
Page 8: Usb Com Port (Optional)
COM models USB charging port (optional) Connect your device to the USB charging port (2A maximum). ON/OFF button Switch on the UPS by pressing ON/OFF button during 1.5 second. Register warranty Register warranty at www.powerquality.eaton.com/EMEA/Product-Registration. Page 8 614-09405-01 - 3S EMEA_EN... -
Page 9: Operation
50 % for every ten degrees above 25 °C. If the UPS requires any type of transportation, verify that the UPS is turned off. Battery replacement For battery replacement follow Eaton instructions provided on www.eaton.eu/BatteryServices. The following precautions should be observed when working on batteries: •... - Page 10 5. Operation Battery change : Warning: take care not to reverse the polarity + (red) and - (black) when connecting the batteries as this will destroy the device. Page 10 614-09405-01 - 3S EMEA_EN...
-
Page 11: Troubleshooting
6. Troubleshooting The Eaton 3S is designed for durable, automatic operation and alerts you whenever potential operating problem may occur. The following table describes typical conditions: Problem Possible cause Action The battery backup outlets ON/OFF Button is not pressed. Press ON/OFF button for 1.5 seconds... -
Page 12: Service And Support
7. Service and support If you have any question or problem with the UPS, call Eaton or your local service representative in your country / region. Please have the following information ready when you call for service: • model number, •... -
Page 13: Specification And Technical Characteristics
*Note: The Eaton 3S is a IEC 62040-2 cat C2 UPS product. In a residential environment, this product may cause radio interference, in which case the user may be required to take additional measures. Output cables should not exceed 10 m length. -
Page 14: Glossary
9. Glossary Backup time Time during which the load can be supplied by the UPS operating on battery power. Uninterruptible Power Supply. Page 14 614-09405-01 - 3S EMEA_EN... - Page 15 Page 15 614-09405-01 - 3S EMEA_EN...
- Page 16 Page 16 614-09405-01 - 3S EMEA_EN...
