- Page 1 X² Eaton 3SMini 3SM36 3SM36B Advanced User Guide Copyright © 2021 EATON All rights reserved. AUG_EATON-3SMINI_V0 3SMini EMEA Page 01/03/2021 AUG_Eaton-3SMini_V0...
- Page 2 Special symbols The following are examples of symbols used on the UPS or accessories to alert you to important information: Page 01/03/2021 AUG_Eaton-3SMini_V0...
-
Page 3: Table Of Contents
1. Table of contents Table of contents ...................... 3 Introduction ....................... 4 Presentation ......................5 Installation ......................... 6 4.1. Package contents ....................6 4.2. Safety ........................7 4.3. Power supply cord / socket ................8 4.4. Start UPS ......................9 4.5. -
Page 4: Introduction
Follow the instructions in the quick start guide and if necessary, refer to this advance user guide. To discover the entire range of Eaton products, we invite you to visit our web site at eaton.com or contact your Eaton representative. -
Page 5: Presentation

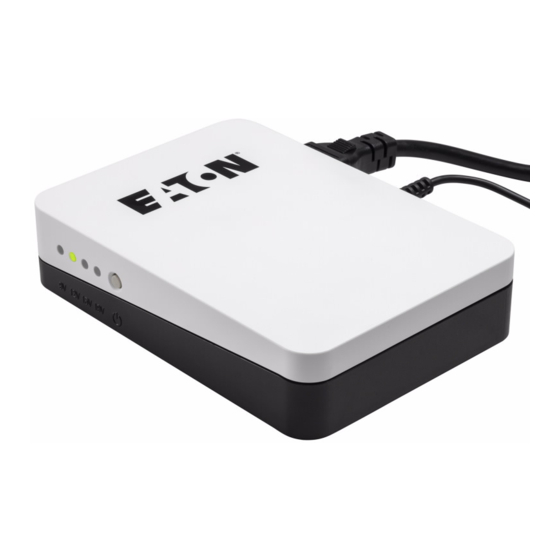

3. Presentation Mini UPS (plastic casing) Removable AC input cord (CEE7/7 FR/DIN shown here) Attached DC output cord 4x green LED: Voltage (Chapter 4.5), battery level (Chapter 5.2) and abnormal situations (Chapter 6) ON/OFF button, battery level display and voltage selector Page 01/03/2021 AUG_Eaton-3SMini_V0... -
Page 6: Installation
4. Installation 4.1. Package contents Included with the Eaton 36W AC-to-DC UPS: Barrel adaptor polarity: Supplied barrel Supplied Quick Supplied input cord (x1): connectors (x4): start/Safety notes (x1): BS1363: 3SM36B models CEE7/7 (FR/DIN): 3SM36 models Note: Extended replacement kit can be ordered through your local customer service eaton.eu/3SMini... -
Page 7: Safety
Use and Maintenance There are no user serviceable parts inside the UPS. Environmental Notice Eaton has implemented an environmental-protection policy. Our products are developed according to an eco-design approach (eaton.com/productstewardship). Battery: The product contains batteries that must be processed according to applicable local regulations concerning batteries. -
Page 8: Power Supply Cord / Socket
4.3. Power supply cord / socket Connect the UPS to the AC power source through a wall-protected outlet equipped with an earth connector, using the attached cord for a UPS with FR/DIN (CEE7/7) or British (BS1363) sockets. Figure 1 FR/DIN example Initial power-on requires that the UPS is plugged to main first. -
Page 9: Start Ups
4.4. Start UPS Do not connect load until the voltage has been appropriately setup (see 4.5) Press the ON/OFF button for three seconds. The battery level is first displayed for five seconds then the LED indicates the output voltage level (default 12V): Figure 2 Start UPS Battery levels: Slow blinking LED... -
Page 10: Voltage Setup
4.5. Voltage setup Before entering voltage setup, ensure that the protected equipment is disconnected from the UPS: Figure 4 Disconnect the equipment Then enter voltage setup mode and select the appropriate output DC voltage corresponding to equipment nominal input voltage (9V, 12, 15V or 19V): •... - Page 11 • You can then cycle through the different LED position which indicate the voltage output by pressing the ON/OFF button (quick press). Note that the voltage is not active until the selection is confirmed. Figure 5 Cycle through the voltage levels •...
-
Page 12: Connect The Equipment
4.6. Connect the equipment • Select the correct barrel adaptor and clip it on the UPS output • Plug your equipment connector Your equipment is now backed-up 12 | Page 01/03/2021 AUG_Eaton-3SMini_V0... -
Page 13: Other Functions
5. Other functions 5.1. Turn OFF, turn ON Simply press three seconds the ON/OFF button (5), ON ➔ OFF or OFF ➔ ON Figure 6 Turn ON or OFF the UPS 5.2. Display battery level • The battery level is automatically displayed when the UPS is on battery (no mains) •... -
Page 14: Troubleshooting
6. Troubleshooting Main LED-indicated abnormal situations: Auto-recovery (AR) mode: when fault condition occurs, will shut down then recover to normal when fault condition is removed. LED blinking code Situation description Abnormal situation (OCP) Over Current Protection If situation remains the UPS enters AR mode to protect the equipment. - Page 15 Problem Possible cause Action All LED are OFF The UPS is turned OFF Press 3s the ON/OFF button. UPS does not start This could be linked to Make sure that the UPS is plugged in a initial state (out-of-box) wall outlet that delivers power and press three seconds the ON/OFF button.
-
Page 16: Technical Specifications
7. Technical specifications T e chnical specifications Technical specifications AC Input voltage 100-240V~ AC AC Input current CEE7/7 (FR/DIN): 1.6A BS 1363: 1.6A Input frequency 50/60Hz Output voltage/Amps 9V/3A 12V/3A 15V/2,4A 19V/1,89A Output connection Barrel adaptors 5,5 x 2,5 5,5 x 2,1 4,75 x 1,7 3,5 x 1,35 Pow er rating... -
Page 17: Equipment Care
More information on Eaton recycling: 9. Service and support If you have any question or problem with the UPS, call Eaton or your local service representative in your country / region. Please have the following information ready when you call for service: •...
