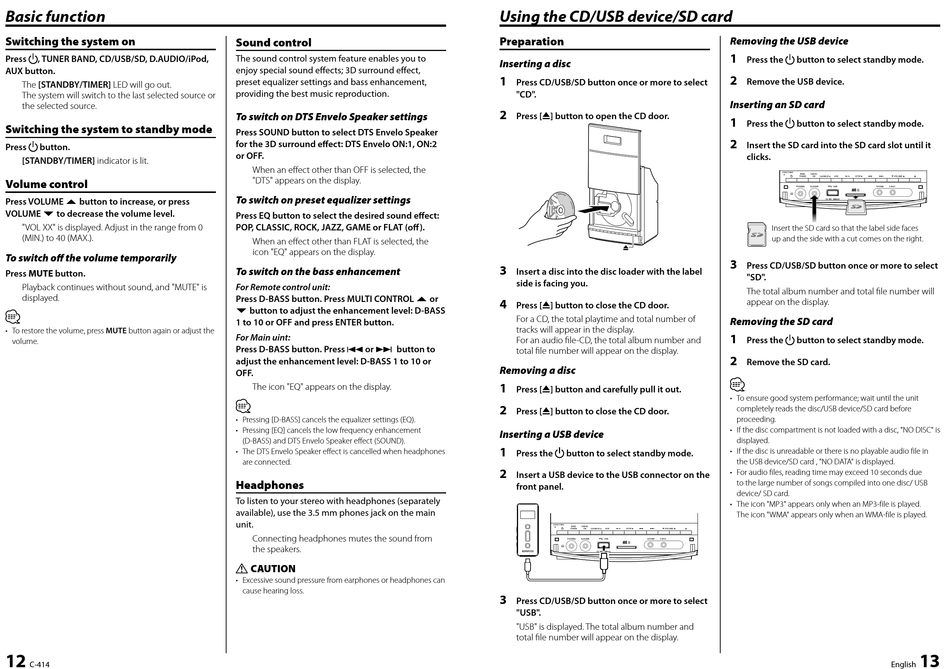

Basic function

Switching the system on

Press , TUNER BAND, CD/USB/SD, D.AUDIO/iPod,
AUX button.
The [STANDBY/TIMER] LED will go out.
The system will switch to the last selected source or
the selected source.

Switching the system to standby mode

Press button.
[STANDBY/TIMER] indicator is lit.

Volume control

Press VOLUME A button to increase, or press
VOLUME B to decrease the volume level.
"VOL XX" is displayed. Adjust in the range from 0
(MIN.) to 40 (MAX.).
To switch off the volume temporarily
Press MUTE button.
Playback continues without sound, and "MUTE" is
displayed.
⁄
• To restore the volume, press MUTE button again or adjust the
volume.
12
C-414

Sound control

The sound control system feature enables you to
enjoy special sound eff ects; 3D surround eff ect,
preset equalizer settings and bass enhancement,
providing the best music reproduction.
To switch on DTS Envelo Speaker settings
Press SOUND button to select DTS Envelo Speaker
for the 3D surround eff ect: DTS Envelo ON:1, ON:2
or OFF.
When an eff ect other than OFF is selected, the
"DTS" appears on the display.
To switch on preset equalizer settings
Press EQ button to select the desired sound eff ect:
POP, CLASSIC, ROCK, JAZZ, GAME or FLAT (off ).
When an eff ect other than FLAT is selected, the
icon "EQ" appears on the display.
To switch on the bass enhancement
For Remote control unit:
Press D-BASS button. Press MULTI CONTROL A or
B button to adjust the enhancement level: D-BASS
1 to 10 or OFF and press ENTER button.
For Main uint:
Press D-BASS button. Press 4 or ¢ button to
adjust the enhancement level: D-BASS 1 to 10 or
OFF.
The icon "EQ" appears on the display.
⁄
• Pressing [D-BASS] cancels the equalizer settings (EQ).
• Pressing [EQ] cancels the low frequency enhancement
(D-BASS) and DTS Envelo Speaker effect (SOUND).
• The DTS Envelo Speaker effect is cancelled when headphones
are connected.

Headphones

To listen to your stereo with headphones (separately
available), use the 3.5 mm phones jack on the main
unit.
Connecting headphones mutes the sound from
the speakers.
¤
CAUTION
• Excessive sound pressure from earphones or headphones can
cause hearing loss.

Using the CD/USB device/SD card

Preparation

Inserting a disc
1
Press CD/USB/SD button once or more to select
"CD".
2
Press [0] button to open the CD door.
3
Insert a disc into the disc loader with the label
side is facing you.
4
Press [0] button to close the CD door.
For a CD, the total playtime and total number of
tracks will appear in the display.
For an audio fi le-CD, the total album number and
total fi le number will appear on the display.
Removing a disc
1
Press [0] button and carefully pull it out.
2
Press [0] button to close the CD door.
Inserting a USB device
1
Press the button to select standby mode.
2
Insert a USB device to the USB connector on the
front panel.
3
Press CD/USB/SD button once or more to select
"USB".
"USB" is displayed. The total album number and
total fi le number will appear on the display.
Removing the USB device
1
Press the button to select standby mode.
2
Remove the USB device.
Inserting an SD card
1
Press the button to select standby mode.
2
Insert the SD card into the SD card slot until it
clicks.
Insert the SD card so that the label side faces
up and the side with a cut comes on the right.
3
Press CD/USB/SD button once or more to select
"SD".
The total album number and total fi le number will
appear on the display.
Removing the SD card
1
Press the button to select standby mode.
2
Remove the SD card.
⁄
• To ensure good system performance; wait until the unit
completely reads the disc/USB device/SD card before
proceeding.
• If the disc compartment is not loaded with a disc, "NO DISC" is
displayed.
• If the disc is unreadable or there is no playable audio file in
the USB device/SD card , "NO DATA" is displayed.
• For audio files, reading time may exceed 10 seconds due
to the large number of songs compiled into one disc/ USB
device/ SD card.
• The icon "MP3" appears only when an MP3-file is played.
The icon "WMA" appears only when an WMA-file is played.
English
13
