OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
© 2021 by Snow Joe
, LLC
®
All rights reserved. Original instructions.

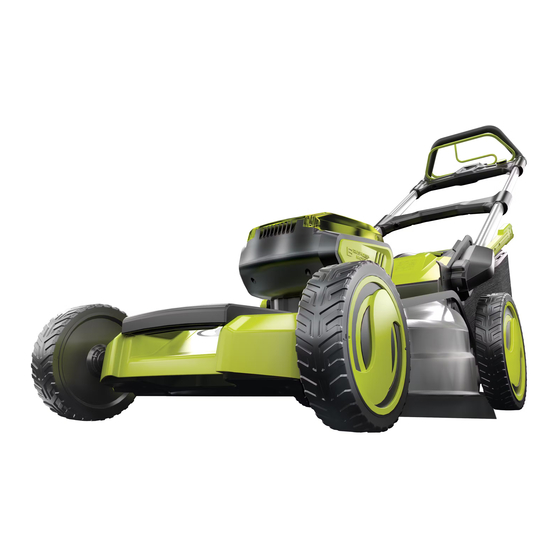

CORDLESS LAWN MOWER
– TOOL ONLY
R
48V MAX* | 21-INCH
Model 24V-X2-21LM-CT-RM
SAVE THESE INSTRUCTIONS
1
Form No. SJ-24V-X2-21LM-CT-RM-880E-M-V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sunjoe 24V-X2-21LM-CT-RM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SNOWJOE Sunjoe 24V-X2-21LM-CT-RM

  • Page 1 CORDLESS LAWN MOWER – TOOL ONLY 48V MAX* | 21-INCH OPERATOR’S MANUAL Model 24V-X2-21LM-CT-RM A Division of Snow Joe , LLC ® Form No. SJ-24V-X2-21LM-CT-RM-880E-M-V1 © 2021 by Snow Joe , LLC SAVE THESE INSTRUCTIONS ® All rights reserved. Original instructions.
  • Page 2 CORDLESS LAWN MOWER – TOOL ONLY 48V MAX* | 21-INCH OPERATOR’S MANUAL Model 24V-X2-21LM-CT-RM A Division of Snow Joe , LLC ® Form No. SJ-24V-X2-21LM-CT-RM-880E-M-V1 IMPORTANT! A damaged blade or worn blade nut may break off the mower assembly and cause serious injury. Replace the Safety Instructions damaged blade or blade nut before using the mower.
  • Page 3: Electrical Safety

    ® ® care of high-performance batteries are the main factors 1-866-SNOWJOE (1-866-766-9563). responsible for personal and/or product damage. 2. If charging the power tool in a damp location is WARNING! unavoidable, use a residual current device (RCD) Use only approved replacement batteries;...
  • Page 4 ® ® even if the housing of the battery packs appear to be at 1-866-SNOWJOE (1-866-766-9563). undamaged. The battery cells inside the battery may have • Battery chemicals cause serious burns – Never let a suffered serious damage. In such instances, please read damaged battery pack contact the skin, eyes or mouth.
  • Page 5 ® ® 5. Do not keep the battery charger in places where the customer service center at 1-866-SNOWJOE temperature is liable to reach over 105°F (40.5°C). In (1-866-766-9563). particular, do not leave the battery charger in a car that is 3.
  • Page 6 ® ® requires extra caution. If you feel uneasy on a slope, do not Sun Joe customer service center at 1-866-SNOWJOE ® mow it. (1-866-766-9563). Only identical replacement parts should be utilized for repairs. This will ensure that the safety of •...
  • Page 7: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Descriptions Symbols Descriptions Symbols DANGER! Rotating blades. Keep bystanders and children a safe Keep hands and feet away.
  • Page 8 Know Your Cordless Lawn Mower Read the owner’s manual and safety instructions carefully before operating the mower. Compare the illustration below to the mower in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 9: Carton Contents

    Technical Data TOOL ONLY Brushless Motor ...........Input: 1100 W BATTERY + CHARGER SOLD SEPARATELY Output: 900 W In order to operate this cordless lawn mower you will Battery Voltage Max* ........48V D.C. (2 x 24V) need two batteries and one charger from the iON+ 24V Cutting Width Max ..........
  • Page 10: Charger Operation

    Charger Operation 2. Depending on your Snow Joe + Sun Joe charger ® ® model, how to recharge your lithium-ion batteries will vary. You may either insert your 24-volt batteries into the TOOL ONLY 24VCHRG-QC Quick Charger (sold separately) or the 24VCHRG-DPC Dual Port Charger (sold separately) BATTERY + CHARGER SOLD SEPARATELY (Figs.
  • Page 11: Charging A Hot Or Cold Battery Pack

    3. The battery indicator LEDs will illuminate one by one WARNING! Before performing any maintenance, during the charging process. Unplug the charger make sure the batteries and the safety key are removed from immediately when the 3 LEDs are all illuminated. the unit.
  • Page 12 Fig. 9 Fig. 6 Ejector flap Flip up the latch Grass collection 4. Use the cable clips to secure the cable on the handle frame (Fig. 7). Side Discharge Chute Assembly + Fitting Fig. 7 Use the side discharge chute on your mower when the grass is too tall to mulch or when side discharging is preferred.
  • Page 13: Operation

    1. Lift up the ejector flap. 2. Insert the mulching plug fully into the rear discharge opening and make sure it's seated securely (Fig. 11). Fig. 11 Height Ejector flap adjustment lever Mulching plug Rear discharge Fig. 12 opening 3. Release the ejector flap. 3.
  • Page 14: Grass Bag Filling Level Indicator

    Mowing Tips 2. To start the machine, press and hold the safety lock button while pulling the switch lever toward you (Fig. 14). WARNING! Inspect the area prior to mowing and remove all the stones, sticks, wires and other foreign objects Fig.
  • Page 15: Maintenance & Care

    1. Disconnect the power supply to the mower by removing • For the best mulching performance, set the cutting height to remove approximately one third of the grass length, the batteries and the safety key. ideally no more than 1.5 in. at one time. If the grass is 2.
  • Page 16: Recycling + Disposal

    8. Press and hold the handle latch. Gently pivot the handle frame toward the front of the mower until you hear and feel the handle frame locks in the storage position (Fig. 19). Blade Fig. 19 Lug nut Fig. 17 Storage position 5.
  • Page 17: Service & Support

    Service + Support If your Sun Joe 24V-X2-21LM-CT-RM cordless lawn mower ® requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model + Serial Numbers When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product.
  • Page 18: Troubleshooting

    Troubleshooting • Remove the batteries and the safety key before carrying out maintenance on the machine or when checking that its parts are in proper working order. • To avoid unnecessary hassles, consult the following table before contacting a qualified repair person with any mechanical issues.
  • Page 19 Optional Accessories WARNING! ALWAYS use only authorized Snow Joe + Sun Joe replacement parts and accessories. NEVER use ® ® replacement parts or accessories that are not intended for use with this tool. Contact Snow Joe + Sun Joe if you are unsure ®...
  • Page 20 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563).
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 To obtain a replacement part or product, please visit Some states do not allow exclusions of incidental or consequential snowjoe.com/help or email us at help@snowjoe.com for damages so the above exclusions may not apply in all states. This instructions. Please be sure to register your unit beforehand warranty may give you specific legal rights in your state.
