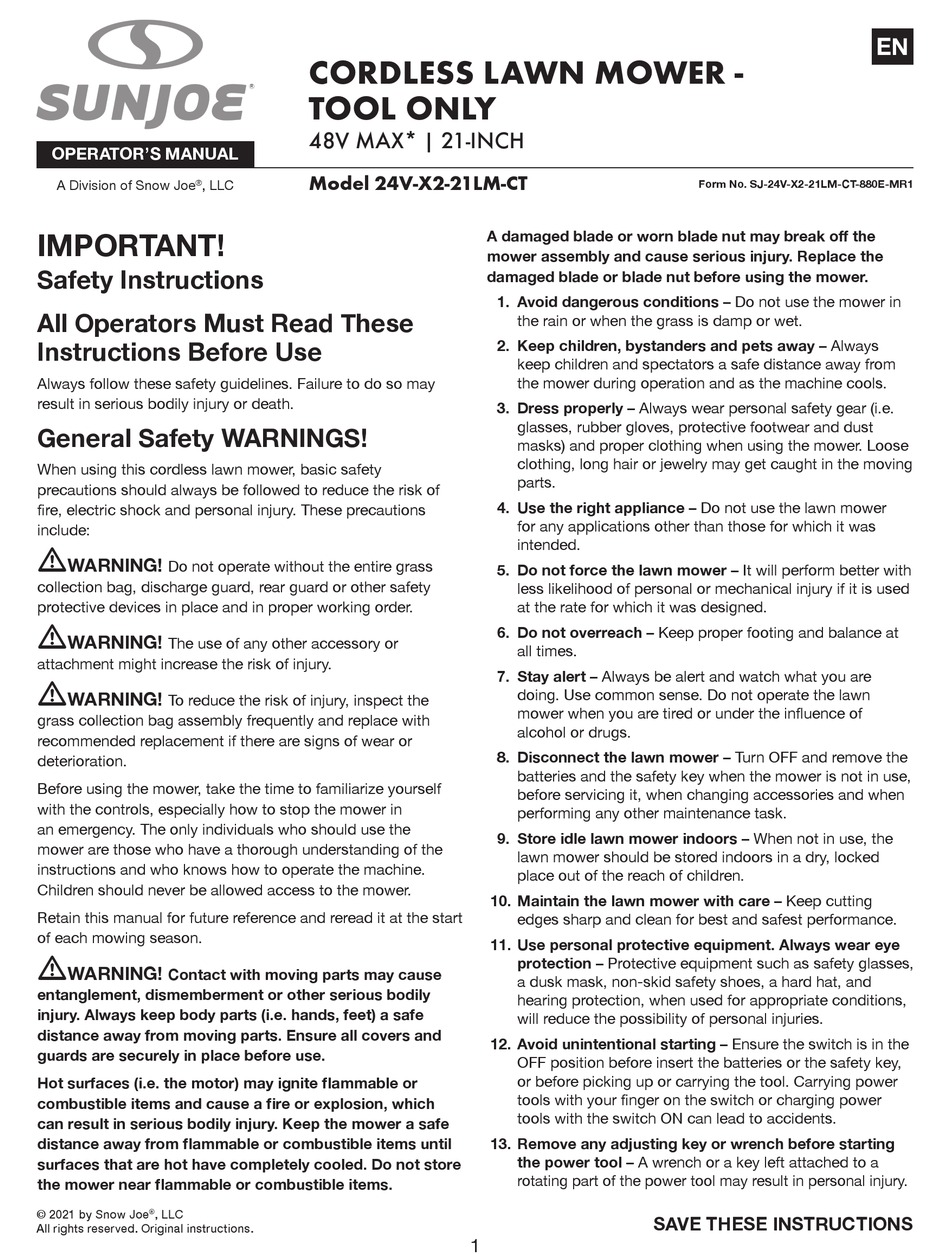

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety WARNINGS!
When using this cordless lawn mower, basic safety
precautions should always be followed to reduce the risk of
fire, electric shock and personal injury. These precautions
include:
m
WARNING!
Do not operate without the entire grass
collection bag, discharge guard, rear guard or other safety
protective devices in place and in proper working order.
m
WARNING!
The use of any other accessory or
attachment might increase the risk of injury.
m
WARNING!
To reduce the risk of injury, inspect the
grass collection bag assembly frequently and replace with
recommended replacement if there are signs of wear or
deterioration.
Before using the mower, take the time to familiarize yourself
with the controls, especially how to stop the mower in
an emergency. The only individuals who should use the
mower are those who have a thorough understanding of the
instructions and who knows how to operate the machine.
Children should never be allowed access to the mower.
Retain this manual for future reference and reread it at the start
of each mowing season.
m
WARNING!
Contact with moving parts may cause
entanglement, dismemberment or other serious bodily
injury. Always keep body parts (i.e. hands, feet) a safe
distance away from moving parts. Ensure all covers and
guards are securely in place before use.
Hot surfaces (i.e. the motor) may ignite flammable or
combustible items and cause a fire or explosion, which
can result in serious bodily injury. Keep the mower a safe
distance away from flammable or combustible items until
surfaces that are hot have completely cooled. Do not store
the mower near flammable or combustible items.
© 2021 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS LAWN MOWER -
R
TOOL ONLY
48V MAX* | 21-INCH
Model 24V-X2-21LM-CT
A damaged blade or worn blade nut may break off the
mower assembly and cause serious injury. Replace the
damaged blade or blade nut before using the mower.
1. Avoid dangerous conditions – Do not use the mower in
the rain or when the grass is damp or wet.
2. Keep children, bystanders and pets away – Always
keep children and spectators a safe distance away from
the mower during operation and as the machine cools.
3. Dress properly – Always wear personal safety gear (i.e.
glasses, rubber gloves, protective footwear and dust
masks) and proper clothing when using the mower. Loose
clothing, long hair or jewelry may get caught in the moving
parts.
4. Use the right appliance – Do not use the lawn mower
for any applications other than those for which it was
intended.
5. Do not force the lawn mower – It will perform better with
less likelihood of personal or mechanical injury if it is used
at the rate for which it was designed.
6. Do not overreach – Keep proper footing and balance at
all times.
7. Stay alert – Always be alert and watch what you are
doing. Use common sense. Do not operate the lawn
mower when you are tired or under the influence of
alcohol or drugs.
8. Disconnect the lawn mower – Turn OFF and remove the
batteries and the safety key when the mower is not in use,
before servicing it, when changing accessories and when
performing any other maintenance task.
9. Store idle lawn mower indoors – When not in use, the
lawn mower should be stored indoors in a dry, locked
place out of the reach of children.
10. Maintain the lawn mower with care – Keep cutting
edges sharp and clean for best and safest performance.
11. Use personal protective equipment. Always wear eye
protection – Protective equipment such as safety glasses,
a dusk mask, non-skid safety shoes, a hard hat, and
hearing protection, when used for appropriate conditions,
will reduce the possibility of personal injuries.
12. Avoid unintentional starting – Ensure the switch is in the
OFF position before insert the batteries or the safety key,
or before picking up or carrying the tool. Carrying power
tools with your finger on the switch or charging power
tools with the switch ON can lead to accidents.
13. Remove any adjusting key or wrench before starting
the power tool – A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
1
Form No. SJ-24V-X2-21LM-CT-880E-MR1
SAVE THESE INSTRUCTIONS
EN
