Meraki MX67W Installation Guide
This document describes how to install and set up the MX67W security appliance. Additional reference
documents are available online at: www.meraki.com/library/products.
MX67W Overview
The Meraki MX67W (model: MX67W-HW) is an enterprise security appliance designed for distributed
deployments that require remote administration. It is ideal for network administrators who demand both
ease of deployment and a state-of-the-art feature set. This appliance provides the following new features:
2.4-Ghz (2 spatial streams) and 5-GHz (2 spatial streams) radios for 802.11abgn/ac support.
USB port, to support approved 3G/4G cards for failover to cellular networks.
Support for 10 LAN connections (2 of 10 offer 802.3at support)
Wall screws and anchors for mounting drywall surface, either vertically or horizontally
MX67W Operational Temperature: 32
Package Contents

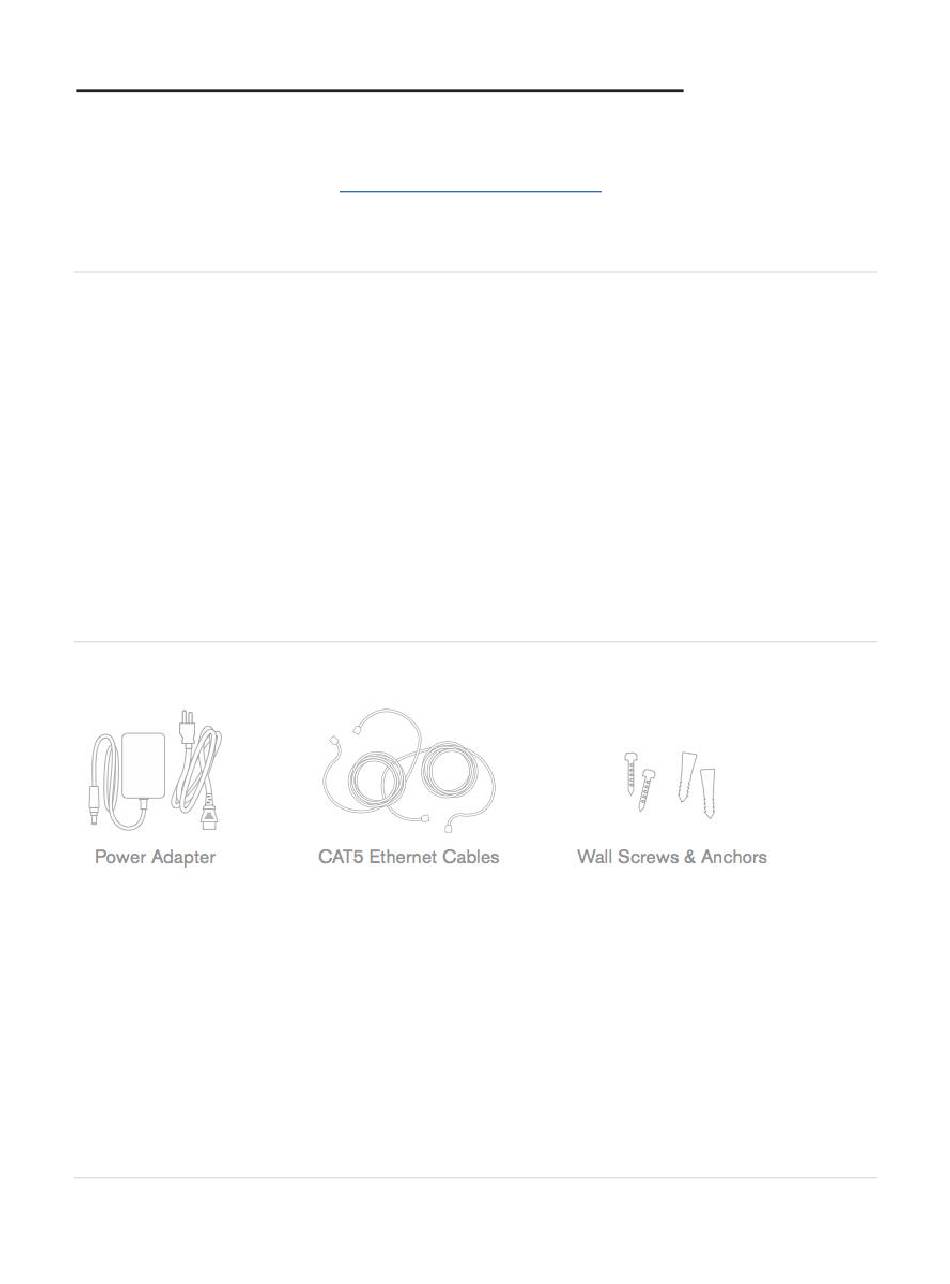

In addition to the MX67W, the following are provided.
The MX67W front panel
o
o
o
o
F to 104
F (0
C to 40
C)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX67W and is the answer not in the manual?

Questions and answers

Related Manuals for Meraki MX67W

Summary of Contents for Meraki MX67W

  • Page 1 Meraki MX67W Installation Guide This document describes how to install and set up the MX67W security appliance. Additional reference documents are available online at: www.meraki.com/library/products. MX67W Overview The Meraki MX67W (model: MX67W-HW) is an enterprise security appliance designed for distributed deployments that require remote administration.

  • Page 2: Ports And Status Indicators

    Ports and Status Indicators The MX67W uses a single LED to inform the user of the device's status. Function LED Status Meaning Power Up/Boot Solid Orange Power is applied Connecting Rainbow Device in process of connecting to the Meraki Dashboard...
  • Page 3 Press and hold for more than 10 sec: To force the unit into a full factory reset. Kensington The slot is a portion of the Kensington lock system and is compatible with any Kensington Security Slot cable. USB port USB 2.0 for 3G/4G wireless cards. The MX67W bottom panel...

  • Page 4: Mounting Hardware

    Please note that the serial number is located on the product label, which is located on the bottom of the MX67W. The blank region in the center of the label will be populated with regulatory marks on commercial units. Mounting hardware The supplied wall screws and anchors allow you to mount the appliance on a drywall surface, either vertically or horizontally.

  • Page 5: Additional Settings

    2. Using a browser on the client machine, access the appliance's built-in web service by browsing to http://setup.meraki.com. (You do not have to be connected to the Internet to reach this address) Click Uplink configuration under the Local status tab.
  • Page 6 This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Party issuing Supplier’s Declaration of Conformity Cisco Meraki 500 Terry A. Francois Blvd. San Francisco, CA 94158 compliance@meraki.com...

  • Page 7: Fcc Caution

    FCC Rules. Industry Canada Statement This MX67W complies with license-exempt RSSs of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 8: Industry Canada Radiation Exposure Statement

    Innovation, Sciences et Développement économique Canada a approuvé l'utilisation de ce transmetteur radio avec les types d'antenne énumérés ci-dessous, le gain maximal admissible étant indiqué. Les types d'antennes non inclus dans cette liste qui ont un gain supérieur au gain maximal indiqué pour tout type listé...
  • Page 9 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科及醫療用電波輻射性電機設備之干擾。 低功率射頻電機技術規範 4.7 無線資訊傳輸設備 4.7.6 無線資訊傳輸設備須忍受合法通信之干擾且不得干擾合法通信；如造成干擾，應立即停用，俟 無干擾之 虞，始得 繼續使用。 4.7.7 無線資訊傳輸設備的製造廠商應確保頻率穩定， 如依製造廠商使用手冊上所述正常操作，發 射的信號 應維持於操作帶中。 在5.25-5.35秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。 無線資訊傳輸設備避免影響附近雷達系統之操作。 Statement CS-0438 - 台灣 RoHS 台灣 RoHS“限用物質含有情況標示聲明書”網址 www.cisco.com/go/taiwanrohs...
