Meraki MX67C Installation Guide
This document describes how to install and set up the MX67C security appliance. Additional reference
documents are available online at: www.meraki.com/library/products.
MX67C Overview

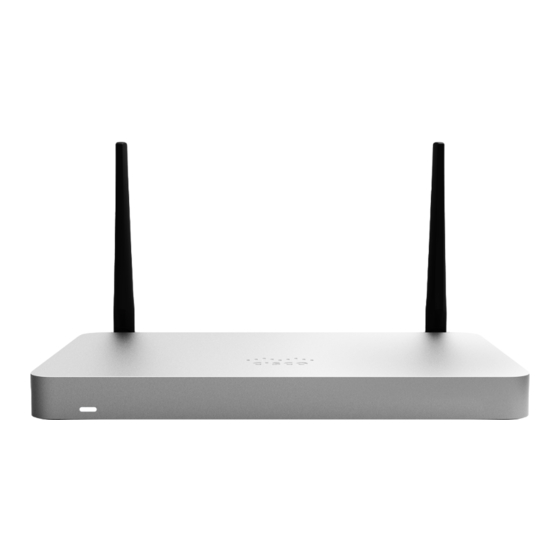

The Meraki MX67C
(model: MX67C-HW-NA & MX67C-HW-WW)
designed for distributed deployments that require remote administration. It is ideal for network
administrators who demand both ease of deployment and a state-of-the-art feature set. This appliance
provides the following new features:
USB port, to support approved 3G/4G cards for failover to cellular networks.
Support for 10 LAN connections (2 of 10 offer 802.3at support)
Wall screws and anchors for mounting drywall surface, either vertically or horizontally
MX67C Operational Temperature: 32
Package Contents
In addition to the MX67C, the following are provided.
SIM Slot Pin
o
o
o
F to 104
F (0
C to 40
is an enterprise security appliance
o
C)
Advertisement
Table of Contents
Related Manuals for Meraki MX67C
Summary of Contents for Meraki MX67C
-
Page 1: Package Contents

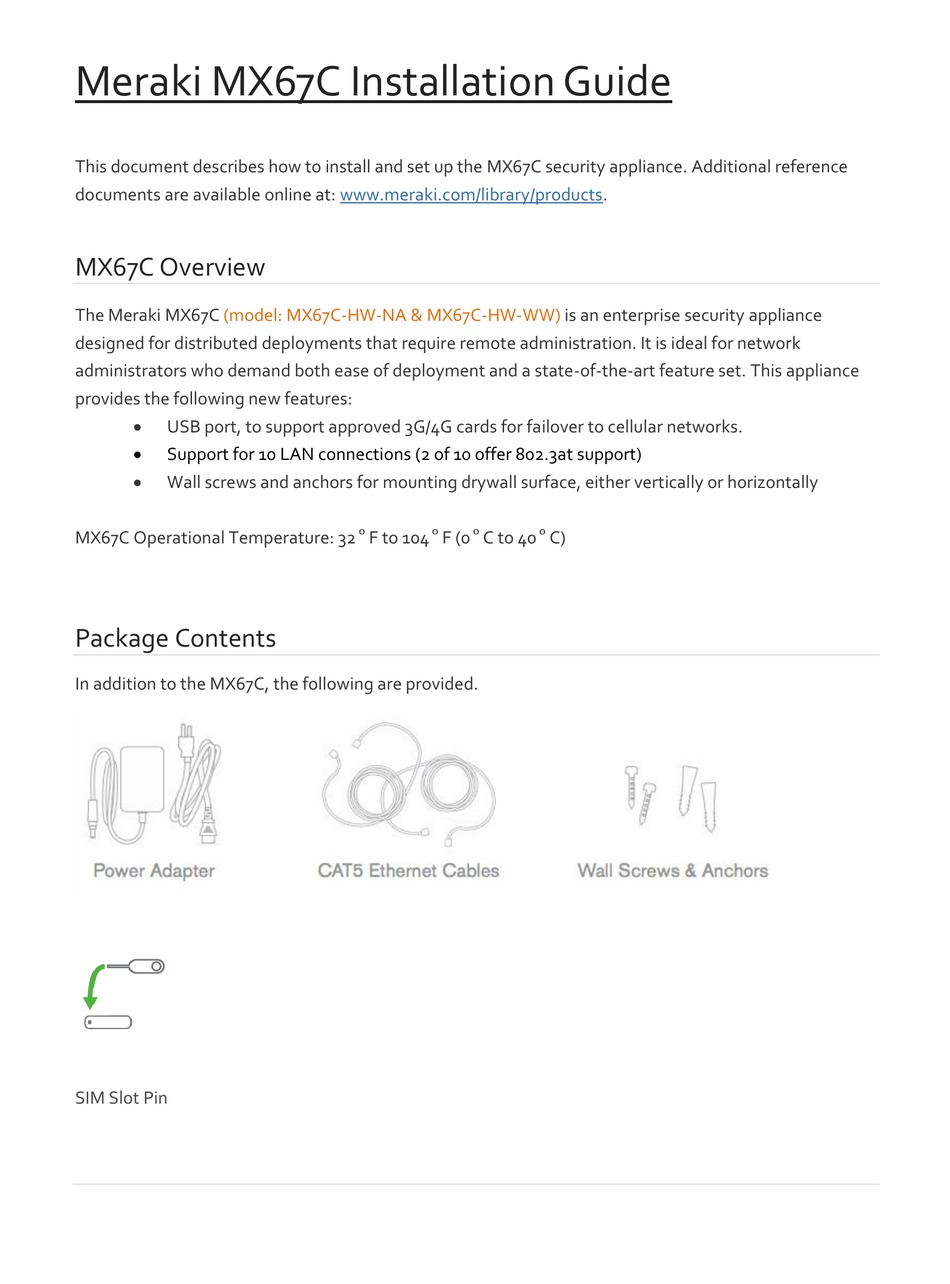

Meraki MX67C Installation Guide This document describes how to install and set up the MX67C security appliance. Additional reference documents are available online at: www.meraki.com/library/products. MX67C Overview The Meraki MX67C (model: MX67C-HW-NA & MX67C-HW-WW) is an enterprise security appliance designed for distributed deployments that require remote administration. It is ideal for network administrators who demand both ease of deployment and a state-of-the-art feature set. -
Page 2: Ports And Status Indicators
The MX67C Ports and Connections USB, Ethernet (LAN/WAN), SIM, K-Lock, Power, Antennas The MX67C front panel Ports and Status Indicators The MX67C uses a single LED to inform the user of the device's status. - Page 3 Function LED Status Meaning Power Up/Boot Solid Orange Power is applied Connecting Rainbow Device in process of connecting to the Meraki Dashboard Connected Solid White Fully operational Upgrading Flashing During boot or no WAN link White LTE Enabled Purple LTE is on and connected The MX67C back panel Additional functions on the back panel are described below, from left to right.
- Page 4 Kensington The slot is a portion of the Kensington lock system and is compatible with any Kensington Security Slot cable. USB port USB 2.0 for 3G/4G wireless cards. The MX67C bottom panel...
-
Page 5: Mounting Hardware
Please note that the serial number is located on the product label, which is located on the bottom of the MX67C. The blank region in the center of the label will be populated with regulatory marks on commercial units. Mounting hardware The supplied wall screws and anchors allow you to mount the appliance on a drywall surface, either vertically or horizontally. -
Page 6: Additional Settings
2. Using a browser on the client machine, access the appliance's built-in web service by browsing to http://setup.meraki.com. (You do not have to be connected to the Internet to reach this address) Click Uplink configuration under the Local status tab. - Page 7 This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Party issuing Supplier’s Declaration of Conformity Cisco Meraki 500 Terry A. Francois Blvd. San Francisco, CA 94158 compliance@meraki.com...
-
Page 8: Fcc Caution
Industry Canada Statement This MX67C complies with license-exempt RSSs of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 9: Industry Canada Radiation Exposure Statement
Industry Canada Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 22 cm between the radiator & your body. Déclaration d’exposition aux radiations Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non con trôlé.
