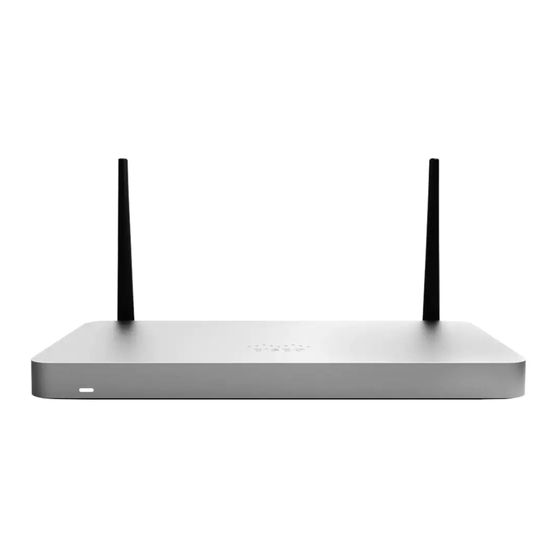

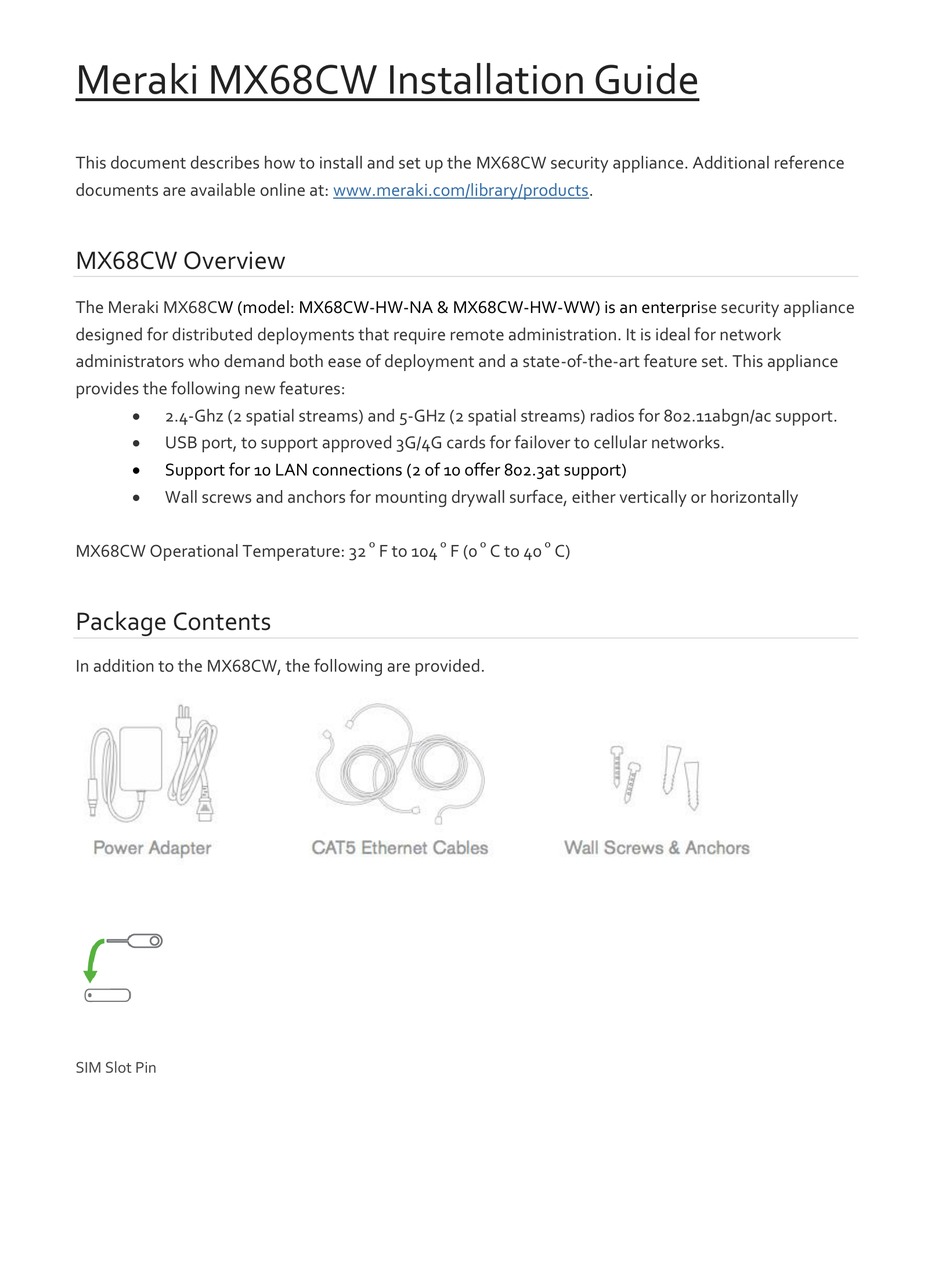

Meraki MX68CW Installation Guide
This document describes how to install and set up the MX68CW security appliance. Additional reference
documents are available online at: www.meraki.com/library/products.
MX68CW Overview
The Meraki
MX68CW (model: MX68CW-HW-NA & MX68CW-HW-WW) is an
designed for distributed deployments that require remote administration. It is ideal for network
administrators who demand both ease of deployment and a state-of-the-art feature set. This appliance
provides the following new features:
2.4-Ghz (2 spatial streams) and 5-GHz (2 spatial streams) radios for 802.11abgn/ac support.
USB port, to support approved 3G/4G cards for failover to cellular networks.
Support for 10 LAN connections (2 of 10 offer 802.3at support)
Wall screws and anchors for mounting drywall surface, either vertically or horizontally
MX68CW Operational Temperature: 32
Package Contents
In addition to the MX68CW, the following are provided.
SIM Slot Pin
o
o
o
F to 104
F (0
C to 40
enterprise security appliance
o
C)
Advertisement
Table of Contents
Related Manuals for Meraki MX68CW
Summary of Contents for Meraki MX68CW
- Page 1 Meraki MX68CW Installation Guide This document describes how to install and set up the MX68CW security appliance. Additional reference documents are available online at: www.meraki.com/library/products. MX68CW Overview The Meraki MX68CW (model: MX68CW-HW-NA & MX68CW-HW-WW) is an enterprise security appliance designed for distributed deployments that require remote administration. It is ideal for network administrators who demand both ease of deployment and a state-of-the-art feature set.
- Page 2 The MX68CW Ports and Connections USB, Ethernet (LAN/WAN), SIM, K-Lock, Power, Antennas The MX68CW front panel Ports and Status Indicators The MX68CW uses a single LED to inform the user of the device's status. Function LED Status Meaning Power Up/Boot...
- Page 3 Connecting Rainbow Device in process of connecting to the Meraki Dashboard Connected Solid White Fully operational Upgrading Flashing During boot or no WAN link White LTE Enabled Purple LTE is on and connected The MX68CW back panel Additional functions on the back panel are described below, from left to right.
-
Page 4: Mounting Hardware
The MX68CW bottom panel Please note that the serial number is located on the product label, which is located on the bottom of the MX68CW. The blank region in the center of the label will be populated with regulatory marks on commercial units. -
Page 5: Additional Settings
All Meraki MX devices must have an IP address. This section describes how to configure your local area network before you deploy it. A local management web service, running on the appliance, is accessed through a browser running on a client PC. This web service is used for configuring and monitoring basic ISP/WAN connectivity. - Page 6 This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Party issuing Supplier’s Declaration of Conformity Cisco Meraki 500 Terry A. Francois Blvd. San Francisco, CA 94158 compliance@meraki.com...
-
Page 7: Fcc Radiation Exposure Statement
FCC Rules. Industry Canada Statement This MX68CW complies with license-exempt RSSs of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 8: Industry Canada Radiation Exposure Statement
Avertissement: (i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur a n de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. - Page 9 Taiwan NCC Statement 減少電磁波影響，請妥適使用。 無線資訊傳輸設備避免影響附近雷達系統之操作。 低功率射頻設備的管理辦法 第12條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得 擅自變更頻率、 加大功率或 變更原設計之特性及功能。 第14條 低功率射頻電機之使用不得影響飛航安全及干擾 合法通信；經發現有干擾現象時，應立即 用，並改善 至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科及醫療用電波輻射性電機設備之干擾。 低功率射頻電機技術規範 4.7 無線資訊傳輸設備 4.7.6 無線資訊傳輸設備須忍受合法通信之干擾且不得干擾合法通信；如造成干擾，應立即停用，俟 無干擾之 虞，始得 繼續使用。 4.7.7 無線資訊傳輸設備的製造廠商應確保頻率穩定， 如依製造廠商使用手冊上所述正常操作，發 射的信號 應維持於操作帶中。 在5.25-5.35秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用。電磁波曝露量MPE標準值 1mW/cm2，本產品使用時建議應距離人體20cm。 Statement CS-0438 - 台灣 RoHS 台灣 RoHS“限用物質含有情況標示聲明書”網址 www.cisco.com/go/taiwanrohs...
