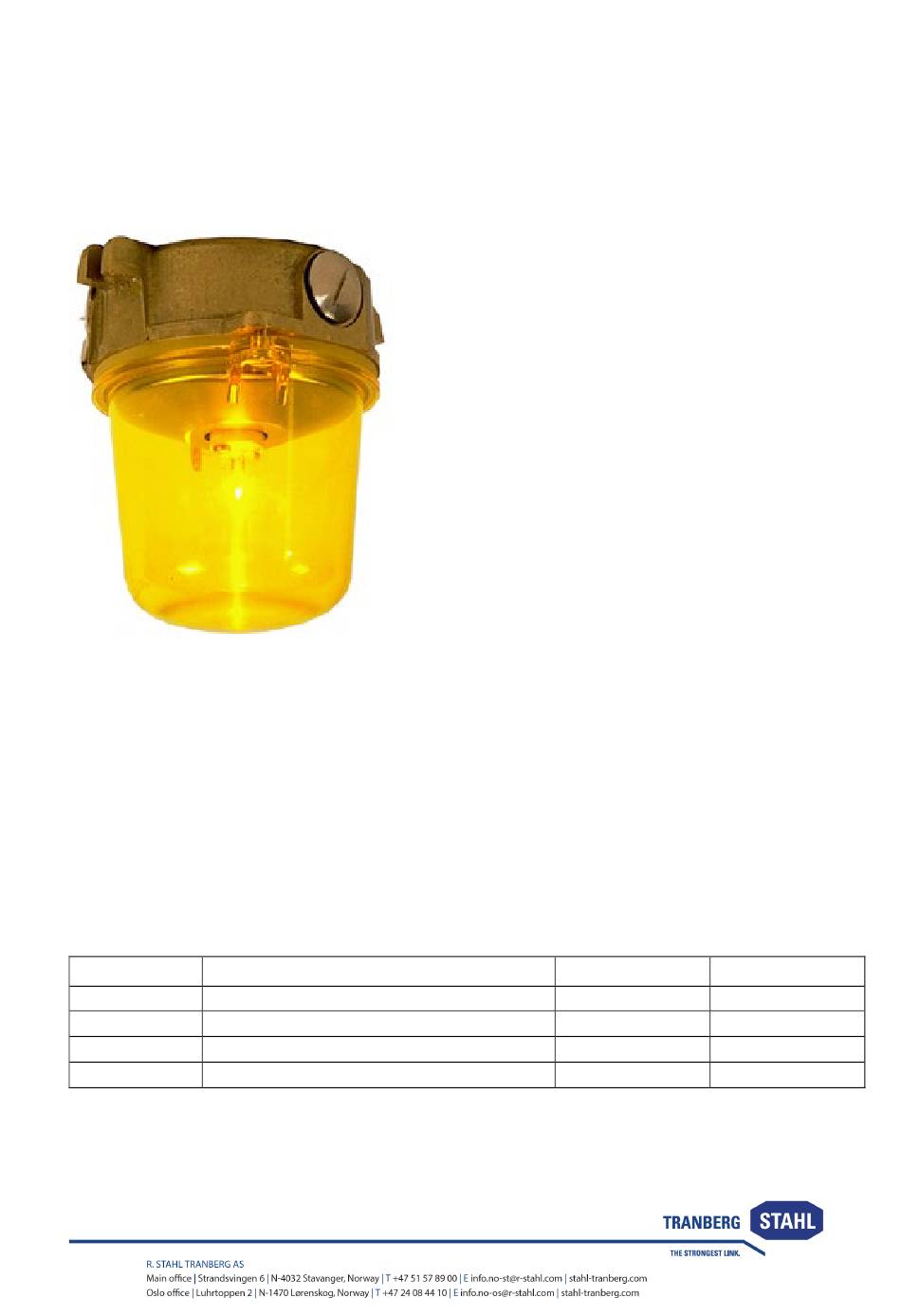

Installation and operating manual
TEF 2457 Luminaire, watertight
Installation Manual
TEF 2457 Luminaire, Watertight
Safe Area
Document properties (TUM1011)
Revision
Comment
-
First issue
A
Minor changes
B
Removed 230V AC
C
Removed lampholder B15d
.
Revision date
Approved
-
***
17.07.2017
-
25.06.2015
-
11.05.2022
CKR
Advertisement
Table of Contents
Related Manuals for Tranberg STAHL TEF 2457
Summary of Contents for Tranberg STAHL TEF 2457
- Page 1 Installation and operating manual TEF 2457 Luminaire, watertight Installation Manual TEF 2457 Luminaire, Watertight Safe Area Document properties (TUM1011) Revision Comment Revision date Approved First issue Minor changes 17.07.2017 Removed 230V AC 25.06.2015 Removed lampholder B15d 11.05.2022...
- Page 2 Installation and operating manual TEF 2457 Luminaire, watertight Installation and operating manual Contents Document properties (TUM1011) ..........................1 Warnings and risk levels ............................3 General information ..............................3 Marking and intended use ............................3 Technical data ................................. 4 Product description ..............................4 Transport and storage .............................
- Page 3 Installation and operating manual TEF 2457 Luminaire, watertight Warnings and risk levels DANGER Non-compliance with the instruction results in risk of severe or fatal injuries to persons WARNING Non-compliance with the instruction may result in risk of severe or fatal injuries to persons CAUTION Non-compliance with the instruction may result in risk of injuries or damage to equipment NOTICE...
- Page 4 Installation and operating manual TEF 2457 Luminaire, watertight Technical data Property Value Value Input voltage Ingress protection IP56 Power consumption Max. 25 Watt, dependent on light source Weight 0,65 kg Terminals Screw terminals, 1-4mm² Entries/Cable glands 1 x M20 Cable gland 2 x M20 stopping plug Housing material Cast brass...
- Page 5 Installation and operating manual TEF 2457 Luminaire, watertight Mounting and installation DANGER Incorrect mounting and installation may lead to risk for falling objects, risk for electric shock or fire and risk for equipment malfunction. In turn, this can lead to severe damage and/or injuries. Mounting Tools required for installation: 10 mm wrench - for assemble the luminaire.
- Page 6 Installation and operating manual TEF 2457 Luminaire, watertight Electrical connections Cable entries: 1xM20 cable gland, cable diameter 8-13mm and 1xM20 stopping plug. Maintenance and cleaning Inspection of the luminaire according to Company routines. The manufacturer suggests regular check for water intrusion/condensation.
