- Page 1 Spectral Luminance Meter SRI-RL-5000 user manual...
-
Page 2: Table Of Contents
Contents Appearance Introduction............Packing Contents................5 Product Features................. Measurement Introduction............. 7 Setting Items.................. RGB Measurement............Save File..................12 SRI-RL-5000 computer software installation steps..... 13 Transferring Data With PC Connection......... 14 Spectroradiometric Report..........Measuring Capabilities..............16 Power Indicator Light..............GAMMA Test Report..............Shanghai Institute of Metrology Test Report...... -
Page 3: Appearance Introduction

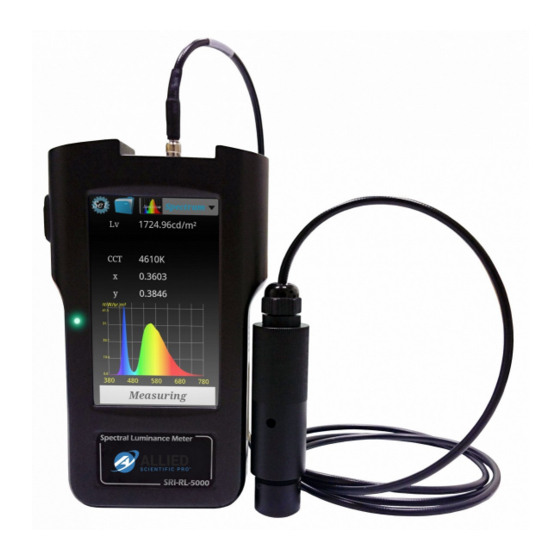

Appearance Introduction Fiber Power Switch Mini USB Port Power Jack Spectral Luminance Meter Receiver SRI-RL SRI-RL -5000 -5000 SRI-RL-5000... -
Page 4: Packing Contents
Packing Contents... -
Page 5: Product Features
Product Features ◆ Fast booting level, can perform instant measurement, no unnecessary action,measurement result is real time display. Using integrating sphere as light entrance port,consist ◆ perfect consine effect at different angel. ◆ Unique long focal length, high precision spectrometer for measurement. -
Page 6: Measurement Introduction
Measurement Introduction 1.Point sensor head at light source. 2. At appropriate distance then press power switch. 3. Measured data will display on the screen. - Page 7 Fast switching the screen shown to follow, read all the information. Fast Boot level,can perform instant measurement, no unnecessary action,measurement result is real time display. Spectrum DATA SRI-RL-5000...
- Page 8 CIE-1931 CRI(R1-R15) CIE-1976...
- Page 9 RGB Measurement 1. Select NTSC. 2.Please follow the message instructions, and complete RGB measure. CIE-1931 CIE-1976 SRI-RL-5000...
-
Page 10: Setting Items
Setting Items Switching WRGB-RGB measurement type. - Page 11 Set Icon Save Icon Save Cancel Settings System Information Dark current Calibration ： Please follow the message instructions, and complete Dark current Calibration. SRI-RL-5000...
-
Page 12: Sri-Rl-5000 Computer Software Installation Steps
SRI-RL-5000 computer software installation steps Software and Drive installation process, please refer Disc Drive 1.Install dotNetFx40_Full_x86_X64. 2.Please complete SRI-RL-5000 operating system, connected to mini USB cable, click Driver folder selected computer system vision then installation the driver. 3.Confirm Driver is installed successfully. (Please back to windows than check driver manager.) 4.Installation software SRI-RL-5000 Data Recipients_ver_X_X_ X_X. -
Page 13: Transferring Data With Pc Connection
Transferring Data With PC Connection Spectral Luminance Meter Spectral Lum inance Meter Spectral Luminance Meter SRI-RL - 5000 SRI-RL SRI-RL - 5000 -5000 SRI-RL-5000... - Page 14 Output data can be printed into a formal report.
-
Page 15: Measuring Capabilities
Measuring Capabilities ◆ Luminance/ cd/m (nits) ◆ Spectral Irradiance ◆ Chromaticity Coordinates(x,y) ◆ Correlated Color Temperatrue(CCT) ◆ CIE-1931(x,y) ◆ CIE-1976(u’,v’) ◆ NTSC Power Indicator Light Red : Charging Green : Power on Blue : Low battery Yellow : Power on and charging Cyan : Power on and low battery White : Power on and low battery charging SRI-RL-5000... - Page 16 ※This product is used the new lithium battery,please refer to the following Cautions and charging: 1) The new Lithium batteries have no memory effect, can be charged on any time, The battery is charged before it has been exhausted, battery life will be longer.
-
Page 17: Product Specification
PRODUCT SPECIFICATION CCD Sony linear array Sensor,2048 pixels Spectrometer Detector Type Fiber, Luminance light entrance port Cosine Receptor Diameter 5mm ± 0.5mm or 10mm ± 0.5mm Measurement Range 0.5 -1000 nits or 5 -10000 nits (under Source A) 380 ~ 780 nm Wavelenght Range Exposure Time Range 1 ~ 4000 ms...
