Summary of Contents for Allied SRI-2000-UV

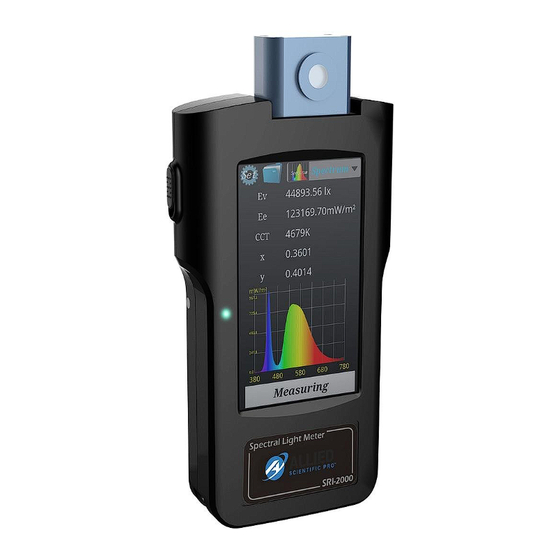

- Page 1 Spectral Light Meter SRI-2000-UV user manual...
-
Page 2: Table Of Contents
Product Features ................. Measurement Introduction............. 7 Setting Items .................. 8 Save File ..................10 SRI-2000-UV computer software installation steps ...... 1 1 Transferring Data With PC Connection ......... 1 2 Spectroradiometric Report ..........Measuring Capabilities ..............1 4 Power Indicator Light............... 15 GAMMA Test Report .............. -
Page 3: Appearance Introduction
Appearance Introduction SRI-2000-UV... -
Page 4: Packing Contents
Packing Contents SRI-2000-UV... -
Page 5: Product Features
A wide range of Illuminance, up to 10lx illumination can be measured. ◆ Spectral irradiance resolution 0.5nm,half bandwidth resolution 1.0nm. ◆ Save up to 500000 files. ◆ Conncet to PC to export the data by USB ◆ Can be output as Excel file. ◆ Formal report output. SRI-2000-UV... -
Page 6: Measurement Introduction
Measurement Introduction 1. Press "measuring" begin to make measurements. 2. At appropriate distance then press power switch. 3. Measured data will display on the screen. SRI-2000-UV... - Page 7 Fast switching the screen shown to follow, read all the information. Fast Boot level,can perform instant measurement, no unnecessary action,measurement result is real time display. DATA Spectrum SRI-2000-UV...
- Page 8 CIE-1931 CIE-1976 SDCM CRI(R1-R15) Binning SRI-2000-UV...
- Page 9 Set Icon Save Icon Save Cancel Settings System Information Dark current Calibration ： Please follow the message instructions, and complete Dark current Calibration. SRI-2000-UV...
-
Page 10: Sri-2000-Uv Computer Software Installation Steps
SRI-2000-UV computer software installation steps Software and Drive installation process, please refer Disc Drive 1.Install dotNetFx40_Full_x86_X64. 2.Please complete SRI-2000-UV operating system, connected to mini USB cable, click Driver folder selected computer system vision then installation the driver. 3.Confirm Driver is installed successfully. - Page 11 Export Data to PC 1. Use USB cable to connect SRI-2000-UV and PC. 2. Install the software. SRI-2000-UV...
- Page 12 Output data can be printed into a formal report. SRI-2000-UV...
-
Page 13: Measuring Capabilities
◆ CIE-1976(u’,v’) ◆ Binning Power Indicator Light Red : Charging Green : Power on Blue : Low battery Yellow : Power on and charging Cyan : Power on and low battery White : Power on and low battery charging SRI-2000-UV... - Page 14 Do not connect the mini-USB while the machine is on or off, otherwise it the adapter to charge. If the above precautions are not followed and the charging method causes damage, it is not within the scope of the machine warranty. SRI-2000-UV...
-
Page 15: Product Specification
Up to 6 hours continuous use Battery 3400 mAh / Rechargeable lithium ion battery Date Output Interface mini-USB 2.0 Data Format Microsoft Excel compatible Weight (with Battery) 660 g ± 20 g Size(mm) 200(L)×92(W)×30(H) Operating Temperature Range 0 ~ 50° C SRI-2000-UV...
