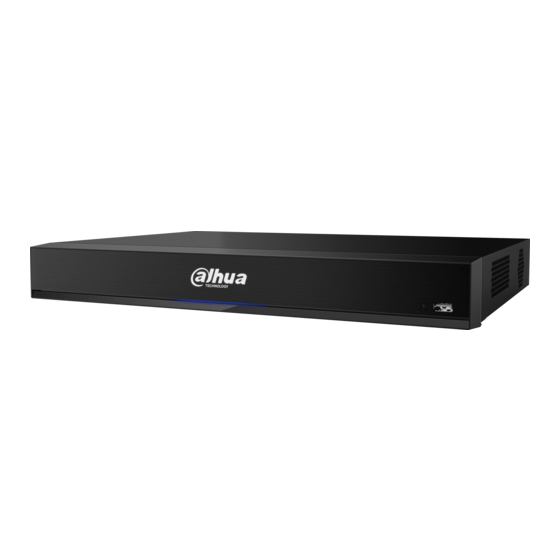

Dahua D-XVR8208A-4K-I User Manual

Dahua D-XVR8208A-4K-I User Manual

Ai digital video recorder
Table of Contents

Advertisement

Quick Links

AI DIGITAL VIDEO RECORDER
User's Manual
V1.0.0
ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-XVR8208A-4K-I and is the answer not in the manual?

Questions and answers

Summary of Contents for Dahua D-XVR8208A-4K-I

  • Page 1 AI DIGITAL VIDEO RECORDER User’s Manual V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
  • Page 2: Cybersecurity Recommendations

    Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible.
  • Page 3 In the event that your social media, bank, email, etc. account is compromised, you would not want someone collecting those passwords and trying them out on your video surveillance system. Using a different username and password for your security system will make it more difficult for someone to guess their way into your system.
  • Page 4: Regulatory Information

    Regulatory Information The regulatory information herein might vary according to the model you purchased. Some information is only applicable for the country or region where the product is sold. FCC Information CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 5: Foreword

    Foreword General This user’s manual (hereinafter referred to be "the Manual") introduces the functions and operations of the DVR devices (hereinafter referred to be "the Device"). Models Series Models AI series DH-XVR8216A-4KL-I/DH-XVR8208A-4K-I Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result...
  • Page 6 rights and interests of other people by implementing measures include but not limited to: providing clear and visible identification to inform data subject the existence of surveillance area and providing related contact. About the Manual The Manual is for reference only. If there is inconsistency between the Manual and the ...
  • Page 7: Important Safeguards And Warnings

    Important Safeguards and Warnings This Chapter describes the contents covering proper handling of the Device, hazard prevention, and prevention of property damage. Read these contents carefully before using the Device, comply with them when using, and keep it well for future reference. Operation Requirement ...
  • Page 8: Table Of Contents

    Table of Contents Cybersecurity Recommendations ......................I Regulatory Information ........................... III Foreword ..............................IV Important Safeguards and Warnings ....................VI 1 Introduction ............................1 1.1 Overview ............................1 1.2 Functions ............................1 2 Getting Started ............................4 2.1 Checking the Components......................4 2.2 Installing HDD ..........................
  • Page 9 5.2.8 Configuring Tour Settings ....................61 5.3 Entering Main Menu ........................64 5.4 Controlling PTZ Cameras ......................67 5.4.1 Configuring PTZ Connection Settings ................67 5.4.2 Working with PTZ Control Panel ..................68 5.4.3 Configuring PTZ Functions ....................70 5.4.4 Calling PTZ Functions ...................... 72 5.4.5 Calling OSD Menu ......................
  • Page 10 5.12.2 Configuring Temperature and Humidity Camera ............187 5.12.3 Configuring Wireless Siren ................... 199 5.13 Configuring POS Settings ....................... 200 5.13.1 Searching the Transaction Records ................200 5.13.2 Configuring POS Settings ..................... 201 5.14 Configuring Backup Settings ....................202 5.14.1 Finding USB Device ..................... 202 5.14.2 Backing up Files ......................
  • Page 11 Appendix 1 Glossary ..........................283 Appendix 2 HDD Capacity Calculation ....................285 Appendix 3 Compatible Backup Devices ..................287 Appendix 3.1 Compatible USB list ....................287 Appendix 3.2 Compatible SD Card list ................... 288 Appendix 3.3 Compatible Portable HDD list ................... 288 Appendix 3.4 Compatible USB DVD List ..................
  • Page 12: Introduction

    Introduction Overview The Device is an excellent digital monitor product for security industry. The embedded LINUX OS assures the stable operation. The H.265 and G.711 technologies assure the high quality image and low bit stream. The frame-by-frame play function displays more details for analysis, and provides the functions such as record, playback, and monitor and assures the synchronization for audio and video.
  • Page 13 Provide specific management module for IoT features including humidity and temperature data reports and alarms linkage. Sensor Integration Integrate coaxial cameras with diverse array of sensors such as temperature, humidity and wireless alarm devices. Storage Management Special data format to guarantee data security and avoid the risk of modifying data ...
  • Page 14 Camera Self-adaptive Auto-recognize and work with the PAL or NTSC camera and HD camera. Introduction 3...
  • Page 15: Getting Started

    Getting Started Checking the Components The actual appearance, component, or quantity might be different depending on the model you purchased. When you receive the Device, please check against the following checking list. If any of the items are missing or damaged, contact the local retailer or after-sales engineer immediately. Sequence Checking items Requirement...
  • Page 16 Figure 2-1 Step 2 Put two screws on the HDD and twist one turn. Figure 2-2 Step 3 Align the two screws with the holes on the device. Figure 2-3 Step 4 Turn the device and put in the other two screws, and then fasten all screws to fix the HDD to the device.
  • Page 17 Figure 2-4 Step 5 Use power cable and data cable to connect the device and HDD. Figure 2-5 Step 6 Put back the cover and fasten the screws. Figure 2-6 Getting Started 6...
  • Page 18: The Grand Tour

    The Grand Tour This chapter introduces various components of the Device, remote control and mouse operations. Front Panel Figure 3-1 Indicator/Port Function Connects to peripheral devices such as USB storage USB port device, keyboard, and mouse. Table 3-1 Rear Panel Figure 3-2 Port Name Function...
  • Page 19: Remote Control Operations

    Port Name Function 4 groups of alarm input ports (Group 1: port 1 to port 4; Group 2: port 5 to port 8; Group 3: port 9 to port 12; Group 4: port 13 to port 16). These ports receive the signal from the external alarm source.
  • Page 20 Figure 3-3 Name Function Power button Press this button to boot up or shut down the device. Press this button to input device serial number, so that you can Address control the Device. Forward Multi-step forward speed and normal speed playback. Slow motion Multi-step slow motion speed or normal playback.
  • Page 21: Mouse Operations

    Name Function Switch between current activated controls by going left or right. Direction keys In playback state, the keys control the playback progress bar. Aux function (such as operating the PTZ menu). Confirms an operation.  Enter/menu key Go to the OK button. ...
  • Page 22 Operation Function In numeral input mode: Click to clear and click to delete the  previous character. Implement special control operations such as double-click one item in the file list to play back the video. Double-click left In multiple-window mode, double-click one channel to view in full-window. mouse button Double-click current video again to go back to previous multiple-window mode.
  • Page 23: Connecting Basics

    Connecting Basics This chapter introduces the typical connection diagrams and ports connections. Typical Connection Diagram The following figure is for reference only. The actual product shall govern. Figure 4-1 Connecting Basics 12...
  • Page 24: Connecting To Video And Audio Input And Output

    Connecting to Video and Audio Input and Output 4.2.1 Video Input The video input interface is BNC. The input video format includes: PAL/NTSC BNC (1.0V 75Ω). The video signal should comply with your national standards. The input video signal shall have high SNR, low distortion; low interference, natural color, and suitable lightness.
  • Page 25: Audio Input

    4.2.3 Audio Input This series of products audio input port adopt BNC port. Due to high impedance of audio input, please use active sound pick-up. Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose contact and it shall be away from high tension current. 4.2.4 Audio Output The audio output signal parameter is usually over 200mv 1KΩ...
  • Page 26: Introducing Alarm Port

    Make sure the front-end device has soundly earthed Improper grounding might result in chip damage. 4.3.1 Introducing Alarm Port The alarm input ports are dependent on the model you purchased. Figure 4-2 Icon Description 1,2,3,4,5,6, ALARM 1 to ALARM 16. The alarm becomes active in low voltage. 7,8,9,10,11,...
  • Page 27: Alarm Output

    Figure 4-3 4.3.3 Alarm Output Provide external power to external alarm device.   To avoid overloading, read the following relay parameters table carefully.  RS-485 A/B cable is for the A/B cable of the PTZ decoder. 4.3.4 Alarm Output Relay Parameters Refer to the actual product for relay model information.
  • Page 28: Local Configurations

    Local Configurations Read the following notes prior to using the Device. The interfaces in the Manual are used for introducing the operations and only for reference.  The actual interface might be different dependent on the model you purchased. If there is inconsistency between the Manual and the actual product, the actual product shall govern.
  • Page 29 To secure the Device, it is strongly recommended for you to properly keep the password for admin and modify it regularly. Step 1 Turn on the Device. The Device Initialization interface is displayed. See Figure 5-1. Figure 5-1 Step 2 Configure the password information for admin.
  • Page 30 Figure 5-2 Step 4 Draw an unlock pattern. After the setting is completed, the password protection settings interface is displayed. See Figure 5-3. The pattern that you want to set must cross at least four points.  If you do not want to configure the unlock pattern, click Skip. ...
  • Page 31: Resetting Password

    Step 5 Configure the protection parameters for password. For details, see Table 5-2. After configuration, if you forget the password for admin user, you can reset the password through the reserved email address or security questions. For details about resetting the password, see "5.1.3 Resetting Password." If you do not want to configure the settings, disable the email address and security questions functions on the interface.
  • Page 32 Figure 5-4 Step 2 Enable the Password Reset function. This function is enabled by default. Step 3 Click Apply to save the settings. 5.1.3.2 Resetting Password on Local Interface Step 1 Enter the login interface.  If you have configured unlock pattern, the unlock pattern login interface is displayed.
  • Page 33 Figure 5-5 Figure 5-6 Step 2 Click  If you have set the reserved email address, the Prompt message interface is displayed. See Figure 5-7.  If you did not set the reserved email address, the email entering interface is displayed.
  • Page 34 Figure 5-7 Figure 5-8 Step 3 Click OK. The Reset Password interface is displayed. See Figure 5-9. After clicking OK, the system will collect your information for password reset, and the information includes but not limited to email address, MAC address, and device serial number.
  • Page 35 Figure 5-9 Step 4 Reset the password.  QR code Follow the onscreen instructions to get the security code in your reserved email address. In the Security code box, enter the security code.  You can get the security code twice by scanning the same QR code. If you need to get the security code once again, refresh the interface.
  • Page 36 Figure 5-10 Step 5 Click Next. The new password resetting interface is displayed. See Figure 5-11. Figure 5-11 Step 6 In the New Password box, enter the new password and enter it again in the Confirm Password box. Step 7 Click Save.
  • Page 37 A pop-up message is displayed asking if you want to sync the password with the remote devices, see Figure 5-12. Click Cancel, the resetting is finished.   Click OK, the Sync Info interface is displayed. See Figure 5-12. Figure 5-12 This message appears only when there are digital channels instead of only analog channels.
  • Page 38: Setting Up With The Startup Wizard

    5.1.3.3 Using Reset Button on the Mainboard You can always use the reset button on the mainboard to reset the Device to the factory default. Not all models are provided with reset button. Step 1 Disconnect the Device from power source, and then remove the cover panel. For details about removing the cover panel, see "2.2 Installing HDD."...
  • Page 39 Figure 5-15  If you select the Auto-check for updates check box, the system will notify you automatically when updates are available. After the auto-check function is enabled, to notify you to update timely, the system will  collect the information such as IP address, device name, firmware version, and device serial number.
  • Page 40 Figure 5-16 Step 2 Configure the general settings parameters. See Table 5-3. Parameter Description Device Name In the Device Name box, enter the Device name. Device No. In the Device No. box, enter a number for the Device. Language In the Language list, select a language for the Device system. In the Video Standard list, select PAL or NTSC according to your actual Video Standard situation.
  • Page 41 5.1.4.3 Configuring Date and Time Settings You can configure the system time, choose the time zone, set the daylight saving time, and enable the NTP server. You can also configure date and time settings by selecting Main Menu > SYSTEM > GENERAL >...
  • Page 42 Parameter Description Start Time Configure the start time and end time for the DST. End Time Enable the NTP function to sync the Device time with the NTP server. In the Server box, enter the IP address or domain name of the corresponding NTP server.
  • Page 43 Parameter Description  Multi-address: Two Ethernet ports work separately through either of which you can request the Device to provide the services such as HTTP and RTSP. You need to configure a default Ethernet port (usually the Ethernet port 1 by default) to request the services from the device end such as DHCP, Email and FTP.
  • Page 44 Parameter Description Alternate DNS In the Alternate DNS box, enter the IP address of alternate DNS. In the MTU box, enter a value for network card. The value ranges from 1280 byte through 1500 byte. The default is 1500. The suggested MTU values are as below. ...
  • Page 45 After the P2P function is enabled and connected to the Internet, the system will collects your information for remote access, and the information includes but not limited to email address, MAC address, and device serial number. You can start adding the device. ...
  • Page 46 The interface requiring device initialization is displayed. A pop-up message reminding you to make sure the Device is initialized is displayed. Tap OK.  If the Device has not been initialized, Tap Device Initialization to perform initializing by following the onscreen instructions. ...
  • Page 47 Figure 5-22 Enter a name for the DVR, the username and password, scan the QR code under Device SN. Tap Start Live Preview. The Device is added and displayed on the live view interface of the cell phone. See Figure 5-23. Figure 5-23 Local Configurations 36...
  • Page 48 5.1.4.6 Configuring Encode Settings You can configure the settings of main stream and sub stream for the Device. You can also configure encode settings by selecting Main Menu > CAMERA > ENCODE > Encode. Step 1 After you have configured the P2P settings, on the P2P interface, click Next. The Encode interface is displayed.
  • Page 49 Parameter Description Configure the frames per second for the video. The higher the value is, the clearer and smoother the image will become. Frame rate changes along with the resolution. Frame Rate Generally, in PAL format, you can select the value from 1 through 25; (FPS) in NTSC format, you can select the value from 1 through 30.
  • Page 50 Figure 5-25 Step 2 Configure the settings for the snapshot parameters. See Table 5-7. Parameter Description In the Manual Snap list, select how many snapshots you want to take Manual Snap each time. In the Channel list, select the channel that you want to configure the Channel settings for.
  • Page 51 Step 1 After you have configured the encode settings, on the SNAPSHOT interface, click Next. The BASIC interface is displayed. See Figure 5-26. Figure 5-26 Step 2 Configure the basic storage settings parameters. See Table 5-8. Parameter Description Configure the settings for the situation when all the read/write discs are full, and there are no more free discs.
  • Page 52 Figure 5-27 Step 2 Configure the record settings parameters. See Table 5-9. Parameter Description Channel In the Channel list, select a channel to record the video. In the Pre-record list, enter the amount of time that you want to start Pre-record the recording in advance.
  • Page 53 Parameter Description Define a period during which the configured recording setting is active. Period The system only activates the alarm in the defined period. Copy Click Copy to copy the settings to other channels. Table 5-9 Step 3 Define the video recording period by drawing or editing. By default, it is active all the time.
  • Page 54  Select the check box of event type, and then click to clear the defined period.  When selecting MD&Alarm, the MD and Alarm check boxes will be cleared respectively.  Define the period by editing. Take Sunday as an example. Click The Period interface is displayed.
  • Page 55: Live View

    Step 1 After you have configured the video recording settings, on the Record interface, click Next. The SNAPSHOT interface is displayed. See Figure 5-31. Figure 5-31 Step 2 Configure the snapshot settings parameters. See Table 5-10. Parameter Description Channel In the Channel list, select a channel to take a snapshot. Select the check box of the event type which includes General, MD, Event type Alarm, MD&Alarm, Intel, and POS.
  • Page 56: Live View Screen

    Figure 5-32 5.2.1 Live View Screen You can view the live video from the connected cameras through each channel on the screen. By default, the system time, channel name and channel number are displayed on each  channel window. This setting can be configured by selecting Main Menu > CAMERA > OVERLAY.
  • Page 57: Live View Control Bar

    5.2.2 Live View Control bar The live view control bar provides you access to perform the operations such as playback, zoom, real-time backup, manual snapshot, voice talk, adding remote devices, and streams switch. When you move the pointer to the top middle position of a channel window, the live view control bar is displayed.
  • Page 58 Function Function Function Instant Play Manual Snap Camera Registration Digital Zoom Mute Real-time Audio Talk Backup Table 5-12 5.2.2.1 Instant Playback You can play back the previous five minutes to sixty minutes of the recorded video. By clicking , the instant playback interface is displayed. The instant playback has the following features: ...
  • Page 59 5.2.2.2 Digital Zoom You can enlarge a specific area of the image to view the details by either of the following two ways. Click , the icon switches to . Hold down the left mouse button to select the area ...
  • Page 60: Navigation Bar

    5.2.2.7 Siren (Supported on camera with siren function) Click to manually control the camera to generate alarm sound. 5.2.2.8 Bidirectional Talk (Digital channel only) You can perform the voice interaction between the Device and the remote device to improve efficiency of emergency. This function is supported only when the remotely connected IPC device supports bidirectional talk.
  • Page 61: Shortcut Menu

    Icon Function Go to the previous screen. Go to the next screen. Enable tour function. The icon switches to Open the PTZ control panel. For details, see "5.4 Controlling PTZ Cameras." Open the Color Setting interface. For details, see "5.2.6 Color Setting."...
  • Page 62 Figure 5-37 Function Description Main Menu Open Main Menu interface. Open the PLAYBACK interface where you can search and play Search back record files. Open the PTZ interface. Configure the live view screen as a single-channel layout or View Layout multi-channel layout.
  • Page 63: Ai Preview Mode

    Function Description Open the COLOR interface where you can adjust the video image Color Setting color. Image Click to modify the camera properties. Sub Port Click Sub Port, Table 5-14 5.2.5 AI Preview Mode You can view the detected faces snapshots and comparison results of detected faces and the faces in the library, and play back the recorded picture file.
  • Page 64: Color Setting

    Figure 5-39 5.2.6 Color Setting You can adjust the video image color effect such as sharpness, brightness, and contrast. The parameters are different according to the connected camera type. Take analog channel as an example. In the live view screen, right-click on the analog channel to see the shortcut menu, and then select Color Setting, the COLOR interface is displayed.
  • Page 65 Figure 5-40 Parameter Description Divide 24 hours into two periods and configure the corresponding Period color settings. Effective Time Enable the function and then set the effective time for each period. Adjust the sharpness of image edge. The bigger the value is, the Sharpness more obvious the image edge, and the noise is also greater.
  • Page 66: Live View Display

    Parameter Description Adjust the color shades. The bigger the value, the lighter the color will become. This value does not influence the general image Saturation lightness. The value ranges from 0 to 100. The default value is 50. The recommended range is between 40 and 60. In the Color Mode list, you can select Standard, Soft, Bright, Colorful, Bank, Customized 1, Customized 2, Customized 3, Color Mode...
  • Page 67 Figure 5-41 Step 2 Configure the settings for the display parameters. See Table 5-16. Parameter Description Out Port Indicates the main screen port. Select the Time Title check box, the current system time Time Title displays in each channel window in live view screen. To hide the time, clear the check box.
  • Page 68 Parameter Description Some of the resolution options might not be supported on the HDMI port. General: No information is displayed on the channel  window. Preview Mode AI Mode: Displays the detected face snapshots.  Not all models support this function. Enable extra screen function.
  • Page 69 Figure 5-42 Step 2 Configure the view layout by clicking the layout buttons on the bottom. See Figure 5-43. Figure 5-43 For example, click and select 9-16, the view layout changes immediately, see Figure 5-44. Local Configurations 58...
  • Page 70 Figure 5-44 Step 3 Adjust the position of channels if needed. In the channel list, for example, in the channel 9 list, you can select 10, and then the channel 9 and channel 10 exchange positions. Step 4 Click Apply to complete the settings. The live view screen displays the same layout as configured in this section.
  • Page 71 Figure 5-45 Step 2 Configure the settings for the zero-channel parameters. See Table 5-17. Parameter Description Enable Enable zero-channel function. In the Compression list, select the video compression standard Compression according to the device capability. The default is H.265. In the Resolution list, select the video resolution. The default is Resolution 704×576 (D1).
  • Page 72: Configuring Tour Settings

    You can adjust the border margins in top, bottom, left and right directions as well as the brightness of the monitor connected to the Video out port of the Device. Step 1 Select Main Menu > DISPLAY > TV ADJUST. The TV ADJUST interface is displayed.
  • Page 73 Figure 5-47 Figure 5-48 Step 2 Configure the settings for the tour parameters for both Main Screen and Extra Screen. See Table 5-18. Local Configurations 62...
  • Page 74 Parameter Description Enable Enable tour function. Enter the amount of time that you want each channel group displays Interval (Sec.) on the screen. The value ranges from 5 seconds to 120 seconds, and the default value is 5 seconds. Video Detect, Select the View 1 or View 8 for Motion Detect tour and Alarm Tour Alarm (system alarm events).
  • Page 75: Entering Main Menu

    Step 2 Select the channels that you want to group for tour. See Figure 5-50. If you want to select more than one channel, in the Window Split list, do not select View 1. Figure 5-50 Step 3 Click OK to complete the settings. Modifying a Channel Group Double-click on a channel group, the Modify Channel Group interface is displayed.
  • Page 76 Figure 5-52 Local Configurations 65...
  • Page 77 Description Icon Includes eight function tiles: VIDEO, ALARM, POS, IoT, AI, BACKUP, DISPLAY, and AUDIO. Click each tile to open the configuration interface of the tile. VIDEO: Search for and play back the recorded video saved on the  Device. ALARM: Search for alarm information and configure alarm event ...
  • Page 78: Controlling Ptz Cameras

    Controlling PTZ Cameras PTZ is a mechanical platform that carries a camera and a protective cover and performs overall control remotely. A PTZ can move in both horizontal and vertical direction to provide all-around view to the camera. Before operating PTZ, ensure the network connection between PTZ and the Device. 5.4.1 Configuring PTZ Connection Settings You need to configure the PTZ connection settings before use.
  • Page 79: Working With Ptz Control Panel

    Parameter Description In the Control Mode list, select Serial or HDCVI. For HDCVI series product, select HDCVI. The control signal is sent to the PTZ through the Control Mode coaxial cable. For the serial mode, the control signal is sent to the PTZ through the RS-485 port.
  • Page 80 Parameter Description : Zoom out. Zoom : Zoom in. : Focus far. Focus : Focus near. : Image darker. Iris : Image brighter. PTZ movement Supports eight directions. Fast positioning button.  Positioning: Click to enter the fast positioning screen, and then click anywhere on the live view screen, the PTZ will turn to this point and move it to the middle of the screen.
  • Page 81: Configuring Ptz Functions

     The functions with buttons in gray are not supported by the system.  Right-click once to return to the interface of PTZ basic control panel. Icon Function Icon Function Preset Auto Pan Tour Flip Pattern Reset Click the AUX Config icon to open Autoscan the PTZ functions settings interface.
  • Page 82 The PTZ interface is displayed. Step 2 Click the Tour tab. The Tour tab is displayed. See Figure 5-57. Figure 5-57 Step 3 In the Patrol No. box, enter the value for the tour route. Step 4 In the Preset box, enter the preset value. Step 5 Click Add Preset.
  • Page 83: Calling Ptz Functions

    Step 4 Click Start to perform the directions operations. You can also go to the PTZ Control Panel to perform the operations of adjusting zoom, focus, iris, and directions. Step 5 On the PTZ interface, click End to complete the settings. 5.4.3.4 Configuring AutoScan Step 1 On the Expanded PTZ Control Panel, click...
  • Page 84 Step 3 Click again to stop calling the preset. 5.4.4.2 Calling Tours Step 1 On the Expanded PTZ Control Panel, in the No. box, enter the value of the tour that you want to call. Step 2 Click to call the tour. Step 3 Click again to stop calling the tour.
  • Page 85: Calling Osd Menu

    Figure 5-61 5.4.5 Calling OSD Menu For the coaxial camera, you can call the OSD menu through the Expanded PTZ Control Panel. See Figure 5-60. Step 1 On the Expanded PTZ Control Panel, click The MENU OPERATION interface is displayed. See Figure 5-62. Figure 5-62 Step 2 Click Enter.
  • Page 86: Configuring Camera Settings

    Configuring Camera Settings 5.5.1 Configuring Image Settings You can configure the image settings such as saturation, contrast, brightness, sharpness for each connected camera. Step 1 Select Main Menu > CAMERA > IMAGE. The IMAGE interface is displayed. See Figure 5-64 for analog channel and Figure 5-65 for digital channel.
  • Page 87 Figure 5-65 Step 2 Configure the settings for the image parameters. See Table 5-23. On the digital channel interface, click More Setting to display more parameters. Parameter Description Channel In the Channel list, select the channel that you want to configure. In the Cable Type list, select the cable type that the camera uses.
  • Page 88 Parameter Description Adjusts the image contrast. The bigger the value is, the more obvious the contrast between the light area and dark area will become. You can adjust this value when the contrast is not obvious. However, if the value is too big, the dark area is likely to become darker and the light Contrast area over exposed.
  • Page 89: Configuring Encode Settings

    Parameter Description Configure the white balance to adjust the general hue of the image. The default setting is Auto. Auto: Automatically apply white balance to different colors to  Scene Mode make the image color display normally. Sunny: Apply the threshold value to sunny environment. ...
  • Page 90 Step 2 Configure the settings for the main/sub streams parameters. See Table 5-24. Parameter Description In the Channel list, select the channel that you want to configure the Channel settings for. Enable the smart codec function. This function can reduce the video Smart Codec bit stream for non-important recorded video to maximize the storage space.
  • Page 91: Configuring Snapshot Settings

    Step 3 Click Apply to complete the settings. Click Copy to copy the settings to other channels. 5.5.3 Configuring Snapshot Settings Step 1 Select Main Menu > CAMERA > ENCODE > Snapshot. The Snapshot interface is displayed. See Figure 5-67. Figure 5-67 Step 2 Configure the settings for the snapshot parameters.
  • Page 92: Configuring Overlay Settings

    Parameter Description Configures the image quality by 6 levels. The higher the level, the Image Quality better the image will become. Configures or customizes the snapshot frequency. You can select 1 Interval second per one snapshot to 7 seconds per one snapshot. The maximum is 3600 seconds per one snapshot.
  • Page 93: Configuring Covered Area Settings

    Parameter Description In the Time Display list, select time display style. Select the Channel Title check box to display the channel name on Channel Title each channel window in the live view screen. In the Channel Title box, enter the name for the selected channel. Table 5-26 Step 3 Click Apply to complete the settings.
  • Page 94: Configuring Channel Type

    Parameter Description covered block to the selected channel window during recording. To configure covering block, do the following: Select the Preview check box or the Record check box, or select the both. The "1, 2, 3, 4" buttons are activated. Record Click the buttons to select blocks.
  • Page 95: Upgrading Coaxial Camera

     The 17–64 channels are only for IP camera and the range changes dependent on the model you purchased.  The channel selection for analog camera or IP camera are in sequence, for example, if you want to select channels for IP camera, you need to select from the last channel number Channel 16 first, which means, you cannot jump to select the channel 15 directly until you have selected the channel 16.
  • Page 96: Configuring Remote Devices

    Configuring Remote Devices 5.6.1 Adding Remote Devices This function is available after you have configured the channel type as IP channel as described in previous section, see "5.5.6 Configuring Channel Type." You can add remote devices by adding the IP address. Select Main Menu >...
  • Page 97 Parameter Description Searched Device Displays the searched devices. You can view the device information List such as status, IP address. Click Device Search, the searched devices display in the searched device list. To adjust the display sequence, in the title line, you can click the IP address, Manufacturer, Type, MAC Address, Port, or Device Name Device Search text.
  • Page 98 Figure 5-73 Step 2 Enable the Initialized function. The uninitialized devices are displayed. See Figure 5-74. Figure 5-74 Local Configurations 87...
  • Page 99 Step 3 Select the uninitialized device that you want to initialize. Step 4 Click Initialize. The Enter Password interface is displayed. See Figure 5-75. Figure 5-75 Step 5 Configure the password and email information. If you select the Using current device password and email info check box, the remote device automatically uses the current password and email information, so you do not need to set the password and email address again and can go to Step 6.
  • Page 100 Parameter Description special characters (excluding"'", """, ";", ":" and "&"). Confirm Password Please enter a strong password according to the password strength bar indication. Table 5-29 Click Next. The Password Protection interface is displayed. See Figure 5-77. Figure 5-77 Select the Email Address box and enter the email address that you want to reserve for password reset in the future.
  • Page 101 Select the DHCP check box, you do not need to enter the IP address information,  because the system will allocate one IP address to the remote device. Select the STATIC check box, you need to enter the IP address, subnet mast, ...
  • Page 102 Figure 5-80 Step 2 Select the check box of the device. Step 3 Click Add. The device is added into the Added Device area. You can also double-click the device to add it into the Added Device area.  You can add devices in batches. ...
  • Page 103 Figure 5-81 Step 2 Configure the settings for the manual adding device parameters. See Table 5-30. Parameter Description In the Channel list, select the channel that you want use on the Channel Device to connect the remote device. In the Manufacturer list, select the manufacturer of the remote Manufacturer device.
  • Page 104 Parameter Description supports Auto, TCP, UDP, or MULTICAST. If the remote device is added through other manufacturers, the  system supports TCP and UDP. If the remote device is added through Onvif protocol, selecting the Encrypt check box will provide encryption protection to the data being transmitted.
  • Page 105 Click Copy to copy the user name and password to other channels.  To delete one or more added devices, do the following: Click to delete one device.  Select the check box of the devices that you want to delete, and then click Delete. ...
  • Page 106 Figure 5-84 Step 3 Enable the Batch Modify function. Step 4 Configure the settings for start IP address (the IP address is allocated in sequence), subnet mask, default gateway, user name, and password. Step 5 Enable the Add function to add the devices into the Added Device area. Step 6 Click Apply to save the settings.
  • Page 107 Figure 5-85 Step 3 Configure the save path. Step 4 Click OK to save the settings. A pop-up message indicating "Successfully exported" is displayed. Step 5 Click OK. When exporting IP address, the File Backup Encryption check box is selected by default. The file information includes IP address, port, channel number, manufacturer, user name, and password.
  • Page 108: Managing Remote Devices

    Figure 5-86 Step 3 Select the file that you want to import. Step 4 Click OK to start importing. After importing is completed, a pop-up message indicating "The import succeeded" is displayed. If the IP address that you want to import already exists in the Device, the system will pop up a message to ask you whether to overwrite the existing content.
  • Page 109 Figure 5-87 5.6.2.2 Viewing Firmware Information You can view the device firmware information such as channel number, IP address, manufacturer, system version, video input, audio input, and alarm in. Select Main Menu > CAMERA > REGISTRATION > Firmware, the Firmware interface is displayed.
  • Page 110 Figure 5-88 5.6.2.3 Upgrading Remote Devices Step 1 Select Main Menu > CAMERA > REGISTRATION > Upgrade. The Upgrade interface is displayed. See Figure 5-89. Local Configurations 99...
  • Page 111: Configuring Record Settings

    Figure 5-89 Step 2 Upgrade the device. File Upgrade  Insert a USB storage device containing the upgrade files into the USB port of the Device. Select the devices that you want to upgrade. Click File upgrade. The File Upgrade interface is displayed. Select the upgrading files and click Apply.
  • Page 112: Enabling Record Control

    5.7.1 Enabling Record Control  Manual recording operation requires the user have the permission to access STORAGE settings. Check to ensure the HDD installed in the Device has been formatted properly.  To enter the record control interface, do the following: Step 1 Right-click on the live view screen, the shortcut menu is displayed.
  • Page 113: Configuring Recorded Video Storage Schedule

    5.7.2 Configuring Recorded Video Storage Schedule You need to configure the storage schedule for the recorded video so that the recorded video can be saved. For details, see "5.1.4.9 Configuring Recorded Video Storage Schedule." Configuring Snapshot Settings 5.8.1 Configuring Snapshot Trigger The snapshot is divided into scheduled snapshot, event triggered snapshot, and face detection triggered snapshot.
  • Page 114 Figure 5-92 Step 6 Click Apply to save the settings. If you have configured the snapshot schedule, the configuration has been  completed. If you have not configured the snapshot schedule, see "5.1.4.10 Configuring  Snapshot Storage Schedule." 5.8.1.2 Configuring Event Triggered Snapshot Step 1 Select Main Menu >...
  • Page 115 Figure 5-93 Step 3 Select Main Menu > ALARM > VIDEO DETECT, and select the event type to configure, for example, select the Motion Detect tab. See Figure 5-94. Local Configurations 104...
  • Page 116: Configuring Snapshot Storage Schedule

    Figure 5-94 Step 4 Select the Snapshot check box and select the corresponding channel. Step 5 Click Apply. 5.8.2 Configuring Snapshot Storage Schedule You need to configure the storage schedule for the snapshot so that the snapshot can be saved. For details, see "5.1.4.10 Configuring Snapshot Storage Schedule."...
  • Page 117: Playing Back Video

    Figure 5-95 Step 2 Enable the FTP function and configure the parameters. For details, see "5.18.6 Configuring FTP Storage Settings." The snapshots will be uploaded to FTP for backup. Playing Back Video 5.9.1 Enabling Record Control  Manual recording operation requires the user have the permission to access STORAGE settings.
  • Page 118: Instant Playback

    Figure 5-96 Step 2 Configure the settings for the record control parameters. See Table 5-32. Parameter Description Displays all the analog channels and the connected digital channels. Channel You can select a single channel or select All. Auto: Automatically record according to the record type and ...
  • Page 119 Figure 5-97 Function Description Display the searched recorded video or picture. It supports playing in single-channel, 4-channel, 9-channel, and 16-channel simultaneously. Display Window When playing back in a single channel mode, hold down the left mouse button to select the area that you want to enlarge. The area is enlarged after the left mouse button is released.
  • Page 120 Function Description Display the type and time period of the current recorded video. In the 4-channel layout, there are four time bars are displayed;  in the other view layouts, only one time bar is displayed. Click on the colored area to start playback from a certain time. ...
  • Page 121 Function Description This area includes Mark List and File List.  : Click the Mark List button, the marked recorded video list is displayed. Double-click the file to start playing. List Display  : Click the File List button, the searched recorded video list is displayed.
  • Page 122 Icon Function Previous Frame/Next Frame. When the playback is paused, click or click to play  single-frame recorded video.  When playing back single-frame recorded video, click start playing forward. Slow Playback.  During playing back, click to set the speed of slow playback as SlowX1/2, SlowX1/4, SlowX1/8, or SlowX1/16.
  • Page 123 Figure 5-99  From I/O Device: Recorded videos playback from external storage device. See Figure 5-100. Click Browse, select the save path of recorded video file that you want to play. Double-click the video file or click to start playing. Figure 5-100 5.9.3.3 Clipping Recorded Video During playback, clip sections of recorded video and save to the USB storage device.
  • Page 124: Smart Search

    Step 1 Select the recorded video file that you want to back up. You can select the following two types of files:  Recorded video file: Click , the File List area is displayed. Select the file(s) that you want to back up. ...
  • Page 125: Marking And Playing Back Video

    Step 4 Click The grid is displayed on the screen.  Only single-channel supports smart search.  If multi-channels are selected, double-click on the channel window to display this channel only on the screen, and then you can start using smart search function. Step 5 Drag the pointer to select the searching area.
  • Page 126 Step 2 Click The Mark List interface is displayed. See Figure 5-104. Figure 5-104 Step 3 Double-click the file that you want to play back. To search the marked video by time, in the SEARCH box on the top of the interface, enter the time, and then click Playing Back Time before the Mark You can configure to play N seconds of the marked video before the marked time.
  • Page 127: Playing Back Snapshots

    Figure 5-105  Be default, it manages all the marked videos of the selected channel.  To search the marked video, select channel number from the Channel list, enter time in Start Time box and End Time box, and then click Search. All the marked videos display in time order.
  • Page 128: Using The File List

    Not all models support this function. Step 1 Select Main Menu > VIDEO, the video search interface is displayed. Step 2 In the Search Type list, select Splice Playback; In the Split Mode list, select 4, 9, or 16. See Figure 5-106. Figure 5-106 Step 3 In the Calendar area, select a date.
  • Page 129 Figure 5-108 Step 4 Start playback. Click , the playback starts from the first file by default.  Click any file, the system plays back this file.  In the time box on the top of the file list interface, you can enter the specific time to ...
  • Page 130: Alarm Events Settings

    To unlock the recorded video, in the FILE LOCKED interface, select the video, and then  click Unlock. See Figure 5-109. Figure 5-109 5.10 Alarm Events Settings 5.10.1 Alarm Information You can search, view and back up the alarm information. Step 1 Select Main Menu >...
  • Page 131: Alarm Input Settings

    Figure 5-110 Step 2 In the Type list, select the event type; In the Start Time box and End Time box, enter the specific time. Step 3 Click Search. The search results are displayed. Step 4 Click Backup to back up the search results into the external storage device. Click to play the recorded video of alarm event.
  • Page 132 Figure 5-111 Step 2 Configure the settings for the local alarms. See Table 5-35. Parameter Description Alarm In Select the channel number. Alarm Name Enter the customized alarm name. Enable Enable or disable the local alarm function. Type In the Type list, select NO or select NC as the voltage output type. Click Setting to display setting interface.
  • Page 133 Parameter Description Select the Alarm Upload check box to enable the system to upload the Alarm Upload alarm signal to the network (including alarm center) when an alarm event occurs. Select the Send Email check box to enable the system to send an email notification when an alarm event occurs.
  • Page 134 5.10.2.2 Configuring Alarms from Alarm Box You can connect the alarm box to the RS-485 port of the Device. When the alarm is detected by the alarm box, the alarm information will be uploaded to the Device, and then the Device outputs the alarms in the way that you configure in this section.
  • Page 135 Figure 5-113 Step 2 Configure the alarm input settings from the external IPC. For details, see Table 5-35. Step 3 Click Apply to complete the settings. Click Default to restore the default setting.  Click Copy to copy the settings to other channels. ...
  • Page 136 Figure 5-114 Step 2 Configure the alarm input settings from the offline IPC. For details, see Table 5-35. Step 3 Click Apply to complete the settings. Click Default to restore the default setting.  Click Copy to copy the settings to other channels. ...
  • Page 137: Alarm Output Settings

    Figure 5-115 Step 2 Configure the settings for other parameters of the Alarm Box. For details, see Table 5-35. Step 3 Click Apply to complete the settings. 5.10.3 Alarm Output Settings 5.10.3.1 Configuring Alarm Output When the Device activates alarms, the connected alarm device generates alarms in the way that you can configure in this section.
  • Page 138 Figure 5-116 Step 2 Configure the settings for the alarm output. For details, see Table 5-36. Parameter Description Alarm Type Select alarm type for each alarm output port. General Alarm Status Indicates the status of each alarm output port. Select the alarm box number corresponding to the address Alarm Box number configured by the DIP switch on the Alarm Box.
  • Page 139 Figure 5-117 Step 2 Configure the settings for the white light parameters. See Table 5-37. Parameter Description In the Channel list, select a channel that is connected to a white Channel light camera. Set a length of time for the Device to delay turning off alarm after Latch the alarm is cancelled.
  • Page 140 Figure 5-118 Step 2 Configure the settings for the siren parameters. See Table 5-38. Parameter Description In the Channel list, select a channel that is connected to a camera that Channel supports audio function. Play Click Play to manually trigger the IP camera to play audio file. Set a length of time for the Device to delay turning off alarm after the Latch alarm is cancelled.
  • Page 141: Video Detection

    Figure 5-119 Step 3 Select the upgrade audio file (.bin). Step 4 Click OK to return to the Siren interface. Step 5 Click Start Upgrade to upgrade the alarm audio file of the camera. 5.10.4 Video Detection Video detection adopts computer vision and image processing technology. The technology analyzes the video images to detect the obvious changes such as moving objects and blurriness.
  • Page 142 Figure 5-120 Step 2 Configure the settings for the motion detection parameters. See Table 5-39. Parameter Description Channel In the Channel list, select a channel to set the motion detection. Region Click Setting to define the motion detection region. Enable MD Enable or disable the motion detection function.
  • Page 143 Parameter Description Click Setting to display setting interface. General Alarm: Enable alarm activation through the alarm  devices connected to the selected output port. Alarm Out External Alarm: Enable alarm activation through the  connected alarm box. Wireless Siren: Enable alarm activation through devices ...
  • Page 144 Parameter Description Select the check box to enable the function. When an alarm event occurs, the video output port outputs the settings configured in Main Menu > DISPLAY > TOUR. Video Matrix Not all models support this function. Buzzer Select the check box to activate a buzzer noise at the Device. Select the check box to enable the Device to record a local alarm log.
  • Page 145 Parameter Description Adjust the threshold for motion detect. Every region of every channel Threshold has an individual threshold. Figure 5-122 When anyone of the four regions activates motion detect alarm, the channel where this region belongs to will activate motion detect alarm. Step 4 Right-click on the screen to exit the region setting interface.
  • Page 146 Click The Period interface is displayed. See Figure 5-124. Figure 5-124 Enter the time frame for the period, and then select the check box to enable the settings.  There are six periods for you to set for each day. ...
  • Page 147 Figure 5-125 To configure the settings for the video loss detection parameters, see “5.10.4.1 Step 2 Configuring Motion Detect Settings.” For PTZ activation, different from motion detection, the video loss detection can activate PTZ preset, tour, and pattern. Step 3 Click Apply to complete the settings.
  • Page 148 Figure 5-126 To configure the settings for the tampering detection parameters, see “5.10.4.1 Step 2 Configuring Motion Detect Settings.” For PTZ activation, different from motion detection, the video loss detection can activate PTZ preset, tour, and pattern. Step 3 Click Apply to complete the settings. Click Default to restore the default setting.
  • Page 149 Figure 5-127 Step 2 To configure the settings for the diagnosis parameters, see "5.10.4.1 Configuring Motion Detect Settings." Step 3 Click Apply to complete the settings. Click Default to restore the default setting. Setting the Types for Diagnosing Targets Step 1 Next to Rule, click Setting.
  • Page 150: System Events

    Parameter Description A horizontal, vertical or diagonal stripe that might appear in the Stripe video because of device aging or electronic interruption. Such stripe brings visual interruption. Video noises such as blurriness or quality reduction that is caused Noise by optical distortion or device problem during camera shooting. Color Cast Variances in the normal proportions of RGB colors.
  • Page 151 Figure 5-129 Step 2 Configure the settings for the HDD event. See Table 5-41. Parameter Description In the Event Type list, select No HDD, HDD Error, or HDD No Space Event Type as the event type. Enable Enable or disable the HDD event detection function. Click Setting to display setting interface.
  • Page 152 Parameter Description Select the Send Email check box to enable the system to send an email notification when an alarm event occurs. Send Email To use this function, make sure the email function is enabled in Main Menu > NETWORK > EMAIL. Buzzer Select the check box to activate a buzzer noise at the Device.
  • Page 153 Parameter Description Click Setting to display setting interface. General Alarm: Enable alarm activation through the alarm devices  connected to the selected output port. Alarm Out External Alarm: Enable alarm activation through the connected  alarm box. Wireless Siren: Enable alarm activation through devices ...
  • Page 154 Figure 5-131 Step 2 Configure the settings for the User event. See Table 5-43. Parameter Description Event Type In the Event Type list, select Illegal Login. Enable the user error detection function. If you do not enable this function, there will be no limit for wrong Enable password entry and the account cannot be locked because of the wrong password.
  • Page 155: Ai Function

    Parameter Description Select the Send Email check box to enable the system to send an email notification when an alarm event occurs. Send Email To use this function, make sure the email function is enabled in Main Menu > NETWORK > EMAIL. Buzzer Select the check box to activate a buzzer noise at the Device.
  • Page 156 Figure 5-132 Step 2 In the Channel list, select a channel that you want to configure face detection function, and then enable it. Step 3 Configure the parameters. See Table 5-44. Parameter Description Click Setting to draw areas to filter the target. You can configure two filtering targets (maximum size and Rule minimum size).
  • Page 157 Parameter Description Select the Show Message check box to enable a pop-up alarm Show Message message in your local host PC. Select the Alarm Upload check box to enable the system to upload the alarm signal to the network (including alarm center) when an alarm event occurs.
  • Page 158 Parameter Description Select the check box to enable the function. When an alarm event occurs, the video output port outputs the settings configured in "Main Menu > DISPLAY > TOUR > Extra Screen." Video Matrix Not all models support this function. ...
  • Page 159 Figure 5-134 Step 4 Select the face that you want to play back. The picture with registered information is displayed. See Figure 5-135. Figure 5-135 Local Configurations 148...
  • Page 160: Face Recognition

    Step 5 and then click to start playing back the recorded detected face snapshots. Double-click on the playing interface to switch between full screen playing and thumbnail playing. You can also do the following operations to the recorded files.  To export the database file (.csv) to the external storage device, select files, click Export, and then select the save path.
  • Page 161 5.11.2.1 Face Library Management You should create a face library for comparing the detected faces and the faces in the library. The Device supports creating maximum 20 libraries and registering 100,000 faces. 5.11.2.1.1 Creating a Face Library Step 1 Select Main Menu > AI > DATABASE > FACE LIBRARY. The FACE LIBRARY interface is displayed.
  • Page 162 Step 3 Enter the face library name, and then click Save. The created library is displayed. See Figure 5-139.  Click to modify library name. Click to view the library details and add new faces to the library. For details, ...
  • Page 163 The Details interface is displayed. See Figure 5-140. Figure 5-140 Step 3 Click Register ID. The Register ID interface is displayed. See Figure 5-141. Figure 5-141 Step 4 Click to add a face picture. The Browse interface is displayed. See Figure 5-142. Local Configurations 152...
  • Page 164 Figure 5-142 Step 5 Select a face picture and enter the registration information. See Figure 5-143. Figure 5-143 Step 6 Click OK. The system prompts the registration is successful. Step 7 On the Details interface, click Search. The system prompts modeling is successful. See Figure 5-144. If the system prompts the message indicating modeling is in process, wait a while and then click Search again.
  • Page 165 Figure 5-144 Adding Face Pictures in Batch Step 1 Give a name to the face picture by referring to Table 5-45. Naming format Description Name Enter the name. Gender Enter 1 or 2. 1 represents male, and 2 represents female. Birthday Enter numbers in the format of yyyy-mm-dd.
  • Page 166 Figure 5-145 Step 3 Click Select file, max select 500 each time or Select a folder to import face pictures. Step 4 Click OK to complete batch registration. Adding the Detected Faces Step 1 Right-click on the live view screen, and then select Preview Mode > AI Mode. The AI Mode live view screen is displayed.
  • Page 167 Figure 5-147 Step 3 Click Add to Human Face Database. The Register ID interface is displayed. See Figure 5-148. Figure 5-148 Step 4 Select the face library and enter the ID information. Step 5 Click OK to complete registration. Local Configurations 156...
  • Page 168 5.11.2.2 Face Recognition Configuration You can compare the detected faces with the faces in the library to judge if the detected face belongs to the library. The comparison result will be displayed on the AI mode live view screen and smart search interface, and link the alarms. Step 1 Select Main Menu >...
  • Page 169 Figure 5-150 Select one or multiple face libraries. Click OK. The selected face library is listed. See Figure 5-151. Figure 5-151 Step 5 Configure the added face library.  Click to modify the similarity. The lower the number is, the easier the alarm linkage will trigger.
  • Page 170  Click to delete the face library.  Click to set the alarm linkage. See Figure 5-152. For details, see Table 5-44. After setting is completed, click OK. Figure 5-152 Step 6 (Optional) Enable the Stranger Mode. Enable the Stranger mode ( ).
  • Page 171 Figure 5-153 5.11.2.3 Smart Search for Face Recognition You can compare the detected faces with the face library and play back. Search by attributes: Search the face library by the face attributes.  Search by image: Search the face library by uploading face pictures. ...
  • Page 172 Figure 5-154 Step 2 Select the channel and set the parameters such as start time, end time, gender, age, glasses, beard, mask, and similarity according to your requirement. Step 3 Click Smart Search. The search result is displayed. See Figure 5-155. Local Configurations 161...
  • Page 173 Figure 5-155 Step 4 Click the picture that you want to play back. The picture with registered information is displayed. See Figure 5-156. Figure 5-156 Local Configurations 162...
  • Page 174 Step 5 Click to play back the recorded video. Double-click on the playing interface to switch between full screen playing and thumbnail playing. You can also do the following operations to the recorded files. To export the database file (.csv) to the external storage device, select files, click ...
  • Page 175 Figure 5-158 Step 2 Upload face pictures from Face Library or Local Upload. Maximum 30 pictures can be uploaded at one time, and the system support searching 8 pictures at one time. Face Library  Click Face Library. The Face Library interface is displayed. See Figure 5-159. Local Configurations 164...
  • Page 176 Figure 5-159 Set the searching parameters by selecting the face library and gender, and entering name and ID No. according to your actual requirement. Click Search to display the results that satisfy the requirement. Click Reset to clear the searching parameters. Select the picture and then click Save.
  • Page 177 Figure 5-160 Local Upload  Plug the USB storage device (with face pictures) to the Device, and then click Local Upload. Then select the picture from the USB storage device, and then click OK. The selected face pictures are uploaded. Step 3 After the face pictures are uploaded, continue to configure other parameters (channel, start time, end time, and similarity).
  • Page 178 Figure 5-161 Step 5 Select the face picture that you want to play back. See Figure 5-162. Figure 5-162 Local Configurations 167...
  • Page 179: Configuring Ivs Function

    Step 6 Click to play back the recorded video. Double-click on the playing interface to switch between full screen playing and thumbnail playing. You can also do the following operations to the recorded files.  To add a mark to the file, select the files and then click Add Mark. To lock the files to make it unable to be overwritten, select the files, and then click ...
  • Page 180 Figure 5-164 Step 2 In the Channel list, select the channel number that you want to configure the IVS function. Step 3 Click Add. One line of rule is displayed. See Figure 5-165. Local Configurations 169...
  • Page 181 Figure 5-165 Step 4 Configure the parameters for the rule that you selected. Step 5 Select the check box of the rule to enable it. Step 6 Click Apply to complete the settings. 5.11.3.1.1 Configuring Tripwire Rules When the target object crosses the tripwire in the defined direction, the system activates alarms.
  • Page 182 Figure 5-166 Step 2 Draw a tripwire. In the Channel list, select the channel that you want to configure the rules for. Click The monitoring screen to configure the tripwire rules is displayed. See Figure 5-167. Local Configurations 171...
  • Page 183 Figure 5-167 Configure the settings for the parameters of drawing rules. See Table 5-46. Parameter Description Name Enter the customized rule name. Set the direction of the tripwire. You can choose A to B (left to Direction right), B to A (right to left), and Both. Click to draw areas to filter the target.
  • Page 184 Figure 5-168 Step 4 Configure the triggering parameters. See Table 5-47. Parameter Description Define a period during which the detection is active. Period For details, see "Setting Motion Detection Period" section in "5.10.4.1 Configuring Motion Detect Settings." Click Setting to display setting interface. ...
  • Page 185 Parameter Description Select the Send Email check box to enable the system to send an email notification when an alarm event occurs. Send Email To use this function, make sure the email function is enabled in Main Menu > NETWORK > EMAIL. Select the channel(s) that you want to record.
  • Page 186 Step 5 Click OK to save the settings. Step 6 Select the Enable check box, and then click Apply. The tripwire detecting function is active. When the target object crosses the tripwire in the defined direction, the system activates alarms. 5.11.3.1.2 Configuring Intrusion Rules When the target enters and leaves the defined detection area, or the target appears in the defined area, the system activates alarms.
  • Page 187 Figure 5-170 Configure the settings for the parameters of drawing rules. See Table 5-48. Parameter Description Name Enter the customized rule name. Configure the actions that are defined as intrusion. You can select Action the Appear check box and the Cross check box. In the Direction list, select the direction of crossing the configured Direction area.
  • Page 188 The intrusion detecting function is active. When the target enters and leaves the area, or the target appears in the defined area, the system activates alarms. 5.11.3.2 Smart Search for IVS Function You can search for the intelligent events and play back. Step 1 Select Main Menu >...
  • Page 189 Figure 5-172 Step 4 Click the picture that you want to play back. See Figure 5-173. Figure 5-173 Local Configurations 178...
  • Page 190: Iot Function

    Step 5 Click to play back the recorded video. Double-click on the playing interface to switch between full screen playing and thumbnail playing. You can also do the following operations to the recorded files. To back up the recorded files to the external storage device, select files, click ...
  • Page 191 Figure 5-175 Step 2 In the Access Type list, select USB Gateway. Step 3 Click Add. The Add interface is displayed. See Figure 5-176. Figure 5-176 Step 4 Click Pair. The Device starts pairing with the sensor. After pairing is completed, see Figure 5-177. Local Configurations 180...
  • Page 192 Figure 5-177 Step 5 Click Back to exit the pairing interface. The added sensor information is displayed. See Figure 5-178. Click to modify the sensor name; click to delete sensor information. Figure 5-178 Local Configurations 181...
  • Page 193 5.12.1.2 Connecting Sensor through Camera with Gateway Only the camera with gateway supports this function. Step 1 Select Main Menu > IoT > MANAGER > Sensor Pairing. The Sensor Pairing interface is displayed. See Figure 5-179. Figure 5-179 Step 2 In the Access Type list, select Camera Gateway.
  • Page 194 Figure 5-180 Step 5 Click Pair. The Device starts pairing with the sensor. After pairing is completed, see Figure 5-181. Figure 5-181 Step 6 Click Back to exit the pairing interface. The added sensor information is displayed. See Figure 5-182. Click to modify the sensor name;...
  • Page 195 Figure 5-182 5.12.1.3 Configuring Alarm Linkage Step 1 Select Main Menu > IoT > MANAGER > Wireless Detector. The Wireless Detector interface is displayed. See Figure 5-183. Local Configurations 184...
  • Page 196 Figure 5-183 Step 2 In the Access Type list, select USB, Camera, or All. Step 3 Click The Setting interface is displayed. See 错误!未找到引用源。. Figure 5-184 Step 4 Configure the settings for alarm linkage. For details, see Table 5-49. Parameter Description Name Enter the customized alarm name.
  • Page 197 Parameter Description Click Setting to display setting interface. Define a period during which the motion detection is active. For details, Period see "Setting Motion Detection Period" section in "5.10.4.1 Configuring Motion Detect Settings." Click Setting to display the PTZ interface. Enable PTZ linkage actions, such as selecting the preset that you want to be called when an alarm event occurs.
  • Page 198: Configuring Temperature And Humidity Camera

    Parameter Description  Show Message: Select the Show Message check box to enable a pop-up message in your local host PC. Buzzer: Select the check box to activate a buzzer noise at the  Device. Video Matrix: Select the check box to enable the function. When ...
  • Page 199 Figure 5-185 Step 2 Select the Enable check boxes to enable IoT function. See Figure 5-186. Figure 5-186 Local Configurations 188...
  • Page 200 The Device starts detecting the temperature and humidity data from the camera and display on the Realtime Display interface. 5.12.2.2 Viewing Temperature and Humidity Data You can view the temperature and humidity data on the REALTIME DISPLAY interface after the IoT function is enabled. In the Refresh Interval box, select data refresh interval.
  • Page 201 Figure 5-188 Step 3 Click Locked to lock the data. The export button is enabled. Step 4 Click Export. The system starts exporting the data. After exporting is finished, a Message dialog box is displayed. Step 5 Click OK. You can find the exported data on your USB device. 5.12.2.4 Configuring Alarm Linkage You can configure alarm linkage settings for temperature and humidity data.
  • Page 202 Figure 5-189 Step 2 On the temperature information line, click The Setting interface is displayed. See Figure 5-190. Figure 5-190 Step 3 Configure the settings for alarm linkage. See Table 5-50. Parameter Description Access Point Indicates the channel that the camera is connected to. Local Configurations 191...
  • Page 203 Parameter Description Type Temperature by default. Detect Position Set the detect position name. Name Select the channel that you want to preview to help monitor the channel of access point. This channel could be the channel of Preview Channel access point or any other channels according to your actual situation.
  • Page 204 Parameter Description Select the check box to enable a tour of the selected channels. Tour To use this function, make sure the tour is enabled and configured in Main Menu > DISPLAY > TOUR. Select to enable audio broadcast/voice prompts in response to a Voice Prompts temperature alarm event.
  • Page 205 Figure 5-191 Step 2 On the humidity information line, click The Setting interface is displayed. See Figure 5-192. Figure 5-192 Step 3 Configure the settings for the following parameters. See Table 5-51. Parameter Description Access Point Indicates the channel that the camera is connected to. Local Configurations 194...
  • Page 206 Parameter Description Type Humidity by default. Detect Position Set the detect position name. Name Select the channel that you want to preview to help monitor the channel of access point. This channel could be the channel of Preview Channel access point or any other channels according to your actual situation.
  • Page 207 Parameter Description Select the check box to enable a tour of the selected channels. Tour To use this function, make sure the tour is enabled and configured in Main Menu > DISPLAY > TOUR. Select to enable audio broadcast/voice prompts in response to a Voice Prompts temperature alarm event.
  • Page 208 Figure 5-193 Step 2 Configure the parameters settings. See Table 5-52. Parameter Description Access Point Indicates the channel that the camera is connected to. Display Type In the Display Type list, select List or Graph. Select the information type that you want to search. You can select Type Humidity or Temperature.
  • Page 209 Figure 5-194 For the data displayed in graph, see Figure 5-195.  Figure 5-195 Step 4 Click Backup. The system starts exporting the data. Local Configurations 198...
  • Page 210: Configuring Wireless Siren

    After exporting is finished, a Message dialog box is displayed. Step 5 Click OK. You can find the exported data on your USB device. 5.12.3 Configuring Wireless Siren You can connect the wireless siren to the Device, when there is an alarm event activated on the Device, the wireless siren generate alarms.
  • Page 211: Configuring Pos Settings

    5.13 Configuring POS Settings You can connect the Device to the POS (Point of Sale) machine and receive the information from it. This function applies to the scenarios such as supermarket POS machine. After connection is established, the Device can access the POS information and display the overlaid text in the channel window.
  • Page 212: Configuring Pos Settings

    5.13.2 Configuring POS Settings Step 1 Select Main Menu > POS > POS SETUP. The POS SETUP interface is displayed. See Figure 5-198. Figure 5-198 Step 2 Configure the settings for the POS parameters. See Table 5-54. Parameter Description In the POS Name list, select the POS machine that you want to configures settings for.
  • Page 213: Configuring Backup Settings

    Parameter Description In the Connect Type list, select the connection protocol type. Click , the IP Address interface is displayed. Connect Type In the Source IP box, enter the IP address (the machine that is connected to the Device) that sends messages. Convert Select a character encoding mode.
  • Page 214: Backing Up Files

    Figure 5-199 5.14.2 Backing up Files You can back up the recorded videos and snapshots. Step 1 Select Main Menu > BACKUP. The BACKUP interface is displayed. See Figure 5-200. Figure 5-200 Step 2 Configure the settings for the backup parameters. See Table 5-55. Parameter Description In the Device Name list, select the device that you want to back up...
  • Page 215: Network Management

    Parameter Description Click Format, the Format interface is displayed. If the capacity of external storage device is less than 2TB, you  Format can select FAT32 or NTFS to format it. If the capacity of external storage device is equal to or more ...
  • Page 216 Figure 5-201 5.15.1.2 Configuring Port Settings You can configure the maximum connection accessing the Device from Client such as WEB, Platform, and Mobile Phone and configure each port settings. Step 1 Select Main Menu > NETWORK > CONNECTION. The CONNECTION interface is displayed. See Figure 5-202. Local Configurations 205...
  • Page 217 Figure 5-202 Step 2 Configure the settings for the connection parameters. See Table 5-56. The connection parameters except Max Connection cannot take effects until the Device has been restarted. Parameter Description The allowable maximum clients accessing the Device at the same Max Connection time, such as WEB, Platform, and Mobile Phone.
  • Page 218 Step 3 Click Apply to complete the settings. 5.15.1.3 Configuring Wi-Fi Connection Settings You can make wireless connection between the Device and the other devices in the same network through Wi-Fi settings, facilitating the devices connection and mobility. Only the Device with Wi-Fi module supports this function. Step 1 Select Main Menu >...
  • Page 219 Step 3 Click Apply to complete the settings. After the Device is connected to a Wi-Fi hotspot, in the Wi-Fi Working Info area, the current hotspot, IP address, subnet mask, and default gateway are displayed. 5.15.1.4 Configuring 3G/4G Settings You can connect a wireless 3G/4G module to the USB port of the Device and then access the Device with the IP address provided by the module.
  • Page 220 Parameter Description Network Type Displays the network type. Different type represents different supplier. Displays the default APN number. Dial No. Displays the default dial No. AUTH Authentication mode. You can select PAP, CHAP, or NO_AUTH. Table 5-58 Step 4 Select the Enable check box. Step 5 Click Dial to start connecting.
  • Page 221  The Ethernet card names that are displayed on the 3G/4G interface are not constant, and they could be ppp5, ppp6, ppp7 or ppp8 and are different depending on the USB2.0 port on the Device that is connected to the 3G module. ...
  • Page 222 When the PPPoE function is enabled, the IP address on the TCP/IP interface cannot be modified. 5.15.1.6 Configuring DDNS Settings When the IP address of the Device changes frequently, the DDNS function can dynamically refresh the correspondence between the domain on DNS and the IP address, ensuring you access the Device by using the domain.
  • Page 223 Parameter Description Enable the DDNS function. Enable After enabling DDNS function, the third-party might collect your Device information. DDNS Type Type and address of DDNS service provider.  Type: Dyndns DDNS; address: members.dyndns.org Host IP  Type: NO-IP DDNS; address: dynupdate.no-ip.com ...
  • Page 224 Figure 5-208 Step 2 Configure the settings for the email parameters. See Table 5-61. Parameter Description Enable Enable the email function. SMTP Server Enter the address of SMTP server of sender’s email account. Enter the port value of SMTP server. The default value setting is Port 25.
  • Page 225 Parameter Description This is the interval that the system sends an email for the same type of alarm event, which means, the system does not send an email upon any alarm event. Interval (Sec.) This setting helps to avoid the large amount of emails caused by frequent alarm events.
  • Page 226 Figure 5-209 Step 2 Configure the settings for the UPnP parameters. See Table 5-62. Parameter Description Enable the UPnP function. Indicates the status of UPnP function. Status  Offline: Failed. Online: Succeeded.  Enter IP address of router on the LAN. LAN IP After mapping succeeded, the system obtains IP address automatically without performing any configurations.
  • Page 227 Parameter Description The settings in PAT table correspond to the UPnP PAT table on the router. Service Name: Name of network server.  Protocol: Type of protocol.  Int. Port: Internal port that is mapped on the Device.  Ext. Port: External port that is mapped on the router. ...
  • Page 228 Figure 5-210 Step 2 Configure the settings for the SNMP parameters. See Table 5-63. Parameter Description Enable Enable the SNMP function. Select the check box of SNMP version(s) that you are using. Version The default version is V3. There is a risk of select V1 or V2. SNMP Port Indicates the monitoring port on the agent program.
  • Page 229 Parameter Description In the Encryption Type list, select an encryption type. The default Encryption Type setting is CBC-DES. Table 5-63 Step 3 Compile the two MIB files by MIB Builder. Step 4 Run MG-SOFT MIB Browser to load in the module from compilation. Step 5 On the MG-SOFT MIB Browser, enter the Device IP that you want to manage, and then select the version number to query.
  • Page 230 Enter the port for the multicast. The port ranges from 1025 through Port 65000. Table 5-64 Step 3 Click Apply to complete the settings. You can use the multicast IP address to login the web. On the web login dialog box, in the Type list, select MULTICAST. The web will automatically obtain the multicast IP address and join.
  • Page 231 Step 3 Click Apply to complete the settings. 5.15.1.12 Configuring Alarm Center Settings You can configure the alarm center server to receive the uploaded alarm information. To use this function, the Alarm Upload check box must be selected. For details about alarm event settings, see "5.10 Alarm Events Settings."...
  • Page 232: Configuring Network Testing Settings

    5.15.1.13 Configuring P2P Settings You can manage the devices by using P2P technology to download the application and register the devices. For details, see "5.1.4.5 Configuring P2P Settings." 5.15.2 Configuring Network Testing Settings 5.15.2.1 Testing the Network You can test the network connection status between the Device and other devices. Step 1 Select Main Menu >...
  • Page 233 Figure 5-215 5.15.2.2 Capturing Packet and Backing up Packet capture means the operations such as capturing, resending, and editing data that are sent and received during network transmission. When there is network abnormality, you can perform packet capturing and back up into the USB storage device. This date can be provided to the technical support for analyzing the network condition.
  • Page 234 Figure 5-216 Step 2 Connect a USB storage device to the Device. Step 3 Click Refresh. The Device starts detecting the USB storage device and displays its name in the Device Name box. Step 4 Select the route of the data that you want to capture and back up. In the Network Sniffer Packet Backup area, click Browse.
  • Page 235 Figure 5-217 Select the route.  If there are several USB storage devices are connected to the Device, you can select from the Device Name list.  Click Refresh to total space, free space and the file list in the selected USB storage device.
  • Page 236: Configuring Account Settings

    Figure 5-218 5.16 Configuring Account Settings You can add, modify and delete user accounts, groups, and ONVIF users, and set security questions for admin account. The user name supports 31 characters and group name supports 15 characters. The user  name can be consisted of letter, number, "_", "@", ".".
  • Page 237 Figure 5-219 Step 2 Click Add User. The Add User interface is displayed. See Figure 5-220. Figure 5-220 Step 3 Configure the settings for the parameters of adding a user account. See Table 5-67. Parameter Description User Name Enter a user name and password for the account. Password Confirm Password Re-enter the password.
  • Page 238 Parameter Description Optional. Memo Enter a description of the account. User MAC Enter user MAC address Select a group for the account. Group The user rights must be within the group permission. Click Set to display Set interface. Define a period during which the new account can login the device. Period The new account cannot login the device during the time beyond the set period.
  • Page 239  Define for several days of a week: Click before each day, the icon switches to . On the timeline of any selected day, click the half-hour blocks to select the active periods, all the days with will take the same settings. ...
  • Page 240 Figure 5-223 Step 2 Click for the user account that you want to modify. The Modify User interface is displayed. See Figure 5-224. Figure 5-224 Step 3 Change the settings for password, user name, user group, user MAC, memo, period, and authority.
  • Page 241 For the admin account, you can enter or modify email address, enable/disable the unlock pattern, modify the security questions. In the Email Address box, enter the email address, and the click Save to save the  setting. To use the unlock pattern, enable Unlock Pattern, click , draw a pattern in the ...
  • Page 242: Configuring Group Account

    Figure 5-226 Step 2 Click for the user account that you want to delete. A Message is displayed. Step 3 Click OK to delete a user account. 5.16.2 Configuring Group Account 5.16.2.1 Adding a Group Step 1 Select Main Menu > ACCOUNT > GROUP. The GROUP interface is displayed.
  • Page 243 Figure 5-227 Step 2 Click Add Group. The Add Group interface is displayed. See Figure 5-228. Figure 5-228 Step 3 Configure the settings for the parameters of adding a group. See Table 5-68. Parameter Description Group Name Enter a name for the group. Optional.
  • Page 244 Parameter Description In the Authority area, select the check boxes in the System tab, Authority Playback tab, and Monitor tab. Table 5-68 Step 4 Click OK to complete the settings. 5.16.2.2 Modifying a Group Step 1 Select Main Menu > ACCOUNT > GROUP. The GROUP interface is displayed.
  • Page 245 Figure 5-230 Step 4 Change the settings for group name, memo, and authority. Step 5 Click OK to complete the settings. 5.16.2.3 Deleting a Group Step 1 Select Main Menu > ACCOUNT > GROUP. The GROUP interface is displayed. See Figure 5-231. Figure 5-231 Local Configurations 234...
  • Page 246: Configuring Onvif Users

    Step 2 Click for the user account that you want to delete. A Message is displayed. Step 3 Click OK to delete a group. 5.16.3 Configuring Onvif Users The device manufactured by other company can connect to the Device through Onvif protocol by an authorized Onvif account.
  • Page 247: Audio Management

    Figure 5-233 Step 3 Enter user name, password, and select the group that you want this account to belong Step 4 Click OK to save the settings. Click to modify the account; Click to delete the account. 5.17 Audio Management Audio management function manages audio files and configures the playing schedule.
  • Page 248 Figure 5-234 Step 2 Click Add. The Add interface is displayed. See Figure 5-235. Figure 5-235 Step 3 Select the audio files that you want to import. Step 4 Click OK to start importing audio files from the USB storage device. Local Configurations 237...
  • Page 249: Configuring Playing Schedule For Audio Files

    If the importing is successful, the audio files will display in the FILE MANAGER interface. See Figure 5-236. Figure 5-236 The imported audio files are automatically saved into the HDD, so you do not need to connect to the USB storage device to get the file next time. Click to play the audio file.
  • Page 250 Figure 5-237 Step 2 Configure the settings for the schedule parameters. See Table 5-69. Parameter Description In the Period box, enter the time. Select the check box to enable Period the settings. You can configure up to six periods. In the File Name list, select the audio file that you want to play for File Name this configured period.
  • Page 251: Storage Management

    5.18 Storage Management Storage management function manages the stored resources such as recorded video files and storage space. The function aims at providing easier operation and improving the storage efficiency. 5.18.1 Configuring Basic Settings Step 1 Select Main Menu > STORAGE > BASIC. The BASIC interface is displayed.
  • Page 252: Configuring The Recording And Snapshot Schedule

    5.18.2 Configuring the Recording and Snapshot Schedule The system starts recording and taking snapshot according to the configured schedule. For details, see "5.1.4.9 Configuring Recorded Video Storage Schedule" and "5.1.4.10 Configuring Snapshot Storage Schedule." 5.18.3 Configuring HDD Manager You can view the HDD information, format HDD, and configure the HDD type through HDD manager.
  • Page 253: Configuring Hdd Detecting Settings

    5.18.4 Configuring HDD Detecting Settings Not all models support this function. HDD detecting function detects the current status of HDD to let you know the HDD performance and replace the defective HDD. 5.18.4.1 Detecting HDD You can detect HDD by key area detect and global detect. Key area detect: Detect the files saved in HDD.
  • Page 254 Figure 5-241 5.18.4.2 View Detecting Results After the detecting is completed, you can view the detecting reports to find out the problem and replace the defective HDD to avoid data loss. Step 1 Select Main Menu > STORAGE > HDD DETECT > Report. The Report interface is displayed.
  • Page 255 Figure 5-242 Step 2 Click The Details interface is displayed. You can view detecting results and S.M.A.R.T reports. See Figure 5-243 and Figure 5-244. Figure 5-243 Local Configurations 244...
  • Page 256: Configuring Record Estimate

    Figure 5-244 5.18.5 Configuring Record Estimate Record estimate function can calculate how long you can record video according to the HDD capacity, and calculate the required HDD capacity according to the record period. Step 1 Select Main Menu > STORAGE > REC ESTIMATE. The REC ESTIMATE interface is displayed.
  • Page 257 Step 2 Click The Edit dialog box is displayed. See Figure 5-246. You can configure the resolution, frame rate, bit rate and record time for the selected channel. Figure 5-246 Step 3 Click OK to save the settings. Then the system will calculate the time period that can be used for storage according to the channels settings and HDD capacity.
  • Page 258: Configuring Ftp Storage Settings

    Calculating HDD Capacity for Storage Step 1 On the REC ESTIMATE interface, click the Known Time tab. The Known Time interface is displayed. See Figure 5-249. Figure 5-249 Step 2 In the Time box, enter the time period that you want to record. In the Capacity box, the required HDD capacity is displayed.
  • Page 259 Figure 5-251 Step 2 Configure the settings for the FTP settings parameters. See Table 5-71. Parameter Description Enable Enable the FTP upload function. Select FTP type. FTP type  FTP: Plaintext transmission. SFTP: Encrypted transmission (recommended)  Server IP address of FTP server. FTP: The default is 21.
  • Page 260: Configuring System Settings

    Parameter Description Enter the length of the uploaded recorded video. If the entered length is less than the recorded video length,  only a section of the recorded video can be uploaded. File Length(M) If the entered length is more than the recorded video length, ...
  • Page 261 Figure 5-252 Step 2 Click Add a Holiday. The Add a Holiday interface is displayed. See Figure 5-253. Figure 5-253 Step 3 Configure the holiday name, repeat mode, time range according to your actual situation. Step 4 Click Add. The added holiday information is displayed. See Figure 5-254. Enable the Add More function, so you can continue adding holiday information.
  • Page 262: Configuring Security Settings

    Figure 5-254 5.19.2 Configuring Security Settings To ensure the network security and protect data, you can configure the access permission to the Device from host IP (host IP means the PC or server that has an IP). White list includes the host IP that are permitted to access the Device. ...
  • Page 263 Figure 5-255 Step 2 Configure the settings for the security parameters. See Table 5-72. Parameter Description In the Type list, you can select Limits of network-whitelist, Limits Type of network-blacklist, or Updata time-whitelist. Enable Enable the security settings. Enter a single IP address or a start IP address of a network Start Address segment.
  • Page 264 Figure 5-256 Step 2 Configure the parameters. For details, see Table 5-73. Parameter Description Enable or disable the password reset function. It is enabled by default. Password Reset If the password reset function is disabled, you can find back the password by the security questions. Make sure you have configured the security questions.
  • Page 265: Configuring System Maintenance Settings

    5.19.3 Configuring System Maintenance Settings When the Device has been running for a long time, you can configure the auto reboot when the Device is not working. You can also configure the case fan mode to reduce noise and extend the service life.
  • Page 266 The IMP/EXP interface cannot be opened if the backup operation is ongoing on the other  interfaces.  When you open the IMP/EXP interface, the system refreshes the devices and sets the current directory as the first root directory.  Click Format to format the USB storage device.
  • Page 267: Restoring Default Settings

    Figure 5-259 Step 4 Click Export. There is a folder under the name style of "Config_[YYYYMMDDhhmmss]". Double-click this folder to view the backup files. Importing System Settings Step 1 Insert a USB storage device containing the exported configuration files from another Device) into one of the USB ports on the Device.
  • Page 268: Upgrading The Device

    Figure 5-260 Step 2 Restore the settings.  Select the settings that you want to restore, and then click Apply. The system starts restoring the selected settings. Click Factory Default, and then click OK. The system starts restoring the whole ...
  • Page 269 Figure 5-261 Step 3 Click System Upgrade. The System Upgrade interface is displayed. See Figure 5-262. Figure 5-262 Step 4 Click the file that you want to upgrade. The selected file is displayed in the Update File box. Step 5 Click Start.
  • Page 270 5.19.6.2 Performing Online Upgrade When the Device is connected to Internet, you can use online upgrade function to upgrade the system. Before using this function, you need to check whether there is any new version by auto check or manual check. Auto check: The Device checks if there is any new version available at intervals.
  • Page 271: Viewing Information

    Figure 5-264 Step 3 Click Upgrade now. 5.19.6.3 Uboot Upgrading Under the root directory in the USB storage device, there must be "u-boot.bin.img" file and  "update.img" file saved, and the USB storage device must be in FAT32 format. Make sure the USB storage device is inserted; otherwise the upgrading cannot be ...
  • Page 272: Viewing Log Information

    Figure 5-265 5.20.2 Viewing Log Information You can view and search the log information. If there is no HDD installed, the system can save up to 10,000 logs.  If there is HDD installed and has been formatted, the system can save up to 500,000 logs. ...
  • Page 273 Figure 5-266 Step 2 In the Type list, select the log type that you want to view (System, Config, Storage, Record, Account, Clear, Playback, and Connection) or select All to view all logs. Step 3 In the Start Time box and End Time box, enter the time period to search, and then click Search.
  • Page 274: Viewing Event Information

    Figure 5-267  Click Details or double-click the log that you want to view, the Detailed Information interface is displayed. Click Next or Previous to view more log information. Click Backup to back up the logs into the USB storage device. ...
  • Page 275: Viewing Network Information

    Figure 5-268 5.20.4 Viewing Network Information You can view the online users, network data transmission details, and test network. For details about testing network, see "5.15.2.1 Testing the Network." 5.20.4.1 Viewing Online Users You can view the online user information and block any user for a period of time. Select Main Menu >...
  • Page 276 Figure 5-269 To block an online user, click and then enter the time that you want to block this user. The maximum value you can set is 65535. The system detects every 5 seconds to check whether there is any user added or deleted, and update the user list timely.
  • Page 277: Viewing Hdd Information

    Figure 5-270 Step 2 Click the LAN name that you want to view, for example, LAN1. The system displays the information of data sending speed and receiving speed. The default display is LAN1 load.  Only one LAN load can be displayed at one time. ...
  • Page 278: Viewing Channel Information

    Figure 5-271 Parameter Description Indicates the number of the currently connected HDD. The asterisk (*) means the current working HDD. Device Name Indicates name of HDD. Physical Position Indicates installation position of HDD. Type Indicates HDD type. Total Space Indicates the total capacity of HDD. Free Space Indicates the usable capacity of HDD.
  • Page 279: Viewing Data Stream Information

    Figure 5-272 5.20.7 Viewing Data Stream Information You can view the real-time data stream rate and resolution of each channel. Select Main Menu > INFO > BPS, the BPS interface is displayed. See Figure 5-273. Local Configurations 268...
  • Page 280: Logout The Device

    Figure 5-273 5.21 Logout the Device On the top right of the Main Menu interface or on any interface after you have entered the Main Menu, click Select Logout, you will log out the device.  Select Reboot, the Device will be rebooted. ...
  • Page 281: Web Operations

    Web Operations The interfaces in the Manual are used for introducing the operations and only for reference.  The actual interface might be different dependent on the model you purchased. If there is inconsistency between the Manual and the actual product, the actual product shall govern. The Manual is a general document for introducing the product, so there might be some ...
  • Page 282: Resetting Password

    Figure 6-1 Step 2 Enter the user name and password. The default administrator account is admin. The password is the one that was  configured during initial settings. To security your account, it is recommended to keep the password properly and change it regularly. ...
  • Page 283 Figure 6-2 Step 2 Click Forgot Password. The Reset Password interface is displayed. See Figure 6-3. Figure 6-3 Step 3 Click OK. The reset type interface is displayed. See Figure 6-4. Web Operations 272...
  • Page 284 Figure 6-4 Step 4 Follow the onscreen instructions to scan the QR code and get the security code. You can get the security code twice by scanning the same QR code. If you need to  get the security code once again, please refresh the interface. Please use the security code received in your email box to reset the password ...
  • Page 285 Figure 6-5 Step 7 In the Password box, enter the new password and enter it again in the Confirm Password box. The new password can be set from 8 characters through 32 characters and contains at least two types from number, letter and special characters (excluding"'", """, ";", ":" and "&").
  • Page 286: Introducing Web Main Menu

    Introducing Web Main Menu After you have logged in the Web, the main menu is displayed. See Figure 6-6. For detailed operations, you can refer to "5 Local Configurations." Figure 6-6 Icon Description Includes configuration menu through which you can configure camera settings, network settings, storage settings, system settings, account settings, and view information.
  • Page 287 Icon Description Includes eight function tiles: LIVE, VIDEO, ALARM, IoT, AI, BACKUP, DISPLAY, and AUDIO. Click each tile to open the configuration interface of the tile. LIVE: You can perform the operations such as viewing real-time video,  configuring channel layout, setting PTZ controls, and using smart talk and instant record functions if needed.
  • Page 288: Faq

    1. DVR cannot boot up properly. There are following possibilities: Input power is not correct.  Power connection is not correct.  Power switch button is damaged.  Program upgrade is wrong.   HDD malfunction or something wrong with HDD jumper configuration. Seagate DB35.1,...
  • Page 289 There are following possibilities:  HDD jumper is damaged.  HDD is broken.  Upgraded program is not compatible.  The recorded file has been overwritten.  Record function has been disabled. 7. Video is distorted when searching local records. There are following possibilities: Video quality setup is too low.
  • Page 290  Sensitivity is too low.  For some versions, there is hardware limit. 13. Cannot log in client-end or web. There are following possibilities: For Windows 98 or Windows ME user, please update your system to Windows 2000 sp4.  Or you can install client-end software of lower version.
  • Page 291  Some program versions might have this problem. Please upgrade your system. 19. Alarm function is null. There are following possibilities: Alarm setup is not correct.  Alarm cable connection is not correct.  Alarm input signal is not correct. ...
  • Page 292  For the product supports analog standard definition camera/HD camera, you need to go to the Main Menu > CAMERA > CHANNEL TYPE to select corresponding channel type and then restart the DVR. 29. I cannot connect to the IP channel. There are following possibilities: Check the camera is online or not.
  • Page 293  Check the device P2P function is enabled or not. (Main menu->Setting->Network->P2P)  Check the device is in the WAN or not.  Check cell phone P2P login mode is right or not.  It is the specified device P2P login port or not when you are using P2P client. ...
  • Page 294: Glossary

    Appendix 1 Glossary The abbreviations in this glossary are related to the Manual. Abbreviations Full term Bayonet Nut Connector Constant Bit Rate Common Intermediate Format DDNS Dynamic Domain Name Service DHCP Dynamic Host Configuration Protocol Domain Name System Daylight Saving Time Digital Video Recorder File Transfer Protocol Hard Disk Drive...
  • Page 295 Abbreviations Full term Video Graphics Array Wide Area Network Glossary 284...
  • Page 296: Appendix 2 Hdd Capacity Calculation

    Appendix 2 HDD Capacity Calculation Calculate total capacity needed by each DVR according to video recording (video recording type and video file storage time). Step 1 According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit MB.
  • Page 297 Bit stream size(max) File size Bit stream size(max) File size 640Kbps 281MB 768Kbps 337MB 896Kbps 393MB 1024Kbps 450MB 1280Kbps 562MB 1536Kbps 675MB 1792Kbps 787MB 2048Kbps 900MB HDD Capacity Calculation 286...
  • Page 298: Appendix 3 Compatible Backup Devices

    Appendix 3 Compatible Backup Devices Appendix 3.1 Compatible USB list Manufacturer Model Capacity Sandisk Cruzer Micro 512MB Sandisk Cruzer Micro Sandisk Cruzer Micro Sandisk Cruzer Freedom 256MB Sandisk Cruzer Freedom 512MB Sandisk Cruzer Freedom Sandisk Cruzer Freedom DataTraveler Ⅱ Kingston DataTraveler Ⅱ...
  • Page 299: Appendix 3.2 Compatible Sd Card List

    Manufacturer Model Capacity Kingston Data Traveler Kingston Data Traveler 16GB Kingston Data Traveler 32GB Aigo L8315 16GB Sandisk 16GB Kingston Data Traveler Locker+ 32GB Netac U228 Appendix 3.2 Compatible SD Card list Manufacturer Standard Capacity Card type Transcend SDHC6 16GB Kingston SDHC4 Kingston...
  • Page 300: Appendix 3.6 Compatible Sata Hdd List

    Manufacturer Model Samsung TS-H653 Ver.A Samsung TS-H653 Ver.F Samsung SH-224BB/CHXH SONY DRU-V200S SONY DRU-845S SONY AW-G170S Pioneer DVR-217CH Appendix 3.6 Compatible SATA HDD List Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. Here we recommend HDD of 500GB to 4TB capacity.
  • Page 301 Manufacturer Series Model Capacity Port Mode Seagate SkyHawk HDD ST100000VX0004 10TB SATA Seagate SkyHawk HDD ST1000VX003 SATA (Support HDD data recovery offered by Seagate) Seagate (Support HDD data ST2000VX005 SATA recovery offered by Seagate) Seagate (Support HDD data ST3000VX005 SATA recovery offered by Seagate) Seagate...
  • Page 302 Manufacturer Series Model Capacity Port Mode TOSHIBA Mars DT01ABA300V SATA TOSHIBA Sonance MD03ACA200V SATA TOSHIBA Sonance MD03ACA300V SATA TOSHIBA Sonance MD03ACA400V SATA TOSHIBA Sonance MD04ABA400V SATA TOSHIBA Sonance MD04ABA500V SATA Seagate Constellation ES series ST1000NM0033 SATA (SATA interface) Seagate Constellation ES series ST2000NM0033 SATA (SATA interface)
  • Page 303 Manufacturer Series Model Capacity Port Mode Seagate Constellation ES series ST2000NM0045 SATA (SAS interface) Seagate Constellation ES series ST3000NM0025 SATA (SAS interface) Seagate Constellation ES series ST4000NM0025 SATA (SAS interface) Seagate Constellation ES series ST6000NM0095 SATA (SAS interface) Seagate Constellation ES series ST6000NM0034 SATA (SAS interface)
  • Page 304 Manufacturer Series Model Capacity Port Mode HITACHI Ultrastar series (SAS HUS726060AL5210 SATA interface) Seagate Pipeline HD Mini ST320VT000 320GB SATA Seagate Pipeline HD Mini ST500VT000 500GB SATA Seagate Pipeline HD Mini ST2000LM003 (EOL) SATA TOSHIBA 2.5-inch PC series MQ01ABD050V 500GB SATA TOSHIBA 2.5-inch PC series...
  • Page 305: Appendix 4 Compatible Cd/Dvd Burner List

    Appendix 4 Compatible CD/DVD Burner List Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And you can use the USB cable with the model recommended to set USB burner. Manufacturer Model Port Type Type Sony DRX-S50U...
  • Page 306: Appendix 5 Compatible Displayer List

    Appendix 5 Compatible Displayer List Please refer to the following table form compatible displayer list. Brand Model Dimension (Unit: inch) BENQ (LCD) ET-0007-TA 19-inch (wide screen) DELL (LCD) E178FPc 17-inch BENQ (LCD) Q7T4 17-inch BENQ (LCD) Q7T3 17-inch HFNOVO (LCD) LXB-L17C 17-inch SANGSUNG (LCD)
  • Page 307: Appendix 6 Compatible Switcher

    Appendix 6 Compatible Switcher Brand Model network working mode D-LinK DES-1016D 10/100M self-adaptive D-LinK DES-1008D 10/100M self-adaptive Five network modes: AUTO  HALF-10M  Ruijie RG-S1926S FULL-10M  HALF-100M   FULL-100M H3C-S1024 10/100M self-adaptive TP-LINK TL-SF1016 10/100M self-adaptive TP-LINK TL-SF1008+ 10/100M self-adaptive Compatible Switcher 296...
  • Page 308: Appendix 7 Earthing

    Appendix 7 Earthing Appendix 7.1 What Is the Surge Surge is a short current or voltage change during a very short time. In the circuit, it lasts for microsecond. In a 220V circuit, the 5KV or 10KV voltage change during a very short time (about microseconds) can be called a surge.
  • Page 309: Appendix 7.2 The Earthing Modes

    arrestor with the signal port, it can cut the channel of the thunderstorm to the device, and on the other hand, it can discharge the current to the ground to guarantee the device proper work. The signal lightning arrester has many specifications, and widely used in many devices such as telephone, network, analog communication, digital communication, cable TV and satellite antenna.
  • Page 310: Appendix 7.3 Thunder Proof Ground Method In The Monitor System

    Mixed ground: The mix ground consists of the feature of the one-point ground and  multiple-point ground. For example, the power in the system needs to use the one-point ground mode while the radio frequency signal requires the multiple-point ground. So, you can use the following figure to earth.
  • Page 311: Appendix 7.4 The Shortcut Way To Check The Electric System By Digital Multimeter

    more than 4mm  The monitor system usually can adopt the one-point ground.  Please connect the ground end of 3-pin socket in the monitor system to the ground port of the system (protection ground cable) Appendix 7.4 The Shortcut Way to Check the Electric System by Digital Multimeter For 220V AC socket, from the top to the bottom, E (ground cable), N (neutral cable), L(live cable).
  • Page 312 For L (live cable) Turn the digital multimeter to 750V AC, use your one hand to hold the metal end, and then the other hand insert the pen to the L port of the socket. See the following figure. If the multimeter shows 125, then you can see current live cable connection is standard.
  • Page 313 Earthing 302...
  • Page 314: Appendix 8 Rj45-Rs-232 Connection Cable Definition

    Appendix 8 RJ45-RS-232 Connection Cable Definition Here we are going to make standard RS-232 port and standard RJ45 (T568B). Please refer to the following figure for RJ45 cable definition. Please refer to the following figure for RS-232 pin definition. Cross Connection Please refer to the following figure for connection information.
  • Page 315 RJ45 (T568B) RJ45 (Network cable) RS-232 Signal Description Blue White and blue White and green ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com Website: www.dahuasecurity.com...
