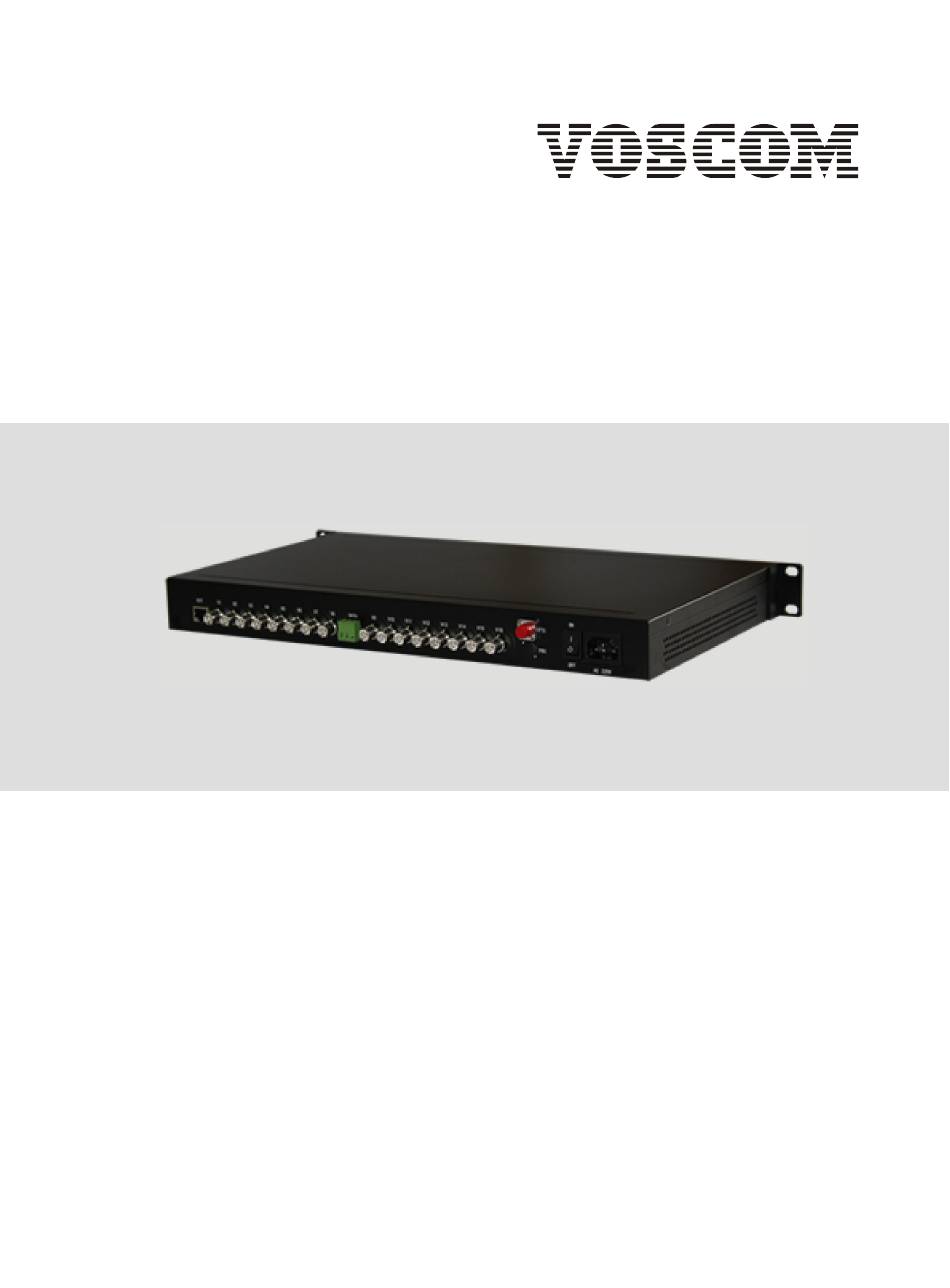

- Page 1 Installation Manual Fiber Optic Transmission Systems VOS-16010FBT/R series 16-Channel Video + 1 Return Rs485 Data VOSCOM TECHNOLOGIES CO.,LIMITED WWW.VOSCOM.COM...
-
Page 2: Important Safety Instructions
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Website:www.voscom.com... -
Page 3: Product Overview
16 x Vi deo 16 x Vi deo Monitor 1 Fiber optic Cable 1 x Return Data 1 x Return Data VOS-16010FBT VOS-16010FBR Transmitter Receiver 16 x PTZ Camera Keyboad Note: More detail specification please find in the datasheet or our website: www.voscom.com... - Page 4 Data Connector, 3 Pin Terminal Block, Data support one Return Rs485 Data. Transmitter (Rs485): One Return Rs485 Data Connection (Output) 1 2 3 Output Conect Data Rs485+ (A) Output - (B ) Conect Data Rs485 Output Conect Ground (GND) 3 Pin Terminal Block Website:www.voscom.com...
- Page 5 En_4 Panel & Cable Connection Receiver (Rs485): One return Rs485 Data Connection (Input) 1 2 3 Input Conect Data Rs485+ (A) Input - (B ) Conect Data Rs485 Input Conect Ground (GND) 3 Pin Terminal Block Data Control Zoom Data 1 2 3 Video Coax Ground / GND...
-
Page 6: Stand-Alone Installation
NOTE: Before mounting the VOS-16010FBT transmitter/VOS-16010FBR receiver, please ensure that there is adequate space at both ends for viewing the front-panel LEDs and for making the various rear-panel cable connections. Standard 19inch 1U Rack: 483mm 250mm 44.5mm Website:www.voscom.com... -
Page 7: Rack Mount Installation
Most modules require only a single slot width, but others, such as the 8-Ch video Series, require two slot widths. VOS-CH10: 19 inch 10U,14 video card slots, only suit for 16-channel video cards. Support two slide-in power supply AC100V~AC240V, one for redundancy. Typical Configurations: Website:www.voscom.com... -
Page 8: Troubleshooting
Not Light Incoming video signal powered on. to the video source. on Receiver is not present on the channel. Video source is not Check BNC connections. connected to the transmitter. Replace cable. Coaxial cable connected to the transmitter is defective. Website:www.voscom.com... - Page 9 Verify that losses in fiber A problem exists with optic cable do not exceed the optical power the optical power budget budget. specification of the fiber optic link. If the losses do exceed the optical power budget, contact Product Support. Website:www.voscom.com...
-
Page 10: Warranty Policy
All VOSCOM manufactured products are warranted to be free from defects in manufacturing and materials for the warranty term of 3 years. VOSCOM will repair or replace any equipment or parts proved to be defective during the term of the warranty. - Page 11 Warranty Policy Warranty repair/replacements Subject to the terms of the limited warranty in effect at the time of purchase, VOSCOM will repair or replace a product that fails to meet the terms provided, within the product's warranty period. The actual warranty period starts from either: a): The date of shipment from VOSCOM's facility (point of origin) b): The manufacturer's date code (if the shipment date is unknown).
- Page 12 User Manmual Network Cable with RJ-45 connector (If the product with RJ-45 port) Note: 1): VOSCOM reserves the right to change specifications without notice. 2): You can download the latest PDF document here: www.voscom.com 3): Online Technical Support please E-mail:support@voscom.com 4): More detail product information please E-mail: sales@voscom.com, or contact...
- Page 13 TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON. Distributor Information: Headquarters Information: VOSCOM TECHNOLOGIES CO., LIMITED Hangzhou , Zhejiang , P.R.CHINA 310004 Tel:+86-571-87389389 Fax:+86-571-87389390 Web:www.voscom.com E-Mail:sales@voscom.com...
