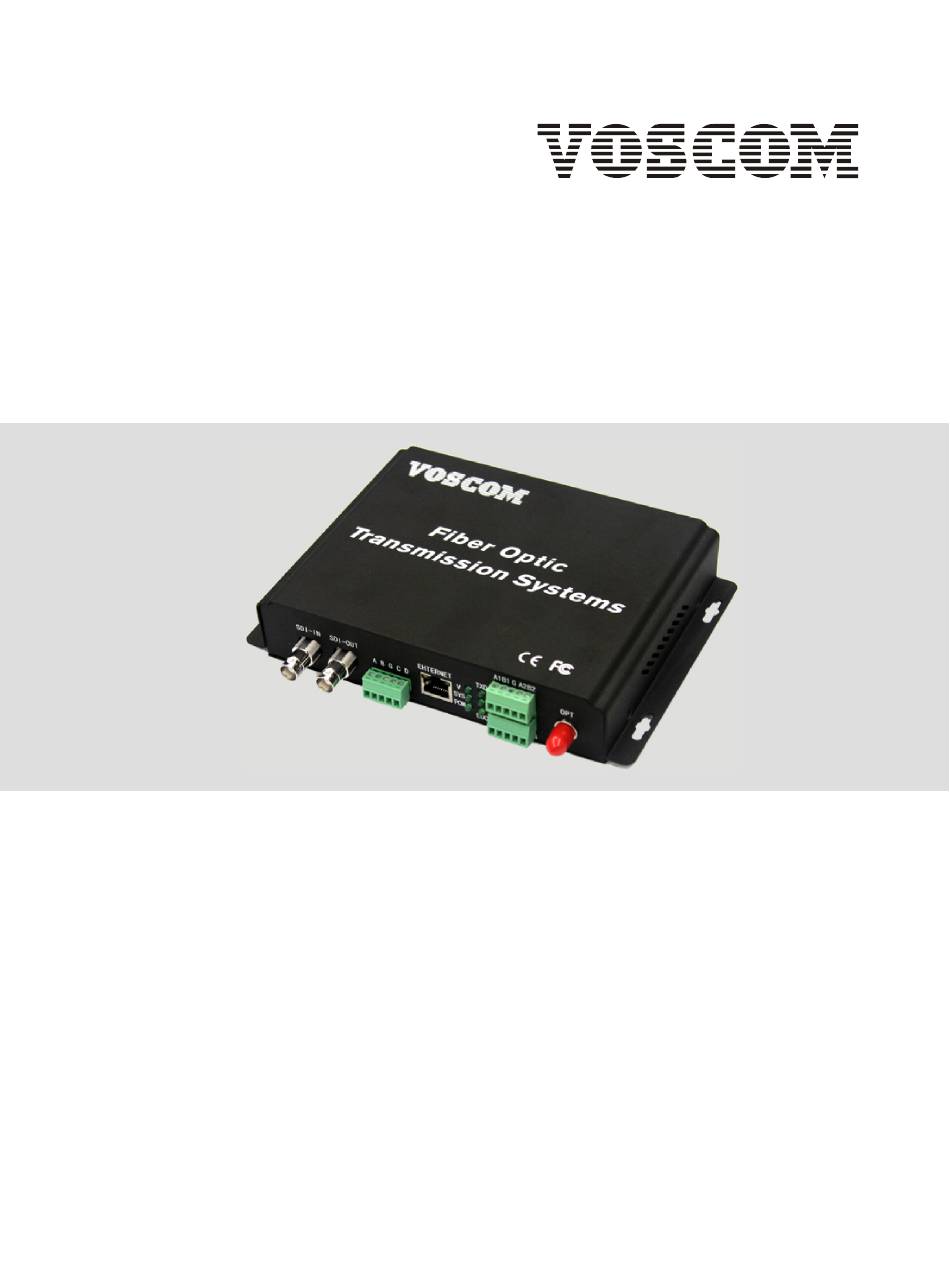

- Page 1 Installation Manual Fiber Optic Transmission Systems VOS-1HD-ADCET/R series 1-Channel HD-SDI + 2 Duplex Audio + 1 Duplex Data + 2 Simplex (or 1 Duplex) Contact Closure + IP Ethernet VOSCOM TECHNOLOGIES CO.,LIMITED WWW.VOSCOM.COM...
-
Page 2: Important Safety Instructions
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Website:www.voscom.com Website:www.voscom.com... -
Page 3: Product Overview
En_2 Product Overview The VOS-1HD-ADCET/R provides for the digital transmission of 1-Channel uncompressed 1.485Gbps HD-SDI (SMPTE 292) or 270 Mbps SD-SDI (SMPTE 259M) 1080P HD video over fiber, support 2 duplex analog audio, 1 duplex RS232 /RS485 data, 2 simplex or 1 duplex contact closure, and 1-channel 10M/100M IP Ethernet, also support one loopback output for local display, and dual outputs for two displays in the remote end. -
Page 4: Transmitter Front Panel
5-PIN Terminal Block Audio Connector: 2-Channel Duplex Analog Audio Input/Output. 5-PIN Terminal Block CC Connector: 2 Simplex or 1 duplex Contact Closure Input/Output. Fiber Optic Connector: support FC/PC or ST/PC optical connector. TRANSMITTER REAR PANEL DC5V Stand-alone Power supply Connector: DC5V 2A Input Website:www.voscom.com Website:www.voscom.com... -
Page 5: Receiver Front Panel
5-PIN Terminal Block Audio Connector: 2-Channel Duplex Analog Audio Input/Output. 5-PIN Terminal Block CC Connector: 2 Simplex or 1 duplex Contact Closure Input/Output. Fiber Optic Connector: support FC/PC or ST/PC optical connector. RECEIVER REAR PANEL DC5V Stand-alone Power supply Connector: DC5V 2A Input Website:www.voscom.com Website:www.voscom.com... -
Page 6: Data Connection
5 Pin Terminal Block Receiver (Data) : 1-Channel Duplex Rs232/Rs485 Data (Input/Output) Input/Output Conect Data Rs485+(A) Input/Output Conect Data Rs485-(B) Input/Output Conect Ground (GND) Input/Output Conect Data Rs232 TXD Input/Output Conect Data Rs232 RXD 5 Pin Terminal Block Website:www.voscom.com Website:www.voscom.com... -
Page 7: Audio Connection
5-Pin Terminal Block Receiver (Audio) 2-Channel Duplex Audio (Input/Output) Output 1st-Channel Audio Output Output 2nd-Channel Audio Output Input/Output Conect all GND to this PIN A3 B3 G A4 B4 Input 1st-Channel Audio Input Input 5-Pin Terminal Block 2nd-Channel Audio Input Website:www.voscom.com Website:www.voscom.com... - Page 8 En_7 Panel & Cable Connection 2-Channel Simplex Contact Closure Connection: NOTE: the device can support 2 simplex or 1 duplex contact closure, but it only can be configurated by factory, so you need to choose the configuration before the order. Transmitter (Contact Closure) 2-Channel Simplex CC Input Input...
- Page 9 En_8 Panel & Cable Connection 1-Channel Duplex Contact Closure Connection: NOTE: the device can support 2 simplex or 1 duplex contact closure, but it only can be configurated by factory, so you need to choose the configuration before the order. Transmitter (Contact Closure) 1-Ch Duplex CC Input/Output Output...
- Page 10 En_9 Panel & Cable Connection HD-SDI Source with PTZ Mount HD-SDI Video Input HD-SDI TRANSMMITTER SDI-IN Display Local Loopback Output SDI-OUT 1-Channel Duplex RS-232/RS-485 Data DATA IP Ethernet Ethernet Audio IN/OUT Audio IN/OUT 2-Channel Duplex Audio Contact Closure IN/OUT DC5V 2A 2-Ch Simplex Contact Closure Power Supply Or 1-Ch Duplex Contact Closure...
-
Page 11: Stand-Alone Installation
NOTE: Before mounting the VOS-1HD-ADCET transmitter/ VOS-1HD-ADCER receiver, please ensure that there is adequate space at both ends for viewing the front-panel LEDs and for making the various rear-panel cable connections. Stand-alone Mounting Size: 200mm x 135mm x 38mm Website:www.voscom.com Website:www.voscom.com... -
Page 12: Rack Mount Installation
Most modules require only a single slot width, but others, such as the 8-Ch video Series, require two slot widths. VOS-CH04-HD16: 19 inch 4U,16 video card slots, suit for VGA, DVI, HD-SDI, 3G-SDI video cards. Support two slide-in power supply AC100V~AC240V, one for redundancy. Typical Configurations: Website:www.voscom.com Website:www.voscom.com... -
Page 13: Troubleshooting
Not Light Incoming video signal powered on. to the video source. on Receiver is not present on the channel. Video source is not Check BNC connections. connected to the transmitter. Replace cable. Coaxial cable connected to the transmitter is defective. Website:www.voscom.com... - Page 14 Verify that losses in fiber A problem exists with optic cable do not exceed the optical power the optical power budget budget. specification of the fiber optic link. If the losses do exceed the optical power budget, contact Product Support. Website:www.voscom.com...
-
Page 15: Warranty Policy
All VOSCOM manufactured products are warranted to be free from defects in manufacturing and materials for the warranty term of 3 years. VOSCOM will repair or replace any equipment or parts proved to be defective during the term of the warranty. - Page 16 Warranty Policy Warranty repair/replacements Subject to the terms of the limited warranty in effect at the time of purchase, VOSCOM will repair or replace a product that fails to meet the terms provided, within the product's warranty period. The actual warranty period starts from either: a): The date of shipment from VOSCOM's facility (point of origin) b): The manufacturer's date code (if the shipment date is unknown).
- Page 17 Power Adapter User Manmual Note: 1): VOSCOM reserves the right to change specifications without notice. 2): You can download the latest PDF document here: www.voscom.com 3): Online Technical Support please E-mail:support@voscom.com 4): More detail product information please E-mail: sales@voscom.com, or contact with our sales staff.
- Page 18 TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON. Distributor Information: Headquarters Information: VOSCOM TECHNOLOGIES CO., LIMITED Hangzhou , Zhejiang , P.R.CHINA 310004 Tel:+86-571-87389389 Fax:+86-571-87389390 Web:www.voscom.com E-Mail:sales@voscom.com...
