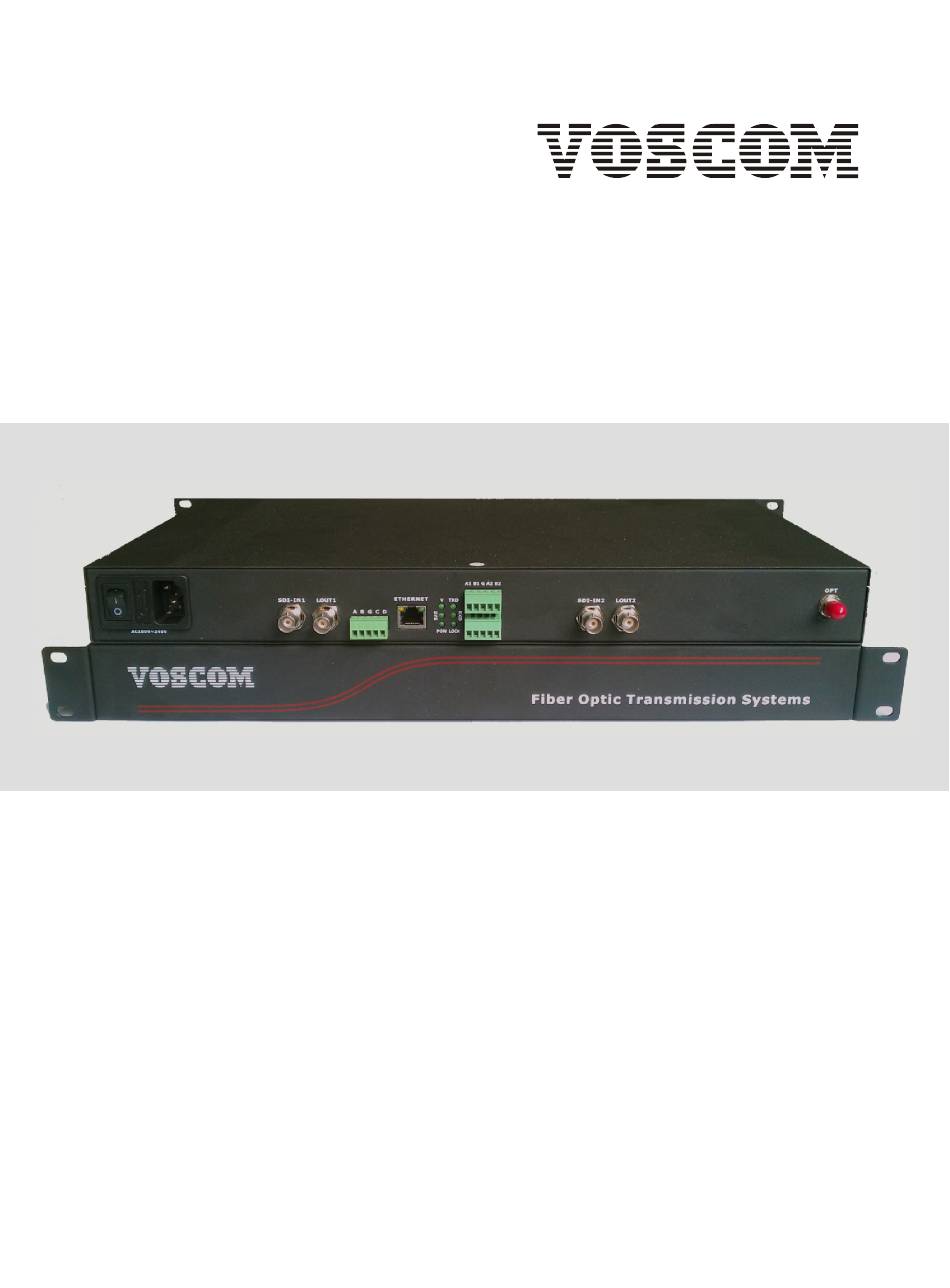

- Page 1 Installation Manual 19inch 1U Rack version Fiber Optic Transmission Systems VOS-1DH3G-ADCET/R series 1-Channel Duplex 3G-SDI + 2 Duplex Analog Audio + 1 Duplex RS232/485 Data + IP Ethernet + 2 Simplex (or 1 Duplex) Contact Closure VOSCOM TECHNOLOGIES CO.,LIMITED WWW.VOSCOM.COM...
-
Page 2: Important Safety Instructions
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Website:www.voscom.com Website:www.voscom.com... -
Page 3: Product Overview
3G-SDI Data Models and Optical Power Budget: Model Number Optical Maximum Fiber Mode Wavelengths Power Transmission Budget Distance Transmitter Receiver VOS-1DH3G-ADCEMT VOS-1DH3G-ADCEMR Multi-Mode 1310nm/1550nm 16dB 300m Single-Mode 1310nm/1550nm VOS-1DH3G-ADCEST VOS-1DH3G-ADCESR 12dB 20km Note: • The Optical Power Budget data fit Mulit-mode(62.5/125 m),Single-Mode(9/125 •... -

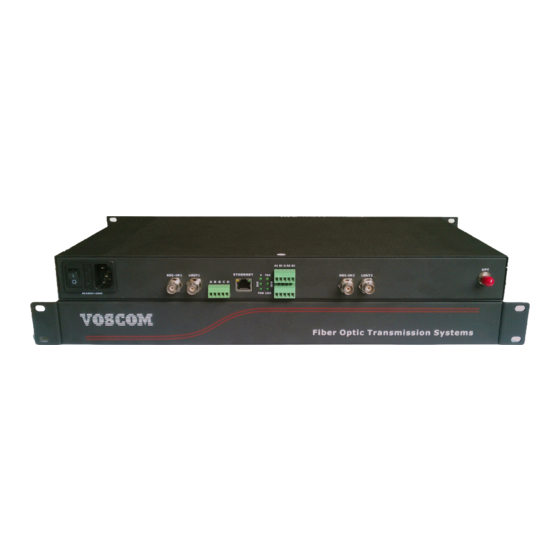

Page 4: Transmitter Front Panel
5-PIN Terminal Block CC Connector: 2 Simplex or 1 duplex Contact Closure Input/Output. Fiber Optic Connector: support FC/PC or ST/PC optical connector. Power supply Connector: AC100V~240V Input TRANSMITTER REAR PANEL Fiber Optic Transmission Systems 19inch, 1U Rack-mount Transmitter. Website:www.voscom.com Website:www.voscom.com... -
Page 5: Receiver Front Panel
5-PIN Terminal Block CC Connector: 2 Simplex or 1 duplex Contact Closure Input/Output. Fiber Optic Connector: support FC/PC or ST/PC optical connector. Power supply Connector: AC100V~240V Input RECEIVER REAR PANEL Fiber Optic Transmission Systems 19inch, 1U Rack-mount Receiver Website:www.voscom.com Website:www.voscom.com... -
Page 6: Data Connection
5 Pin Terminal Block Receiver (Data) : 1-Channel Duplex Rs232/Rs485 Data (Input/Output) Input/Output Conect Data Rs485+(A) Input/Output Conect Data Rs485-(B) Input/Output Conect Ground (GND) Input/Output Conect Data Rs232 TXD Input/Output Conect Data Rs232 RXD 5 Pin Terminal Block Website:www.voscom.com Website:www.voscom.com... -
Page 7: Audio Connection
5-Pin Terminal Block Receiver (Audio) 2-Channel Duplex Audio (Input/Output) Output 1st-Channel Audio Output Output 2nd-Channel Audio Output Input/Output Conect all GND to this PIN A3 B3 G A4 B4 Input 1st-Channel Audio Input Input 5-Pin Terminal Block 2nd-Channel Audio Input Website:www.voscom.com Website:www.voscom.com... - Page 8 En_7 Panel & Cable Connection 2-Channel Simplex Contact Closure Connection: NOTE: the device can support 2 simplex or 1 duplex contact closure, but it only can be configurated by factory, so you need to choose the configuration before the order. Transmitter (Contact Closure) 2-Channel Simplex CC Input Input...
- Page 9 En_8 Panel & Cable Connection 1-Channel Duplex Contact Closure Connection: NOTE: the device can support 2 simplex or 1 duplex contact closure, but it only can be configurated by factory, so you need to choose the configuration before the order. Transmitter (Contact Closure) 1-Ch Duplex CC Input/Output Output...
- Page 10 En_9 Panel & Cable Connection 3G-SDI TRANSMMITTER A1 B 1 G A2 B2 SDI-OUT4 LOUT1 ETHERNET SDI-OUT3 SDI-IN1 SYS RXD AC100V~240V POW LOCK A3 B 3 G A4 B4 Power Supply Display Duplex Data Contact Closure 3G/HD-SDI Source with PTZ Mount Display Display 3G-SDI Output 3G-SDI Output...
-
Page 11: Stand-Alone Installation
NOTE: Before mounting the VOS-1DH3G-ADCET transmitter/ VOS-1DH3G-ADCER receiver, please ensure that there is adequate space at both ends for viewing the front-panel LEDs and for making the various rear-panel cable connections. Standard 19inch 1U Rack: 483mm x 250mm x 44.5mm Website:www.voscom.com Website:www.voscom.com... -
Page 12: Troubleshooting
Not Light Incoming video signal powered on. to the video source. on Receiver is not present on the channel. Video source is not Check BNC connections. connected to the transmitter. Replace cable. Coaxial cable connected to the transmitter is defective. Website:www.voscom.com... - Page 13 Verify that losses in fiber A problem exists with optic cable do not exceed the optical power the optical power budget budget. specification of the fiber optic link. If the losses do exceed the optical power budget, contact Product Support. Website:www.voscom.com...
-
Page 14: Warranty Policy
All VOSCOM manufactured products are warranted to be free from defects in manufacturing and materials for the warranty term of 3 years. VOSCOM will repair or replace any equipment or parts proved to be defective during the term of the warranty. - Page 15 Warranty Policy Warranty repair/replacements Subject to the terms of the limited warranty in effect at the time of purchase, VOSCOM will repair or replace a product that fails to meet the terms provided, within the product's warranty period. The actual warranty period starts from either: a): The date of shipment from VOSCOM's facility (point of origin) b): The manufacturer's date code (if the shipment date is unknown).
- Page 16 Power Adapter User Manmual Note: 1): VOSCOM reserves the right to change specifications without notice. 2): You can download the latest PDF document here: www.voscom.com 3): Online Technical Support please E-mail:support@voscom.com 4): More detail product information please E-mail: sales@voscom.com, or contact with our sales staff.
- Page 17 TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON. Distributor Information: Headquarters Information: VOSCOM TECHNOLOGIES CO., LIMITED Hangzhou , Zhejiang , P.R.CHINA 310004 Tel:+86-571-87389389 Fax:+86-571-87389390 Web:www.voscom.com E-Mail:sales@voscom.com...
