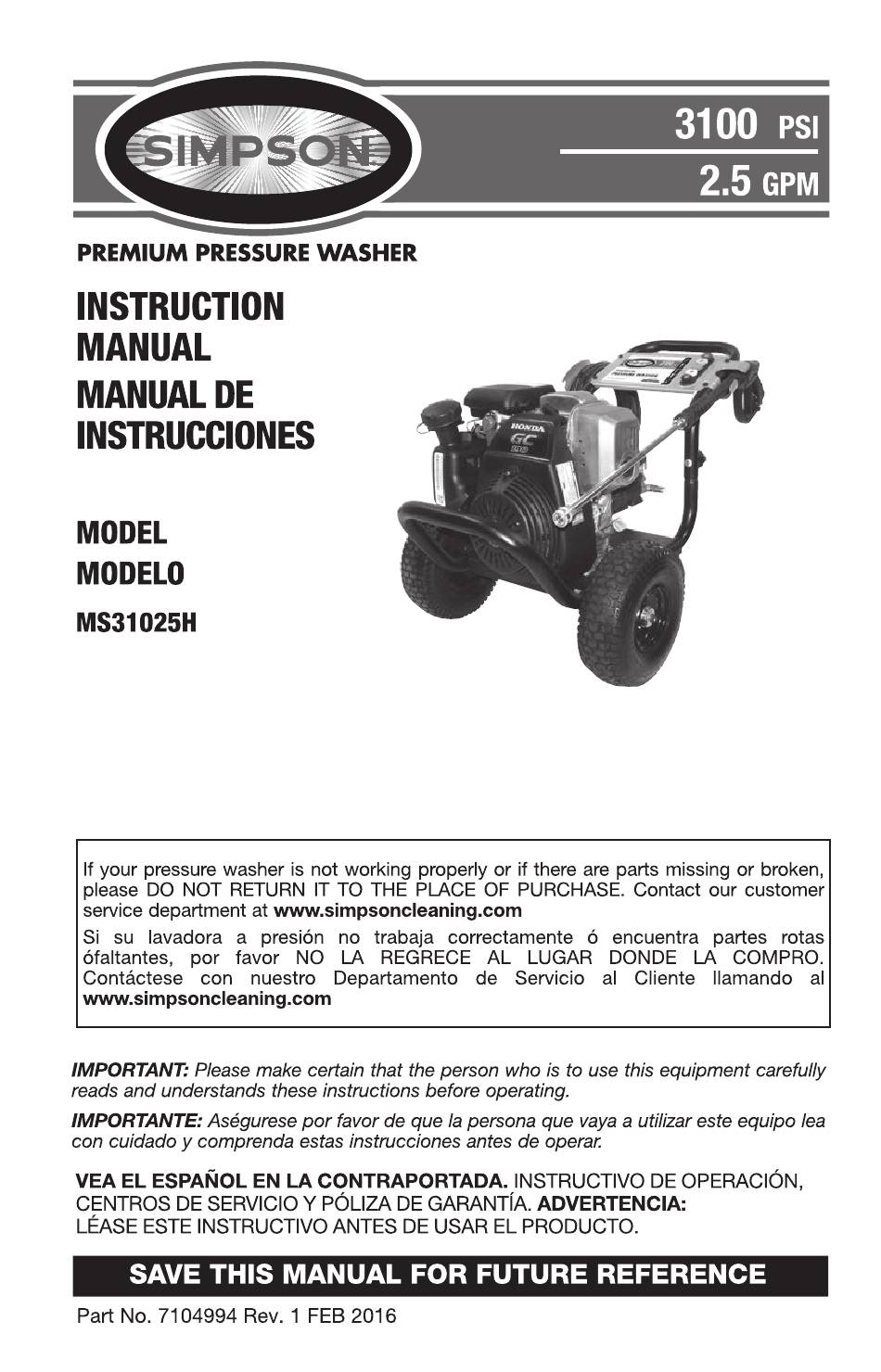

- Page 1 Please contact us for further information at www.allpartsinc.com...
-
Page 2: Safety Guidelines - Definitions
SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these symbols. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. - Page 3 WARNING: This product may not be equipped with a spark-arresting muffler. If the product is not equipped and will be used around flam ma ble ma teri als or on land covered with materials such as agricultural crops, forest, brush, grass or other similar items, then an ap proved spark arrester must be installed and is legally required in the state of California.
- Page 4 DANGER: RISK TO BREATHING (ASPHYXIATION) WHAT CAN HAPPEN HOW TO PREVENT IT • Breathing ex haust fumes will cause • Operate pressure washer in a well- se ri ous injury or death! En gine ventilated area. Avoid en closed areas exhaust contains carbon mon ox ide, such as ga rages, base ments, etc.
- Page 5 DANGER: RISK OF INJURY FROM SPRAY WHAT CAN HAPPEN HOW TO PREVENT IT • High-velocity fluid spray can cause • Always wear ANSI-approved Z87.1 objects to break, propelling particles safety glasses. Wear protective clothing at high speed. to protect against accidental spraying. •...
- Page 6 DANGER: RISK OF INJURY OR PROP ER TY DAMAGE WHEN TRANSPORTING OR STORING WHAT CAN HAPPEN HOW TO PREVENT IT • Fuel or oil can leak or spill and could • If pressure washer is equipped with a fuel result in fire or breathing hazard. Se ri- shut-off valve, turn the valve to the OFF ous in ju ry or death can re sult.
- Page 7 WARNING: RISK OF HOT SURFACES WHAT CAN HAPPEN HOW TO PREVENT IT • Con tact with hot sur fac es, such as • During op er a tion, touch only the control engines exhaust com po nents, could surfaces of the pres sure washer. Keep result in se ri ous burn.
- Page 8 QUICK SETUP GUIDE WARNING: To reduce the risk of injury, read the pressure washer instruction manual and the engine instruction manual before operating pressure washer. Install the Handle Add/Check Oil Add Gasoline Slide the handle The engine is In a well ventilated assembly onto shipped without outdoor area...
- Page 9 Connect Spray Turn Water Connect QC Wand to Spray Nozzles to Spray Faucet Completely On Wand Thread the spray wand into Do not run the unit Pull quick connect cou- the end of the spray gun. pler back and insert without water supply connected and turned on.
- Page 10 GET TO KNOW THE PRESSURE WASHER NOTE: Photographs and line drawings used in this manual are for reference only and do not represent a specific model. Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. BASIC ELEMENTS OF A PRESSURE WASHER (FIG.
- Page 11 G. Handle H. Frame Pump Outlet Pump Inlet K. Quick Connect Nozzles Nozzle Holder BASIC ELEMENTS OF AN ENGINE Refer to the engine manual for location and operation of engine controls. Choke Control: Opens and closes carburetor choke valve. Starter Grip: Pulling starter grip operates recoil starter to crank engine. Engine Switch: Enables and disables ignition system.
-
Page 12: Operation
NOTICE: The engine is shipped without oil. Before starting engine, add the oil provided. Damage to the engine will occur if the engine is run without oil, this damage will not be covered under warranty. OPERATION PRESSURE WASHER TERMINOLOGY PSI: Pounds per Square Inch. The unit of measure for water pressure. Also used for air pressure, hydraulic pressure, etc. - Page 13 WARNING: Flying objects could cause risk of serious injury. Do not attempt to change nozzles while pressure washer is running. Turn engine off before changing nozzles. Pull quick-connect coupler (E) back and insert nozzle (K). Release quick-connect coupler and twist nozzle to make sure it is secure in coupler.
- Page 14 To Apply Chemicals: Ensure detergent siphon hose (F, Figure 7) is attached to barbed fitting location near high pressure hose connection of pump as shown. Place other end of detergent siphon hose with filter on it into container holding chemical/cleaning solution.
- Page 15 If you do not understand these precautions, please contact our customer service department at www.simpsoncleaning.com Prior to starting, refer to your engine manual for proper starting procedure. In a well ventilated outdoor area add fresh, high quality, unleaded gasoline with a pump octane rating of 86 or higher. Do not overfill. Wipe up spilled fuel before starting the engine.
-
Page 16: Shutting Down
WARNING: Risk of injury from spray. Always engage the trigger lock (O) when gun is not in use. Failure to do so could cause accidental spraying. SHUTTING DOWN After each use, if you have applied chemicals, place detergent siphon hose into container of clean water and draw clean water through chemical injection system to rinse system thoroughly. -
Page 17: Pressure Washer
Shut off the pressure washer and turn off the water supply. Pull trigger on gun handle to relieve any water pressure. Disconnect the spray wand from the gun. Remove the high-pressure nozzle (K) from the spray wand. Remove any obstructions with the nozzle cleaning tool provided and backflush with clean water. -
Page 18: Specifications
NOTICE: The use of any other accessory not recommended for use with this tool could be hazardous. Use only accessories rated equal to or greater than the rating of the pressure washer. SPECIFICATIONS MS31025H MODEL PSI Max* 3100 psi GPM Max* 2.5 gpm... - Page 19 The engine warranty is covered under the terms and conditions as outlined by the engine manufacture’s warranty contained herein and is sole responsibility of the engine manufacturer. RESPONSIBILITY OF ORIGINAL PURCHASER (INITIAL USER): SIMPSON • To process a warranty claim on your ®...
-
Page 20: Troubleshooting Guide
TROUBLE SHOOTING GUIDE OPERATIONAL POSSIBLE CAUSE SOLUTION ISSUE Engine will No fuel Add fresh fuel not start (see Pressure builds up after Squeeze gun trigger to relieve Engine Manual two pulls on the recoil pres sure for further starter or after initial use engine Choke lever in the "No Move choke to the "Choke"... - Page 21 OPERATIONAL POSSIBLE CAUSE SOLUTION ISSUE See How to Use Spray Wand Will not draw Spray wand not in chemicals low pressure paragraph in the Operation Section Chemical filter clogged Clean filter Chemical screen not Make sure end of detergent in cleaning solution siphon hose is fully submerged into cleaning solution Chemical too thick...
- Page 22 Please contact us for further information at www.allpartsinc.com...
